This abstract interface is the basis for all metadata nodes. More...

#include <H3D/X3DMetadataObject.h>

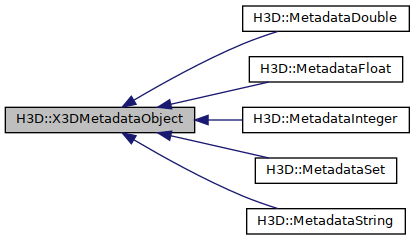

Inheritance diagram for H3D::X3DMetadataObject:

Public Member Functions
	X3DMetadataObject (Inst< SFString > _name=0, Inst< SFString > _reference=0)
	Constructor.

virtual	~X3DMetadataObject ()
	Force polymorphic E.g., to allow dynamic_cast to concrete metadata types.

virtual X3DMetadataObject *	getMetadataByName (const string &name)
	Given a name, the first X3DMetadataObject that matches that name is returned. More...

Public Attributes
H3DUniquePtr< SFString >	nameF
	Metadata name. More...

H3DUniquePtr< SFString >	reference
	The specification of the reference field is optional. More...

Detailed Description

This abstract interface is the basis for all metadata nodes.

The interface is inherited by all metadata nodes. The specification of the reference field is optional. If provided, it identifies the metadata standard or other specification that defines the name field. If the reference field is not provided or is empty, the meaning of the name field is considered implicit to the characters in the string.

Member Function Documentation

◆ getMetadataByName()

X3DMetadataObject * X3DMetadataObject::getMetadataByName ( const string & name )

virtual

Given a name, the first X3DMetadataObject that matches that name is returned.

If no such X3DMetadataObject exists, NULL is returned.

Parameters

name	The name of the X3DMetadataObject to get.

Returns: The first X3DMetadataObject in the metadata field that matches that name if it exists, NULL otherwise

Reimplemented in H3D::MetadataSet.

References nameF.

Referenced by H3D::X3DNode::getMetadataByName().

Member Data Documentation

◆ nameF

H3DUniquePtr< SFString > H3D::X3DMetadataObject::nameF

Metadata name.

Access type: inputOutput

Referenced by H3D::MetadataSet::getMetadataByName(), and getMetadataByName().

◆ reference

H3DUniquePtr< SFString > H3D::X3DMetadataObject::reference

The specification of the reference field is optional.

If provided, it identifies the metadata standard or other specification that defines the name field.
