H3D::SFieldClass Class Reference

Base class for all fields created with the SField template. More...

#include <H3D/SField.h>

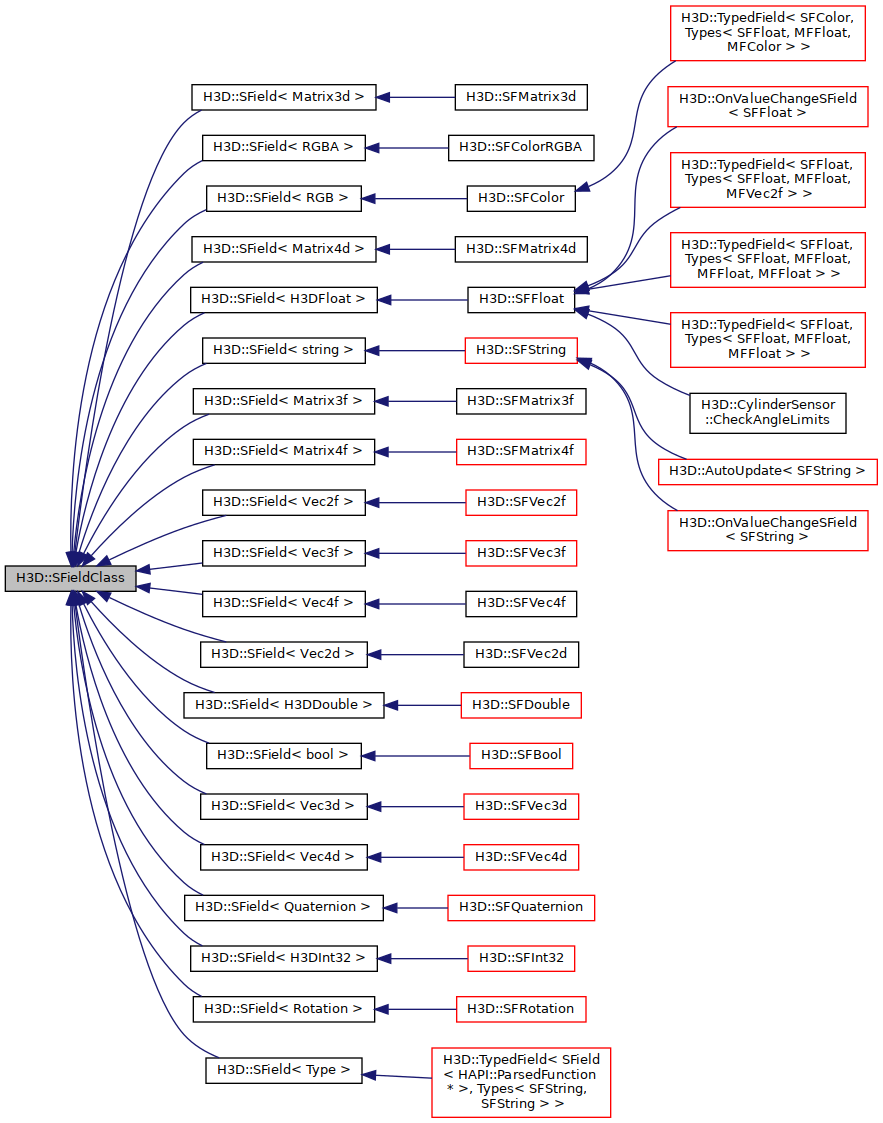

Inheritance diagram for H3D::SFieldClass:

Public Member Functions
virtual	~SFieldClass ()
	Virtual destructor.
virtual int	setValueFromVoidPtr (void *data, unsigned int size, int id=0)
virtual int	getValueAsVoidPtr (void *data, unsigned int size, int id=0)=0
	Get the value of the data copied into a memory buffer. More...
virtual unsigned int	valueTypeSize ()=0
	Returns the size in bytes of the value type the sfield encapsulates.
virtual int	setValueFromVoidPtr (const void *data, unsigned int size, int id=0)=0
	Set the value of the field given a pointer to where the value of the field is. More...

Detailed Description

Base class for all fields created with the SField template.

Member Function Documentation

getValueAsVoidPtr()

virtual int H3D::SFieldClass::getValueAsVoidPtr ( void *  data, unsigned int  size, int  id = 0  )

pure virtual

Get the value of the data copied into a memory buffer.

Parameters

data	Buffer to copy the data into.
size	The size of the buffer.
id	Id of the node calling this function. Used to check access type.

Returns

If successful: The number of bytes that was copied into the Otherwise -1.

Implemented in H3D::SField< Type >, H3D::SField< Matrix3d >, H3D::SField< RGBA >, H3D::SField< RGB >, H3D::SField< Matrix4d >, H3D::SField< H3DFloat >, H3D::SField< string >, H3D::SField< Matrix3f >, H3D::SField< Matrix4f >, H3D::SField< Vec2f >, H3D::SField< Vec3f >, H3D::SField< Vec4f >, H3D::SField< Vec2d >, H3D::SField< H3DDouble >, H3D::SField< bool >, H3D::SField< Vec3d >, H3D::SField< Vec4d >, H3D::SField< Quaternion >, H3D::SField< H3DInt32 >, and H3D::SField< Rotation >.

setValueFromVoidPtr() [1/2]

virtual int H3D::SFieldClass::setValueFromVoidPtr ( const void *  data, unsigned int  size, int  id = 0  )

pure virtual

Set the value of the field given a pointer to where the value of the field is.

Parameters

data	A pointer to the data.
size	The size in bytes of the value stored in data.
id	Id of the node calling this function. Used to check access type.

Returns

0 if successful, -1 otherwise.

Implemented in H3D::SField< Type >, H3D::SField< Matrix3d >, H3D::SField< RGBA >, H3D::SField< RGB >, H3D::SField< Matrix4d >, H3D::SField< H3DFloat >, H3D::SField< string >, H3D::SField< Matrix3f >, H3D::SField< Matrix4f >, H3D::SField< Vec2f >, H3D::SField< Vec3f >, H3D::SField< Vec4f >, H3D::SField< Vec2d >, H3D::SField< H3DDouble >, H3D::SField< bool >, H3D::SField< Vec3d >, H3D::SField< Vec4d >, H3D::SField< Quaternion >, H3D::SField< H3DInt32 >, and H3D::SField< Rotation >.

setValueFromVoidPtr() [2/2]

virtual int H3D::SFieldClass::setValueFromVoidPtr ( void *  data, unsigned int  size, int  id = 0  )

inlinevirtual

Deprecated:

Use the version of this function which takes const void *

---

The documentation for this class was generated from the following file:

• SField.h
