Template class that adds the Field mechanisms to an encapsulated value of specified type. More...
#include <H3D/SField.h>

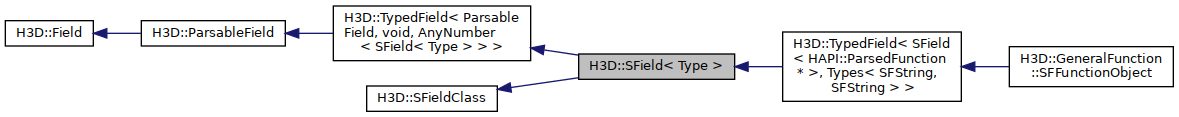

Inheritance diagram for H3D::SField< Type >:
Public Types | |
| typedef Type | value_type |
| The type of the value member. | |
 Public Types inherited from H3D::Field | |
| enum | AccessType { INITIALIZE_ONLY , OUTPUT_ONLY , INPUT_ONLY , INPUT_OUTPUT } |
| The different access types that a field can have. More... | |
Public Member Functions | |
| SField () | |
| Constructor. | |
| SField (const Type &_value) | |
| Constructor. | |
| virtual int | setValueFromVoidPtr (const void *data, unsigned int len, int id=0) |
| Set the value of the field given a pointer to where the value of the field is. More... | |
| virtual int | getValueAsVoidPtr (void *data, unsigned int len, int id=0) |
| Get the value of the data copied into a memory buffer. More... | |
| virtual unsigned int | valueTypeSize () |
| Returns the size in bytes of the value type the sfield encapsulates. | |
| virtual void | setValue (const Type &v, int id=0) |
| Set the value of the field. | |
| virtual const Type & | getValue (int id=0) |
| Get the value of the field. | |
| virtual void | setValueFromString (const string &s) |
| Set the value of the field given a string. More... | |
| virtual string | getValueAsString (const string &=" ") |
| Get the value of the field as a string. | |
| virtual string | getTypeName () |
| Returns a string name for this field type e.g. SFInt32. | |
| Public Member Functions inherited from H3D::Field | |
| Field () | |
| Constructor. | |
| virtual | ~Field () |
| Destructor. | |
| void | setName (string _name) |
| Sets local the name of the field. Will be used in error reporting. | |
| string | getName () |
| Gets the name of the field. | |
| string | getFullName () |
| Get the full name of the field including the name of the owner node if it exists (ownername.fieldname). More... | |
| virtual X3DTypes::X3DType | getX3DType () |
| Returns the X3DType of the field. | |
| virtual void | route (Field *, int id=0) |
| Set up a route from this field to the field given as argument. More... | |
| virtual void | routeNoEvent (Field *, int id=0) |
| Set up a route from this field to the field given as argument. More... | |
| virtual void | unroute (Field *) |
| Remove the route from this field to the field given as argument. | |
| virtual Field * | replaceRoute (Field *f, unsigned int i, int id=0) |
| Replace the i:th route to f with a route from this field. More... | |
| virtual Field * | replaceRouteNoEvent (Field *f, unsigned int i, int id=0) |
| Replace the i:th route to f with a route from this field. More... | |
| template<class F > | |
| void | route (H3DUniquePtr< F > &f, int id=0) |
| Set up a route from this field to the field residing in the H3DUniquePtr given as argument. More... | |
| template<class F > | |
| void | routeNoEvent (H3DUniquePtr< F > &f, int id=0) |
| Set up a route from this field to the field residing in the H3DUniquePtr given as argument. More... | |
| template<class F > | |
| void | unroute (H3DUniquePtr< F > &f) |
| Remove the route from this field to the field residing in the H3DUniquePtr given as argument. | |
| void | unrouteAll () |
| Remove all the routes from this field. | |
| virtual void | upToDate () |
| Check that the field is up-to-date, if not update() is called to make it up-to-date. | |
| bool | isUpToDate () |
| Returns true if the field is up to date, i.e. More... | |
| virtual void | touch () |
| Generates an event from this field. | |
| Node * | getOwner () |
| Get the Node that contains this field. | |
| void | setOwner (Node *n) |
| Set the Node that contains this field. | |
| void | setAccessType (AccessType _access_type) |
| Set the access type of the field. | |
| AccessType | getAccessType () |
| Get the access type of the field. | |
| bool | routesTo (Field *f) |
| Returns true if this field is routed to the field given as argument. | |
| bool | hasRouteFrom (Field *f) |
| Returns true if the field given as argument is routed to this field. | |
| const FieldVector & | getRoutesIn () |
| Get the Fields that are routed to this Field. | |
| const FieldSet & | getRoutesOut () |
| Get the Fields this Field is routed to. | |
| const Event & | getLatestEvent () |
| Get the latest event. | |
| void | setAccessCheck (bool on) |
| Set access type checking on or off. More... | |
| bool | isAccessCheckOn () |
| Returns true if checking of access types is on. | |
| Public Member Functions inherited from H3D::SFieldClass | |
| virtual | ~SFieldClass () |
| Virtual destructor. | |
| virtual int | setValueFromVoidPtr (void *data, unsigned int size, int id=0) |
Static Public Member Functions | |
| static string | classTypeName () |
| Returns a string name for this field type e.g. SFInt32. | |
| Static Public Member Functions inherited from H3D::Field | |
| static string | classTypeName () |
| Returns a string name for this field type. More... | |
Protected Member Functions | |
| virtual void | update () |
| Make the field up to date given that an event has occured. | |
| Protected Member Functions inherited from H3D::TypedField< ParsableField, void, AnyNumber< SField< Type > > > | |
| void | checkFieldType (Field *f, int index) |
| Function for checking that a field is of a correct type given type specification according to the TypedField template arguments. More... | |
| void | checkTemplateArguments () |
| Function for checking that a field given TypedField type specification is valid. More... | |
| Protected Member Functions inherited from H3D::Field | |
| virtual void | startEvent () |
| Start a new event from this field. More... | |
| virtual void | propagateEvent (Event e) |
| Propagates an event to all Fields we are routed to. More... | |
| virtual void | routeFrom (Field *, int id) |
| Set up a route to this field from the field given as argument. | |
| virtual void | unrouteFrom (Field *) |
| Remove the route to this field from the field given as argument. | |
| virtual Field * | replaceRouteFrom (Field *f, unsigned int i, int id) |
| Replace the i:th route to this field with the field given as argument. | |
| void | checkAccessTypeRoute (Field *f, int id) |
| Check the access type is correct for performing a route from this field to f. More... | |
| void | checkAccessTypeRouteFrom (Field *f, int id) |
| Check the access type is correct for performing a route from f to this field. More... | |
| void | checkAccessTypeGet (int id) |
| Check the access type is valid for getting the value of a field. More... | |
| void | checkAccessTypeSet (int id) |
| Check the access type is valid for changing the value of a field. More... | |
| int | ownerId () |
| Gets the id of the owner node, -1 if no owner. | |
| bool | isProgramSetting () |
| Returns true if this field is part of program settings fields. More... | |
| void | markProgramSetting (bool used_as_setting) |
| Set it this field is used by program settings fields in scene or not. | |
Protected Attributes | |
| Type | value |
| The encapsulated value. | |
| Protected Attributes inherited from H3D::Field | |
| string | name |
| The name of the field. | |
| bool | event_lock |
| If true, stops events from being propagated. More... | |
| bool | update_lock |
| If true, stops the update() function from being called in the upToDate() function. | |
| FieldSet | routes_out |
| The Fields that this field is routed to. | |
| FieldVector | routes_in |
| The Field that are routed to this field. | |
| Event | event |
| The last event that happened. | |
| Node * | owner |
| The node that contain this field. More... | |
| AccessType | access_type |
| The type of access to the field. | |
| bool | access_check_on |
| If true, access type checks will be done when getting/setting values and setting up routes. More... | |
Detailed Description
template<class Type>
class H3D::SField< Type >
Template class that adds the Field mechanisms to an encapsulated value of specified type.
- Parameters
-
Type The type of the value.
Member Function Documentation
◆ getValueAsVoidPtr()
template<class Type >
|
inlinevirtual |
Get the value of the data copied into a memory buffer.
- Parameters
-
data Buffer to copy the data into. len The size of the buffer. id Id of the node calling this function. Used to check access type.
- Returns
- If successful: The number of bytes that was copied into the Otherwise -1.
Implements H3D::SFieldClass.
References H3D::SField< Type >::getValue().
◆ setValueFromString()
template<class Type >
|
inlinevirtual |
Set the value of the field given a string.
By default we try to parse the values according to the X3D/XML specification.
Implements H3D::ParsableField.
References H3D::SField< Type >::setValue().
◆ setValueFromVoidPtr()
template<class Type >
|
inlinevirtual |
Set the value of the field given a pointer to where the value of the field is.
- Parameters
-
data A pointer to the data. len The size in bytes of the value stored in data. id Id of the node calling this function. Used to check access type.
- Returns
- 0 if successful, -1 otherwise.
Implements H3D::SFieldClass.
References H3D::SField< Type >::setValue().
The documentation for this class was generated from the following file:
