Node is the base class for all classes that can be part of the H3D scene-graph. More...

#include <H3D/Node.h>

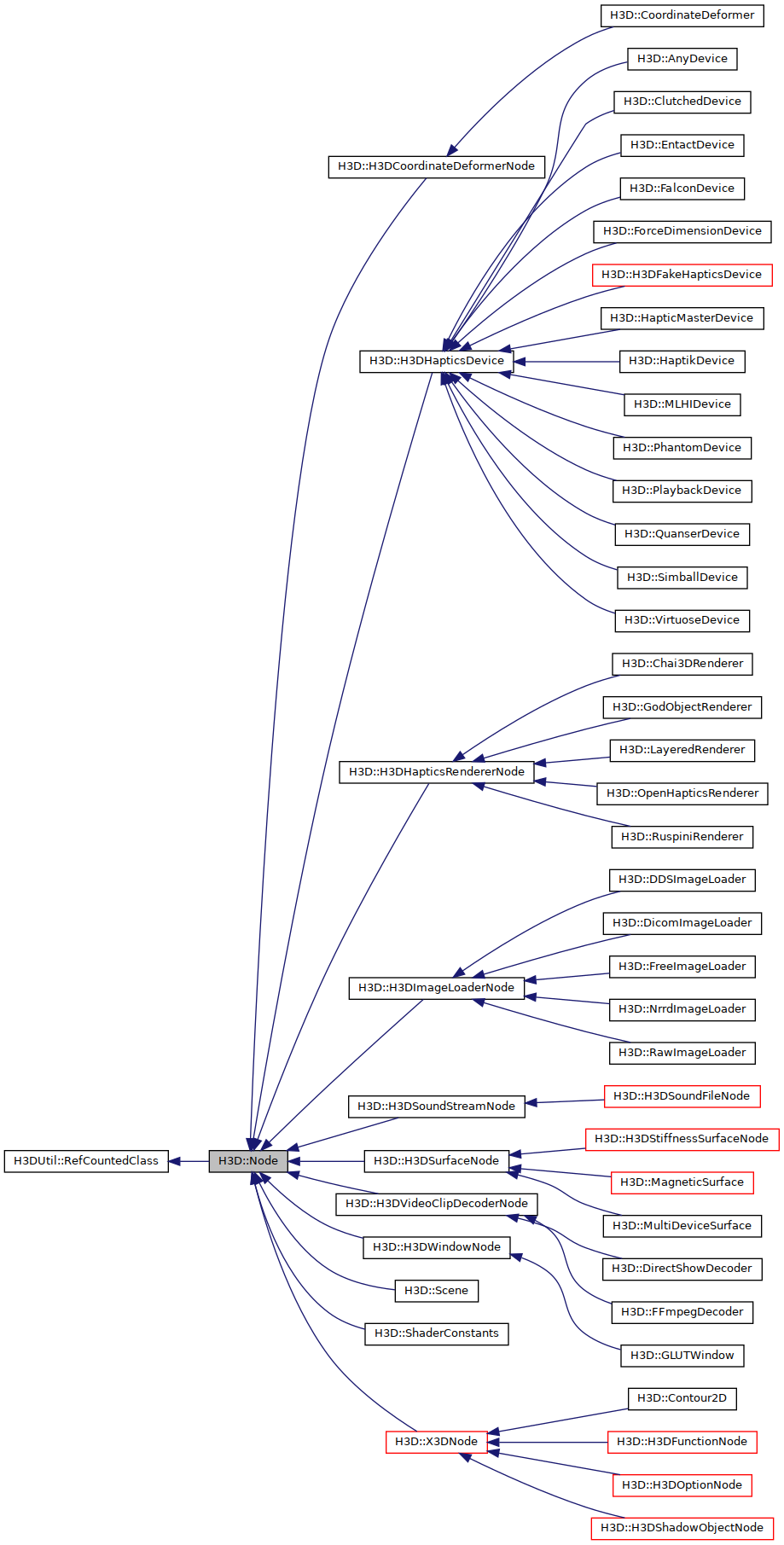

Inheritance diagram for H3D::Node:

Classes
struct	LineIntersectResult
	Used as input to lineIntersect functions. More...

struct	NodeIntersectResult
	Used as input to intersection functions. More...

Public Types
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual void	traverseSG (TraverseInfo &ti)
	traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Static Public Member Functions
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

Node is the base class for all classes that can be part of the H3D scene-graph.

Member Function Documentation

◆ addDestructCallback()

int Node::addDestructCallback	(	void()(Node , void *)	func,
		void *	args
	)

Add a callback function to be run on destruction of node.

Returns 0 on success.

Referenced by H3D::H3DScriptNode::addNamedNode().

◆ clone()

Node * Node::clone	(	bool	deepCopy = `true`,
		DeepCopyMap *	deepCopyMap = `NULL`
	)

virtual

Returns a new instance of this node type with the same state as this one.

The default implementation copies the node's registered field values of access type INPUT_OUTPUT and INITIALIZE_ONLY.

Parameters

deepCopy	If true then references to other nodes will also be cloned. Otherwise just the pointer is copied.
deepCopyMap	A map from original nodes to their cloned versions. This parameter is normally not required by the root caller, but is passed down the call graph to ensure that nodes that appear multiple times will be assigned the same clone.

Reimplemented in H3D::PrototypeInstance, H3D::PixelTexture, and H3D::Pixel3DTexture.

References H3D::H3DNodeDatabase::createNode(), H3D::H3DDynamicFieldsObject::endField(), H3D::H3DDynamicFieldsObject::firstField(), H3D::X3DUrlObject::getURLBase(), H3D::H3DNodeDatabase::lookupTypeId(), and H3D::X3DUrlObject::setURLBase().

Referenced by H3D::Pixel3DTexture::clone(), H3D::PixelTexture::clone(), H3D::PyNode::clone(), and getClonedInstance().

◆ cloneFieldValue()

void Node::cloneFieldValue	(	Field &	_from,
		Field &	_to,
		bool	deepCopy,
		DeepCopyMap &	deepCopyMap
	)

protected

A helper function for the clone() method.

Recursively clone a single field value

References H3D::Field::getAccessType(), getClonedInstance(), H3D::Field::INITIALIZE_ONLY, H3D::Field::INPUT_OUTPUT, H3DUtil::AutoRefVector< class >::set(), and H3DUtil::AutoRefVector< class >::size().

◆ closestPoint()

void Node::closestPoint	(	const Vec3f &	p,
		NodeIntersectResult &	result
	)

virtual

Find closest point on Node to p.

Parameters

p	The point to find the closest point to.
result	A struct containing various results of closest points such as which geometries the closest points where detected on.

Reimplemented in H3D::X3DShapeNode, H3D::X3DPrototypeInstance, H3D::X3DGroupingNode, H3D::X3DGeometryNode, H3D::ToggleGroup, H3D::Switch, H3D::Sphere, H3D::PlanarReflector, H3D::MatrixTransform, H3D::LOD, H3D::Inline, H3D::HumanHand, H3D::HAnimHumanoid, H3D::GeometryGroup, and H3D::Collision.

Referenced by H3D::Collision::closestPoint(), H3D::LOD::closestPoint(), H3D::Switch::closestPoint(), and H3D::PyNode::closestPoint().

◆ defaultXMLContainerField()

virtual string H3D::Node::defaultXMLContainerField ( )

inlinevirtual

Returns the default xml containerField attribute value.

For this node it is "children".

Reimplemented in H3D::X3DVertexAttributeNode, H3D::X3DTextureTransformNode, H3D::X3DTextureNode, H3D::X3DTextureCoordinateNode, H3D::X3DSoundSourceNode, H3D::X3DShaderNode, H3D::X3DPrototypeInstance, H3D::X3DParticlePhysicsModelNode, H3D::X3DParticleEmitterNode, H3D::X3DNormalNode, H3D::X3DMaterialNode, H3D::X3DGeometryNode, H3D::X3DFontStyleNode, H3D::X3DCoordinateNode, H3D::X3DColorNode, H3D::X3DAppearanceNode, H3D::TextureProperties, H3D::ShaderProgram, H3D::ShaderPart, H3D::ShaderConstants, H3D::RenderProperties, H3D::NurbsTextureCoordinate, H3D::MetadataString, H3D::MetadataSet, H3D::MetadataInteger, H3D::MetadataFloat, H3D::MetadataDouble, H3D::LineProperties, H3D::H3DVideoClipDecoderNode, H3D::H3DSurfaceNode, H3D::H3DShadowObjectNode, H3D::H3DOptionNode, H3D::H3DImageLoaderNode, H3D::H3DHapticsRendererNode, H3D::H3DHapticsDevice, H3D::H3DFunctionNode, H3D::H3DCoordinateDeformerNode, H3D::FogCoordinate, and H3D::FillProperties.

Referenced by H3D::X3DPrototypeInstance::defaultXMLContainerField().

◆ getClonedInstance()

Node * Node::getClonedInstance	(	Node *	original,
		bool	deepCopy,
		DeepCopyMap &	deepCopyMap
	)

staticprotected

A helper function for nodes that implement clone()

Given an original node, the clone is returned.

For shallow copy the original is returned. For deep copy, if the original already in deepCopyMap that clone is returned, otherwise a new clone is created, added to the map and returned

If original is NULL then NULL is returned.

References clone().

Referenced by H3D::PrototypeInstance::clone(), and cloneFieldValue().

◆ getProtoInstanceParent()

X3DPrototypeInstance* H3D::Node::getProtoInstanceParent ( )

inline

If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node.

IF not it returns NULL.

◆ lineIntersect()

bool Node::lineIntersect	(	const Vec3f &	from,
		const Vec3f &	to,
		LineIntersectResult &	result
	)

virtual

Detect intersection between a line segment and the Node.

Parameters

from	The start of the line segment.
to	The end of the line segment.
result	Contains info about the closest intersection for every object that intersects the line.

Returns: true if intersected, false otherwise.

Reimplemented in H3D::X3DShapeNode, H3D::X3DPrototypeInstance, H3D::X3DGroupingNode, H3D::X3DGeometryNode, H3D::ToggleGroup, H3D::Text, H3D::Switch, H3D::Sphere, H3D::PlanarReflector, H3D::MatrixTransform, H3D::LOD, H3D::Inline, H3D::HumanHand, H3D::HAnimHumanoid, H3D::GeometryGroup, and H3D::Collision.

Referenced by H3D::H3DNavigation::doNavigation(), H3D::Collision::lineIntersect(), H3D::LOD::lineIntersect(), H3D::Switch::lineIntersect(), H3D::PyNode::lineIntersect(), and H3D::X3DPointingDeviceSensorNode::updateX3DPointingDeviceSensors().

◆ movingSphereIntersect()

bool Node::movingSphereIntersect	(	H3DFloat	radius,
		const Vec3f &	from,
		const Vec3f &	to,
		NodeIntersectResult &	result
	)

virtual

Detect collision between a moving sphere and the Node.

Only nodes to which collision is possible will return true

Parameters

radius	The radius of the sphere
from	The start position of the sphere
to	The end position of the sphere.
result	A struct containing various results of intersections such as which geometries intersected the moving sphere.

Returns: true if intersected, false otherwise.

Reimplemented in H3D::X3DShapeNode, H3D::X3DPrototypeInstance, H3D::X3DGroupingNode, H3D::X3DGeometryNode, H3D::ToggleGroup, H3D::Switch, H3D::Sphere, H3D::PointSet, H3D::PlanarReflector, H3D::MatrixTransform, H3D::LOD, H3D::Inline, H3D::IndexedLineSet, H3D::HumanHand, H3D::HAnimHumanoid, H3D::GeometryGroup, and H3D::Collision.

Referenced by H3D::X3DViewpointNode::detectCollision(), H3D::Collision::movingSphereIntersect(), H3D::LOD::movingSphereIntersect(), H3D::Switch::movingSphereIntersect(), and H3D::X3DViewpointNode::translate().

◆ removeDestructCallback()

int Node::removeDestructCallback	(	void()(Node , void *)	func,
		void *	args
	)

Add a callback function to be run on destruction of node.

Returns 0 on success, -1 if the callback does not exist.

◆ render()

virtual void H3D::Node::render ( )

inlinevirtual

the render() function is used for the depth-first rendering traversal of the scene-graph.

Reimplemented in H3D::X3DTexture3DNode, H3D::X3DTexture2DNode, H3D::X3DShapeNode, H3D::X3DPrototypeInstance, H3D::X3DNurbsSurfaceGeometryNode, H3D::X3DGroupingNode, H3D::X3DBackgroundNode, H3D::TwoSidedMaterial, H3D::TriangleStripSet, H3D::TriangleSet2D, H3D::TriangleSet, H3D::TriangleFanSet, H3D::TransformInfo, H3D::Transform, H3D::ToggleGroup, H3D::TextureTransform3D, H3D::TextureTransform, H3D::TextureMatrixTransform, H3D::TextureBackground, H3D::Text, H3D::TexGenGeometry, H3D::Switch, H3D::SuperShape, H3D::Sphere, H3D::ShadowCaster, H3D::ShaderStorageBuffer, H3D::ShaderProgram, H3D::ShaderImage3D, H3D::ShaderImage2D, H3D::ShaderAtomicCounter, H3D::RenderTargetTexture, H3D::RenderTargetSelectGroup, H3D::RenderProperties, H3D::Rectangle2D, H3D::ProgramShader, H3D::Polypoint2D, H3D::Polyline2D, H3D::PointSet, H3D::ParticleSystem, H3D::PackagedShader, H3D::NurbsCurve, H3D::MultiTextureTransform, H3D::MultiTexture, H3D::MatrixTransform, H3D::Material, H3D::LOD, H3D::LineSet, H3D::LineProperties, H3D::Inline, H3D::IndexedTriangleStripSet, H3D::IndexedTriangleSet, H3D::IndexedTriangleFanSet, H3D::IndexedLineSet, H3D::IndexedFaceSet, H3D::ImageTexture, H3D::Image3DTexture, H3D::HumanHand, H3D::HAnimHumanoid, H3D::H3DVideoTextureNode, H3D::H3DRenderModeGroupNode, H3D::GeometryGroup, H3D::GeneratedTexture3D, H3D::GeneratedTexture, H3D::GeneratedCubeMapTexture, H3D::FullscreenRectangle, H3D::FrameBufferTextureGenerator, H3D::FillProperties, H3D::FBODebugger, H3D::Extrusion, H3D::ElevationGrid, H3D::Disk2D, H3D::Cylinder, H3D::Cone, H3D::ComposedShader, H3D::ComposedCubeMapTexture, H3D::Circle2D, H3D::Capsule, H3D::Box, H3D::Background, H3D::ArcClose2D, H3D::Arc2D, and H3D::Appearance.

Referenced by H3D::H3DWindowNode::display(), H3D::Appearance::render(), H3D::Capsule::render(), H3D::Cone::render(), H3D::Cylinder::render(), H3D::ElevationGrid::render(), H3D::Extrusion::render(), H3D::HAnimHumanoid::render(), H3D::Material::render(), H3D::ParticleSystem::render(), H3D::ShadowCaster::render(), H3D::SuperShape::render(), H3D::Switch::render(), H3D::TwoSidedMaterial::render(), H3D::X3DShapeNode::render(), H3D::X3DTextureTransformNode::renderForTextureUnit(), H3D::PlanarReflector::renderPostViewpoint(), H3D::H3DHapticsDevice::renderStylus(), H3D::H3DDisplayListObject::DisplayList::update(), and H3D::GeneratedCubeMapTexture::updateCubeMap().

◆ traverseSG()

void Node::traverseSG ( TraverseInfo & ti )

virtual

traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph.

During this traversal things can be updated in the node and HapticObject instances to be rendered should be added to the TraverseInfo object.

Parameters

ti	The TraverseInfo object containing information about the traversal.

Reimplemented in H3D::X3DViewpointNode, H3D::X3DShapeNode, H3D::X3DPrototypeInstance, H3D::X3DNurbsSurfaceGeometryNode, H3D::X3DLightNode, H3D::X3DGroupingNode, H3D::X3DGeometryNode, H3D::X3DBackgroundNode, H3D::X3DAppearanceNode, H3D::WindPhysicsModel, H3D::VisibilitySensor, H3D::ViscosityEffect, H3D::ViewpointGroup, H3D::TriangleStripSet, H3D::TriangleSet2D, H3D::TriangleSet, H3D::TriangleFanSet, H3D::TransformInfo, H3D::ToggleGroup, H3D::TimeFunctionEffect, H3D::Text, H3D::TexGenGeometry, H3D::Switch, H3D::SuperShape, H3D::SpringEffect, H3D::Sphere, H3D::Sound, H3D::ShadowCaster, H3D::ShaderCombiner, H3D::ShaderAtomicCounter, H3D::Script, H3D::RotationalSpringEffect, H3D::Rectangle2D, H3D::RazerHydraSensor, H3D::PythonScript, H3D::ProximitySensor, H3D::PositionFunctionEffect, H3D::PointLight, H3D::PlanarReflector, H3D::PhongShader, H3D::ParticleSystem, H3D::MultiRenderTargetShader, H3D::MFNodeSplitter, H3D::MatrixTransform, H3D::MagneticGeometryEffect, H3D::LOD, H3D::LoadSensor, H3D::LineSet, H3D::Inline, H3D::IndexedTriangleStripSet, H3D::IndexedTriangleSet, H3D::IndexedTriangleFanSet, H3D::IndexedFaceSet, H3D::HumanHand, H3D::HapticLayeredGroup, H3D::HAnimSegment, H3D::HAnimJoint, H3D::HAnimHumanoid, H3D::H3DVideoTextureNode, H3D::H3DRenderModeGroupNode, H3D::GeometryGroup, H3D::GeneratedCubeMapTexture, H3D::FrameBufferTextureGenerator, H3D::ForceField, H3D::Fog, H3D::FBODebugger, H3D::Extrusion, H3D::ElevationGrid, H3D::Disk2D, H3D::DirectionalLight, H3D::DeviceLog, H3D::DeformableShape, H3D::Cylinder, H3D::ConvolutionFilterShader, H3D::Cone, H3D::ComposedShader, H3D::ComposedGeneratedShader, H3D::Capsule, H3D::Box, H3D::Billboard, H3D::ArcClose2D, and H3D::Appearance.
