This is the base node type for all Shape nodes. More...

#include <H3D/X3DShapeNode.h>

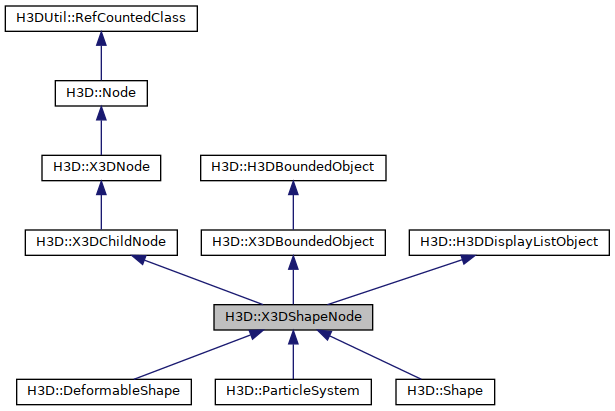

Inheritance diagram for H3D::X3DShapeNode:

Classes
class	BugWorkaroundDisplayList
	This is just a dummy class to get around a bug in Visual C++ 7.1 If the X3DGeometry::DisplayList inherits directly from H3DDisplayListObject::Display list the application will crash if trying to call H3DDisplayListObject::DisplayList::callList By using an intermediate class the bug dissappears. More...

class	DisplayList
	Display list is extended in. More...

class	SFGeometryNode
	SFGeometryNode is dependent on the displayList field of its encapsulated X3DGeometryNode node, i.e. More...

Public Types
enum	GeometryRenderMode { TRANSPARENT_ONLY , TRANSPARENT_FRONT , TRANSPARENT_BACK , SOLID , ALL }
	Tells which type of geometry should be rendered. More...

typedef DependentSFNode< X3DAppearanceNode, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true >	SFAppearanceNode
	SFAppearanceNode is dependent on the displayList field of its encapsulated X3DAppearanceNode node, i.e. More...

typedef TypedSFNode< X3DGeometryNode >	SFHapticGeometry
	SFHapticGeometry contains a X3DGeometryNode.

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
	X3DShapeNode (Inst< SFAppearanceNode > _appearance=0, Inst< SFGeometryNode > _geometry=0, Inst< SFHapticGeometry > _hapticGeometry=0, Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< SFVec3f > _bboxCenter=0, Inst< SFVec3f > _bboxSize=0, Inst< DisplayList > _displayList=0)
	Constructor.

virtual void	initialize ()
	Sets up the bound field using the bboxCenter and bboxSize fields. More...

virtual void	render ()
	Render the shape using OpenGL.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. Calls traverseSG on appeance and geometry. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the X3DGeometryNode in the field geometry. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on the node in the field geometry. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the geometry in the geometry field. More...

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DBoundedObject
	H3DBoundedObject (Inst< SFBound > _bound=0)
	Constructor.

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Attributes
H3DUniquePtr< SFAppearanceNode >	appearance
	The field containing the X3DAppearance node to be used when rendering the shape. More...

H3DUniquePtr< SFGeometryNode >	geometry
	Contains the X3DGeometryNode to be rendered. More...

H3DUniquePtr< SFHapticGeometry >	hapticGeometry
	If specified, contains a X3DGeometryNode to be rendered haptically. More...

H3DUniquePtr< SFShadowObjectNode >	shadowVolume
	If specified, contains a H3DShadowObjectNode to be used for shadows. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::X3DBoundedObject
H3DUniquePtr< SFVec3f >	bboxCenter
	Specifies a the center of an axis-aligned bounding box enclosing the node. More...

H3DUniquePtr< SFVec3f >	bboxSize
	Specifies a the size of an axis-aligned bounding box enclosing the node. More...

Public Attributes inherited from H3D::H3DBoundedObject
H3DUniquePtr< SFBound >	bound
	The field containing the bound object. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

static bool	disable_lighting_if_no_app = true
	Set to true if lighting should be disabled when no Appearance or Material node has been specified as per X3D spec. More...

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Additional Inherited Members
Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

This is the base node type for all Shape nodes.

Internal routes:

Member Typedef Documentation

◆ SFAppearanceNode

typedef DependentSFNode< X3DAppearanceNode, FieldRef<H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true > H3D::X3DShapeNode::SFAppearanceNode

SFAppearanceNode is dependent on the displayList field of its encapsulated X3DAppearanceNode node, i.e.

an event from that field will trigger an event from the SFAppearanceNode as well.

Member Enumeration Documentation

◆ GeometryRenderMode

enum H3D::X3DShapeNode::GeometryRenderMode

Tells which type of geometry should be rendered.

Enumerator
TRANSPARENT_ONLY	render only transparent objects
TRANSPARENT_FRONT	render only the front face of transparent objects
TRANSPARENT_BACK	render only the back face of transparent objects
SOLID	render only non-transparent objects
ALL	render all objects

Member Function Documentation

◆ closestPoint()

void X3DShapeNode::closestPoint	(	const Vec3f &	p,
		NodeIntersectResult &	result
	)

virtual

Find closest point on the node in the field geometry.

Parameters

p	The point to find the closest point to.
result	A struct containing various results of closest points such as which geometries the closest points where detected on.

Reimplemented from H3D::Node.

References H3D::X3DGeometryNode::closestPoint(), and geometry.

◆ initialize()

virtual void H3D::X3DShapeNode::initialize ( )

inlinevirtual

Sets up the bound field using the bboxCenter and bboxSize fields.

If bboxSize is (-1, -1, -1) the bound will be the bound of the geometry field. Otherwise it will be a BoxBound with center and origin determined by the bboxCenter and bboxOrigin fields.

Reimplemented from H3DUtil::RefCountedClass.

Reimplemented in H3D::ParticleSystem.

References H3D::H3DBoundedObject::bound, H3D::BoxBound::center, H3DUtil::RefCountedClass::initialize(), and H3D::BoxBound::size.

◆ lineIntersect()

bool X3DShapeNode::lineIntersect	(	const Vec3f &	from,
		const Vec3f &	to,
		LineIntersectResult &	result
	)

virtual

Detect intersection between a line segment and the X3DGeometryNode in the field geometry.

Parameters

from	The start of the line segment.
to	The end of the line segment.
result	Contains info about the closest intersection for every object that intersects the line.

Returns: true if intersected, false otherwise.

Reimplemented from H3D::Node.

References geometry, and H3D::X3DGeometryNode::lineIntersect().

◆ movingSphereIntersect()

bool X3DShapeNode::movingSphereIntersect	(	H3DFloat	radius,
		const Vec3f &	from,
		const Vec3f &	to,
		NodeIntersectResult &	result
	)

virtual

Detect collision between a moving sphere and the geometry in the geometry field.

Parameters

radius	The radius of the sphere
from	The start position of the sphere
to	The end position of the sphere.

Returns: true if intersected, false otherwise.

Parameters

result A struct containing various results of intersections such as which geometries intersected the moving sphere.

Reimplemented from H3D::Node.

References geometry, and H3D::X3DGeometryNode::movingSphereIntersect().

◆ traverseSG()

void X3DShapeNode::traverseSG ( TraverseInfo & ti )

virtual

Traverse the scenegraph. Calls traverseSG on appeance and geometry.

node since a change in the value should break the cache and generate a new display list.

Reimplemented from H3D::Node.

Reimplemented in H3D::ParticleSystem, and H3D::DeformableShape.

Referenced by H3D::DeformableShape::traverseSG(), and H3D::ParticleSystem::traverseSG().

Member Data Documentation

◆ appearance

H3DUniquePtr< SFAppearanceNode > H3D::X3DShapeNode::appearance

The field containing the X3DAppearance node to be used when rendering the shape.

Access type: inputOutput

Referenced by H3D::ParticleSystem::render(), render(), traverseSG(), and X3DShapeNode().

◆ disable_lighting_if_no_app

bool X3DShapeNode::disable_lighting_if_no_app = true

static

Set to true if lighting should be disabled when no Appearance or Material node has been specified as per X3D spec.

Will be set to false in e.g. H3DWindowNode if a default Material node has been specified in a DefaultAppearance option node.

Referenced by H3D::Appearance::getAffectedGLAttribs(), H3D::Scene::idle(), H3D::Appearance::preRender(), render(), and H3D::H3DWindowNode::render().

◆ geometry

H3DUniquePtr< SFGeometryNode > H3D::X3DShapeNode::geometry

Contains the X3DGeometryNode to be rendered.

Access type: inputOutput

Referenced by closestPoint(), lineIntersect(), movingSphereIntersect(), H3D::ParticleSystem::render(), render(), H3D::DeformableShape::traverseSG(), traverseSG(), and X3DShapeNode().

◆ hapticGeometry

H3DUniquePtr< SFHapticGeometry > H3D::X3DShapeNode::hapticGeometry

If specified, contains a X3DGeometryNode to be rendered haptically.

If NULL the geometry in the geometry field will be used.

Access type: inputOutput

Referenced by H3D::DeformableShape::traverseSG(), and traverseSG().

◆ shadowVolume

H3DUniquePtr< SFShadowObjectNode > H3D::X3DShapeNode::shadowVolume

If specified, contains a H3DShadowObjectNode to be used for shadows.

If NULL the standard shadow volume of the geometry will be used.

Access type: inputOutput

Referenced by traverseSG().

The documentation for this class was generated from the following files:
