The H3DShadowObjectNode is the base class for all shadow objects for use in the ShadowCaster node. More...

#include <H3D/H3DShadowObjectNode.h>

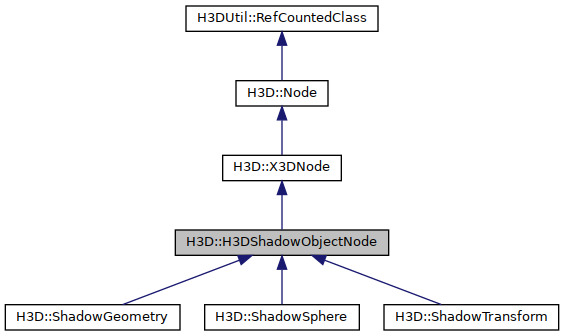

Inheritance diagram for H3D::H3DShadowObjectNode:

Public Member Functions
	H3DShadowObjectNode (Inst< SFNode > _metadata=0, Inst< SFTransformNode > _transform=0, Inst< SFBool > _enabled=0)
	Constructor.

virtual void	computeShadowVolumeInformationCPU (const LightDataStruct &light_data, Matrix4f accumulated_fwd, bool render_caps, std::vector< Vec4d > &coord)=0
	Override to compute the shadow volume information of this object for light used in shadow caster single buffer mode. More...

virtual void	update ()
	Override to update data called in render

virtual void	renderShadowGPU (const LightDataStruct &light_data, Matrix4f accumulated_fwd, bool render_caps)=0
	Override to do implement shadows using a geometry shader. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual void	traverseSG (TraverseInfo &ti)
	traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Attributes
H3DUniquePtr< SFTransformNode >	transform
	The transform field specifies a transformation of the shadow volume object. More...

H3DUniquePtr< SFBool >	enabled
	Used to turn on/off shadow of this shadow object. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for the node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The H3DShadowObjectNode is the base class for all shadow objects for use in the ShadowCaster node.

The purpose of a shadow object is to draw a shadow volume, i.e. a triangle mesh towards infinity that encompasses the volume that is in shadow. E.g. a shadow object that is a sphere and a directinal light source would create a shadow volume that is a cylinder starting at the position of the sphere and going off into infinity in the same direction as the light direction.

Member Function Documentation

◆ computeShadowVolumeInformationCPU()

virtual void H3D::H3DShadowObjectNode::computeShadowVolumeInformationCPU	(	const LightDataStruct &	light_data,
		Matrix4f	accumulated_fwd,
		bool	render_caps,
		std::vector< Vec4d > &	coord
	)

pure virtual

Override to compute the shadow volume information of this object for light used in shadow caster single buffer mode.

Parameters

light_data	A struct containing information about the light that is creating the shadows.
accumulated_fwd	The accumulated forward matrix.
render_caps	determines if one should draw end caps to the volume or if it is ok to leave it open.
coord	contains the coords.

Implemented in H3D::ShadowTransform, H3D::ShadowSphere, and H3D::ShadowGeometry.

◆ defaultXMLContainerField()

virtual string H3D::H3DShadowObjectNode::defaultXMLContainerField ( )

inlinevirtual

Returns the default xml containerField attribute value.

For this node it is "children".

Reimplemented from H3D::Node.

◆ renderShadowGPU()

virtual void H3D::H3DShadowObjectNode::renderShadowGPU	(	const LightDataStruct &	light_data,
		Matrix4f	accumulated_fwd,
		bool	render_caps
	)

pure virtual

Override to do implement shadows using a geometry shader.

Parameters

light_data	A struct containing information about the light that is creating the shadows.
accumulated_fwd	The accumulated forward matrix.
render_caps	determines if one should draw end caps to the volume or if it is ok to leave it open.

Implemented in H3D::ShadowTransform, H3D::ShadowSphere, and H3D::ShadowGeometry.

Member Data Documentation

◆ enabled

H3DUniquePtr< SFBool > H3D::H3DShadowObjectNode::enabled

Used to turn on/off shadow of this shadow object.

Default value: true
Access type: inputOutput

Referenced by H3DShadowObjectNode(), H3D::ShadowGeometry::ShadowGeometry(), H3D::ShadowSphere::ShadowSphere(), H3D::ShadowTransform::ShadowTransform(), and H3D::ShadowGeometry::update().

◆ transform

H3DUniquePtr< SFTransformNode > H3D::H3DShadowObjectNode::transform

The transform field specifies a transformation of the shadow volume object.

Access type: inputOutput

Referenced by H3D::X3DShapeNode::traverseSG(), and H3D::ShadowGeometry::update().

The documentation for this class was generated from the following files:
