The Appearance node specifies the visual properties of geometry. More...

#include <H3D/Appearance.h>

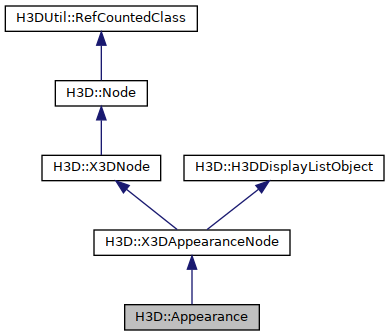

Inheritance diagram for H3D::Appearance:

Public Types
typedef DependentSFNode< FillProperties, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true >	SFFillProperties
	The SFFillProperties field is dependent on the displayList field of the containing FillProperties node.

typedef DependentSFNode< LineProperties, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true >	SFLineProperties
	The SFLineProperties field is dependent on the displayList field of the containing LineProperties node.

typedef DependentSFNode< X3DMaterialNode, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true >	SFMaterialNode
	The SFMaterialNode field is dependent on the displayList field of the containing X3DMaterialNode.

typedef DependentSFNode< X3DTextureTransformNode, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true >	SFTextureTransformNode
	The SFTextureTransformNode field is dependent on the displayList field of the containing X3DTextureTransformNode node.

typedef DependentSFNode< X3DTextureNode, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true >	SFTextureNode
	The SFTextureNode field is dependent on the displayList field of the containing X3DTextureNode node.

typedef DependentMFNode< X3DShaderNode, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true >	MFShaderNode
	The MFShaderNode field is dependent on the displayList field of the containing X3DShaderNode node.

typedef DependentSFNode< RenderProperties, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true >	SFRenderProperties
	The SFRenderProperties field is dependent on the displayList field of the containing X3DShaderNode node.

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
	Appearance (Inst< DisplayList > _displayList=0, Inst< SFFillProperties > _fillProperties=0, Inst< SFLineProperties > _lineProperties=0, Inst< SFMaterialNode > _material=0, Inst< SFNode > _metadata=0, Inst< SFTextureNode > _texture=0, Inst< SFTextureTransformNode > _textureTransform=0, Inst< SFSurface > _surface=0, Inst< MFShaderNode > _shaders=0, Inst< SFRenderProperties > _renderProperties=0, Inst< SFBool > _shadow=0)
	Constructor.

virtual void	render ()
	Set up the appearance in OpenGL. More...

virtual void	preRender ()
	This function will be called by the X3DShapeNode before any rendering of geometry and before the call to the render function. More...

virtual void	postRender ()
	This function will be called by the X3DShapeNode after the geometry has been rendered to restore the states to what it was before the call to preRender().

virtual GLbitfield	getAffectedGLAttribs ()
	Returns a bitmask of the OpenGL attrib bits that will be affected by this node. More...

virtual void	traverseSG (TraverseInfo &ti)
	Traversing the scene graph. More...

virtual bool	isTransparent ()
	This function checks the transparency field to determine if the material requires that the geometry is rendered with transparency.

virtual bool	hasGeometryShadow ()
	This function return true if the appearance has decided that shadow should be cast. More...

virtual bool	usingMultiPassTransparency ()
	This function checks if multi-pass transparency should be used or not (see RenderProperties_multiPassTransparency)

Public Member Functions inherited from H3D::X3DAppearanceNode
	X3DAppearanceNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFSurface > _surface=0)
	Constructor.

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Attributes
H3DUniquePtr< SFFillProperties >	fillProperties
	If specified it contains a FillProperties node that specifies additional properties to be applied to all polygonal areas. More...

H3DUniquePtr< SFLineProperties >	lineProperties
	If specified it contains a LineProperties node that specifies additional properties to be applied to all line geometry. More...

H3DUniquePtr< SFMaterialNode >	material
	The material field, if specified, shall contain a Material node. More...

H3DUniquePtr< SFTextureNode >	texture
	Contains a X3DTextureNode to be used in the texturing. More...

H3DUniquePtr< SFTextureTransformNode >	textureTransform
	Contains a X3DTextureTransformNode that specifies a transformation of texture coordinates. More...

H3DUniquePtr< MFShaderNode >	shaders
	The shaders field defines the collection of shaders of various languages in the order of preference. More...

H3DUniquePtr< SFRenderProperties >	renderProperties
	The renderProperties field, if specified, shall contain a RenderProperties node. More...

H3DUniquePtr< SFBool >	shadow
	The shadow field specifies if the geometry this Appearance is used on should cast a shadow or not. More...

Public Attributes inherited from H3D::X3DAppearanceNode
H3DUniquePtr< SFSurface >	surface
	Contains the Surface node that will determine how an object will feel haptically. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DAppearanceNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Additional Inherited Members
Static Public Member Functions inherited from H3D::X3DAppearanceNode
static void	setDefaultUsingMultiPassTransparency (bool b)
	Set the default value for usage of multi pass transparancy. More...

static bool	getDefaultUsingMultiPassTransparency ()
	Get the default value for usage of multi pass transparancy.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Static Protected Attributes inherited from H3D::X3DAppearanceNode
static bool	default_using_multi_pass_transparency = true
	The default value to use for multipass transparency, if the inherited appearance node does not contain any information about using multipass transparency.

Detailed Description

The Appearance node specifies the visual properties of geometry.

The value for each of the fields in this node may be NULL. However, if the field is non-NULL, it shall contain one node of the appropriate type.

The material field, if specified, shall contain a Material node. If the material field is NULL or unspecified, lighting is off (all lights are ignored during rendering of the object that references this Appearance) and the unlit object colour is (1, 1, 1).
The texture field, if specified, shall contain one of the various types of X3DTextureNode nodes . If the texture node is NULL or the texture field is unspecified, the object that references this Appearance is not textured.
The textureTransform field, if specified, shall contain a TextureTransform node. If the textureTransform is NULL or unspecified, the textureTransform field has no effect.
The lineProperties field, if specified, shall contain a LineProperties node. If lineProperties is NULL or unspecified, the lineProperties field has no effect.
The fillProperties field, if specified, shall contain a FillProperties node. If fillProperties is NULL or unspecified, the fillProperties field has no effect.
The shaders field contains a listing, in order of preference, of nodes that describe programmable shaders that replace the fixed rendering requirements with user-provided functionality. If the field is not empty, one shader node is selected and the fixed rendering requirements defined by this specification are ignored.
The renderProperties field, if specified, shall contain a RenderProperties node. If renderProperties is NULL or unspecified, the renderProperties field has no effect (this field is not part of the X3D specification)

Examples:

Internal routes:

Member Function Documentation

◆ getAffectedGLAttribs()

GLbitfield Appearance::getAffectedGLAttribs ( )

virtual

Returns a bitmask of the OpenGL attrib bits that will be affected by this node.

The value can be used in glPushAttrib in order to save the current state.

Reimplemented from H3D::X3DAppearanceNode.

References H3D::X3DShapeNode::disable_lighting_if_no_app, fillProperties, H3D::FillProperties::getAffectedGLAttribs(), H3D::LineProperties::getAffectedGLAttribs(), H3D::RenderProperties::getAffectedGLAttribs(), H3D::X3DAppearanceChildNode::getAffectedGLAttribs(), H3D::X3DAppearanceNode::getAffectedGLAttribs(), H3D::X3DTextureNode::getAffectedGLAttribs(), H3D::X3DShaderNode::isSupported(), lineProperties, material, renderProperties, shaders, texture, and textureTransform.

◆ hasGeometryShadow()

virtual bool H3D::Appearance::hasGeometryShadow ( )

inlinevirtual

This function return true if the appearance has decided that shadow should be cast.

Reimplemented from H3D::X3DAppearanceNode.

◆ preRender()

void Appearance::preRender ( )

virtual

This function will be called by the X3DShapeNode before any rendering of geometry and before the call to the render function.

This function will be called by the X3DShapeNode before any rendering of geometry in order to set up all OpenGL states that are needed to for the appearance of the geometry.

Reimplemented from H3D::X3DAppearanceNode.

References H3D::X3DShapeNode::disable_lighting_if_no_app, fillProperties, H3DUtil::RefCountedClass::getName(), H3D::X3DShaderNode::isSupported(), H3D::X3DShaderNode::language, lineProperties, material, H3D::X3DAppearanceChildNode::preRender(), H3D::X3DAppearanceNode::preRender(), H3D::X3DTextureNode::preRender(), H3D::X3DTextureTransformNode::preRender(), renderProperties, H3D::X3DShaderNode::setSelected(), shaders, texture, and textureTransform.

◆ render()

void Appearance::render ( )

virtual

Set up the appearance in OpenGL.

If an RGB, BGR, RGBA or BGRA texture the texture values should not be modulated with diffuseColor according to the X3D spec. So we set the diffuse color to 1 1 1 in order to show the texture values as they are. The alpha value should be the one from material if 3 component texture and the one from the texture if 4-component texture.

Reimplemented from H3D::Node.

References H3D::H3DDisplayListObject::displayList, fillProperties, H3D::X3DTextureNode::getActiveTexture(), H3D::H3DImageObject::image, H3D::X3DShaderNode::isSelected, lineProperties, material, H3DUtil::Image::pixelType(), H3D::Node::render(), H3D::X3DTextureTransformNode::renderForTextureUnit(), H3D::X3DTextureTransformNode::renderForTextureUnits(), renderProperties, shaders, texture, H3D::MultiTexture::texture, and textureTransform.

◆ traverseSG()

void Appearance::traverseSG ( TraverseInfo & ti )

virtual

Traversing the scene graph.

The current surface will be set to the surface of the X3DAppearanceNode.

Parameters

ti	The TraverseInfo object containing information about the traversal.

Reimplemented from H3D::X3DAppearanceNode.

References fillProperties, H3D::NavigationInfo::getActive(), H3D::TraverseInfo::getActiveLightNodes(), H3D::GraphicsHardwareInfo::getInfo(), H3D::NavigationInfo::headlight, H3D::GraphicsHardwareInfo::infoIsInitialized(), lineProperties, material, renderProperties, shaders, H3D::X3DAppearanceNode::surface, texture, textureTransform, H3D::Node::traverseSG(), and H3D::X3DAppearanceNode::traverseSG().

Member Data Documentation

◆ fillProperties

H3DUniquePtr< SFFillProperties > H3D::Appearance::fillProperties

If specified it contains a FillProperties node that specifies additional properties to be applied to all polygonal areas.

Access type: inputOutput

Referenced by Appearance(), getAffectedGLAttribs(), postRender(), preRender(), render(), and traverseSG().

◆ lineProperties

H3DUniquePtr< SFLineProperties > H3D::Appearance::lineProperties

If specified it contains a LineProperties node that specifies additional properties to be applied to all line geometry.

Access type: inputOutput

Referenced by Appearance(), getAffectedGLAttribs(), postRender(), preRender(), render(), and traverseSG().

◆ material

H3DUniquePtr< SFMaterialNode > H3D::Appearance::material

The material field, if specified, shall contain a Material node.

If the material field is NULL or unspecified, lighting is off (all lights are ignored during rendering of the object that references this Appearance) and the unlit object colour is (1, 1, 1).

Access type: inputOutput

Referenced by Appearance(), getAffectedGLAttribs(), H3D::Scene::idle(), isTransparent(), postRender(), preRender(), render(), and traverseSG().

◆ renderProperties

H3DUniquePtr< SFRenderProperties > H3D::Appearance::renderProperties

The renderProperties field, if specified, shall contain a RenderProperties node.

If renderProperties is NULL or unspecified, the renderProperties field has no effect (this field is not part of the X3D specification)

Access type: inputOutput

Referenced by Appearance(), getAffectedGLAttribs(), H3D::Scene::idle(), postRender(), preRender(), render(), and traverseSG().

◆ shaders

H3DUniquePtr< MFShaderNode > H3D::Appearance::shaders

The shaders field defines the collection of shaders of various languages in the order of preference.

The first node declared is the highest preference. If the language is not supported for the current preference level, the X3DShaderNode's isSelected field is set to false, and the next shader is checked.

Access type: inputOutput

Referenced by Appearance(), getAffectedGLAttribs(), isTransparent(), postRender(), preRender(), render(), and traverseSG().

◆ shadow

H3DUniquePtr< SFBool > H3D::Appearance::shadow

The shadow field specifies if the geometry this Appearance is used on should cast a shadow or not.

Access type: inputOutput Default value: false

Referenced by Appearance().

◆ texture

H3DUniquePtr< SFTextureNode > H3D::Appearance::texture

Contains a X3DTextureNode to be used in the texturing.

Access type: inputOutput

Referenced by Appearance(), getAffectedGLAttribs(), postRender(), preRender(), render(), and traverseSG().

◆ textureTransform

H3DUniquePtr< SFTextureTransformNode > H3D::Appearance::textureTransform

Contains a X3DTextureTransformNode that specifies a transformation of texture coordinates.

Access type: inputOutput

Referenced by Appearance(), getAffectedGLAttribs(), postRender(), preRender(), render(), and traverseSG().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ getAffectedGLAttribs()

◆ hasGeometryShadow()

◆ preRender()

◆ render()

◆ traverseSG()

Member Data Documentation

◆ fillProperties

◆ lineProperties

◆ material

◆ renderProperties

◆ shaders

◆ shadow

◆ texture

◆ textureTransform
