The FillProperties node specifies additional properties to be applied to all polygonal areas on top of whatever appearance is specified by the other fields of the respective Appearance node. More...
#include <H3D/FillProperties.h>
Public Member Functions | |
| FillProperties (Inst< DisplayList > _displayList=0, Inst< SFBool > _filled=0, Inst< SFColor > _hatchColor=0, Inst< SFBool > _hatched=0, Inst< SFInt32 > _hatchStyle=0, Inst< SFNode > _metadata=0) | |
| Constructor. | |
| virtual GLbitfield | getAffectedGLAttribs () |
| Returns a bitmask of the OpenGL attrib bits that will be affected by this node. More... | |
| virtual void | render () |
| Set up the line properties with OpenGL. | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |

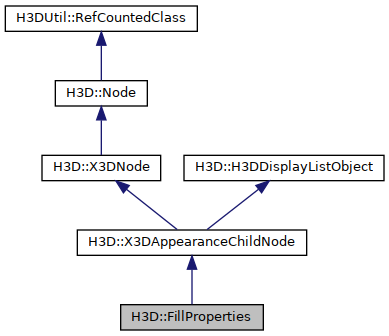

 Public Member Functions inherited from H3D::X3DAppearanceChildNode | |
| X3DAppearanceChildNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0) | |
| Constructor. | |
| virtual void | preRender () |
| This function will be called by the X3DShapeNode before any rendering of geometry and before the call to the render function. More... | |
| virtual void | postRender () |
| This function will be called by the X3DShapeNode after the geometry has been rendered. | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual void | traverseSG (TraverseInfo &ti) |
| traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More... | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and the Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| Public Member Functions inherited from H3D::H3DDisplayListObject | |
| H3DDisplayListObject (Inst< DisplayList > _displayList=0) | |
| Constructor. | |
Public Attributes | |
| H3DUniquePtr< SFBool > | filled |
| The filled field specifies if the geometry should be filled or not. More... | |
| H3DUniquePtr< SFColor > | hatchColor |
| The color of the hatches. More... | |
| H3DUniquePtr< SFBool > | hatched |
| The hatched field specifies if the geometry should be hatched or not. More... | |
| H3DUniquePtr< SFInt32 > | hatchStyle |
| The hatchStyle field selects a hatch pattern to be used. More... | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
| Public Attributes inherited from H3D::H3DDisplayListObject | |
| H3DUniquePtr< DisplayList > | displayList |
| The DisplayList instance handling the OpenGL caching of this object. | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
Additional Inherited Members | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
Detailed Description
The FillProperties node specifies additional properties to be applied to all polygonal areas on top of whatever appearance is specified by the other fields of the respective Appearance node.
The filled field specifies if the geometry should be filled or not. If not filled it will be rendered as wireframe.
Hatches are applied on top of the already rendered appearance of the node. Hatches are not affected by lighting.
The hatchStyle field selects a hatch pattern as defined in the International Register of Graphical Items. The hatches are rendered using the colour specified by the hatchColor field. The following hatch styles are available:
- horizontal, equally spaced lines
- vertical, equally spaced lines
- positive slope, equally spaced lines
- negative slope, equally spaced lines
- horizontal/vertical crosshatch
- positive slope/negative slope crosshatch
The associated geometry shall be filled and/or hatched only when the respective values of the filled and/or hatched fields have value TRUE.
Changing the hatch style does NOT CHANGE THE HAPTIC RENDERING of lines. It only changes the visual appearance.
Examples:
- Internal routes:
Member Function Documentation
◆ defaultXMLContainerField()
|
inlinevirtual |
Returns the default xml containerField attribute value.
For this node it is "fillProperties".
Reimplemented from H3D::Node.
◆ getAffectedGLAttribs()
|
inlinevirtual |
Returns a bitmask of the OpenGL attrib bits that will be affected by this node.
The value can be used in glPushAttrib in order to save the current state.
Reimplemented from H3D::X3DAppearanceChildNode.
Referenced by H3D::Appearance::getAffectedGLAttribs().
Member Data Documentation
◆ filled
| H3DUniquePtr< SFBool > H3D::FillProperties::filled |
The filled field specifies if the geometry should be filled or not.
If not filled it will be rendered as wireframe.
Access type: inputOutput
Default value: true
Referenced by FillProperties(), and render().
◆ hatchColor
| H3DUniquePtr< SFColor > H3D::FillProperties::hatchColor |
The color of the hatches.
Access type: inputOutput
Default value: RGB( 1,1,1 )
Referenced by FillProperties(), and render().
◆ hatched
| H3DUniquePtr< SFBool > H3D::FillProperties::hatched |
The hatched field specifies if the geometry should be hatched or not.
Access type: inputOutput
Default value: true
Referenced by FillProperties(), and render().
◆ hatchStyle
| H3DUniquePtr< SFInt32 > H3D::FillProperties::hatchStyle |
The hatchStyle field selects a hatch pattern to be used.
For more information see the Detailed description
Access type: inputOutput
Default value: 1
Referenced by FillProperties(), and render().
The documentation for this class was generated from the following files:
