We use the Field's lazy evaluation mechanisms to manage the GL display lists for rendering, giving automatic cache breaking when dependencies are modified. More...

#include <H3D/H3DDisplayListObject.h>

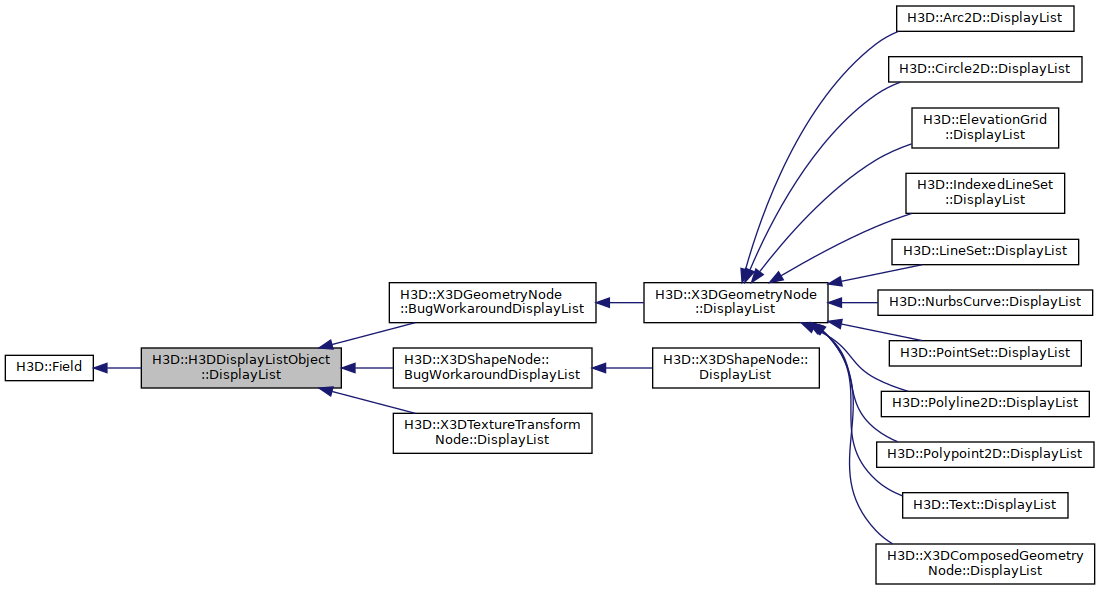

Inheritance diagram for H3D::H3DDisplayListObject::DisplayList:

Classes
class	IsActive
	The IsActive field is updated each scenegraph loop, since Scene::time is routed to it to see if the callList() function was called during or since the last loop. More...

Public Types
enum	CacheMode { ON , OFF , OPTIONS }
	The entries in CacheMode enumerator is used for checking if caching should be done or not. More...

typedef CacheMode	FrustumCullingMode
	The entries in FrustumCullingMode enumerator is used for checking if view frustum culling should be done.

Public Types inherited from H3D::Field
enum	AccessType { INITIALIZE_ONLY , OUTPUT_ONLY , INPUT_ONLY , INPUT_OUTPUT }
	The different access types that a field can have. More...

Public Member Functions
	DisplayList ()
	Constructor.

	~DisplayList ()
	Destructor.

void	setCacheMode (CacheMode m)
	Set the cache mode.

CacheMode	getCacheMode ()
	Get the cache mode.

void	setFrustumCullingMode (FrustumCullingMode m)
	Set the frustum culling mode.

FrustumCullingMode	getFrustumCullingMode ()
	Get the frustum culling mode.

virtual bool	usingCaching ()
	Returns true if caching is in use and false otherwise.

bool	usingFrustumCulling ()
	Returns true if view frustum culling is on.

bool	isOutsideViewFrustum ()
	Returns true if the bounding box of the owner of this field lies outside the view frustum. More...

virtual unsigned int	cachingDelay ()
	Returns the number of loops the DisplayList must render without receiving an event before a display is built.

void	breakCache ()
	If called the display list will be rebuilt on next call to.

virtual void	update ()
	Calls tryBuildDisplayList().

virtual void	propagateEvent (Event e)
	When the event is propagated the display list is invalidated.

virtual void	callList (bool build_list=true)
	Calls the OpenGL call list for if it exists. More...

Field *	getEventPointer ()
	Gets the pointer to the last field that created an event to this field

bool	hasCausedEvent (Field *f)
	Returns true if the Field given has generated an event to this field since the last call to the update() function.

template<class FieldType >
bool	hasCausedEvent (H3DUniquePtr< FieldType > &f)
	Returns true if the Field given has generated an event to this field since the last call to the update() function.

size_t	nrPendingEvents ()
	Returns the number of input fields that has generated an event to this field since the last call to the update() function.

void	initGraphicOption ()
	initialize previous graphic option

Public Member Functions inherited from H3D::Field
	Field ()
	Constructor.

virtual	~Field ()
	Destructor.

virtual void	checkFieldType (Field *f, int index)
	Check that a given input field is of the correct type. More...

void	setName (string _name)
	Sets local the name of the field. Will be used in error reporting.

string	getName ()
	Gets the name of the field.

string	getFullName ()
	Get the full name of the field including the name of the owner node if it exists (ownername.fieldname). More...

virtual string	getTypeName ()
	Returns a string name for this field type.

virtual X3DTypes::X3DType	getX3DType ()
	Returns the X3DType of the field.

virtual void	route (Field *, int id=0)
	Set up a route from this field to the field given as argument. More...

virtual void	routeNoEvent (Field *, int id=0)
	Set up a route from this field to the field given as argument. More...

virtual void	unroute (Field *)
	Remove the route from this field to the field given as argument.

virtual Field *	replaceRoute (Field *f, unsigned int i, int id=0)
	Replace the i:th route to f with a route from this field. More...

virtual Field *	replaceRouteNoEvent (Field *f, unsigned int i, int id=0)
	Replace the i:th route to f with a route from this field. More...

template<class F >
void	route (H3DUniquePtr< F > &f, int id=0)
	Set up a route from this field to the field residing in the H3DUniquePtr given as argument. More...

template<class F >
void	routeNoEvent (H3DUniquePtr< F > &f, int id=0)
	Set up a route from this field to the field residing in the H3DUniquePtr given as argument. More...

template<class F >
void	unroute (H3DUniquePtr< F > &f)
	Remove the route from this field to the field residing in the H3DUniquePtr given as argument.

void	unrouteAll ()
	Remove all the routes from this field.

virtual void	upToDate ()
	Check that the field is up-to-date, if not update() is called to make it up-to-date.

bool	isUpToDate ()
	Returns true if the field is up to date, i.e. More...

virtual void	touch ()
	Generates an event from this field.

Node *	getOwner ()
	Get the Node that contains this field.

void	setOwner (Node *n)
	Set the Node that contains this field.

void	setAccessType (AccessType _access_type)
	Set the access type of the field.

AccessType	getAccessType ()
	Get the access type of the field.

bool	routesTo (Field *f)
	Returns true if this field is routed to the field given as argument.

bool	hasRouteFrom (Field *f)
	Returns true if the field given as argument is routed to this field.

const FieldVector &	getRoutesIn ()
	Get the Fields that are routed to this Field.

const FieldSet &	getRoutesOut ()
	Get the Fields this Field is routed to.

const Event &	getLatestEvent ()
	Get the latest event.

void	setAccessCheck (bool on)
	Set access type checking on or off. More...

bool	isAccessCheckOn ()
	Returns true if checking of access types is on.

Static Public Member Functions
static void	rebuildAllDisplayLists ()
	Force a rebuild of all display lists created.

Static Public Member Functions inherited from H3D::Field
static string	classTypeName ()
	Returns a string name for this field type. More...

Protected Member Functions
virtual bool	haveValidDisplayList ()
	Returns true if we have a valid display list built that can be called.

bool	tryBuildDisplayList (bool cache_broken)
	Try to build a display list. More...

Protected Member Functions inherited from H3D::Field
virtual void	startEvent ()
	Start a new event from this field. More...

virtual void	routeFrom (Field *, int id)
	Set up a route to this field from the field given as argument.

virtual void	unrouteFrom (Field *)
	Remove the route to this field from the field given as argument.

virtual Field *	replaceRouteFrom (Field *f, unsigned int i, int id)
	Replace the i:th route to this field with the field given as argument.

void	checkAccessTypeRoute (Field *f, int id)
	Check the access type is correct for performing a route from this field to f. More...

void	checkAccessTypeRouteFrom (Field *f, int id)
	Check the access type is correct for performing a route from f to this field. More...

void	checkAccessTypeGet (int id)
	Check the access type is valid for getting the value of a field. More...

void	checkAccessTypeSet (int id)
	Check the access type is valid for changing the value of a field. More...

int	ownerId ()
	Gets the id of the owner node, -1 if no owner.

bool	isProgramSetting ()
	Returns true if this field is part of program settings fields. More...

void	markProgramSetting (bool used_as_setting)
	Set it this field is used by program settings fields in scene or not.

Protected Attributes
set< Field * >	event_fields
	The fields that has generated an event since the last call to update()

unsigned int	delay_cache_counter
	Display lists will not be built as long as this counter > 0.

GLuint	display_list
	OpenGL display list identifier.

CacheMode	cache_mode
	The mode for caching.

FrustumCullingMode	frustum_culling_mode
	The mode for view frustum culling.

bool	have_valid_display_list
	True if the display list has been built successfully.

H3DUniquePtr< IsActive >	isActive
	The isActive field is true if the callList() function has been called in the last scenegraph loop, and false otherwise.

GraphicsOptions *	graphic_options_previous
	previous graphic option

bool	reset_delay_cache_counter
	flag to require resetting delay_cache_counter

Protected Attributes inherited from H3D::Field
string	name
	The name of the field.

bool	event_lock
	If true, stops events from being propagated. More...

bool	update_lock
	If true, stops the update() function from being called in the upToDate() function.

FieldSet	routes_out
	The Fields that this field is routed to.

FieldVector	routes_in
	The Field that are routed to this field.

Event	event
	The last event that happened.

Node *	owner
	The node that contain this field. More...

AccessType	access_type
	The type of access to the field.

bool	access_check_on
	If true, access type checks will be done when getting/setting values and setting up routes. More...

Static Protected Attributes
static H3DUniquePtr< Field >	break_list_field
	This field is routed to all instances of DisplayList and can be used to force a rebuild of all display lists.

static const int	cache_delay_default = 3
	default cache delay value

Detailed Description

We use the Field's lazy evaluation mechanisms to manage the GL display lists for rendering, giving automatic cache breaking when dependencies are modified.

Member Enumeration Documentation

◆ CacheMode

enum H3D::H3DDisplayListObject::DisplayList::CacheMode

The entries in CacheMode enumerator is used for checking if caching should be done or not.

Enumerator
ON	Caching is on.
OFF	Caching is off.
OPTIONS	Caching is depending on the GraphicalRenderingOptions in use.

Member Function Documentation

◆ callList()

void H3DDisplayListObject::DisplayList::callList ( bool build_list = true )

virtual

Calls the OpenGL call list for if it exists.

If it does not exist we try to build it and execute it.

Reimplemented in H3D::X3DShapeNode::DisplayList, H3D::X3DGeometryNode::DisplayList, H3D::X3DComposedGeometryNode::DisplayList, H3D::Polypoint2D::DisplayList, H3D::Polyline2D::DisplayList, H3D::PointSet::DisplayList, H3D::NurbsCurve::DisplayList, H3D::LineSet::DisplayList, H3D::IndexedLineSet::DisplayList, H3D::Circle2D::DisplayList, H3D::Arc2D::DisplayList, and H3D::ElevationGrid::DisplayList.

Referenced by H3D::X3DShapeNode::DisplayList::callList().

◆ isOutsideViewFrustum()

bool H3DDisplayListObject::DisplayList::isOutsideViewFrustum ( )

Returns true if the bounding box of the owner of this field lies outside the view frustum.

References H3D::H3DBoundedObject::bound, H3D::BoxBound::center, H3D::BoxBound::size, and H3D::MatrixTransform::transformedBound.

◆ tryBuildDisplayList()

bool H3DDisplayListObject::DisplayList::tryBuildDisplayList ( bool cache_broken )

protected

Try to build a display list.

Requires that the display lists of all H3DDisplayListNode instances that are routed to us are valid in order to build the cache.

Parameters

cache_broken true if this call is made when the cache has just been broken, e.g. from the update() function.

Returns: true if the list was successfully built, false otherwise.

Referenced by update().

The documentation for this class was generated from the following files:
