The MatrixTransform node is a grouping node that defines a coordinate system for its children that is relative to the coordinate systems of its ancestors. More...

#include <H3D/MatrixTransform.h>

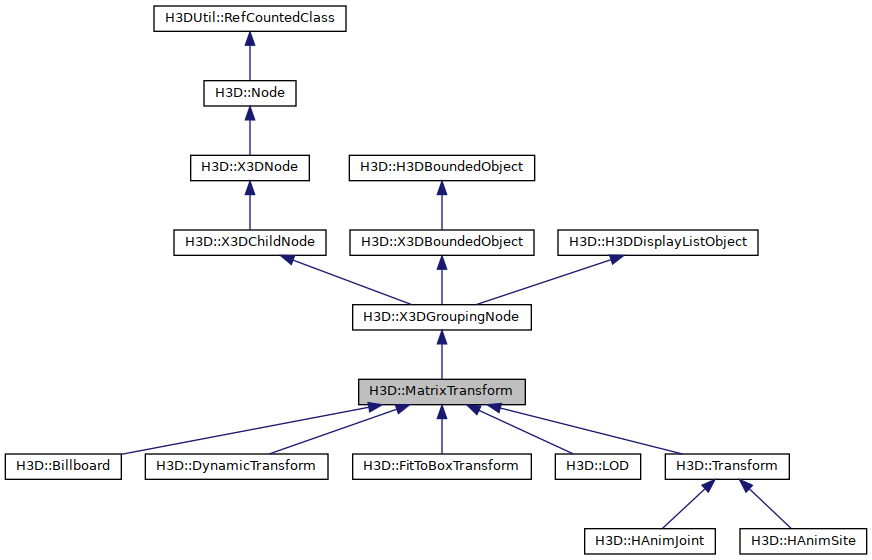

Inheritance diagram for H3D::MatrixTransform:

Classes
class	SFTransformedBound
	SFTransformedBound maintains the routes from the owner Node's bound and matrix field to the contained TransformedBoxBound instance's boxBound and matrix field. More...

Public Member Functions
	MatrixTransform (Inst< AddChildren > _addChildren=0, Inst< RemoveChildren > _removeChildren=0, Inst< MFChild > _children=0, Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< SFVec3f > _bboxCenter=0, Inst< SFVec3f > _bboxSize=0, Inst< SFTransformedBound > _transformedBound=0, Inst< SFMatrix4f > _matrix=0, Inst< SFMatrix4f > _accumulatedForward=0, Inst< SFMatrix4f > _accumulatedInverse=0)
	Constructor.

virtual void	render ()
	Render the children.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph.

void	multiplyGLMatrix ()
	Multiply the currently active OpenGL matrix with the matrix of this node.

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and this Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

Public Member Functions inherited from H3D::X3DGroupingNode
	X3DGroupingNode (Inst< AddChildren > _addChildren=0, Inst< RemoveChildren > _removeChildren=0, Inst< MFChild > _children=0, Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< SFVec3f > _bboxCenter=0, Inst< SFVec3f > _bboxSize=0)
	Constructor.

virtual	~X3DGroupingNode ()
	Destructor.

virtual void	initialize ()
	Sets up the bound field using the bboxCenter and bboxSize fields. More...

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DBoundedObject
	H3DBoundedObject (Inst< SFBound > _bound=0)
	Constructor.

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Attributes
H3DUniquePtr< SFMatrix4f >	matrix
	The transformation matrix. More...

H3DUniquePtr< SFMatrix4f >	accumulatedForward
	The accumulated forward transform matrix, i.e. More...

H3DUniquePtr< SFMatrix4f >	accumulatedInverse
	The accumulated inverse transform matrix, i.e. More...

H3DUniquePtr< SFTransformedBound >	transformedBound
	This is the same as the bound field, but with the transformation applied to the bound. More...

Public Attributes inherited from H3D::X3DGroupingNode
bool	use_union_bound
	if true a route will be set up between the bound field of the nodes in children and the bound field of the grouping node. More...

H3DUniquePtr< AddChildren >	addChildren
	The addChildren event appends nodes to the children field of a grouping node. More...

H3DUniquePtr< RemoveChildren >	removeChildren
	The removeChildren event removes nodes from the children field of the grouping node . More...

H3DUniquePtr< MFChild >	children
	The nodes that are grouped together by this node. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::X3DBoundedObject
H3DUniquePtr< SFVec3f >	bboxCenter
	Specifies a the center of an axis-aligned bounding box enclosing the node. More...

H3DUniquePtr< SFVec3f >	bboxSize
	Specifies a the size of an axis-aligned bounding box enclosing the node. More...

Public Attributes inherited from H3D::H3DBoundedObject
H3DUniquePtr< SFBound >	bound
	The field containing the bound object. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DGroupingNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Protected Attributes inherited from H3D::X3DGroupingNode
bool	children_multi_pass_transparency
	Will be set in traverseSG to indicate if any of the children enables multi-pass transparency. More...

vector< H3DRenderStateObject * >	render_states
	A vector of all the H3DRenderStatesObject within this X3DGroupingNode.

vector< ClipPlane * >	clip_planes
	A vector of only ClipPlane children of this X3DGroupingNode.

Detailed Description

The MatrixTransform node is a grouping node that defines a coordinate system for its children that is relative to the coordinate systems of its ancestors.

The matrix field is a 4x4 matrix defining the transform matrix from the children's coordinate system to its ancestors coordinate system.

The bboxCenter and bboxSize fields specify a bounding box that encloses the children of the Transform node. This is a hint that may be used for optimization purposes. The results are undefined if the specified bounding box is smaller than the actual bounding box of the children at any time. A default bboxSize value, (-1, -1, -1), implies that the bounding box is not specified and, if needed, shall be calculated by the browser. The bounding box shall be large enough at all times to enclose the union of the group's children's bounding boxes; it shall not include any transformations performed by the group itself (i.e., the bounding box is defined in the local coordinate system of the children). The results are undefined if the specified bounding box is smaller than the true bounding box of the group.

Examples:

MatrixTransform.x3d ( Source )

Internal routes:

Member Function Documentation

◆ closestPoint()

void MatrixTransform::closestPoint	(	const Vec3f &	p,
		NodeIntersectResult &	result
	)

virtual

Find closest point on Node to p.

Transforms point p and calls closestPoint for all children.

Parameters

p	The point to find the closest point to.
result	A struct containing various results of closest points such as which geometries the closest points where detected on.

Reimplemented from H3D::X3DGroupingNode.

Reimplemented in H3D::LOD.

References H3D::X3DGroupingNode::closestPoint(), matrix, H3D::Node::NodeIntersectResult::popTransform(), and H3D::Node::NodeIntersectResult::pushTransform().

◆ lineIntersect()

bool MatrixTransform::lineIntersect	(	const Vec3f &	from,
		const Vec3f &	to,
		LineIntersectResult &	result
	)

virtual

Detect intersection between a line segment and this Node.

Transforms the line into correct coordinate system and also transforms the result if there is a result. Calls lineIntersect for its children.

Parameters

from	The start of the line segment.
to	The end of the line segment.
result	Contains info about the closest intersection for every object that intersects the line.

Returns: true if intersected, false otherwise.

Reimplemented from H3D::X3DGroupingNode.

Reimplemented in H3D::LOD.

References H3D::X3DGroupingNode::lineIntersect(), matrix, H3D::Node::NodeIntersectResult::popTransform(), and H3D::Node::NodeIntersectResult::pushTransform().

◆ movingSphereIntersect()

bool MatrixTransform::movingSphereIntersect	(	H3DFloat	radius,
		const Vec3f &	from,
		const Vec3f &	to,
		NodeIntersectResult &	result
	)

virtual

Detect collision between a moving sphere and the Node.

Transforms points and radius (if non-uniform scaling the biggest of the scale parameters is chosen)

Parameters

radius	The radius of the sphere
from	The start position of the sphere
to	The end position of the sphere.
result	A struct containing various results of intersections such as which geometries intersected the moving sphere.

Returns: true if intersected, false otherwise.

Reimplemented from H3D::X3DGroupingNode.

Reimplemented in H3D::LOD.

References matrix, H3D::X3DGroupingNode::movingSphereIntersect(), H3D::Node::NodeIntersectResult::popTransform(), and H3D::Node::NodeIntersectResult::pushTransform().

Member Data Documentation

◆ accumulatedForward

H3DUniquePtr< SFMatrix4f > H3D::MatrixTransform::accumulatedForward

The accumulated forward transform matrix, i.e.

the transformation matrix from the local space at the current traversal position to global space. Note that this field will not stay constant for a constant scene graph if the DEF/USE feature is used for instances of this node.

Access type: outputOnly
Default value: Unit matrix

Referenced by H3D::HAnimJoint::traverseSG(), and traverseSG().

◆ accumulatedInverse

H3DUniquePtr< SFMatrix4f > H3D::MatrixTransform::accumulatedInverse

The accumulated inverse transform matrix, i.e.

the transformation matrix from global space to the local space at the current traversal position. Note that this field will not stay constant for a constant scene graph if the DEF/USE feature is used for instances of this node.

Access type: outputOnly
Default value: Unit matrix

Referenced by H3D::HAnimJoint::traverseSG(), and traverseSG().

◆ matrix

H3DUniquePtr< SFMatrix4f > H3D::MatrixTransform::matrix

The transformation matrix.

Access type: inputOutput
Default value: Unit matrix

Referenced by H3D::Billboard::Billboard(), closestPoint(), H3D::DynamicTransform::DynamicTransform(), H3D::FitToBoxTransform::FitToBoxTransform(), lineIntersect(), MatrixTransform(), movingSphereIntersect(), multiplyGLMatrix(), H3D::MatrixTransform::SFTransformedBound::onAdd(), H3D::MatrixTransform::SFTransformedBound::onRemove(), render(), H3D::HAnimJoint::renderSkeleton(), H3D::Transform::Transform(), H3D::HAnimJoint::traverseSG(), traverseSG(), and H3D::X3DShapeNode::traverseSG().

◆ transformedBound

H3DUniquePtr< SFTransformedBound > H3D::MatrixTransform::transformedBound

This is the same as the bound field, but with the transformation applied to the bound.

Access type: outputOnly

Referenced by H3D::H3DWindowNode::calculateFarAndNearPlane(), H3D::H3DDisplayListObject::DisplayList::isOutsideViewFrustum(), MatrixTransform(), H3D::X3DGroupingNode::MFChild::onAdd(), and H3D::X3DGroupingNode::MFChild::onRemove().

The documentation for this class was generated from the following files:
