This node defines a single plane equation that will be used to clip the geometry, i.e. More...

#include <H3D/ClipPlane.h>

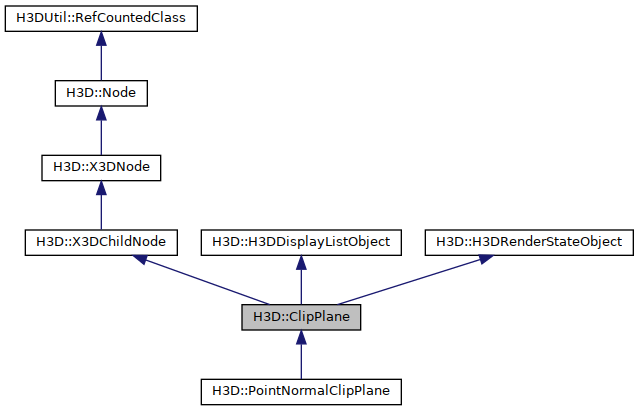

Inheritance diagram for H3D::ClipPlane:

Public Member Functions
	ClipPlane (Inst< SFNode > _metadata=0, Inst< SFBool > _enabled=0, Inst< SFVec4d > _plane=0, Inst< SFBool > _clipHaptics=0, Inst< SFBool > _clipGraphics=0, Inst< MFBool > _clipHapticsDevice=0)
	Constructor.

virtual void	enableGraphicsState ()
	Turn the clip plane on.

virtual void	disableGraphicsState ()
	Turn the clip plane off.

virtual void	enableHapticsState (TraverseInfo &ti)
	Disable haptics if device position is on the clipped side of the clip plane. More...

virtual void	disableHapticsState (TraverseInfo &ti)
	Reenable haptics. More...

bool	truncateLine (const Vec3f &from, const Vec3f &to, Vec3f &result_from, Vec3f &result_to)
	Changes the line defined by [ from, to ] so that only the part of the. More...

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual void	traverseSG (TraverseInfo &ti)
	traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Member Functions inherited from H3D::H3DRenderStateObject
virtual	~H3DRenderStateObject ()
	Destructor.

Public Attributes
H3DUniquePtr< SFBool >	enabled
	Specifies if the clipping plane should be enabled or not. More...

H3DUniquePtr< SFVec4d >	plane
	The plane equation that will be used to clip the geometry. More...

H3DUniquePtr< SFBool >	clipHaptics
	Specifies if the clipping plane should clip the haptics if enabled, i.e. More...

H3DUniquePtr< MFBool >	clipHapticsDevice
	The clipHapticsDevice field provides per haptics device control for clipping. More...

H3DUniquePtr< SFBool >	clipGraphics
	Specifies if the clipping plane should clip the graphics if enabled. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

static int	nr_active_clip_planes = 0
	The number of clip planes that are currently rendered.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Attributes
int	plane_index
	The index of the plane when rendered by OpenGL. More...

vector< bool >	haptics_enabled
	Was haptics enabled in the last call to enableHapticsState()?

Static Protected Attributes
static GLint	max_nr_clip_planes = -1
	The maximum number of clip planes the graphics hardware supports. More...

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

This node defines a single plane equation that will be used to clip the geometry, i.e.

remove parts of it from rendering.

The plane field defines a plane equation that will be used to clip the geometry. The points that are drawn are the points that satisfy the inequation: plane.x*x+plane.y*y+plane.z*z+plane.w >= 0

Clipping only occurs of the enabled field is 'true'.

The clipHaptics field specifies if the clipping plane should clip the haptics if enabled, i.e. if the haptics device is in a position that is clipped by the plane no haptics will be rendered for the device. This applies to all haptics devices. For per device control use the clipHapticsDevice field instead. If the clipHapticsDevice field is non-empty the clipHaptics field is ignored. This allows you to specify the, for each device, if it should be clipped or not. Each entry matches agains the the device with the same device index as the index in the field. If a device with a higher device index than values available is specified, the last value is used.

The clipGraphics field specifies if the graphics should be clipped when the ClipPlane is enabled.

Examples:

ClipPlane.x3d ( Source )

Internal routes:

Member Function Documentation

◆ disableHapticsState()

void ClipPlane::disableHapticsState ( TraverseInfo & ti )

virtual

Reenable haptics.

Parameters

ti	The TraverseInfo object containing information about the traversal.

Reimplemented from H3D::H3DRenderStateObject.

References haptics_enabled, and H3D::TraverseInfo::setHapticsEnabled().

◆ enableHapticsState()

void ClipPlane::enableHapticsState ( TraverseInfo & ti )

virtual

Disable haptics if device position is on the clipped side of the clip plane.

Parameters

ti	The TraverseInfo object containing information about the traversal.

Reimplemented from H3D::H3DRenderStateObject.

References clipHaptics, clipHapticsDevice, H3D::TraverseInfo::disableHaptics(), H3D::TraverseInfo::getAccInverseMatrix(), H3D::TraverseInfo::getHapticsDevices(), H3D::TraverseInfo::getHapticsEnabled(), haptics_enabled, plane, and H3D::H3DHapticsDevice::trackerPosition.

◆ truncateLine()

bool ClipPlane::truncateLine	(	const Vec3f &	from,
		const Vec3f &	to,
		Vec3f &	result_from,
		Vec3f &	result_to
	)

Changes the line defined by [ from, to ] so that only the part of the.

is above the plane ) is returned.

Parameters

from	The start point of the the line segment.
to	The end point of the line segment.
result_from	The start point of the the truncated line segment.
result_to	The end point of the truncated line segment.

Returns: true if some part of the line is above the plane.

References enabled, and plane.

Member Data Documentation

◆ clipGraphics

H3DUniquePtr< SFBool > H3D::ClipPlane::clipGraphics

Specifies if the clipping plane should clip the graphics if enabled.

Access type: inputOutput
Default value: true

Referenced by ClipPlane(), disableGraphicsState(), and enableGraphicsState().

◆ clipHaptics

H3DUniquePtr< SFBool > H3D::ClipPlane::clipHaptics

Specifies if the clipping plane should clip the haptics if enabled, i.e.

if the haptics device is in a position that is clipped by the plane no haptics will be rendered for the device. This field only has effect if clipHapticsDevice field is empty.

Access type: inputOutput
Default value: true

Referenced by ClipPlane(), and enableHapticsState().

◆ clipHapticsDevice

H3DUniquePtr< MFBool > H3D::ClipPlane::clipHapticsDevice

The clipHapticsDevice field provides per haptics device control for clipping.

This allows you to specify, for each device, if it should be clipped or not. Each entry matches agains the the device with the same device index as the index in the field. If a device with a higher device index than values available is specified, the last value is used. When the clipHapticsDevice is empty the clipHaptics field is used to determine clipping for all devices.

Access type: inputOutput

Referenced by enableHapticsState().

◆ enabled

H3DUniquePtr< SFBool > H3D::ClipPlane::enabled

Specifies if the clipping plane should be enabled or not.

Access type: inputOutput
Default value: true

Referenced by ClipPlane(), disableGraphicsState(), enableGraphicsState(), and truncateLine().

◆ max_nr_clip_planes

GLint ClipPlane::max_nr_clip_planes = -1

staticprotected

The maximum number of clip planes the graphics hardware supports.

Set in the first call to enable().

Referenced by disableGraphicsState().

◆ plane

H3DUniquePtr< SFVec4d > H3D::ClipPlane::plane

The plane equation that will be used to clip the geometry.

The points that are drawn are the points that satisfy the inequation: plane.x*x+plane.y*y+plane.z*z+plane.w >= 0

Access type: inputOutput
Default value: Vec4d( 0, 1, 0, 0 )

Referenced by ClipPlane(), enableGraphicsState(), enableHapticsState(), H3D::PointNormalClipPlane::PointNormalClipPlane(), and truncateLine().

◆ plane_index

int H3D::ClipPlane::plane_index

protected

The index of the plane when rendered by OpenGL.

-1 if currently not rendered.

Referenced by ClipPlane(), disableGraphicsState(), and enableGraphicsState().

The documentation for this class was generated from the following files:
