The GraphicsHardwareInfo class provides information about the graphics hardware the program is being run on and its capabilities. More...

#include <H3D/GraphicsHardwareInfo.h>

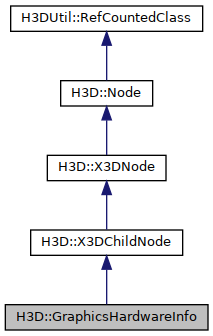

Inheritance diagram for H3D::GraphicsHardwareInfo:

Classes
struct	Info
	The Info class holds information about the current graphics hardware. More...

Public Member Functions
	GraphicsHardwareInfo (Inst< SFNode > _metadata=0, Inst< SFBool > _initialized=0, Inst< SFString > _vendor=0, Inst< SFString > _renderer=0, Inst< SFString > _version=0, Inst< SFString > _shadingLanguageVersion=0, Inst< SFString > _extensions=0, Inst< SFInt32 > _max3dTextureSize=0, Inst< SFInt32 > _maxClientAttribStackDepth=0, Inst< SFInt32 > _maxAttribStackDepth=0, Inst< SFInt32 > _maxClipPlanes=0, Inst< SFInt32 > _maxColorMatrixStackDepth=0, Inst< SFInt32 > _maxCombinedTextureImageUnits=0, Inst< SFInt32 > _maxCubeMapTextureSize=0, Inst< SFInt32 > _maxDrawBuffers=0, Inst< SFInt32 > _maxElementsIndices=0, Inst< SFInt32 > _maxElementsVertices=0, Inst< SFInt32 > _maxEvalOrder=0, Inst< SFInt32 > _maxFragmentUniformComponents=0, Inst< SFInt32 > _maxLights=0, Inst< SFInt32 > _maxListNesting=0, Inst< SFInt32 > _maxModelviewStackDepth=0, Inst< SFInt32 > _maxNameStackDepth=0, Inst< SFInt32 > _maxPixelMapTable=0, Inst< SFInt32 > _maxProjectionStackDepth=0, Inst< SFInt32 > _maxTextureCoords=0, Inst< SFInt32 > _maxTextureImageUnits=0, Inst< SFInt32 > _maxTextureLODBias=0, Inst< SFInt32 > _maxTextureSize=0, Inst< SFInt32 > _maxTextureStackDepth=0, Inst< SFInt32 > _maxTextureUnits=0, Inst< SFInt32 > _maxVaryingFloats=0, Inst< SFInt32 > _maxVertexAttribs=0, Inst< SFInt32 > _maxVertexTextureImageUnits=0, Inst< SFInt32 > _maxVertexUniformComponents=0, Inst< SFInt32 > _maxViewportWidth=0, Inst< SFInt32 > _maxViewportHeight=0)
	Constructor.

virtual	~GraphicsHardwareInfo ()
	Destructor.

virtual void	initialize ()
	Initialize the node. Sets the fields of the node.

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual void	traverseSG (TraverseInfo &ti)
	traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Static Public Member Functions
static bool	initializeInfo ()
	Function to call to initialize the static info struct with the values from the current graphics hardware. More...

static bool	infoIsInitialized ()
	Returns true if the static info member has been initialized or not.

static const Info &	getInfo ()
	Returns info about the current graphics hardware. More...

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Public Attributes
H3DUniquePtr< SFBool >	initialized
	If true the information in all the other fields are valid. More...

H3DUniquePtr< SFString >	vendor
	The company responsible for this GL implementation. More...

H3DUniquePtr< SFString >	renderer
	The name of the renderer. More...

H3DUniquePtr< SFString >	version
	A version or release number. More...

H3DUniquePtr< SFString >	shadingLanguageVersion
	A version or release number for the shading language. More...

H3DUniquePtr< SFString >	extensions
	A space-separated list of supported extensions to GL. More...

H3DUniquePtr< SFInt32 >	max3dTextureSize
	A rough estimate of the largest 3D texture that the GL can handle. More...

H3DUniquePtr< SFInt32 >	maxClientAttribStackDepth
	A value indicating the maximum supported depth of the client attribute stack. More...

H3DUniquePtr< SFInt32 >	maxAttribStackDepth
	The maximum supported depth of the attribute stack. More...

H3DUniquePtr< SFInt32 >	maxClipPlanes
	The maximum number of application-defined clipping planes. More...

H3DUniquePtr< SFInt32 >	maxColorMatrixStackDepth
	The maximum supported depth of the color matrix stack. More...

H3DUniquePtr< SFInt32 >	maxCombinedTextureImageUnits
	The maximum supported texture image units that can be used to access texture maps from the vertex shader and the fragment processor combined. More...

H3DUniquePtr< SFInt32 >	maxCubeMapTextureSize
	The value gives a rough estimate of the largest cube-map texture that the GL can handle. More...

H3DUniquePtr< SFInt32 >	maxDrawBuffers
	The maximum number of simultaneous output colors allowed from a fragment shader using the gl_FragData built-in array. More...

H3DUniquePtr< SFInt32 >	maxElementsIndices
	The recommended maximum number of vertex array indices. More...

H3DUniquePtr< SFInt32 >	maxElementsVertices
	The recommended maximum number of vertex array vertices. More...

H3DUniquePtr< SFInt32 >	maxEvalOrder
	The maximum equation order supported by 1D and 2D evaluators. More...

H3DUniquePtr< SFInt32 >	maxFragmentUniformComponents
	The maximum number of individual floating-point, integer, or boolean values that can be held in uniform variable storage for a fragment shader. More...

H3DUniquePtr< SFInt32 >	maxLights
	The maximum number of lights. More...

H3DUniquePtr< SFInt32 >	maxListNesting
	The maximum recursion depth allowed during display-list traversal. More...

H3DUniquePtr< SFInt32 >	maxModelviewStackDepth
	The maximum supported depth of the modelview matrix stack. More...

H3DUniquePtr< SFInt32 >	maxNameStackDepth
	The maximum supported depth of the selection name stack. More...

H3DUniquePtr< SFInt32 >	maxPixelMapTable
	The maximum supported size of a glPixelMap lookup table. More...

H3DUniquePtr< SFInt32 >	maxProjectionStackDepth
	The maximum supported depth of the projection matrix stack. More...

H3DUniquePtr< SFInt32 >	maxTextureCoords
	The maximum number of texture coordinate sets available to vertex and fragment shaders. More...

H3DUniquePtr< SFInt32 >	maxTextureImageUnits
	The maximum supported texture image units that can be used to access texture maps from the fragment shader. More...

H3DUniquePtr< SFInt32 >	maxTextureLODBias
	The maximum, absolute value of the texture level-of-detail bias. More...

H3DUniquePtr< SFInt32 >	maxTextureSize
	The value gives a rough estimate of the largest texture that the GL can handle. More...

H3DUniquePtr< SFInt32 >	maxTextureStackDepth
	The maximum supported depth of the texture matrix stack. More...

H3DUniquePtr< SFInt32 >	maxTextureUnits
	A value indicating the number of conventional texture units supported. More...

H3DUniquePtr< SFInt32 >	maxVaryingFloats
	The maximum number of interpolators available for processing varying variables used by vertex and fragment shaders. More...

H3DUniquePtr< SFInt32 >	maxVertexAttribs
	The maximum number of 4-component generic vertex attributes accessible to a vertex shader. More...

H3DUniquePtr< SFInt32 >	maxVertexTextureImageUnits
	The maximum supported texture image units that can be used to access texture maps from the vertex shader. More...

H3DUniquePtr< SFInt32 >	maxVertexUniformComponents
	The maximum number of individual floating-point, integer, or boolean values that can be held in uniform variable storage for a vertex shader. More...

H3DUniquePtr< SFInt32 >	maxViewportWidth
	The maximum supported width of the viewport. More...

H3DUniquePtr< SFInt32 >	maxViewportHeight
	The maximum supported height of the viewport. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Protected Attributes
static bool	info_initialized = false
	Flag indicating if the info member has been initialized or not.

static Info	info
	The graphics card info for the current system.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The GraphicsHardwareInfo class provides information about the graphics hardware the program is being run on and its capabilities.

One can either use the GraphicsHardwareInfo node to get the info or use the static function GraphicsHardwareInfo::getInfo directly.

The values are the same as can be get by the glGet function. See OpenGL reference documentation for that.

Examples:

GraphicsHardwareInfo.x3d ( Source )

Internal routes:

Member Function Documentation

◆ getInfo()

static const Info& H3D::GraphicsHardwareInfo::getInfo ( )

inlinestatic

Returns info about the current graphics hardware.

Only valid if infoIsInitialized is true.

Referenced by H3D::PhongShader::addUniformFieldsForLight(), H3D::PhongShader::setupLight(), H3D::Appearance::traverseSG(), H3D::PhongShader::traverseSG(), and H3D::FrameBufferTextureGenerator::GetNrSamples::update().

◆ initializeInfo()

bool GraphicsHardwareInfo::initializeInfo ( )

static

Function to call to initialize the static info struct with the values from the current graphics hardware.

Can only be called when a valid current OpenGL context exits.

References info.

Referenced by H3D::H3DWindowNode::initialize().

Member Data Documentation

◆ extensions

H3DUniquePtr< SFString > H3D::GraphicsHardwareInfo::extensions

A space-separated list of supported extensions to GL.

Access type: outputOnly

Referenced by initialize().

◆ initialized

H3DUniquePtr< SFBool > H3D::GraphicsHardwareInfo::initialized

If true the information in all the other fields are valid.

Access type: outputOnly
Default value: FALSE

Referenced by GraphicsHardwareInfo(), and initialize().

◆ max3dTextureSize

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::max3dTextureSize

A rough estimate of the largest 3D texture that the GL can handle.

Access type: outputOnly

Referenced by initialize().

◆ maxAttribStackDepth

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxAttribStackDepth

The maximum supported depth of the attribute stack.

Access type: outputOnly

Referenced by initialize().

◆ maxClientAttribStackDepth

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxClientAttribStackDepth

A value indicating the maximum supported depth of the client attribute stack.

Access type: outputOnly

Referenced by initialize().

◆ maxClipPlanes

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxClipPlanes

The maximum number of application-defined clipping planes.

Access type: outputOnly

Referenced by initialize().

◆ maxColorMatrixStackDepth

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxColorMatrixStackDepth

The maximum supported depth of the color matrix stack.

Access type: outputOnly

Referenced by initialize().

◆ maxCombinedTextureImageUnits

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxCombinedTextureImageUnits

The maximum supported texture image units that can be used to access texture maps from the vertex shader and the fragment processor combined.

If both the vertex shader and the fragment processing stage access the same texture image unit, then that counts as using two texture image units against this limit.

Access type: outputOnly

Referenced by initialize().

◆ maxCubeMapTextureSize

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxCubeMapTextureSize

The value gives a rough estimate of the largest cube-map texture that the GL can handle.

Access type: outputOnly

Referenced by initialize().

◆ maxDrawBuffers

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxDrawBuffers

The maximum number of simultaneous output colors allowed from a fragment shader using the gl_FragData built-in array.

Access type: outputOnly

Referenced by initialize().

◆ maxElementsIndices

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxElementsIndices

The recommended maximum number of vertex array indices.

Access type: outputOnly

Referenced by initialize().

◆ maxElementsVertices

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxElementsVertices

The recommended maximum number of vertex array vertices.

Access type: outputOnly

Referenced by initialize().

◆ maxEvalOrder

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxEvalOrder

The maximum equation order supported by 1D and 2D evaluators.

Access type: outputOnly

Referenced by initialize().

◆ maxFragmentUniformComponents

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxFragmentUniformComponents

The maximum number of individual floating-point, integer, or boolean values that can be held in uniform variable storage for a fragment shader.

Access type: outputOnly

Referenced by initialize().

◆ maxLights

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxLights

The maximum number of lights.

Access type: outputOnly

Referenced by initialize().

◆ maxListNesting

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxListNesting

The maximum recursion depth allowed during display-list traversal.

Access type: outputOnly

Referenced by initialize().

◆ maxModelviewStackDepth

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxModelviewStackDepth

The maximum supported depth of the modelview matrix stack.

Access type: outputOnly

Referenced by initialize().

◆ maxNameStackDepth

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxNameStackDepth

The maximum supported depth of the selection name stack.

Access type: outputOnly

Referenced by initialize().

◆ maxPixelMapTable

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxPixelMapTable

The maximum supported size of a glPixelMap lookup table.

Access type: outputOnly

Referenced by initialize().

◆ maxProjectionStackDepth

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxProjectionStackDepth

The maximum supported depth of the projection matrix stack.

Access type: outputOnly

Referenced by initialize().

◆ maxTextureCoords

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxTextureCoords

The maximum number of texture coordinate sets available to vertex and fragment shaders.

Access type: outputOnly

Referenced by initialize().

◆ maxTextureImageUnits

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxTextureImageUnits

The maximum supported texture image units that can be used to access texture maps from the fragment shader.

Access type: outputOnly

Referenced by initialize().

◆ maxTextureLODBias

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxTextureLODBias

The maximum, absolute value of the texture level-of-detail bias.

Access type: outputOnly

Referenced by initialize().

◆ maxTextureSize

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxTextureSize

The value gives a rough estimate of the largest texture that the GL can handle.

Access type: outputOnly

Referenced by initialize().

◆ maxTextureStackDepth

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxTextureStackDepth

The maximum supported depth of the texture matrix stack.

Access type: outputOnly

Referenced by initialize().

◆ maxTextureUnits

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxTextureUnits

A value indicating the number of conventional texture units supported.

Each conventional texture unit includes both a texture coordinate set and a texture image unit. Conventional texture units may be used for fixed-function (non-shader) rendering.

Access type: outputOnly

Referenced by initialize().

◆ maxVaryingFloats

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxVaryingFloats

The maximum number of interpolators available for processing varying variables used by vertex and fragment shaders.

This value represents the number of individual floating-point values that can be interpolated; varying variables declared as vectors, matrices, and arrays will all consume multiple interpolators.

Access type: outputOnly

Referenced by initialize().

◆ maxVertexAttribs

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxVertexAttribs

The maximum number of 4-component generic vertex attributes accessible to a vertex shader.

Access type: outputOnly

Referenced by initialize().

◆ maxVertexTextureImageUnits

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxVertexTextureImageUnits

The maximum supported texture image units that can be used to access texture maps from the vertex shader.

Access type: outputOnly

Referenced by initialize().

◆ maxVertexUniformComponents

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxVertexUniformComponents

The maximum number of individual floating-point, integer, or boolean values that can be held in uniform variable storage for a vertex shader.

Access type: outputOnly

Referenced by initialize().

◆ maxViewportHeight

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxViewportHeight

The maximum supported height of the viewport.

Access type: outputOnly

Referenced by initialize().

◆ maxViewportWidth

H3DUniquePtr< SFInt32 > H3D::GraphicsHardwareInfo::maxViewportWidth

The maximum supported width of the viewport.

Access type: outputOnly

Referenced by initialize().

◆ renderer

H3DUniquePtr< SFString > H3D::GraphicsHardwareInfo::renderer

The name of the renderer.

This name is typically specific to a particular configuration of a hardware platform. It does not change from release to release.

Access type: outputOnly

Referenced by initialize().

◆ shadingLanguageVersion

H3DUniquePtr< SFString > H3D::GraphicsHardwareInfo::shadingLanguageVersion

A version or release number for the shading language.

Access type: outputOnly

Referenced by initialize().

◆ vendor

H3DUniquePtr< SFString > H3D::GraphicsHardwareInfo::vendor

The company responsible for this GL implementation.

This name does not change from release to release.

Access type: outputOnly

Referenced by initialize().

◆ version

H3DUniquePtr< SFString > H3D::GraphicsHardwareInfo::version

A version or release number.

Access type: outputOnly

Referenced by initialize().

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ getInfo()

◆ initializeInfo()

Member Data Documentation

◆ extensions

◆ initialized

◆ max3dTextureSize

◆ maxAttribStackDepth

◆ maxClientAttribStackDepth

◆ maxClipPlanes

◆ maxColorMatrixStackDepth

◆ maxCombinedTextureImageUnits

◆ maxCubeMapTextureSize

◆ maxDrawBuffers

◆ maxElementsIndices

◆ maxElementsVertices

◆ maxEvalOrder

◆ maxFragmentUniformComponents

◆ maxLights

◆ maxListNesting

◆ maxModelviewStackDepth

◆ maxNameStackDepth

◆ maxPixelMapTable

◆ maxProjectionStackDepth

◆ maxTextureCoords

◆ maxTextureImageUnits

◆ maxTextureLODBias

◆ maxTextureSize

◆ maxTextureStackDepth

◆ maxTextureUnits

◆ maxVaryingFloats

◆ maxVertexAttribs

◆ maxVertexTextureImageUnits

◆ maxVertexUniformComponents

◆ maxViewportHeight

◆ maxViewportWidth

◆ renderer

◆ shadingLanguageVersion

◆ vendor

◆ version
