The PhongShader node defines a shader for using the Phong illumination model. More...

#include <H3D/PhongShader.h>

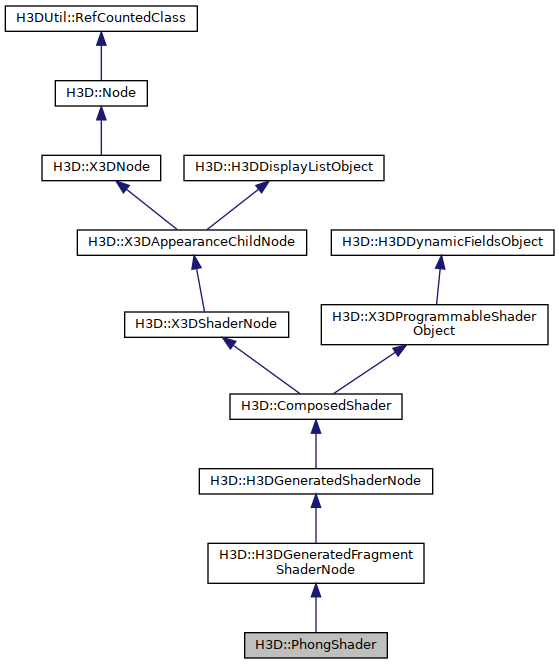

Inheritance diagram for H3D::PhongShader:

Public Types
typedef DependentSFNode< X3DTexture2DNode, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true >	SFTexture2DNode
	The SFTexture2DNode field is dependent on the displayList field of the containing X3DTexture2DNode node.

Public Types inherited from H3D::ComposedShader
typedef DependentSFNode< ShaderConstants, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true >	SFShaderConstantsBase
	The SFShaderConstants field is dependent on the displayList field of the containing ShaderConstants node.

typedef DependentMFNode< ShaderPart, FieldRef< ShaderPart, ShaderPart::SFShaderString, &ShaderPart::shaderString >, true >	MFShaderPartBase
	The MFShaderPartBase is dependent on the url field of the containing ShaderPart node.

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
	PhongShader (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0, Inst< MFShaderPart > _parts=0, Inst< SFBool > _suppressUniformWarnings=0, Inst< MFString > _fragmentShaderString=0, Inst< MFString > _vertexShaderString=0, Inst< SFTexture2DNode > _ambientMap=0, Inst< SFTexture2DNode > _diffuseMap=0, Inst< SFTexture2DNode > _emissionMap=0, Inst< SFTexture2DNode > _normalMap=0, Inst< SFString > _normalMapCoordSpace=0, Inst< SFMatrix4f > _normalMapMatrix=0, Inst< SFTexture2DNode > _specularMap=0, Inst< SFTexture2DNode > _glossMap=0, Inst< SFTexture2DNode > _specularColorRamp=0, Inst< SFString > _specularColorRampMode=0, Inst< SFTexture2DNode > _diffuseColorRamp=0, Inst< SFString > _diffuseColorRampMode=0, Inst< SFFloat > _fresnel=0, Inst< SFBool > _modulateMaps=0, Inst< SFTexture2DNode > _backAmbientMap=0, Inst< SFTexture2DNode > _backDiffuseMap=0, Inst< SFTexture2DNode > _backEmissionMap=0, Inst< SFTexture2DNode > _backNormalMap=0, Inst< SFString > _backNormalMapCoordSpace=0, Inst< SFMatrix4f > _backNormalMapMatrix=0, Inst< SFTexture2DNode > _backSpecularMap=0, Inst< SFTexture2DNode > _backGlossMap=0, Inst< SFTexture2DNode > _backSpecularColorRamp=0, Inst< SFString > _backSpecularColorRampMode=0, Inst< SFTexture2DNode > _backDiffuseColorRamp=0, Inst< SFString > _backDiffuseColorRampMode=0, Inst< SFFloat > _backFresnel=0, Inst< SFBool > _backModulateMaps=0, Inst< SFBool > _separateBackColor=0, Inst< SFString > _model=0)
	Constructor.

virtual void	traverseSG (TraverseInfo &ti)
	The traverseSG method is specialized to add the shaderRequiresTangents user data to the TraverseInfo object in order to let supported geometries to render tangents if they can.

Public Member Functions inherited from H3D::H3DGeneratedFragmentShaderNode
	H3DGeneratedFragmentShaderNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0, Inst< MFShaderPart > _parts=0, Inst< SFBool > _suppressUniformWarnings=0, Inst< MFString > _fragmentShaderString=0, Inst< MFString > _vertexShaderString=0)
	Constructor.

Public Member Functions inherited from H3D::H3DGeneratedShaderNode
	H3DGeneratedShaderNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0, Inst< MFShaderPart > _parts=0, Inst< SFBool > _suppressUniformWarnings=0, Inst< MFString > _fragmentShaderString=0, Inst< MFString > _vertexShaderString=0)
	Constructor.

virtual void	buildShader ()
	Rebuilds the generated shader, causing a full rebuild and relink of the shader.

virtual void	preRender ()
	The preRender method is extended to make sure that the shader is up to date before rendering.

virtual string	getFinalFragmentShaderOutputString ()
	Returns the string that is the last thing that is done in the fragment shader. More...

virtual string	getVertexShaderString ()
	Returns the shader code for the vertex shader. More...

virtual string	uniqueShaderName (const string &base_name)
	The uniqueShaderName function is used to generate a name unique for this instance of the shader generator node class. More...

virtual string	getFragmentShaderHeader ()
	Return a string that is placed at the beginning of a fragment shader to specify minimum required version of the shader as well as enabled extensions.

virtual string	getVertexShaderHeader ()
	Return a string that is placed at the beginning of a vertex shader to specify minimum required version of the shader as well as enabled extensions.

Public Member Functions inherited from H3D::ComposedShader
	ComposedShader (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0, Inst< MFShaderPart > _parts=0, Inst< SFBool > _suppressUniformWarnings=0, Inst< SFString > _geometryInputType=0, Inst< SFString > _geometryOutputType=0, Inst< SFInt32 > _geometryVerticesOut=0, Inst< SFString > _transparencyDetectMode=0, Inst< MFString > _transformFeedbackVaryings=0, Inst< SFBool > _printShaderWarnings=0, Inst< SFShaderConstants > _shaderConstants=0)
	Constructor.

virtual	~ComposedShader ()
	Destructor.

virtual bool	addField (const string &_name, const Field::AccessType &access, Field *field)
	The addField method is specialized to add a route from the field added to the displayList field.

virtual bool	removeField (const string &_name)
	The removeField method is specialized to remove the route from the field to the displayList field.

virtual void	render ()
	Sets up the shader program and sets uniform variable values.

virtual void	postRender ()
	Disables the shader program.

virtual GLbitfield	getAffectedGLAttribs ()
	Returns a bitmask of the OpenGL attrib bits that will be affected by this node. More...

virtual bool	isTransparent (X3DMaterialNode *material)
	Returns a hint if the X3DShaderNode produces an alpha channel that is < 1, i.e. More...

GLhandleARB	getProgramHandle ()
	Returns the OpenGL shader program handle used by the ComposedShader.

Public Member Functions inherited from H3D::X3DShaderNode
	X3DShaderNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0)
	Constructor.

virtual bool	isSupported ()
	Returns true if the shader node type is supported by the browser. More...

void	setSelected (bool selected)
	Set the isSelected field.

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

Public Member Functions inherited from H3D::X3DAppearanceChildNode
	X3DAppearanceChildNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Member Functions inherited from H3D::X3DProgrammableShaderObject
	X3DProgrammableShaderObject (H3DNodeDatabase *_database)
	Constructor.

virtual void	clearFields ()
	Remove all dynamic fields that have been previously added.

virtual	~X3DProgrammableShaderObject ()
	Destructor.

Public Member Functions inherited from H3D::H3DDynamicFieldsObject
field_iterator	firstField ()
	Get an iterator to the first of the dynamic fields.

field_iterator	endField ()
	Get an iterator pointing to the end of the dynamic fields.

	H3DDynamicFieldsObject ()
	Constructor.

Public Attributes
H3DUniquePtr< SFTexture2DNode >	ambientMap
	Defines the Ma part in the Phong illumination model specified above. More...

H3DUniquePtr< SFTexture2DNode >	diffuseMap
	Defines the Md part in the Phong illumination model specified above. More...

H3DUniquePtr< SFTexture2DNode >	emissionMap
	Defines the Me part in the Phong illumination model specified above. More...

H3DUniquePtr< SFTexture2DNode >	normalMap
	Defines the normal(N) in the Phong illumination model specified above. More...

H3DUniquePtr< SFMatrix4f >	normalMapMatrix
	Defines the transformation from RGB values of the normalMap(in range [0,1]) to the actual normals in range[-1,1]. More...

H3DUniquePtr< SFString >	normalMapCoordSpace
	The normalMapCoordSpace field defines which coordinate space the normals in the normalMap are specified in. More...

H3DUniquePtr< SFTexture2DNode >	specularMap
	Defines the Ms part in the Phong illumination model specified above. More...

H3DUniquePtr< SFTexture2DNode >	glossMap
	Defines the Mshininess part in the Phong illumination model specified above. More...

H3DUniquePtr< SFTexture2DNode >	diffuseColorRamp
	The diffuseColorRamp can be used to control the diffuse color gradient across a material. More...

H3DUniquePtr< SFString >	diffuseColorRampMode
	The diffuseColorRampMode defines what value should be used to lookup up into the diffuseColorRamp texture. More...

H3DUniquePtr< SFTexture2DNode >	specularColorRamp
	The specularColorRamp can be used to control the specular color gradient across a material. More...

H3DUniquePtr< SFString >	specularColorRampMode
	The specularColorRampMode defines what value should be used to lookup up into the specularColorRamp texture. More...

H3DUniquePtr< SFFloat >	fresnel
	The fresnel field specifies if the fresnel effect should be used in the lighting model and if so how much. More...

H3DUniquePtr< SFBool >	modulateMaps
	The modulateMaps field determines if the map values should be modulated with the corresponding Material value or not. More...

H3DUniquePtr< SFTexture2DNode >	backAmbientMap
	Defines the Ma part in the Phong illumination model specified above for back facing polygons. More...

H3DUniquePtr< SFTexture2DNode >	backDiffuseMap
	Defines the Md part in the Phong illumination model specified above for back facing polygons. More...

H3DUniquePtr< SFTexture2DNode >	backEmissionMap
	Defines the Me part in the Phong illumination model specified above for back facing polygons. More...

H3DUniquePtr< SFTexture2DNode >	backNormalMap
	Defines the normal(N) in the Phong illumination model specified above for back facing polygons. More...

H3DUniquePtr< SFMatrix4f >	backNormalMapMatrix
	Defines the transformation from RGB values of the normalMap(in range [0,1]) to the actual normals in range[-1,1]. More...

H3DUniquePtr< SFString >	backNormalMapCoordSpace
	The normalMapCoordSpace field defines which coordinate space the normals in the normalMap are specified in. More...

H3DUniquePtr< SFTexture2DNode >	backSpecularMap
	Defines the Ms part in the Phong illumination model specified above for back facing polygons. More...

H3DUniquePtr< SFTexture2DNode >	backGlossMap
	Defines the Mshininess part in the Phong illumination model specified above for back facing polygons. More...

H3DUniquePtr< SFTexture2DNode >	backDiffuseColorRamp
	The diffuseColorRamp can be used to control the diffuse color gradient across a material for back facing polygons. More...

H3DUniquePtr< SFString >	backDiffuseColorRampMode
	The backDiffuseColorRampMode defines what value should be used to lookup up into the backDiffuseColorRamp texture. More...

H3DUniquePtr< SFTexture2DNode >	backSpecularColorRamp
	The specularColorRamp can be used to control the specular color gradient across a material for back facing polygons. More...

H3DUniquePtr< SFString >	backSpecularColorRampMode
	The backSpecularColorRampMode defines what value should be used to lookup up into the backSpecularColorRamp texture. More...

H3DUniquePtr< SFFloat >	backFresnel
	The backFresnel field specifies the fresnel value for back facing polygons when separateBackColor is TRUE. More...

H3DUniquePtr< SFBool >	backModulateMaps
	The modulateMaps field determines if the map values should be modulated with the corresponding Material value or not. More...

H3DUniquePtr< SFBool >	separateBackColor
	If the separateBackColor field is set to TRUE, then the rendering shall render the front and back faces of the geometry with different values using the backDiffuseMap, backSpecularMap, etc. More...

H3DUniquePtr< SFString >	model
	The shading model to use. More...

Public Attributes inherited from H3D::H3DGeneratedShaderNode
H3DUniquePtr< MFString >	fragmentShaderString
	Contains the generated fragment shader code. More...

H3DUniquePtr< MFString >	vertexShaderString
	Contains the generated vertex shader code. More...

H3DUniquePtr< RebuildShader >	rebuildShader
	Field used to update the shader code when an event is received. More...

Public Attributes inherited from H3D::ComposedShader
H3DUniquePtr< SFShaderConstants >	shaderConstants
	The shaderConstants field can contain a ShaderConstants node defining constants that can be used by all ShaderPart instances in the ComposedShader node. More...

H3DUniquePtr< MFShaderPart >	parts
	The shader parts to use in the ComposedShader. More...

H3DUniquePtr< SFBool >	suppressUniformWarnings
	Suppress the warnings printed to the console about setting uniform fields that do not exist in the shader. More...

H3DUniquePtr< SFString >	geometryInputType
	The input geometry type of the geometry being rendered with a geometry shader. More...

H3DUniquePtr< SFString >	geometryOutputType
	The output geometry type of the geometry being rendered with a geometry shader. More...

H3DUniquePtr< SFInt32 >	geometryVerticesOut
	The number of vertices the geometry shader generates. More...

H3DUniquePtr< SFString >	transparencyDetectMode
	Determines how the render system will determine if the shader used generates any fragment that has an alpha channel that is < 1, i.e. More...

H3DUniquePtr< MFString >	transformFeedbackVaryings
	List of varying names to capture during transform feedback. More...

H3DUniquePtr< SFBool >	printShaderWarnings
	Always print shader warnings to console. More...

Public Attributes inherited from H3D::X3DShaderNode
H3DUniquePtr< SFBool >	isSelected
	The isSelected output field is used to indicate that this shader instance is the one selected for use by the browser. More...

H3DUniquePtr< SFBool >	isValid
	The isValid field is used to indicate whether the current shader objects can be run as a shader program. More...

H3DUniquePtr< SFBool >	activate
	The activate field forces the shader to activate the contained objects. More...

H3DUniquePtr< EventCollectingField< Field > >	activateMonitor
	field used to monitor if activate field is modified

H3DUniquePtr< SFString >	language
	The language field is used to indicate to the browser which shading language is used for the source file(s). More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::H3DGeneratedFragmentShaderNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::H3DGeneratedShaderNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::ComposedShader
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DShaderNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DProgrammableShaderObject
static bool	use_bindless_textures = false
	True if we should use bindless textures.

Protected Member Functions
string	uniqueLightFieldName (const string &field_name, X3DLightNode *light)
	Returns a unique name to use in this shader for a field of a light node.

virtual string	addUniformFields (ComposedShader *shader)
	Adds uniform fields to the shader. More...

virtual string	addUniformFieldsForLight (ComposedShader shader, X3DLightNode light, int gl_index)
	Adds uniform fields needed for a light to the shader. More...

virtual string	getFunctionShaderString ()
	Get a string with GLSL function definitions to be used by the generated shader.

virtual void	getVaryingVariables (vector< VaryingVariable > &variables)
	Get the varying variables used by the shader generator.

virtual void	getAttributes (vector< Attribute > &attributes)
	Get the attribues used by the shader generator.

virtual string	getFragmentShaderString ()
	Returns the shader code for the fragment shader.

virtual string	getBaseDiffuseColor (const string &diffuse_color, const string &back_diffuse_color)
	Returns a glsl string that sets the variable diffuse_color to the diffuse component to use in the shading model and back_diffuse_color to the diffuse component for back facing faces.

virtual string	getBaseEmissionColor (const string &emission_color, const string &back_emission_color)
	Returns a glsl string that sets the variable emission_color to the emission component to use in the shading model and back_emission_color to the emission component for back facing faces.

virtual string	getBaseAmbientColor (const string &ambient_color, const string &back_ambient_color)
	Returns a glsl string that sets the variable ambient_color to the ambient component to use in the shading model and back_ambient_color to the ambient component for back facing faces.

virtual string	getBaseSpecularColor (const string &specular_color, const string &back_specular_color)
	Returns a glsl string that sets the variable specular_color to the specular component to use in the shading model and back_specular_color to the specular component for back facing faces.

virtual string	getBaseShininess (const string &shininess, const string &back_shininess)
	Returns a glsl string that sets the variable shininess to the shininess component to use in the shading model and back_shininess to the shininess component for back facing faces.

virtual string	getBaseNormal (const string &normal, const string &back_normal)
	Returns a glsl string that sets the variable normal to the normal to use in the shading model and back_normal to the normal for back facing faces.

virtual string	getBaseColors (const string &emission_color, const string &shininess, const string &ambient_color, const string &diffuse_color, const string &specular_color, const string &normal, const string &back_emission_color, const string &back_shininess, const string &back_ambient_color, const string &back_diffuse_color, const string &back_specular_color, const string &back_normal)
	Returns a glsl string that sets all the given variables to its appropriate values. More...

virtual string	getLightContribution (X3DLightNode *light, unsigned int index, string normal, string vertex, string shininess, string ambient_color, string diffuse_color, string specular_color)
	Returns a string with glsl code that adds the color contribution of a light node to the variable "final_color". More...

virtual string	setupLight (X3DLightNode *light, unsigned int gl_index)
	Returns a string with glsl code that sets adds and initialized a variable of type gl_LightParameters and name light to the values of the light source. More...

Protected Member Functions inherited from H3D::ComposedShader
void	setGeometryShaderParameters (GLenum _program_handle)
	Sets geometry shader paramters based on fields.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Protected Attributes
TraverseInfo::LightVector	current_light_nodes
	The X3DLightNode instances that this shader is built for. More...

AutoPtrVector< SFMatrix4f >	current_light_node_transforms
	The transform matrices for all lights with index > maximum number lightsources supported by OpenGL fixed functionallity. More...

unsigned int	current_nr_lightsources
	The number of light sources the shader currently handles(including headlight)

Protected Attributes inherited from H3D::ComposedShader
GLhandleARB	program_handle
	The handle to the program object used for the shader in OpenGL.

vector< GLhandleARB >	current_shaders
	A vector of the handles to all shader objects that are currently linked into the program object.

H3DUniquePtr< SetupDynamicRoutes >	setupDynamicRoutes
	C++ fields only. Contains instance of SetupDynamicRoutes.

list< H3DSingleTextureNode * >	shader_textures
	list of textures to be used by the composedshader

H3DUniquePtr< UpdateUniforms >	updateUniforms
	A field used to update any uniforms from their corresponding fields.

Additional Inherited Members
Static Public Member Functions inherited from H3D::H3DGeneratedShaderNode
static string	addUniformToFragmentShader (ComposedShader shader, const string &name, const string &glsl_type, const Field::AccessType &access, Field field, int array_size=-1, bool delete_unadded_field=true)
	Convenience function to add field in addUniformFields function to add uniform to fragment shader. More...

Static Public Member Functions inherited from H3D::X3DShaderNode
static X3DShaderNode *	getActiveShader ()
	Gets the currently active shader, i.e. More...

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Static Protected Attributes inherited from H3D::ComposedShader
static bool	tessellation_support_checked = false
	True if a warning has already been output about missing tessellation shader support.

Static Protected Attributes inherited from H3D::X3DProgrammableShaderObject
static bool	use_bindless_textures_set = false
	True if use_bindless_textures has already be set once.

Detailed Description

The PhongShader node defines a shader for using the Phong illumination model.

Restrictions: The PhongShader can only be used on geometries that have had their texture coordinates specified with glTexCoord calls. That means that geometries which have there texture coordinates generated by a TextureCoordinateGenerator or default coordinates based on the bounding box(e.g. IndexedFaceSet without texCoord specified) will not work. In order to use tangent space normal maps you must provide vertex attributes for tangent and binormal(see below). This means that only geometries that allow specification of vertex attributes can be used as geometry then, e.g. all X3DComposedGeometryNode nodes. For IndexedTriangleSet nodes these will be automatically generated but for all other node they have to be set explicitly by the modeller.

For each light we have C = att(d)*(Ma * La + Md*Ld*(L dot N) + Fs*Ms*Ls*(R dot V )^Mshininess) where Ma, Md, Ms and Mshininess are the ambient, diffuse, specular and shininess values for a point and La, Ld and Ls are the same for the light.

L is the direction from the point to the light. N is the normal at the point. V is the direction from the point to the viewer. R is the reflected light direction. att(d) is the attenuation of the light based on the constant, linear, and quadratic attenuation parameters set for each light based on the distance d from the light. Fs is the fresnel term and is calculated by Fs = 1-fresnel + fresnel * (1-N dot V)^5

The final color is the sum of all lights color contributions and the emissive color of the material(Me).

Ma, Md, Me, Ms and Mshininess are by default the values specified by an X3DMaterialNode. Instead of just using these constant values each of these can be controlled by a texture instead allowing different values at different parts of the 3d object. Ma is controlled by ambientMap, Md by diffuseMap, Me by emissionMap Ms by specularMap and Mshininess by glossMap.

The specularColorRamp and diffuseColorRamp can be used to control the color gradient across a material. It contains a 1D texture that defines the color ramp and the value used for lookup is controlled by the specularColorRampMode and diffuseColorRampMode fields. The looked up color is then multiplied with the diffuse or specular color respectively to generate the final diffuse or specular color. This allows for different colors depending on the view angle to the surface.

The specularColorRampMode and diffuseColorRampMode defines what value should be used to lookup into the color ramp textures.

Valid values are:

"LIGHT" - light direction dot normal
"CAMERA" - camera direction dot normal

If modulateMaps is FALSE the color from the map is used directly in all texture maps except for Mshininess which is a floating point value. In this case for a 1 or 2 component image, we use the intensity and for RGB and RGBA texture the R component is used.

If modulateMaps is TRUE the values are modulated with the material value, e.g. Md = Material diffuse * diffuseMap value.

The fresnel field specifies if the fresnel effect should be used in the lighting model and if so how much. The fresnel effect is the effect that surfaces reflect more light if looking at them from an angle than straight down along the normal. If set to 0 no fresnel effect is used and the surface is fully reflective. If set to 1 only the reflectivity of the fresnel effect is used, which means no reflectivity when looking down perpendicular to the surace. One can think of the term as controlling the minimum reflectivness of the surface. By default it is set to 0 and no fresnel effect is used. The fresnel value only affects the specular component of the Phong lighting calculations since this is the only part that deals with reflective properties.

The normal N can also be modified across the surface of a 3d object using a normalMap texture. The normalMap encodes the normal at each point of an object in the RGB value of an image. This allows for adding detailed features without increasing polygon count.

Since a texture holds values between [0,1] and normals have values between [-1, 1] we need to translate the RGB values of the texture to the correct normal values. The matrix in the normalMapMatrix performes this translation. The normal value is the matrix multiplied by the RGB value. By default the mapping is for each component x = R*2 - 1, transforming 0 to -1 and 1 to 1. Normals can be defined in different coordinate spaces. The normalMapCoordSpace defines which one is used:

"OBJECT" - the normals are in the coordinate space of the object. This means that the normals will be correct as long as the object does not change the local position of its vertices.
"TANGENT" - the normals are specified in the tangent coordinate space with the normal as z-axis and the texture coordinate axis directions as the other two axis. These axis are called tangent and binormal and have to be provided as a 3 component FloatVertexAttribute for each vertex by the geometry used.

It is possible to have different materials for front facing and back facing polygons. By default back and front use the same color but by setting the separateBackColor to TRUE a separate set of maps will be used. In this case all fields starting with back.. will be used instead for all back facing polygons. Back Material values can be set using a TwoSidedMaterial node.

Examples:

PhongShader.x3d ( Source )
PhongShader_tangentSpaceNormalMap.x3d ( Source )
PhongShader_textures.x3d ( Source )
PhongShader_twosided.x3d ( Source )

Internal routes:

Member Function Documentation

◆ addUniformFields()

string PhongShader::addUniformFields ( ComposedShader * shader )

protectedvirtual

Adds uniform fields to the shader.

A ComposedShader uses its dynamic fields to define uniform variables. Hence we need to add dynamic fields for each field that we want to be accessable in the shader.

Reimplemented from H3D::H3DGeneratedShaderNode.

References addUniformFieldsForLight(), H3D::H3DGeneratedShaderNode::addUniformToFragmentShader(), ambientMap, backAmbientMap, backDiffuseColorRamp, backDiffuseMap, backEmissionMap, backFresnel, backGlossMap, backNormalMap, backNormalMapMatrix, backSpecularColorRamp, backSpecularMap, current_light_nodes, current_nr_lightsources, diffuseColorRamp, diffuseMap, emissionMap, fresnel, glossMap, H3D::Field::INPUT_OUTPUT, normalMap, normalMapMatrix, separateBackColor, specularColorRamp, specularMap, and H3D::H3DGeneratedShaderNode::uniqueShaderName().

◆ addUniformFieldsForLight()

string PhongShader::addUniformFieldsForLight	(	ComposedShader *	shader,
		X3DLightNode *	light,
		int	gl_index
	)

protectedvirtual

Adds uniform fields needed for a light to the shader.

Parameters

shader	The shader to add the uniform to.
light	The light for which to a uniforms.
gl_index	The OpenGL light index used for the light. If the index is larger than the number of supported light sources in the OpenGL implementation all fields of the light are added in order to support more lights than that.

References H3D::H3DGeneratedShaderNode::addUniformToFragmentShader(), H3D::X3DLightNode::ambientIntensity, H3D::PointLight::attenuation, H3D::SpotLight::attenuation, H3D::SpotLight::beamWidth, H3D::X3DLightNode::color, current_light_node_transforms, H3D::SpotLight::cutOffAngle, H3D::DirectionalLight::direction, H3D::SpotLight::direction, H3D::GraphicsHardwareInfo::getInfo(), H3D::GraphicsHardwareInfo::infoIsInitialized(), H3D::Field::INPUT_OUTPUT, H3D::X3DLightNode::intensity, H3D::PointLight::location, H3D::SpotLight::location, H3D::PointLight::radius, H3D::SpotLight::radius, and uniqueLightFieldName().

Referenced by addUniformFields().

◆ getBaseColors()

string PhongShader::getBaseColors	(	const string &	emission_color,
		const string &	shininess,
		const string &	ambient_color,
		const string &	diffuse_color,
		const string &	specular_color,
		const string &	normal,
		const string &	back_emission_color,
		const string &	back_shininess,
		const string &	back_ambient_color,
		const string &	back_diffuse_color,
		const string &	back_specular_color,
		const string &	back_normal
	)

protectedvirtual

Returns a glsl string that sets all the given variables to its appropriate values.

Default implementation is to call the getBaseSpecularColor, getBaseDiffuseColor etc.

References getBaseAmbientColor(), getBaseDiffuseColor(), getBaseEmissionColor(), getBaseNormal(), getBaseShininess(), and getBaseSpecularColor().

Referenced by getFragmentShaderString().

◆ getLightContribution()

string PhongShader::getLightContribution	(	X3DLightNode *	light,
		unsigned int	index,
		string	normal,
		string	vertex,
		string	shininess,
		string	ambient_color,
		string	diffuse_color,
		string	specular_color
	)

protectedvirtual

Returns a string with glsl code that adds the color contribution of a light node to the variable "final_color".

Parameters

light	The light node for which to calculate the contributtion. If NULL, headlight is used.
index	The OpenGL light index for the light.
normal	The glsl variable name in the shader for the normal.
vertex	The glsl variable name in the shader for the vertex.
shininess	The glsl variable name in the shader for the shininess.
ambient_color	The glsl variable name in the shader for the ambient_color.
diffuse_color	The glsl variable name in the shader for the diffuse_color.
specular_color	The glsl variable name in the shader for the specular_color.

References uniqueLightFieldName(), and H3D::H3DGeneratedShaderNode::uniqueShaderName().

Referenced by getFragmentShaderString().

◆ setupLight()

string PhongShader::setupLight	(	X3DLightNode *	light,
		unsigned int	gl_index
	)

protectedvirtual

Returns a string with glsl code that sets adds and initialized a variable of type gl_LightParameters and name light to the values of the light source.

Parameters

light	The light to generate glsl code for.
gl_index	The OpenGL light index for the light.

References H3D::SpotLight::beamWidth, H3D::SpotLight::cutOffAngle, H3D::GraphicsHardwareInfo::getInfo(), H3D::GraphicsHardwareInfo::infoIsInitialized(), and uniqueLightFieldName().

Referenced by getFragmentShaderString().

Member Data Documentation

◆ ambientMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::ambientMap

Defines the Ma part in the Phong illumination model specified above.

If NULL Ma = Material_ambientIntensity * Material_diffuseColor If non-NULL and modulateMaps FALSE Ma = texture color If non-NULL and modulateMaps TRUE Ma = Material_ambientIntensity * texture color

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getBaseAmbientColor(), PhongShader(), and traverseSG().

◆ backAmbientMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::backAmbientMap

Defines the Ma part in the Phong illumination model specified above for back facing polygons.

Only used if separateBackColor is TRUE.

If NULL Ma = Material_ambientIntensity * Material_diffuseColor If non-NULL and modulateMaps FALSE Ma = texture color If non-NULL and modulateMaps TRUE Ma = Material_ambientIntensity * texture color

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getBaseAmbientColor(), and PhongShader().

◆ backDiffuseColorRamp

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::backDiffuseColorRamp

The diffuseColorRamp can be used to control the diffuse color gradient across a material for back facing polygons.

It contains a 1D texture that defines the color ramp and the value used for lookup is controlled by the diffuseColorRampMode field. The looked up color is then multiplied with the diffuse to generate the final diffuse color used in the lighting equations. This allows for different colors depending on the view angle to the surface.

Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getFragmentShaderString(), and PhongShader().

◆ backDiffuseColorRampMode

H3DUniquePtr< SFString > H3D::PhongShader::backDiffuseColorRampMode

The backDiffuseColorRampMode defines what value should be used to lookup up into the backDiffuseColorRamp texture.

Valid values are:

"LIGHT" - light direction dot normal
"CAMERA" - camera direction dot normal

Access type: inputOutput
Default value: "LIGHT"
Valid values: "LIGHT", "CAMERA"

Referenced by getFragmentShaderString(), and PhongShader().

◆ backDiffuseMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::backDiffuseMap

Defines the Md part in the Phong illumination model specified above for back facing polygons.

Only used if separateBackColor is TRUE.

If NULL Md = Material_diffuseColor If non-NULL and modulateMaps FALSE Md = texture color If non-NULL and modulateMaps TRUE Md = Material_diffuseColor * texture color

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getBaseDiffuseColor(), and PhongShader().

◆ backEmissionMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::backEmissionMap

Defines the Me part in the Phong illumination model specified above for back facing polygons.

Only used if separateBackColor is TRUE.

If NULL Me = Material_emissiveColor If non-NULL Me = texture color

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getBaseEmissionColor(), and PhongShader().

◆ backFresnel

H3DUniquePtr< SFFloat > H3D::PhongShader::backFresnel

The backFresnel field specifies the fresnel value for back facing polygons when separateBackColor is TRUE.

Se fresnel field for more info.

Access type: inputOutput
Default value: 0

Referenced by addUniformFields(), getFragmentShaderString(), and PhongShader().

◆ backGlossMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::backGlossMap

Defines the Mshininess part in the Phong illumination model specified above for back facing polygons.

Only used if separateBackColor is TRUE.

If NULL Mshininess = Material_shininess If non-NULL and modulateMaps FALSE Mshininess = texture color.r If non-NULL and modulateMaps TRUE Mshininess = Material_shininess * texture color.r

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getBaseShininess(), and PhongShader().

◆ backModulateMaps

H3DUniquePtr< SFBool > H3D::PhongShader::backModulateMaps

The modulateMaps field determines if the map values should be modulated with the corresponding Material value or not.

See documentation for the map fields for each component for details(diffuseMap, emissiveMap, etc). Only used if separateBackColor is TRUE

Access type: inputOutput
Default value: false

Referenced by getBaseAmbientColor(), getBaseDiffuseColor(), getBaseEmissionColor(), getBaseShininess(), getBaseSpecularColor(), and PhongShader().

◆ backNormalMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::backNormalMap

Defines the normal(N) in the Phong illumination model specified above for back facing polygons.

Only used if separateBackColor is TRUE.

If NULL N = normal of the OpenGL primitive If non-NULL N = normalMapMatrix * texture color

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getBaseNormal(), PhongShader(), and traverseSG().

◆ backNormalMapCoordSpace

H3DUniquePtr< SFString > H3D::PhongShader::backNormalMapCoordSpace

The normalMapCoordSpace field defines which coordinate space the normals in the normalMap are specified in.

Only used if separateBackColor is TRUE

Valid values are:

"OBJECT" - the normals are in the coordinate space of the object. This means that the normals will be correct as long as the object does not change the local position of its vertices.
"TANGENT" - the normals are specified in the coordinate space with the normal as z-axis and ... Not supported yet..

Access type: inputOutput
Default value: "OBJECT" Valid values: "OBJECT", "TANGENT"

Referenced by PhongShader(), and traverseSG().

◆ backNormalMapMatrix

H3DUniquePtr< SFMatrix4f > H3D::PhongShader::backNormalMapMatrix

Defines the transformation from RGB values of the normalMap(in range [0,1]) to the actual normals in range[-1,1].

Only used if separateBackColor is TRUE Access type: inputOutput
Default value: [ 2 0 0 -1
0 2 0 -1
0 0 2 -1
0 0 0 1 ]

Referenced by addUniformFields(), and PhongShader().

◆ backSpecularColorRamp

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::backSpecularColorRamp

The specularColorRamp can be used to control the specular color gradient across a material for back facing polygons.

It contains a 1D texture that defines the color ramp and the value used for lookup is controlled by the specularColorRampMode field. The looked up color is then multiplied with the specular to generate the final specular color used in the lighting equations. This allows for different colors depending on the view angle to the surface.

Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getFragmentShaderString(), and PhongShader().

◆ backSpecularColorRampMode

H3DUniquePtr< SFString > H3D::PhongShader::backSpecularColorRampMode

The backSpecularColorRampMode defines what value should be used to lookup up into the backSpecularColorRamp texture.

Valid values are:

"LIGHT" - light direction dot normal
"CAMERA" - camera direction dot normal

Access type: inputOutput
Default value: "LIGHT"
Valid values: "LIGHT", "CAMERA"

Referenced by getFragmentShaderString(), and PhongShader().

◆ backSpecularMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::backSpecularMap

Defines the Ms part in the Phong illumination model specified above for back facing polygons.

Only used if separateBackColor is TRUE.

If NULL Ms = Material_specularColor If non-NULL and modulateMaps FALSE Ms = texture color If non-NULL and modulateMaps TRUE Ms = Material_specularColor * texture color

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getBaseSpecularColor(), and PhongShader().

◆ current_light_node_transforms

AutoPtrVector< SFMatrix4f > H3D::PhongShader::current_light_node_transforms

protected

The transform matrices for all lights with index > maximum number lightsources supported by OpenGL fixed functionallity.

Index 0 in this vector matches index max_gl_lights in current light nodes.

Referenced by addUniformFieldsForLight(), and traverseSG().

◆ current_light_nodes

TraverseInfo::LightVector H3D::PhongShader::current_light_nodes

protected

The X3DLightNode instances that this shader is built for.

The ligts are ordered in the same order as the gl light index they use.

Referenced by addUniformFields(), getFragmentShaderString(), and traverseSG().

◆ diffuseColorRamp

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::diffuseColorRamp

The diffuseColorRamp can be used to control the diffuse color gradient across a material.

It contains a 1D texture that defines the color ramp and the value used for lookup is controlled by the diffuseColorRampMode field. The looked up color is then multiplied with the diffuse to generate the final diffuse color used in the lighting equations. This allows for different colors depending on the view angle to the surface.

Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getFragmentShaderString(), and PhongShader().

◆ diffuseColorRampMode

H3DUniquePtr< SFString > H3D::PhongShader::diffuseColorRampMode

The diffuseColorRampMode defines what value should be used to lookup up into the diffuseColorRamp texture.

Valid values are:

"LIGHT" - light direction dot normal
"CAMERA" - camera direction dot normal

Access type: inputOutput
Default value: "LIGHT"
Valid values: "LIGHT", "CAMERA"

Referenced by getFragmentShaderString(), and PhongShader().

◆ diffuseMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::diffuseMap

Defines the Md part in the Phong illumination model specified above.

If NULL Md = Material_diffuseColor If non-NULL and modulateMaps FALSE Md = texture color If non-NULL and modulateMaps TRUE Md = Material_diffuseColor * texture color

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getBaseDiffuseColor(), and PhongShader().

◆ emissionMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::emissionMap

Defines the Me part in the Phong illumination model specified above.

If NULL Me = Material_emissiveColor If non-NULL Me = texture color

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getBaseEmissionColor(), and PhongShader().

◆ fresnel

H3DUniquePtr< SFFloat > H3D::PhongShader::fresnel

The fresnel field specifies if the fresnel effect should be used in the lighting model and if so how much.

The fresnel effect is the effect that surfaces reflect more light if looking at them from an angle than straight down along the normal. If set to 0 no fresnel effect is used and the surface is fully reflective. If set to 1 only the reflectivity of the fresnel effect is used, which means no reflectivity when looking down perpendicular to the surace. One can think of the term as controlling the minimum reflectivness of the surface. By default it is set to 0 and no fresnel effect is used. The fresnel value only affects the specular component of the Phong lighting calculations since this is the only part that deals with reflective properties.

Access type: inputOutput
Default value: 0

Referenced by addUniformFields(), getFragmentShaderString(), and PhongShader().

◆ glossMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::glossMap

Defines the Mshininess part in the Phong illumination model specified above.

If NULL Mshininess = Material_shininess If non-NULL and modulateMaps FALSE Mshininess = texture color.r If non-NULL and modulateMaps TRUE Mshininess = Material_shininess * texture color.r

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getBaseShininess(), and PhongShader().

◆ model

H3DUniquePtr< SFString > H3D::PhongShader::model

The shading model to use.

Available values: "BLINN-PHONG" - modified Phong model using half-vector instead of reflection vector. "BLINN-PHONG-EYEATINF" - same as "BLINN-PHONG" with the difference that the eye is assumed to be at infinity. "PHONG" - normal phong shading using reflection vector.

Access type: inputOutput
Default value: "BLINN-PHONG"
Valid values: "PHONG"

Referenced by getFunctionShaderString(), and PhongShader().

◆ modulateMaps

H3DUniquePtr< SFBool > H3D::PhongShader::modulateMaps

The modulateMaps field determines if the map values should be modulated with the corresponding Material value or not.

See documentation for the map fields for each component for details(diffuseMap, emissiveMap, etc)

Access type: inputOutput
Default value: false

Referenced by getBaseAmbientColor(), getBaseDiffuseColor(), getBaseEmissionColor(), getBaseShininess(), getBaseSpecularColor(), and PhongShader().

◆ normalMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::normalMap

Defines the normal(N) in the Phong illumination model specified above.

If NULL N = normal of the OpenGL primitive If non-NULL N = normalMapMatrix * texture color

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getAttributes(), getBaseNormal(), getVaryingVariables(), PhongShader(), and traverseSG().

◆ normalMapCoordSpace

H3DUniquePtr< SFString > H3D::PhongShader::normalMapCoordSpace

The normalMapCoordSpace field defines which coordinate space the normals in the normalMap are specified in.

Valid values are:

"OBJECT" - the normals are in the coordinate space of the object. This means that the normals will be correct as long as the object does not change the local position of its vertices.
"TANGENT" - the normals are specified in the coordinate space with the normal as z-axis and ... Not supported yet..

Access type: inputOutput
Default value: "OBJECT" Valid values: "OBJECT", "TANGENT"

Referenced by getAttributes(), getBaseNormal(), getVaryingVariables(), PhongShader(), and traverseSG().

◆ normalMapMatrix

H3DUniquePtr< SFMatrix4f > H3D::PhongShader::normalMapMatrix

Defines the transformation from RGB values of the normalMap(in range [0,1]) to the actual normals in range[-1,1].

Access type: inputOutput
Default value: [ 2 0 0 -1
0 2 0 -1
0 0 2 -1
0 0 0 1 ]

Referenced by addUniformFields(), and PhongShader().

◆ separateBackColor

H3DUniquePtr< SFBool > H3D::PhongShader::separateBackColor

If the separateBackColor field is set to TRUE, then the rendering shall render the front and back faces of the geometry with different values using the backDiffuseMap, backSpecularMap, etc.

fields for its values. If the value is FALSE, then the front colours are used for both the front and back side of the polygon.

Access type: inputOutput
Default value: false

Referenced by addUniformFields(), getBaseAmbientColor(), getBaseDiffuseColor(), getBaseEmissionColor(), getBaseNormal(), getBaseShininess(), getBaseSpecularColor(), getFragmentShaderString(), and PhongShader().

◆ specularColorRamp

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::specularColorRamp

The specularColorRamp can be used to control the specular color gradient across a material.

It contains a 1D texture that defines the color ramp and the value used for lookup is controlled by the diffuseColorRampMode field. The looked up color is then multiplied with the specular to generate the final specular color used in the lighting equations. This allows for different colors depending on the view angle to the surface.

Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getFragmentShaderString(), and PhongShader().

◆ specularColorRampMode

H3DUniquePtr< SFString > H3D::PhongShader::specularColorRampMode

The specularColorRampMode defines what value should be used to lookup up into the specularColorRamp texture.

Valid values are:

"LIGHT" - light direction dot normal
"CAMERA" - camera direction dot normal

Access type: inputOutput
Default value: "LIGHT"
Valid values: "LIGHT", "CAMERA"

Referenced by getFragmentShaderString(), and PhongShader().

◆ specularMap

H3DUniquePtr< SFTexture2DNode > H3D::PhongShader::specularMap

Defines the Ms part in the Phong illumination model specified above.

If NULL Ms = Material_specularColor If non-NULL and modulateMaps FALSE Ms = texture color If non-NULL and modulateMaps TRUE Ms = Material_specularColor * texture color

The multiplications above are componentwise multiplication. Access type: inputOutput
Default value: NULL

Referenced by addUniformFields(), getBaseSpecularColor(), and PhongShader().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ addUniformFields()

◆ addUniformFieldsForLight()

◆ getBaseColors()

◆ getLightContribution()

◆ setupLight()

Member Data Documentation

◆ ambientMap

◆ backAmbientMap

◆ backDiffuseColorRamp

◆ backDiffuseColorRampMode

◆ backDiffuseMap

◆ backEmissionMap

◆ backFresnel

◆ backGlossMap

◆ backModulateMaps

◆ backNormalMap

◆ backNormalMapCoordSpace

◆ backNormalMapMatrix

◆ backSpecularColorRamp

◆ backSpecularColorRampMode

◆ backSpecularMap

◆ current_light_node_transforms

◆ current_light_nodes

◆ diffuseColorRamp

◆ diffuseColorRampMode

◆ diffuseMap

◆ emissionMap

◆ fresnel

◆ glossMap

◆ model

◆ modulateMaps

◆ normalMap

◆ normalMapCoordSpace

◆ normalMapMatrix

◆ separateBackColor

◆ specularColorRamp

◆ specularColorRampMode

◆ specularMap
