The X3DLightNode abstract node type is the base type from which all node types that serve as light sources are derived. More...

#include <H3D/X3DLightNode.h>

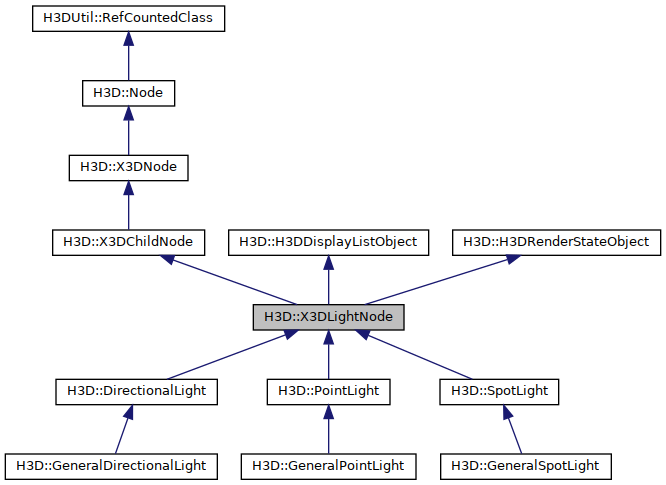

Inheritance diagram for H3D::X3DLightNode:

Classes
struct	GLLightInfo
	A structure representing a the OpenGL representation of the specified light source. More...

Public Member Functions
	X3DLightNode (Inst< SFNode > _metadata=0, Inst< SFFloat > _ambientIntensity=0, Inst< SFColor > _color=0, Inst< SFBool > _global=0, Inst< SFFloat > _intensity=0, Inst< SFBool > _on=0, Inst< SFBool > _shadows=0)
	Constructor.

virtual void	enableGraphicsState ()
	Turn the light on.

virtual void	disableGraphicsState ()
	Turn the light off.

virtual void	enableHapticsState (TraverseInfo &ti)
	Add light to TraverseInfo.

virtual void	disableHapticsState (TraverseInfo &ti)
	Remove light from TraverseInfo.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. More...

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Member Functions inherited from H3D::H3DRenderStateObject
virtual	~H3DRenderStateObject ()
	Destructor.

Static Public Member Functions
static GLuint	getLightIndex (string name_for_error)
	returns an index that can be used to enable light. More...

static void	decreaseLightIndex ()
	must be called if getLightIndex have been called outside X3DLightNode.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Public Attributes
H3DUniquePtr< SFFloat >	ambientIntensity
	Specifies the intensity of the ambient emission from the light. More...

H3DUniquePtr< SFColor >	color
	The color field specifies the spectral colour properties of both the direct and ambient light emission as an RGB value. More...

H3DUniquePtr< SFBool >	global
	The global field specifies whether the X3DLightNode affects all geometries in the scene or only those geometries that are in the same parent group or any descendant to the parent group. More...

H3DUniquePtr< SFFloat >	intensity
	The intensity field specifies the brightness of the direct emission from the light. More...

H3DUniquePtr< SFBool >	on
	The on field specifies whether the light is enabled or disabled. More...

H3DUniquePtr< SFBool >	shadows
	The shadows field will determine if this light will be part of the shadow calculations of the scene. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Attributes
GLuint	light_index
	Light index for this node, used to enable light.

TraverseInfo *	last_ti_ptr
	only interested in adress, what it points to will be invalid

H3DInt32	traverse_sg_counter
	count how many times this X3DLightNodes traverseSG function is called.

H3DInt32	graphics_state_counter
	count nr of times enableGraphicsState is called.

bool	act_global
	used if the light should act as a global light.

list< bool >	had_light_index
	true if a light index was created for each call to enableGraphicsState for this X3DLightNode

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The X3DLightNode abstract node type is the base type from which all node types that serve as light sources are derived.

Any node used as a source of illumination is derived from X3DLightNode. All light sources contain an intensity, a color, and an ambientIntensity field. The intensity field specifies the brightness of the direct emission from the light, and the ambientIntensity specifies the intensity of the ambient emission from the light. Light intensity may range from 0.0 (no light emission) to 1.0 (full intensity). The color field specifies the spectral colour properties of both the direct and ambient light emission as an RGB value. The on field specifies whether the light is enabled or disabled. If the value is FALSE, then the light is disabled and will not affect any nodes in the scene. If the value is TRUE, then the light will affect other nodes.

Each light type defines a global field that determines whether the light is global or scoped. Global lights illuminate all objects that fall within their volume of lighting influence. Scoped lights only illuminate objects that are in the same transformation hierarchy as the light; i.e., only the children and descendants of its enclosing parent group are illuminated. This allows the creation of realistic effects such as lights that illuminate a single room.

Internal routes:

Member Function Documentation

◆ getLightIndex()

GLuint X3DLightNode::getLightIndex ( string name_for_error )

static

returns an index that can be used to enable light.

Parameters

name_for_error contains the name to print in case the light index should be ignored.

Referenced by enableGraphicsState(), and H3D::H3DWindowNode::render().

◆ traverseSG()

void X3DLightNode::traverseSG ( TraverseInfo & ti )

virtual

Traverse the scenegraph.

Stores pointer to X3DLightNode and transformation matrices for those that are global.

Parameters

ti	The TraverseInfo object containing information about the traversal.

Reimplemented from H3D::Node.

Reimplemented in H3D::PointLight, and H3D::DirectionalLight.

References act_global, H3D::TraverseInfo::getAccForwardMatrix(), global, graphics_state_counter, had_light_index, last_ti_ptr, on, and traverse_sg_counter.

Referenced by H3D::DirectionalLight::traverseSG(), and H3D::PointLight::traverseSG().

Member Data Documentation

◆ ambientIntensity

H3DUniquePtr< SFFloat > H3D::X3DLightNode::ambientIntensity

Specifies the intensity of the ambient emission from the light.

Access type: inputOutput
Default value: 0
Valid range: [0-1]

Referenced by H3D::PhongShader::addUniformFieldsForLight(), H3D::DirectionalLight::DirectionalLight(), H3D::DirectionalLight::getGLLightInfo(), H3D::GeneralDirectionalLight::getGLLightInfo(), H3D::GeneralPointLight::getGLLightInfo(), H3D::GeneralSpotLight::getGLLightInfo(), H3D::PointLight::getGLLightInfo(), H3D::SpotLight::getGLLightInfo(), and X3DLightNode().

◆ color

H3DUniquePtr< SFColor > H3D::X3DLightNode::color

The color field specifies the spectral colour properties of both the direct and ambient light emission as an RGB value.

Access type: inputOutput
Default value: RGB( 1, 1, 1 )
Valid range: [0-1]

Referenced by H3D::PhongShader::addUniformFieldsForLight(), H3D::DirectionalLight::DirectionalLight(), H3D::DirectionalLight::getGLLightInfo(), H3D::PointLight::getGLLightInfo(), H3D::SpotLight::getGLLightInfo(), and X3DLightNode().

◆ global

H3DUniquePtr< SFBool > H3D::X3DLightNode::global

The global field specifies whether the X3DLightNode affects all geometries in the scene or only those geometries that are in the same parent group or any descendant to the parent group.

Access type: inputOutput
Default value: FALSE

Referenced by disableHapticsState(), enableGraphicsState(), H3D::PointLight::PointLight(), H3D::SpotLight::SpotLight(), traverseSG(), and X3DLightNode().

◆ intensity

H3DUniquePtr< SFFloat > H3D::X3DLightNode::intensity

The intensity field specifies the brightness of the direct emission from the light.

Access type: inputOutput
Default value: 1
Valid range: [0-1]

Referenced by H3D::PhongShader::addUniformFieldsForLight(), H3D::DirectionalLight::DirectionalLight(), H3D::DirectionalLight::getGLLightInfo(), H3D::GeneralDirectionalLight::getGLLightInfo(), H3D::GeneralPointLight::getGLLightInfo(), H3D::GeneralSpotLight::getGLLightInfo(), H3D::PointLight::getGLLightInfo(), H3D::SpotLight::getGLLightInfo(), and X3DLightNode().

◆ on

H3DUniquePtr< SFBool > H3D::X3DLightNode::on

The on field specifies whether the light is enabled or disabled.

If the value is FALSE, then the light is disabled and will not affect any nodes in the scene.

Access type: inputOutput
Default value: TRUE

Referenced by H3D::DirectionalLight::DirectionalLight(), enableGraphicsState(), enableHapticsState(), traverseSG(), and X3DLightNode().

◆ shadows

H3DUniquePtr< SFBool > H3D::X3DLightNode::shadows

The shadows field will determine if this light will be part of the shadow calculations of the scene.

Access type: inputOutput
Default value: TRUE

Referenced by H3D::DirectionalLight::traverseSG(), H3D::PointLight::traverseSG(), and X3DLightNode().

The documentation for this class was generated from the following files:
