The ComposedShader node defines a shader where the individual source files are not individually programmable. More...

#include <H3D/ComposedShader.h>

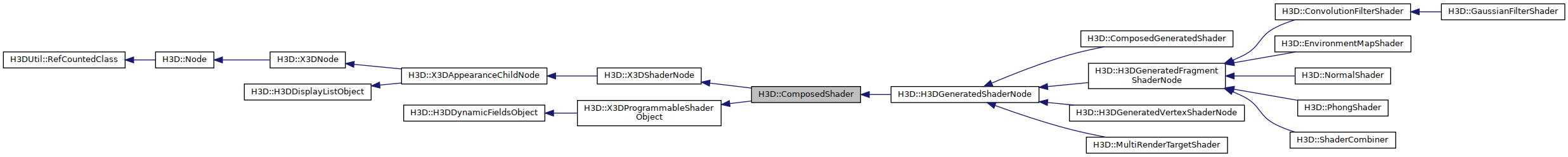

Inheritance diagram for H3D::ComposedShader:

Classes
class	MFShaderPart
	MFShaderPart is specialized to transfer a pointer from itself to the ShaderPart instances contained in the field. More...

class	SetupDynamicRoutes
	Class used to set up routes from nodes in SFNode and MFNode fields to correctly break cache. More...

class	UpdateCache
	event collection field to update when global caching is update More...

class	UpdateUniforms
	A field used to update any uniforms from their corresponding fields. More...

Public Types
typedef DependentSFNode< ShaderConstants, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true >	SFShaderConstantsBase
	The SFShaderConstants field is dependent on the displayList field of the containing ShaderConstants node.

typedef DependentMFNode< ShaderPart, FieldRef< ShaderPart, ShaderPart::SFShaderString, &ShaderPart::shaderString >, true >	MFShaderPartBase
	The MFShaderPartBase is dependent on the url field of the containing ShaderPart node.

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
	ComposedShader (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0, Inst< MFShaderPart > _parts=0, Inst< SFBool > _suppressUniformWarnings=0, Inst< SFString > _geometryInputType=0, Inst< SFString > _geometryOutputType=0, Inst< SFInt32 > _geometryVerticesOut=0, Inst< SFString > _transparencyDetectMode=0, Inst< MFString > _transformFeedbackVaryings=0, Inst< SFBool > _printShaderWarnings=0, Inst< SFShaderConstants > _shaderConstants=0)
	Constructor.

virtual	~ComposedShader ()
	Destructor.

virtual bool	addField (const string &_name, const Field::AccessType &access, Field *field)
	The addField method is specialized to add a route from the field added to the displayList field.

virtual bool	removeField (const string &_name)
	The removeField method is specialized to remove the route from the field to the displayList field.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the node. More...

virtual void	render ()
	Sets up the shader program and sets uniform variable values.

virtual void	preRender ()
	Enables the shader program.

virtual void	postRender ()
	Disables the shader program.

virtual GLbitfield	getAffectedGLAttribs ()
	Returns a bitmask of the OpenGL attrib bits that will be affected by this node. More...

virtual bool	isTransparent (X3DMaterialNode *material)
	Returns a hint if the X3DShaderNode produces an alpha channel that is < 1, i.e. More...

GLhandleARB	getProgramHandle ()
	Returns the OpenGL shader program handle used by the ComposedShader.

Public Member Functions inherited from H3D::X3DShaderNode
	X3DShaderNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0)
	Constructor.

virtual bool	isSupported ()
	Returns true if the shader node type is supported by the browser. More...

void	setSelected (bool selected)
	Set the isSelected field.

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

Public Member Functions inherited from H3D::X3DAppearanceChildNode
	X3DAppearanceChildNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Member Functions inherited from H3D::X3DProgrammableShaderObject
	X3DProgrammableShaderObject (H3DNodeDatabase *_database)
	Constructor.

virtual void	clearFields ()
	Remove all dynamic fields that have been previously added.

virtual	~X3DProgrammableShaderObject ()
	Destructor.

Public Member Functions inherited from H3D::H3DDynamicFieldsObject
field_iterator	firstField ()
	Get an iterator to the first of the dynamic fields.

field_iterator	endField ()
	Get an iterator pointing to the end of the dynamic fields.

	H3DDynamicFieldsObject ()
	Constructor.

Public Attributes
H3DUniquePtr< SFShaderConstants >	shaderConstants
	The shaderConstants field can contain a ShaderConstants node defining constants that can be used by all ShaderPart instances in the ComposedShader node. More...

H3DUniquePtr< MFShaderPart >	parts
	The shader parts to use in the ComposedShader. More...

H3DUniquePtr< SFBool >	suppressUniformWarnings
	Suppress the warnings printed to the console about setting uniform fields that do not exist in the shader. More...

H3DUniquePtr< SFString >	geometryInputType
	The input geometry type of the geometry being rendered with a geometry shader. More...

H3DUniquePtr< SFString >	geometryOutputType
	The output geometry type of the geometry being rendered with a geometry shader. More...

H3DUniquePtr< SFInt32 >	geometryVerticesOut
	The number of vertices the geometry shader generates. More...

H3DUniquePtr< SFString >	transparencyDetectMode
	Determines how the render system will determine if the shader used generates any fragment that has an alpha channel that is < 1, i.e. More...

H3DUniquePtr< MFString >	transformFeedbackVaryings
	List of varying names to capture during transform feedback. More...

H3DUniquePtr< SFBool >	printShaderWarnings
	Always print shader warnings to console. More...

Public Attributes inherited from H3D::X3DShaderNode
H3DUniquePtr< SFBool >	isSelected
	The isSelected output field is used to indicate that this shader instance is the one selected for use by the browser. More...

H3DUniquePtr< SFBool >	isValid
	The isValid field is used to indicate whether the current shader objects can be run as a shader program. More...

H3DUniquePtr< SFBool >	activate
	The activate field forces the shader to activate the contained objects. More...

H3DUniquePtr< EventCollectingField< Field > >	activateMonitor
	field used to monitor if activate field is modified

H3DUniquePtr< SFString >	language
	The language field is used to indicate to the browser which shading language is used for the source file(s). More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DShaderNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DProgrammableShaderObject
static bool	use_bindless_textures = false
	True if we should use bindless textures.

Protected Member Functions
void	setGeometryShaderParameters (GLenum _program_handle)
	Sets geometry shader paramters based on fields.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Protected Attributes
GLhandleARB	program_handle
	The handle to the program object used for the shader in OpenGL.

vector< GLhandleARB >	current_shaders
	A vector of the handles to all shader objects that are currently linked into the program object.

H3DUniquePtr< SetupDynamicRoutes >	setupDynamicRoutes
	C++ fields only. Contains instance of SetupDynamicRoutes.

list< H3DSingleTextureNode * >	shader_textures
	list of textures to be used by the composedshader

H3DUniquePtr< UpdateUniforms >	updateUniforms
	A field used to update any uniforms from their corresponding fields.

Static Protected Attributes
static bool	tessellation_support_checked = false
	True if a warning has already been output about missing tessellation shader support.

Static Protected Attributes inherited from H3D::X3DProgrammableShaderObject
static bool	use_bindless_textures_set = false
	True if use_bindless_textures has already be set once.

Additional Inherited Members
Static Public Member Functions inherited from H3D::X3DShaderNode
static X3DShaderNode *	getActiveShader ()
	Gets the currently active shader, i.e. More...

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The ComposedShader node defines a shader where the individual source files are not individually programmable.

All access to the shading capabilities is defined through a single interface that applies to all parts.

In H3D API this is the shader node to use if you want to use the GLSL shading language. If you want to use CG, use either the ProgramShader or PackagedShader nodes.

The isValid field adds an additional semantic indicating whether the current shader parts can be linked together to form a complete valid shader program.

The activate field forces the shader to activate the contained objects.

Examples:

ComposedShader.x3d ( Source )

Internal routes:

Member Function Documentation

◆ getAffectedGLAttribs()

GLbitfield ComposedShader::getAffectedGLAttribs ( )

virtual

Returns a bitmask of the OpenGL attrib bits that will be affected by this node.

The value can be used in glPushAttrib in order to save the current state.

Reimplemented from H3D::X3DAppearanceChildNode.

References H3D::X3DAppearanceChildNode::getAffectedGLAttribs().

◆ isTransparent()

bool ComposedShader::isTransparent ( X3DMaterialNode * material )

virtual

Returns a hint if the X3DShaderNode produces an alpha channel that is < 1, i.e.

it is semi-transparent, or not. This is used to determine render order of transparent vs opaque objects.

Reimplemented from H3D::X3DShaderNode.

References H3D::X3DMaterialNode::isTransparent(), and transparencyDetectMode.

◆ traverseSG()

void ComposedShader::traverseSG ( TraverseInfo & ti )

virtual

Traverse the node.

Determines if GL_PATCHES should be rendered by geometry, if a tessellation shader is present

Reimplemented from H3D::Node.

Reimplemented in H3D::ShaderCombiner, H3D::PhongShader, H3D::MultiRenderTargetShader, H3D::ConvolutionFilterShader, and H3D::ComposedGeneratedShader.

References H3D::H3DDynamicFieldsObject::endField(), H3D::H3DDynamicFieldsObject::firstField(), and H3D::Node::traverseSG().

Referenced by H3D::ConvolutionFilterShader::traverseSG(), and H3D::PhongShader::traverseSG().

Member Data Documentation

◆ geometryInputType

H3DUniquePtr< SFString > H3D::ComposedShader::geometryInputType

The input geometry type of the geometry being rendered with a geometry shader.

Only used when type a ShaderPart is of type "GEOMETRY".

Access type: inputOutput
Default value: "TRIANGLES"
Valid values: "POINTS", "LINES", "TRIANGLES", "LINES_ADJACENCY", "TRIANGLES_ADJACENCY",

Referenced by ComposedShader(), and setGeometryShaderParameters().

◆ geometryOutputType

H3DUniquePtr< SFString > H3D::ComposedShader::geometryOutputType

The output geometry type of the geometry being rendered with a geometry shader.

Only used when type a ShaderPart is of type "GEOMETRY".

Access type: inputOutput
Default value: "TRIANGLE_STRIP"
Valid values: "POINTS", "LINE_STRIP", "TRIANGLE_STRIP"

Referenced by ComposedShader(), and setGeometryShaderParameters().

◆ geometryVerticesOut

H3DUniquePtr< SFInt32 > H3D::ComposedShader::geometryVerticesOut

The number of vertices the geometry shader generates.

Only used when type a ShaderPart is of type "GEOMETRY".

Access type: inputOutput
Default value: 64

Referenced by ComposedShader(), and setGeometryShaderParameters().

◆ parts

H3DUniquePtr< MFShaderPart > H3D::ComposedShader::parts

The shader parts to use in the ComposedShader.

Access type: outputOnly

Referenced by ComposedShader(), H3D::H3DGeneratedShaderNode::H3DGeneratedShaderNode(), and render().

◆ printShaderWarnings

H3DUniquePtr< SFBool > H3D::ComposedShader::printShaderWarnings

Always print shader warnings to console.

If true, this overrides the equivalent setting in any global DebugOptions node setting

Access type: inputOutput
Default value: false

Referenced by ComposedShader().

◆ shaderConstants

H3DUniquePtr< SFShaderConstants > H3D::ComposedShader::shaderConstants

The shaderConstants field can contain a ShaderConstants node defining constants that can be used by all ShaderPart instances in the ComposedShader node.

Constants can be used instead of uniform variables in a shader and will be more efficient but with the drawback that whenever the value of any of them change, it triggers a recompile of the shader part that the constant value is located in.

Referenced by ComposedShader(), and H3D::ShaderPart::setParentComposedShader().

◆ suppressUniformWarnings

H3DUniquePtr< SFBool > H3D::ComposedShader::suppressUniformWarnings

Suppress the warnings printed to the console about setting uniform fields that do not exist in the shader.

These warnings are printed when you have added a field to your shader which is not defined in the glsl shader code, if the uniform variable is defined in the shader code but not used anywhere, or when the variable is used in the code but optimized away by the glsl compiler. Usually we would only like to print a warning in the first case and not in the others, but there is no way to distinguish between them. We therefore leave it to the setting of this field if they should be printed or not.

Access type: inputOutput
Default value: false

Referenced by ComposedShader(), and H3D::H3DGeneratedShaderNode::H3DGeneratedShaderNode().

◆ transformFeedbackVaryings

H3DUniquePtr< MFString > H3D::ComposedShader::transformFeedbackVaryings

List of varying names to capture during transform feedback.

Allows the use of the OpenGL feature 'transform feedback'. Which makes it possible to render to a buffer on the gpu using a vertex ( and optionally geometry ) shader(s) for later user. The listed names must match an output variable of the shader. See http://www.opengl.org/sdk/docs/man3/xhtml/glTransformFeedbackVaryings.xml for more info.

Access type: inputOutput
Default value: []

Referenced by ComposedShader().

◆ transparencyDetectMode

H3DUniquePtr< SFString > H3D::ComposedShader::transparencyDetectMode

Determines how the render system will determine if the shader used generates any fragment that has an alpha channel that is < 1, i.e.

it is semi-transparent, or not. This is used to determine render order of transparent vs opaque objects.

Valid values are:

"AS_MATERIAL"	If the Material node in the same Appearance node produces a transparent object we consider the ComposedShader to be transparent.
"TRANSPARENT"	The shader is considered transparent.
"OPAQUE"	The shader is considered opaque.

Access type: inputOutput
Valid values: "AS_MATERIAL", "TRANSPARENT", "OPAQUE"
Default value: "AS_MATERIAL"

Referenced by ComposedShader(), and isTransparent().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ getAffectedGLAttribs()

◆ isTransparent()

◆ traverseSG()

Member Data Documentation

◆ geometryInputType

◆ geometryOutputType

◆ geometryVerticesOut

◆ parts

◆ printShaderWarnings

◆ shaderConstants

◆ suppressUniformWarnings

◆ transformFeedbackVaryings

◆ transparencyDetectMode
