This abstract node type is the base type for all texture nodes that is defined by a single texture. More...

#include <H3D/H3DSingleTextureNode.h>

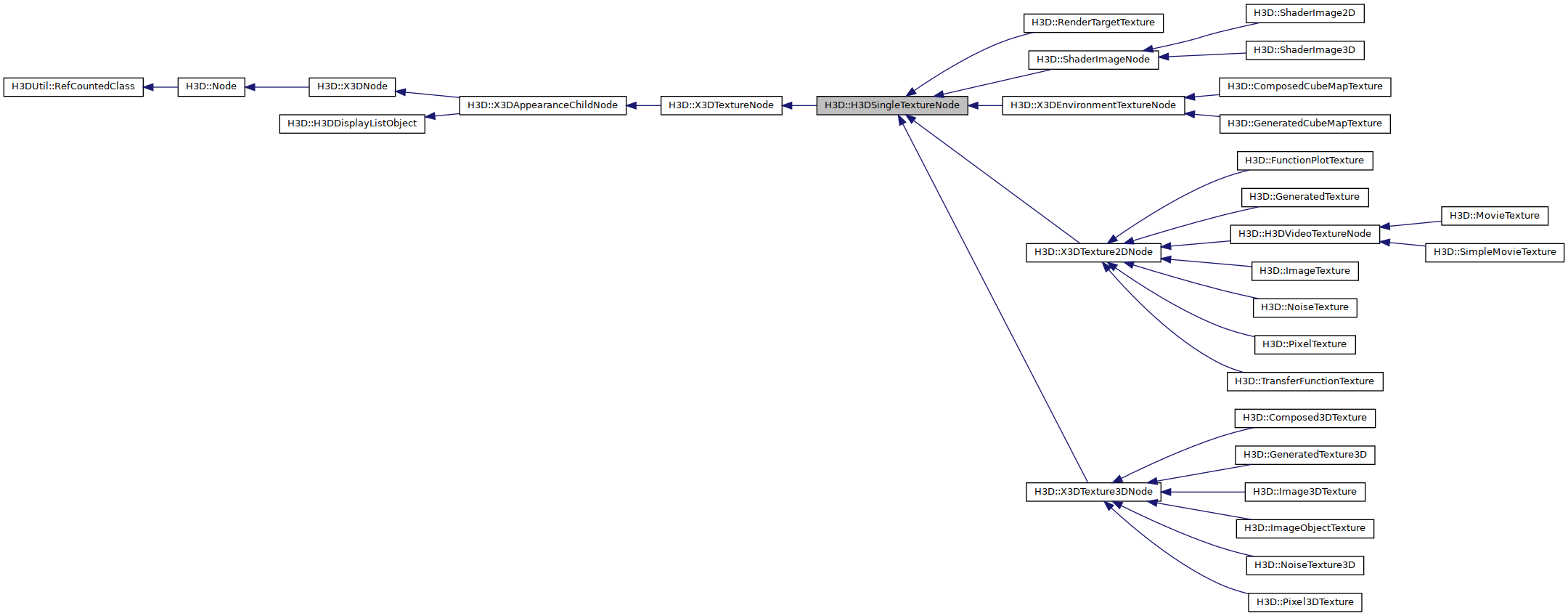

Inheritance diagram for H3D::H3DSingleTextureNode:

Public Member Functions
	H3DSingleTextureNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< UpdateSaveToURL > _saveToUrl=0, Inst< SFBool > _saveSuccess=0, Inst< SFInt32 > _saveHeight=0, Inst< SFInt32 > _saveWidth=0)
	Constructor.

virtual	~H3DSingleTextureNode ()
	Destructor.

virtual GLuint	getTextureId ()
	Get the OpenGL texture id that is used for this texture.

virtual GLuint	getTextureUnit ()
	Get the OpenGL texture unit that is used for this texture.

virtual GLenum	getTextureTarget ()
	Get the OpenGL texture target that is used for this texture.

virtual int	getTextureWidth ()
	Get the texture width.

virtual int	getTextureHeight ()
	Get the texture height.

virtual int	getTextureDepth ()
	Get the texture depth.

virtual void	setTextureWidth (int _width)
	Set the texture width.

virtual void	setTextureHeight (int _height)
	Set the texture height.

virtual void	setTextureDepth (int _depth)
	Set the texture depth.

virtual void	setTextureId (GLuint _id)
	Set the OpenGL texture id that is used for this texture.

virtual void	setTextureUnit (GLint unit)
	Set the OpenGL texture unit that is used for this texture.

virtual void	setTextureTarget (GLenum target)
	Set the OpenGL texture target that is used for this texture.

virtual bool	makeResident ()
	{ Bindless texturing functions More...

virtual void	makeNonResident ()
	Make the texture non-resident.

virtual bool	isResident ()
	Returns true if the texture is resident in GPU memory or false otherwise.

virtual GLuint64	getTextureHandle ()
	Get the bindless texture handle, or 0 the texture has never been resident. More...

virtual void	invalidateTextureHandle ()
	This should be called if the texture object is to be replaced. More...

void	addShaderField (Field &_field)
	Add a shader field which contains this texture node. More...

void	removeShaderField (Field &_field)
	Remove a shader field which contains this texture node. More...

virtual void	inUse ()
	Call to signify that this texture is currently in use. More...

Public Member Functions inherited from H3D::X3DTextureNode
	X3DTextureNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< UpdateSaveToURL > _saveToUrl=0, Inst< SFBool > _saveSuccess=0, Inst< SFInt32 > _saveHeight=0, Inst< SFInt32 > _saveWidth=0)
	Constructor.

virtual void	enableTexturing ()=0
	Virtual function for making all OpenGL calls that are needed to enable texturing for the texture.

virtual void	disableTexturing ()=0
	Virtual function for making all OpenGL calls that are needed to disable texturing for the texture.

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual void	preRender ()
	This function will be called by the X3DShapeNode before any rendering of geometry and before the call to the render function.

virtual void	postRender ()
	This function will be called by the X3DShapeNode after the geometry has been rendered to restore the states to what it was before the call to preRender().

virtual GLbitfield	getAffectedGLAttribs ()
	Returns a bitmask of the OpenGL attrib bits that will be affected by this node. More...

virtual Vec3f	textureSize ()
	Sometimes the texture represents a volume in space, e.g. More...

virtual GLuint	renderImage (Image *image, GLenum texture_target, bool scale_to_power_of_two)
	Installs the image as a OpenGL texture. More...

virtual GLint	glInternalFormat (Image *image)
	Returns the internal OpenGL format to use given an Image, e.g. More...

virtual GLenum	glPixelFormat (Image *image)
	Returns the OpenGL pixel format to use given an Image, e.g. More...

virtual GLenum	glPixelComponentType (Image *image)
	Returns the OpenGL pixel compnent type to use given an Image, e.g. More...

virtual void	glTexImage (Image *, GLenum, bool)
	Install the given image as a OpenGL texture with a call to a glTexImage function. More...

virtual Image *	renderToImage (H3DInt32 _width, H3DInt32 _height, bool output_float_texture=false)
	Create a new Image object which contains the result of rendering this texture. More...

Public Member Functions inherited from H3D::X3DAppearanceChildNode
	X3DAppearanceChildNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual void	traverseSG (TraverseInfo &ti)
	traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Static Public Member Functions
static void	makeUnusedTexturesNonResident (H3DTime _unusedTime)
	Look at all resident textures and make those that have not been used recently non-resident. More...

Static Public Member Functions inherited from H3D::X3DTextureNode
static X3DTextureNode *	getActiveTexture ()
	Gets the currently active texture, i.e. More...

static void	setActiveTexture (X3DTextureNode *t)
	Set the active texture. More...

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Types
typedef std::vector< H3DSingleTextureNode * >	TextureVector
	}

Protected Attributes
GLuint64	texture_handle
	The texture handle (GPU)

GLuint	texture_id
	The OpenGL texture id of the installed texture, 0 if not installed.

GLint	texture_unit
	The OpenGL texture unit that is used to render this texture. More...

GLenum	texture_target
	The OpenGL texture target that is used to render this texture.

int	texture_width
	texture width

int	texture_height
	texture height

int	texture_depth
	texture depth

Field::FieldVector	shader_fields
	Shader fields which contain this texture.

H3DTime	last_used
	Time-stamp at which this texture was last used.

bool	is_resident
	True if this texture is currently resident.

Static Protected Attributes
static TextureVector	resident_textures
	List of all currently resident textures.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Attributes inherited from H3D::X3DTextureNode
H3DUniquePtr< UpdateSaveToURL >	saveToUrl
	When a new value is specified for saveToUrl the current texture is rendered to a buffer and saved to the specified filename. More...

H3DUniquePtr< SFBool >	saveSuccess
	Contains the result of the last save operation. More...

H3DUniquePtr< SFInt32 >	saveHeight
	The height of the image to write to file when the saveToUrl field is used. More...

H3DUniquePtr< SFInt32 >	saveWidth
	The width of the image to write to file when the saveToUrl field is used. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes inherited from H3D::X3DTextureNode
static bool	load_images_in_separate_thread = true
	This is the default value for the GlobalSettings::loadTexturesInThread field. More...

static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Member Functions inherited from H3D::X3DTextureNode
virtual std::pair< H3DInt32, H3DInt32 >	getDefaultSaveDimensions ()
	Returns the default dimensions to use when this texture is saved to file. More...

GLint	glCompressedInternalFormat (GLint _format, const std::string &_compression)
	Given a non-compressed internal format, return an equivelent compressed format based on the compression settings. More...

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

This abstract node type is the base type for all texture nodes that is defined by a single texture.

More specifically the texture can be defined by a single OpenGL texture id.

Member Function Documentation

◆ addShaderField()

void H3DSingleTextureNode::addShaderField ( Field & _field )

Add a shader field which contains this texture node.

The field will be touched when the texture handle is made resident, in order to allow the shader uniforms that reference it to be updated.

X3DProgrammableShader node takes care of calling these functions and only does so if bindless textures are enabled.

References shader_fields.

◆ getTextureHandle()

virtual GLuint64 H3D::H3DSingleTextureNode::getTextureHandle ( )

inlinevirtual

Get the bindless texture handle, or 0 the texture has never been resident.

If the texture handle is non-zero then the texture is immutable and the size or other properties cannot be changed

Reimplemented in H3D::X3DTexture3DNode, H3D::X3DTexture2DNode, H3D::RenderTargetTexture, and H3D::ImageTexture.

Referenced by H3D::X3DTexture2DNode::getTextureHandle(), H3D::X3DTexture3DNode::getTextureHandle(), and H3D::GeneratedCubeMapTexture::renderTextureProperties().

◆ inUse()

void H3DSingleTextureNode::inUse ( )

virtual

Call to signify that this texture is currently in use.

Textures that are not in use are periodically detected and made non-resident

Reimplemented in H3D::RenderTargetTexture, and H3D::ImageTexture.

References last_used, and H3D::Scene::time.

Referenced by H3D::ImageTexture::inUse().

◆ invalidateTextureHandle()

void H3DSingleTextureNode::invalidateTextureHandle ( )

virtual

This should be called if the texture object is to be replaced.

This will cause the texture to become non-resident and for the texture handle to be regenerated the next time the texture is made resident

Reimplemented in H3D::RenderTargetTexture, and H3D::ImageTexture.

References makeNonResident(), and texture_handle.

Referenced by H3D::ImageTexture::invalidateTextureHandle().

◆ makeResident()

bool H3DSingleTextureNode::makeResident ( )

virtual

{ Bindless texturing functions

Make the texture resident as a bindless texture.

The first time a texture is made resident it becomes immutable

Reimplemented in H3D::RenderTargetTexture, and H3D::ImageTexture.

References getTextureId(), is_resident, resident_textures, shader_fields, and texture_handle.

Referenced by H3D::ImageTexture::makeResident().

◆ makeUnusedTexturesNonResident()

void H3DSingleTextureNode::makeUnusedTexturesNonResident ( H3DTime _unusedTime )

static

Look at all resident textures and make those that have not been used recently non-resident.

Parameters

_unusedTime Length of time for which textures may be unused before they can be made non-resident.

References last_used, makeNonResident(), and resident_textures.

Referenced by H3D::Scene::idle().

◆ removeShaderField()

void H3DSingleTextureNode::removeShaderField ( Field & _field )

Remove a shader field which contains this texture node.

See addShaderField()

References shader_fields.

Member Data Documentation

◆ texture_unit

GLint H3D::H3DSingleTextureNode::texture_unit

protected

The OpenGL texture unit that is used to render this texture.

The value will be mostly specified when textures are rendered in shader and used while connect the texture unit with sampler location in shader code.

Referenced by H3D::ShaderImage2D::prepareShaderImage(), H3D::ComposedCubeMapTexture::render(), H3D::GeneratedCubeMapTexture::render(), H3D::GeneratedTexture::render(), H3D::GeneratedTexture3D::render(), H3D::ShaderImage2D::render(), H3D::ShaderImage3D::render(), H3D::X3DTexture2DNode::render(), H3D::X3DTexture3DNode::render(), H3D::X3DTexture2DNode::X3DTexture2DNode(), and H3D::X3DTexture3DNode::X3DTexture3DNode().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Types

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ addShaderField()

◆ getTextureHandle()

◆ inUse()

◆ invalidateTextureHandle()

◆ makeResident()

◆ makeUnusedTexturesNonResident()

◆ removeShaderField()

Member Data Documentation

◆ texture_unit
