The RenderTargetTexture is a wrapper node to use one of the render targets(color textures) from a FrameBufferTextureGenerator directly as a texture. More...
#include <H3D/RenderTargetTexture.h>

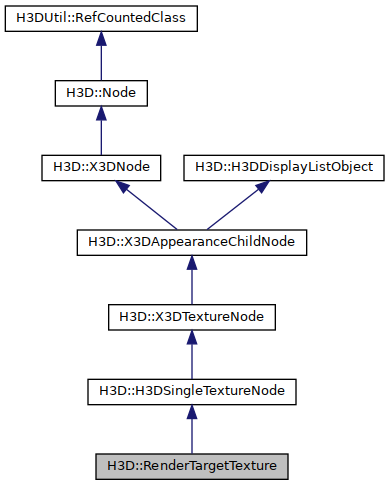

Inheritance diagram for H3D::RenderTargetTexture:
Public Member Functions | |
| RenderTargetTexture (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFFrameBufferTextureGenerator > _generator=0, Inst< SFInt32 > _index=0) | |
| Constructor. | |
| virtual | ~RenderTargetTexture () |
| Destructor. | |
| virtual void | render () |
| Overridden virtual function to perform the same function on the correct texture from the generator. | |
| virtual void | postRender () |
| Overridden virtual function to perform the same function on the correct texture from the generator. | |
| virtual void | preRender () |
| Overridden virtual function to perform the same function on the correct More... | |
| virtual void | enableTexturing () |
| Overridden virtual function to perform the same function on the correct More... | |
| virtual void | disableTexturing () |
| Overridden virtual function to perform the same function on the correct More... | |
| virtual GLuint | getTextureId () |
| Overridden virtual function to perform the same function on the correct texture from the generator. | |
| virtual GLuint | getTextureUnit () |
| Overridden virtual function to perform the same function on the correct texture from the generator. | |
| virtual GLenum | getTextureTarget () |
| Overridden virtual function to perform the same function on the correct texture from the generator. | |
| virtual int | getTextureWidth () |
| Overridden virtual function to perform the same function on the correct texture from the generator. | |
| virtual int | getTextureHeight () |
| Overridden virtual function to perform the same function on the correct texture from the generator. | |
| virtual int | getTextureDepth () |
| Overridden virtual function to perform the same function on the correct texture from the generator. | |
| virtual void | setTextureId (GLuint id) |
| Overridden virtual function to perform the same function on the correct texture from the generator. | |
| virtual void | setTextureUnit (GLint unit) |
| Overridden virtual function to perform the same function on the correct texture from the generator. | |
| virtual void | setTextureTarget (GLenum target) |
| Overridden virtual function to perform the same function on the correct texture from the generator. | |
| virtual bool | makeResident () |
| Make the texture resident as a bindless texture. | |
| virtual void | makeNonResident () |
| Make the texture non-resident. | |
| virtual bool | isResident () |
| Returns true if the texture is resident in GPU memory or false otherwise. | |
| virtual GLuint64 | getTextureHandle () |
| Get the bindless texture handle, or 0 if not resident. | |
| virtual void | invalidateTextureHandle () |
| This should be called if the texture object is to be replaced. More... | |
| virtual void | inUse () |
| Call to signify that this texture is currently in use. More... | |
 Public Member Functions inherited from H3D::H3DSingleTextureNode | |
| H3DSingleTextureNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< UpdateSaveToURL > _saveToUrl=0, Inst< SFBool > _saveSuccess=0, Inst< SFInt32 > _saveHeight=0, Inst< SFInt32 > _saveWidth=0) | |
| Constructor. | |
| virtual | ~H3DSingleTextureNode () |
| Destructor. | |
| virtual void | setTextureWidth (int _width) |
| Set the texture width. | |
| virtual void | setTextureHeight (int _height) |
| Set the texture height. | |
| virtual void | setTextureDepth (int _depth) |
| Set the texture depth. | |
| void | addShaderField (Field &_field) |
| Add a shader field which contains this texture node. More... | |
| void | removeShaderField (Field &_field) |
| Remove a shader field which contains this texture node. More... | |
| Public Member Functions inherited from H3D::X3DTextureNode | |
| X3DTextureNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< UpdateSaveToURL > _saveToUrl=0, Inst< SFBool > _saveSuccess=0, Inst< SFInt32 > _saveHeight=0, Inst< SFInt32 > _saveWidth=0) | |
| Constructor. | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| virtual GLbitfield | getAffectedGLAttribs () |
| Returns a bitmask of the OpenGL attrib bits that will be affected by this node. More... | |
| virtual Vec3f | textureSize () |
| Sometimes the texture represents a volume in space, e.g. More... | |
| virtual GLuint | renderImage (Image *image, GLenum texture_target, bool scale_to_power_of_two) |
| Installs the image as a OpenGL texture. More... | |
| virtual GLint | glInternalFormat (Image *image) |
| Returns the internal OpenGL format to use given an Image, e.g. More... | |
| virtual GLenum | glPixelFormat (Image *image) |
| Returns the OpenGL pixel format to use given an Image, e.g. More... | |
| virtual GLenum | glPixelComponentType (Image *image) |
| Returns the OpenGL pixel compnent type to use given an Image, e.g. More... | |
| virtual void | glTexImage (Image *, GLenum, bool) |
| Install the given image as a OpenGL texture with a call to a glTexImage function. More... | |
| virtual Image * | renderToImage (H3DInt32 _width, H3DInt32 _height, bool output_float_texture=false) |
| Create a new Image object which contains the result of rendering this texture. More... | |
| Public Member Functions inherited from H3D::X3DAppearanceChildNode | |
| X3DAppearanceChildNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual void | traverseSG (TraverseInfo &ti) |
| traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More... | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and the Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| Public Member Functions inherited from H3D::H3DDisplayListObject | |
| H3DDisplayListObject (Inst< DisplayList > _displayList=0) | |
| Constructor. | |
Public Attributes | |
| H3DUniquePtr< SFFrameBufferTextureGenerator > | generator |
| The generator field contains the FrameBufferTextureGenerator node from which to use a render target (color texture ). More... | |
| H3DUniquePtr< SFInt32 > | index |
| The index field indicates which render target (color texture) to use from the FrameBufferTextureGenerator. More... | |
| Public Attributes inherited from H3D::X3DTextureNode | |
| H3DUniquePtr< UpdateSaveToURL > | saveToUrl |
| When a new value is specified for saveToUrl the current texture is rendered to a buffer and saved to the specified filename. More... | |
| H3DUniquePtr< SFBool > | saveSuccess |
| Contains the result of the last save operation. More... | |
| H3DUniquePtr< SFInt32 > | saveHeight |
| The height of the image to write to file when the saveToUrl field is used. More... | |
| H3DUniquePtr< SFInt32 > | saveWidth |
| The width of the image to write to file when the saveToUrl field is used. More... | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
| Public Attributes inherited from H3D::H3DDisplayListObject | |
| H3DUniquePtr< DisplayList > | displayList |
| The DisplayList instance handling the OpenGL caching of this object. | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DTextureNode | |
| static bool | load_images_in_separate_thread = true |
| This is the default value for the GlobalSettings::loadTexturesInThread field. More... | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
Protected Member Functions | |
| virtual std::pair< H3DInt32, H3DInt32 > | getDefaultSaveDimensions () |
| Override getDefaultSaveDimensions function to get current texture dimension for this RenderTargetTexture. | |
| Protected Member Functions inherited from H3D::X3DTextureNode | |
| GLint | glCompressedInternalFormat (GLint _format, const std::string &_compression) |
| Given a non-compressed internal format, return an equivelent compressed format based on the compression settings. More... | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
Additional Inherited Members | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Static Public Member Functions inherited from H3D::H3DSingleTextureNode | |
| static void | makeUnusedTexturesNonResident (H3DTime _unusedTime) |
| Look at all resident textures and make those that have not been used recently non-resident. More... | |
| Static Public Member Functions inherited from H3D::X3DTextureNode | |
| static X3DTextureNode * | getActiveTexture () |
| Gets the currently active texture, i.e. More... | |
| static void | setActiveTexture (X3DTextureNode *t) |
| Set the active texture. More... | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Protected Types inherited from H3D::H3DSingleTextureNode | |
| typedef std::vector< H3DSingleTextureNode * > | TextureVector |
| } | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
| Protected Attributes inherited from H3D::H3DSingleTextureNode | |
| GLuint64 | texture_handle |
| The texture handle (GPU) | |
| GLuint | texture_id |
| The OpenGL texture id of the installed texture, 0 if not installed. | |
| GLint | texture_unit |
| The OpenGL texture unit that is used to render this texture. More... | |
| GLenum | texture_target |
| The OpenGL texture target that is used to render this texture. | |
| int | texture_width |
| texture width | |
| int | texture_height |
| texture height | |
| int | texture_depth |
| texture depth | |
| Field::FieldVector | shader_fields |
| Shader fields which contain this texture. | |
| H3DTime | last_used |
| Time-stamp at which this texture was last used. | |
| bool | is_resident |
| True if this texture is currently resident. | |
| Static Protected Attributes inherited from H3D::H3DSingleTextureNode | |
| static TextureVector | resident_textures |
| List of all currently resident textures. | |
Detailed Description
The RenderTargetTexture is a wrapper node to use one of the render targets(color textures) from a FrameBufferTextureGenerator directly as a texture.
The generator field contains the FrameBufferTextureGenerator node from which to use a render target (color texture ).
The index field indicates which render target (color texture) to use from the FrameBufferTextureGenerator.
Examples:
- Internal routes:
Member Function Documentation
◆ disableTexturing()
|
virtual |
Overridden virtual function to perform the same function on the correct
texture from the generator.
Implements H3D::X3DTextureNode.
References H3D::FrameBufferTextureGenerator::colorTextures, generator, and index.
◆ enableTexturing()
|
virtual |
Overridden virtual function to perform the same function on the correct
texture from the generator.
Implements H3D::X3DTextureNode.
References H3D::FrameBufferTextureGenerator::colorTextures, generator, and index.
◆ inUse()
|
virtual |
Call to signify that this texture is currently in use.
Textures that are not in use are periodically detected and made non-resident
Reimplemented from H3D::H3DSingleTextureNode.
References H3D::FrameBufferTextureGenerator::colorTextures, generator, and index.
◆ invalidateTextureHandle()
|
virtual |
This should be called if the texture object is to be replaced.
This will cause the texture to become non-resident and for the texture handle to be regenerated the next time the texture is made resident
Reimplemented from H3D::H3DSingleTextureNode.
References H3D::FrameBufferTextureGenerator::colorTextures, generator, and index.
◆ preRender()
|
virtual |
Overridden virtual function to perform the same function on the correct
texture from the generator.
Reimplemented from H3D::X3DTextureNode.
References H3D::FrameBufferTextureGenerator::colorTextures, generator, index, and H3D::X3DTextureNode::preRender().
Member Data Documentation
◆ generator
| H3DUniquePtr< SFFrameBufferTextureGenerator > H3D::RenderTargetTexture::generator |
The generator field contains the FrameBufferTextureGenerator node from which to use a render target (color texture ).
Access type: inputOutput
Referenced by disableTexturing(), enableTexturing(), getTextureDepth(), getTextureHandle(), getTextureHeight(), getTextureId(), getTextureTarget(), getTextureUnit(), getTextureWidth(), inUse(), invalidateTextureHandle(), isResident(), makeNonResident(), makeResident(), postRender(), preRender(), render(), setTextureId(), setTextureTarget(), and setTextureUnit().
◆ index
| H3DUniquePtr< SFInt32 > H3D::RenderTargetTexture::index |
The index field indicates which render target (color texture) to use from the FrameBufferTextureGenerator.
Access type: inputOutput Default value: 0
Referenced by disableTexturing(), enableTexturing(), getTextureDepth(), getTextureHandle(), getTextureHeight(), getTextureId(), getTextureTarget(), getTextureUnit(), getTextureWidth(), inUse(), invalidateTextureHandle(), isResident(), makeNonResident(), makeResident(), postRender(), preRender(), render(), RenderTargetTexture(), setTextureId(), setTextureTarget(), and setTextureUnit().
The documentation for this class was generated from the following files:
