The GeneratedCubeMapTexture node defines a cubic environment map that sources its data from internally generated images. More...

#include <H3D/GeneratedCubeMapTexture.h>

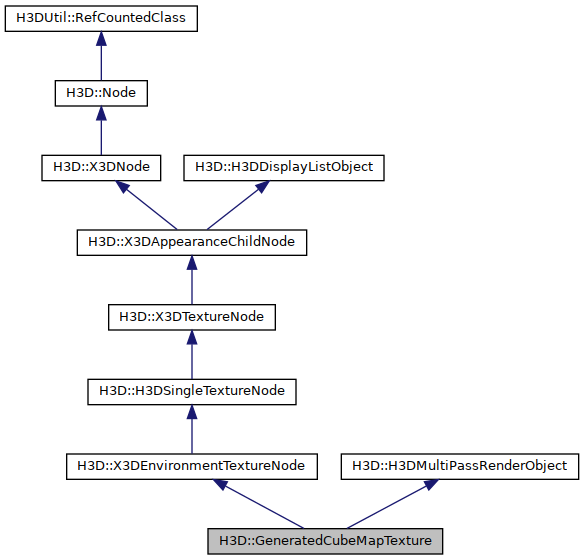

Inheritance diagram for H3D::GeneratedCubeMapTexture:

Public Types
typedef DependentSFNode< FieldRef< TextureProperties, Field, &TextureProperties::propertyChanged > >	SFTextureProperties
	The SFTextureProperties is dependent on the propertyChanged field of the contained TextureProperties.

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
	GeneratedCubeMapTexture (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFString > _update=0, Inst< SFInt32 > _size=0, Inst< SFTextureProperties > _textureProperties=0)
	Constructor.

	~GeneratedCubeMapTexture ()
	Destructor.

virtual void	enableTexturing ()
	Enables cube map texturing.

virtual void	disableTexturing ()
	Disables cube map texturing.

virtual void	renderTextureProperties ()
	Render all OpenGL texture properties.

virtual void	render ()
	Creates the cube map from the texture fields.

virtual void	preRender ()
	preRender disables rendering if it is called when rendering the cube maps for this node. More...

virtual GLbitfield	getAffectedGLAttribs ()
	Returns a bitmask of the OpenGL attrib bits that will be affected by this node. More...

virtual void	initializeTextures ()
	Initialize OpenGL textures by allocation memory and setting up texture parameters.

virtual void	updateCubeMapTextures (X3DChildNode n, X3DViewpointNode vp)
	Updates the cube map textures by rendering the given node from all directionss and saving the result as textures. More...

virtual void	traverseSG (TraverseInfo &ti)
	Saves the accumulatedForwardMatrix in the local_to_global member variable. More...

virtual void	renderPreViewpoint (X3DChildNode n, X3DViewpointNode vp)
	Updates the cube map textures of the GeneratedCubeMapTexture. More...

Public Member Functions inherited from H3D::X3DEnvironmentTextureNode
	X3DEnvironmentTextureNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::H3DSingleTextureNode
	H3DSingleTextureNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< UpdateSaveToURL > _saveToUrl=0, Inst< SFBool > _saveSuccess=0, Inst< SFInt32 > _saveHeight=0, Inst< SFInt32 > _saveWidth=0)
	Constructor.

virtual	~H3DSingleTextureNode ()
	Destructor.

virtual GLuint	getTextureId ()
	Get the OpenGL texture id that is used for this texture.

virtual GLuint	getTextureUnit ()
	Get the OpenGL texture unit that is used for this texture.

virtual GLenum	getTextureTarget ()
	Get the OpenGL texture target that is used for this texture.

virtual int	getTextureWidth ()
	Get the texture width.

virtual int	getTextureHeight ()
	Get the texture height.

virtual int	getTextureDepth ()
	Get the texture depth.

virtual void	setTextureWidth (int _width)
	Set the texture width.

virtual void	setTextureHeight (int _height)
	Set the texture height.

virtual void	setTextureDepth (int _depth)
	Set the texture depth.

virtual void	setTextureId (GLuint _id)
	Set the OpenGL texture id that is used for this texture.

virtual void	setTextureUnit (GLint unit)
	Set the OpenGL texture unit that is used for this texture.

virtual void	setTextureTarget (GLenum target)
	Set the OpenGL texture target that is used for this texture.

virtual bool	makeResident ()
	{ Bindless texturing functions More...

virtual void	makeNonResident ()
	Make the texture non-resident.

virtual bool	isResident ()
	Returns true if the texture is resident in GPU memory or false otherwise.

virtual GLuint64	getTextureHandle ()
	Get the bindless texture handle, or 0 the texture has never been resident. More...

virtual void	invalidateTextureHandle ()
	This should be called if the texture object is to be replaced. More...

void	addShaderField (Field &_field)
	Add a shader field which contains this texture node. More...

void	removeShaderField (Field &_field)
	Remove a shader field which contains this texture node. More...

virtual void	inUse ()
	Call to signify that this texture is currently in use. More...

Public Member Functions inherited from H3D::X3DTextureNode
	X3DTextureNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< UpdateSaveToURL > _saveToUrl=0, Inst< SFBool > _saveSuccess=0, Inst< SFInt32 > _saveHeight=0, Inst< SFInt32 > _saveWidth=0)
	Constructor.

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual void	postRender ()
	This function will be called by the X3DShapeNode after the geometry has been rendered to restore the states to what it was before the call to preRender().

virtual Vec3f	textureSize ()
	Sometimes the texture represents a volume in space, e.g. More...

virtual GLuint	renderImage (Image *image, GLenum texture_target, bool scale_to_power_of_two)
	Installs the image as a OpenGL texture. More...

virtual GLint	glInternalFormat (Image *image)
	Returns the internal OpenGL format to use given an Image, e.g. More...

virtual GLenum	glPixelFormat (Image *image)
	Returns the OpenGL pixel format to use given an Image, e.g. More...

virtual GLenum	glPixelComponentType (Image *image)
	Returns the OpenGL pixel compnent type to use given an Image, e.g. More...

virtual void	glTexImage (Image *, GLenum, bool)
	Install the given image as a OpenGL texture with a call to a glTexImage function. More...

virtual Image *	renderToImage (H3DInt32 _width, H3DInt32 _height, bool output_float_texture=false)
	Create a new Image object which contains the result of rendering this texture. More...

Public Member Functions inherited from H3D::X3DAppearanceChildNode
	X3DAppearanceChildNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Member Functions inherited from H3D::H3DMultiPassRenderObject
	H3DMultiPassRenderObject ()
	Constructor.

virtual	~H3DMultiPassRenderObject ()
	Destructor.

virtual void	renderPostViewpoint (X3DChildNode , X3DViewpointNode )
	This function will be called after the viewpoint has been set up for the scene to be rendered and before the scene is rendered. More...

virtual void	renderPostScene (X3DChildNode , X3DViewpointNode )
	This function will be called after the scene has been rendered. More...

void	resetCounter ()
	Reset the counter.

Public Attributes
H3DUniquePtr< SFString >	update
	The update field allows the user to request a regeneration of the texture. More...

H3DUniquePtr< SFInt32 >	size
	The texture to use on the front face of the cube. More...

H3DUniquePtr< SFTextureProperties >	textureProperties
	The textureProperties field contains a TextureProperties node which allows fine control over a texture's application. More...

Public Attributes inherited from H3D::X3DTextureNode
H3DUniquePtr< UpdateSaveToURL >	saveToUrl
	When a new value is specified for saveToUrl the current texture is rendered to a buffer and saved to the specified filename. More...

H3DUniquePtr< SFBool >	saveSuccess
	Contains the result of the last save operation. More...

H3DUniquePtr< SFInt32 >	saveHeight
	The height of the image to write to file when the saveToUrl field is used. More...

H3DUniquePtr< SFInt32 >	saveWidth
	The width of the image to write to file when the saveToUrl field is used. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DTextureNode
static bool	load_images_in_separate_thread = true
	This is the default value for the GlobalSettings::loadTexturesInThread field. More...

static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Member Functions
virtual void	updateCubeMap (GLuint texture_target, const Vec3f &camera_position, const Vec3f &camera_dir, const Vec3f &camera_up, X3DChildNode n, X3DViewpointNode vp)
	Renders a scene and puts it into a texture. More...

Protected Member Functions inherited from H3D::X3DTextureNode
virtual std::pair< H3DInt32, H3DInt32 >	getDefaultSaveDimensions ()
	Returns the default dimensions to use when this texture is saved to file. More...

GLint	glCompressedInternalFormat (GLint _format, const std::string &_compression)
	Given a non-compressed internal format, return an equivelent compressed format based on the compression settings. More...

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Protected Attributes
GLuint	fbo_id
	The id of the frame buffer object we use to render into textures.

GLuint	rbo_id
	The id of the render buffer object we use for depth info.

bool	textures_initialized
	True when the cube map textures has been initialized.

bool	generating_textures
	True if this not is currrently rendering the scene in order to create a cube map.

Matrix4f	local_to_global
	Transformation matrix from the local coordinate system of the node to the global coordinate system.

Protected Attributes inherited from H3D::H3DSingleTextureNode
GLuint64	texture_handle
	The texture handle (GPU)

GLuint	texture_id
	The OpenGL texture id of the installed texture, 0 if not installed.

GLint	texture_unit
	The OpenGL texture unit that is used to render this texture. More...

GLenum	texture_target
	The OpenGL texture target that is used to render this texture.

int	texture_width
	texture width

int	texture_height
	texture height

int	texture_depth
	texture depth

Field::FieldVector	shader_fields
	Shader fields which contain this texture.

H3DTime	last_used
	Time-stamp at which this texture was last used.

bool	is_resident
	True if this texture is currently resident.

Additional Inherited Members
Static Public Member Functions inherited from H3D::H3DSingleTextureNode
static void	makeUnusedTexturesNonResident (H3DTime _unusedTime)
	Look at all resident textures and make those that have not been used recently non-resident. More...

Static Public Member Functions inherited from H3D::X3DTextureNode
static X3DTextureNode *	getActiveTexture ()
	Gets the currently active texture, i.e. More...

static void	setActiveTexture (X3DTextureNode *t)
	Set the active texture. More...

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Static Public Member Functions inherited from H3D::H3DMultiPassRenderObject
static void	renderPreViewpointAll (X3DChildNode n, X3DViewpointNode vp)
	Run renderPreViewpoint on all instances of H3DMultiPassRenderObject.

static void	renderPostViewpointAll (X3DChildNode n, X3DViewpointNode vp)
	Run renderPostViewpoint on all instances of H3DMultiPassRenderObject.

static void	renderPostSceneAll (X3DChildNode n, X3DViewpointNode vp)
	Run renderPostScene on all instances of H3DMultiPassRenderObject.

static void	resetCounters ()
	Run resetCounter on all instances of H3DMultiPassRenderObject.

static void	setMultiPassTransparencyAll (bool b)
	If multi pass transparency is set to true the scene should be rendered three times graphically, once for all solid objects, once for the back side of transparent objects and once for the front face of transparent objects. More...

Protected Types inherited from H3D::H3DSingleTextureNode
typedef std::vector< H3DSingleTextureNode * >	TextureVector
	}

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Static Protected Attributes inherited from H3D::H3DSingleTextureNode
static TextureVector	resident_textures
	List of all currently resident textures.

Detailed Description

The GeneratedCubeMapTexture node defines a cubic environment map that sources its data from internally generated images.

The viewpoint location of a texture is the location of the geometry in world space.

The field of view shall be 90 degrees with an aspect ratio of 1:1.

The size field indicates the resolution of the generated images in number of pixels per side.

The update field allows the user to request a regeneration of the texture. Setting this field to "ALWAYS" will make the texture be rendered every frame. A value of "NONE" will stop rendering so that no further updates are performed even if the contained scene graph changes. When the value is set to "NEXT_FRAME_ONLY", it is an instruction to render the texture at the end of this frame, and then not to render again. What this means is that the update frame indicator is set to this frame, and at the start of the next frame, the update value will be automatically set back to "NONE" to indicate that the rendering has taken place already. Since this is a field change value, it will automatically generate an output event that may be routed.

Examples:

GeneratedCubeMapTexture.x3d ( Source )

Internal routes:

Member Function Documentation

◆ getAffectedGLAttribs()

virtual GLbitfield H3D::GeneratedCubeMapTexture::getAffectedGLAttribs ( )

inlinevirtual

Returns a bitmask of the OpenGL attrib bits that will be affected by this node.

The value can be used in glPushAttrib in order to save the current state.

Reimplemented from H3D::X3DTextureNode.

References H3D::X3DTextureNode::getAffectedGLAttribs().

◆ preRender()

virtual void H3D::GeneratedCubeMapTexture::preRender ( )

inlinevirtual

preRender disables rendering if it is called when rendering the cube maps for this node.

This will cause the geometry the GeneratedCubeMapTexture is applied to, not to be rendered as part of the cube map.

Reimplemented from H3D::X3DTextureNode.

References H3D::X3DTextureNode::preRender().

◆ renderPreViewpoint()

void GeneratedCubeMapTexture::renderPreViewpoint	(	X3DChildNode *	n,
		X3DViewpointNode *	vp
	)

virtual

Updates the cube map textures of the GeneratedCubeMapTexture.

The update field will be checked to see if an update is required.

Parameters

n	The scenegraph to render.
vp	The viewpoint the scene is currently rendered with in the normal rendering.

Reimplemented from H3D::H3DMultiPassRenderObject.

References H3DUtil::RefCountedClass::getName(), H3D::H3DSingleTextureNode::getTextureId(), update, and updateCubeMapTextures().

◆ traverseSG()

void GeneratedCubeMapTexture::traverseSG ( TraverseInfo & ti )

virtual

Saves the accumulatedForwardMatrix in the local_to_global member variable.

Parameters

ti	The TraverseInfo object containing information about the traversal.

Reimplemented from H3D::H3DMultiPassRenderObject.

References H3D::TraverseInfo::getAccForwardMatrix(), local_to_global, H3D::H3DMultiPassRenderObject::traverseSG(), and H3D::Node::traverseSG().

◆ updateCubeMap()

void GeneratedCubeMapTexture::updateCubeMap	(	GLuint	texture_target,
		const Vec3f &	camera_position,
		const Vec3f &	camera_dir,
		const Vec3f &	camera_up,
		X3DChildNode *	n,
		X3DViewpointNode *	vp
	)

protectedvirtual

Renders a scene and puts it into a texture.

Parameters

texture_target	The texture target of the texture to put the rendered scene in.
camera_position	The position of the camera used to render the scene (in the coordinate system of vp)
camera_dir	The look at vector of the camera.
camera_up	The up vector of the camera.
n	The node to render.
vp	The X3DViewpointNode that is used currently in the normal rendering of the scene.

References H3D::X3DViewpointNode::accForwardMatrix, H3D::X3DShapeNode::ALL, H3D::H3DDisplayListObject::displayList, H3D::DeviceInfo::getActive(), H3D::X3DBackgroundNode::getActive(), local_to_global, rbo_id, H3D::Node::render(), H3D::X3DBackgroundNode::renderBackground(), H3D::DeviceInfo::renderStyli(), Rotation(), size, H3D::X3DShapeNode::SOLID, H3D::H3DSingleTextureNode::texture_id, H3D::H3DSingleTextureNode::texture_target, H3D::X3DViewpointNode::totalOrientation, H3D::X3DShapeNode::TRANSPARENT_BACK, and H3D::X3DShapeNode::TRANSPARENT_FRONT.

Referenced by updateCubeMapTextures().

◆ updateCubeMapTextures()

void GeneratedCubeMapTexture::updateCubeMapTextures	(	X3DChildNode *	n,
		X3DViewpointNode *	vp
	)

virtual

Updates the cube map textures by rendering the given node from all directionss and saving the result as textures.

Parameters

n	The scenegraph to render.
vp	The viewpoint the scene is currently rendered with in the normal rendering.

References H3D::H3DDisplayListObject::displayList, fbo_id, generating_textures, initializeTextures(), H3D::H3DSingleTextureNode::texture_id, textures_initialized, and updateCubeMap().

Referenced by renderPreViewpoint().

Member Data Documentation

◆ size

H3DUniquePtr< SFInt32 > H3D::GeneratedCubeMapTexture::size

The texture to use on the front face of the cube.

Access type: inputOutput
Default value: 128

Referenced by GeneratedCubeMapTexture(), initializeTextures(), and updateCubeMap().

◆ textureProperties

H3DUniquePtr< SFTextureProperties > H3D::GeneratedCubeMapTexture::textureProperties

The textureProperties field contains a TextureProperties node which allows fine control over a texture's application.

Access type: inputOutput

Referenced by GeneratedCubeMapTexture(), and renderTextureProperties().

◆ update

H3DUniquePtr< SFString > H3D::GeneratedCubeMapTexture::update

The update field allows the user to request a regeneration of the texture.

Setting this field to "ALWAYS" will make the texture be rendered every frame. A value of "NONE" will stop rendering so that no further updates are performed even if the contained scene graph changes. When the value is set to "NEXT_FRAME_ONLY", it is an instruction to render the texture at the end of this frame, and then not to render again. What this means is that the update frame indicator is set to this frame, and at the start of the next frame, the update value will be automatically set back to "NONE" to indicate that the rendering has taken place already. Since this is a field change value, it will automatically generate an output event that may be routed.

Access type: inputOutput Default value: "NONE" Valid values: "NONE", "ALWAYS", "NEXT_FRAME_ONLY"

Referenced by GeneratedCubeMapTexture(), and renderPreViewpoint().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ getAffectedGLAttribs()

◆ preRender()

◆ renderPreViewpoint()

◆ traverseSG()

◆ updateCubeMap()

◆ updateCubeMapTextures()

Member Data Documentation

◆ size

◆ textureProperties

◆ update
