The ShaderConstants node is a node will be used to gather all static shader inputs to be used in the shader. More...
#include <H3D/ShaderConstants.h>

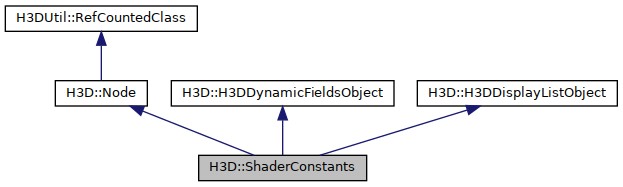

Inheritance diagram for H3D::ShaderConstants:
Public Member Functions | |
| virtual std::string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| virtual bool | addField (const std::string &name, const Field::AccessType &access, Field *field) |
| override the addField function, to collect all field added and filter out duplications. More... | |
| virtual bool | removeField (const std::string &_name) |
| Remove a field from the Node. More... | |
 Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual void | render () |
| the render() function is used for the depth-first rendering traversal of the scene-graph. More... | |
| virtual void | traverseSG (TraverseInfo &ti) |
| traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More... | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and the Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| Public Member Functions inherited from H3D::H3DDynamicFieldsObject | |
| field_iterator | firstField () |
| Get an iterator to the first of the dynamic fields. | |
| field_iterator | endField () |
| Get an iterator pointing to the end of the dynamic fields. | |
| virtual void | clearFields () |
| Remove all dynamic fields that have been previously added. | |
| H3DDynamicFieldsObject () | |
| Constructor. | |
| Public Member Functions inherited from H3D::H3DDisplayListObject | |
| H3DDisplayListObject (Inst< DisplayList > _displayList=0) | |
| Constructor. | |
Additional Inherited Members | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Public Attributes inherited from H3D::H3DDisplayListObject | |
| H3DUniquePtr< DisplayList > | displayList |
| The DisplayList instance handling the OpenGL caching of this object. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
Detailed Description
The ShaderConstants node is a node will be used to gather all static shader inputs to be used in the shader.
Whenever any parameter value is modified, the related shaders shader string will be changed accordingly which will also cause the shader to be recompiled
Member Function Documentation
◆ addField()
|
virtual |
override the addField function, to collect all field added and filter out duplications.
Reimplemented from H3D::H3DDynamicFieldsObject.
◆ defaultXMLContainerField()
|
inlinevirtual |
Returns the default xml containerField attribute value.
For this node it is "children".
Reimplemented from H3D::Node.
◆ removeField()
|
virtual |
Remove a field from the Node.
- Parameters
-
_name The name of the field to remove.
- Returns
- true on success false otherwise.
Reimplemented from H3D::H3DDynamicFieldsObject.
The documentation for this class was generated from the following files:
