A PackagedShader node describes a single file that may contain a number of shaders and combined effects. More...
#include <H3D/PackagedShader.h>

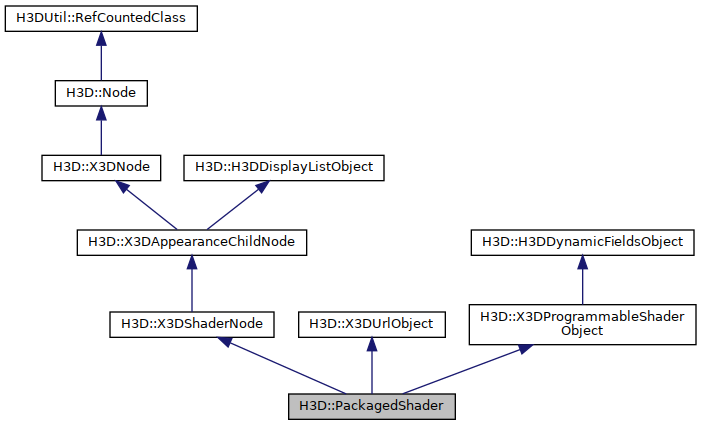

Inheritance diagram for H3D::PackagedShader:
Public Member Functions | |
| PackagedShader (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0, Inst< MFString > _url=0) | |
| Constructor. | |
| virtual bool | isSupported () |
| Returns true if the shader node type is supported by the browser. | |
| virtual bool | addField (const string &_name, const Field::AccessType &access, Field *field) |
| The addField method is specialized to add a route from the field added to the displayList field. | |
| virtual void | render () |
| Sets up the shader program and sets uniform variable values. | |
| virtual void | preRender () |
| Enables the shader program. | |
| virtual void | postRender () |
| Disables the shader program. | |
| virtual void | initCGShaderProgram () |
| Initialize a cg shader program from the current field values. | |
 Public Member Functions inherited from H3D::X3DShaderNode | |
| X3DShaderNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0) | |
| Constructor. | |
| void | setSelected (bool selected) |
| Set the isSelected field. | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| virtual bool | isTransparent (X3DMaterialNode *) |
| Returns a hint if the X3DShaderNode produces an alpha channel that is < 1, i.e. More... | |
| Public Member Functions inherited from H3D::X3DAppearanceChildNode | |
| X3DAppearanceChildNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0) | |
| Constructor. | |
| virtual GLbitfield | getAffectedGLAttribs () |
| Returns a bitmask of the OpenGL attrib bits that will be affected by this node. More... | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual void | traverseSG (TraverseInfo &ti) |
| traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More... | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and the Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| Public Member Functions inherited from H3D::H3DDisplayListObject | |
| H3DDisplayListObject (Inst< DisplayList > _displayList=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DUrlObject | |
| X3DUrlObject (Inst< MFString > _url=0) | |
| Constructor. | |
| virtual LoadStatus | loadStatus () |
| The loadStatus function returns the status of the loading of the current urls in order to be used with the LoadSensor node. | |
| virtual H3DFloat | loadProgress () |
| The loadProgress() functions returns a value between 0 and 1 indicating how much of the current url has been loaded. More... | |
| void | setURLUsed (const string &_url_used) |
| Set the url that is currently loaded. | |
| const string & | getURLUsed () |
| Get the url that is currently loaded. | |
| void | setURLBase (const string &_url_base) |
| Set the url base address. | |
| const string & | getURLBase () |
| Get the current url base address. | |
| string | resolveURLAsFile (const string &url, bool *is_tmp_file=NULL) |
| Get the url as a local file. | |
| string | resolveURLAsString (const string &url) |
| Get the content of the URL as a string. | |
| bool | removeTmpFile (const string &file) |
| Remove a tmpfile with the given name. More... | |
| Public Member Functions inherited from H3D::X3DProgrammableShaderObject | |
| X3DProgrammableShaderObject (H3DNodeDatabase *_database) | |
| Constructor. | |
| virtual bool | removeField (const string &_name) |
| Remove a shader field uniform. | |
| virtual void | clearFields () |
| Remove all dynamic fields that have been previously added. | |
| virtual | ~X3DProgrammableShaderObject () |
| Destructor. | |
| Public Member Functions inherited from H3D::H3DDynamicFieldsObject | |
| field_iterator | firstField () |
| Get an iterator to the first of the dynamic fields. | |
| field_iterator | endField () |
| Get an iterator pointing to the end of the dynamic fields. | |
| H3DDynamicFieldsObject () | |
| Constructor. | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DShaderNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DProgrammableShaderObject | |
| static bool | use_bindless_textures = false |
| True if we should use bindless textures. | |
Additional Inherited Members | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Public Types inherited from H3D::X3DUrlObject | |
| enum | LoadStatus { INIT , LOADED , LOADING , FAILED } |
| The load status of the given url. More... | |
| Static Public Member Functions inherited from H3D::X3DShaderNode | |
| static X3DShaderNode * | getActiveShader () |
| Gets the currently active shader, i.e. More... | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Public Attributes inherited from H3D::X3DShaderNode | |
| H3DUniquePtr< SFBool > | isSelected |
| The isSelected output field is used to indicate that this shader instance is the one selected for use by the browser. More... | |
| H3DUniquePtr< SFBool > | isValid |
| The isValid field is used to indicate whether the current shader objects can be run as a shader program. More... | |
| H3DUniquePtr< SFBool > | activate |
| The activate field forces the shader to activate the contained objects. More... | |
| H3DUniquePtr< EventCollectingField< Field > > | activateMonitor |
| field used to monitor if activate field is modified | |
| H3DUniquePtr< SFString > | language |
| The language field is used to indicate to the browser which shading language is used for the source file(s). More... | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
| Public Attributes inherited from H3D::H3DDisplayListObject | |
| H3DUniquePtr< DisplayList > | displayList |
| The DisplayList instance handling the OpenGL caching of this object. | |
| Public Attributes inherited from H3D::X3DUrlObject | |
| H3DUniquePtr< MFString > | url |
| The urls in decreasing order of preference. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Protected Member Functions inherited from H3D::X3DUrlObject | |
| string | resolveURL (const string &_url, bool return_contents, bool *is_tmp_file=NULL) |
| Helper function for resolveURLAs*() functions. | |
| void | addInlinePrefix (const string &s) |
| Add a inline prefix that this node supports. | |
| int | getInlinedContentOffset (const std::string &url) |
| If the URL contains any inline prefix, return the index of the start of the inlined content. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
| Protected Attributes inherited from H3D::X3DUrlObject | |
| string | url_used |
| If loadStatus() returns LOADED this string should contain the url that is loaded. More... | |
| string | url_base |
| The base URL for urls in this url object. More... | |
| list< string > | supported_inline_prefixes |
| A list of inline prefixes that are supported by this url object. More... | |
| Static Protected Attributes inherited from H3D::X3DProgrammableShaderObject | |
| static bool | use_bindless_textures_set = false |
| True if use_bindless_textures has already be set once. | |
Detailed Description
A PackagedShader node describes a single file that may contain a number of shaders and combined effects.
The shader source is read from the URL specified by the url field.
The language field may be used to optionally determine the language type. Only the CG language strings are supported by H3D API. If you want to use GLSL use the ComposedShader node.
The main function of the CG vertex shader must be named "vert_main" and the main function of the fragment shader must be named "frag_main".
Examples:
- Internal routes:
The documentation for this class was generated from the following files:
