H3D::X3DUrlObject Class Reference

This abstract interface is inherited by all nodes that contain data located on the World Wide Web, such as AudioClip, ImageTexture and Inline. More...

#include <H3D/X3DUrlObject.h>

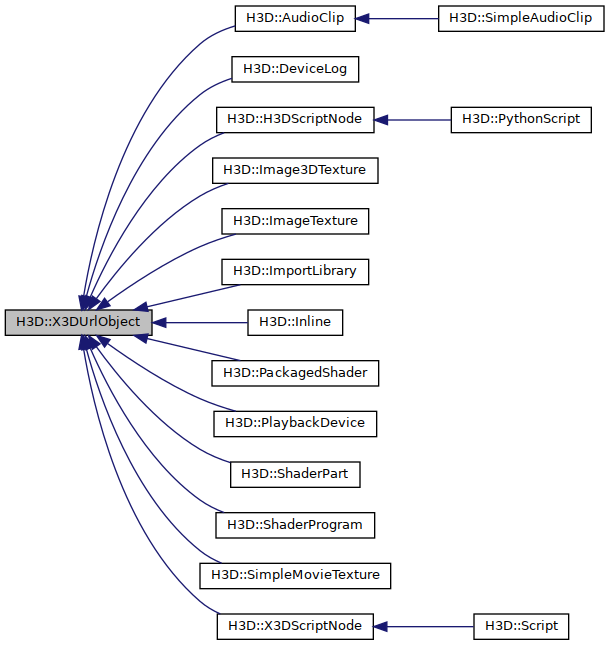

Inheritance diagram for H3D::X3DUrlObject:

Public Types
enum	LoadStatus { INIT , LOADED , LOADING , FAILED }
	The load status of the given url. More...

Public Member Functions
	X3DUrlObject (Inst< MFString > _url=0)
	Constructor.
virtual LoadStatus	loadStatus ()
	The loadStatus function returns the status of the loading of the current urls in order to be used with the LoadSensor node.
virtual H3DFloat	loadProgress ()
	The loadProgress() functions returns a value between 0 and 1 indicating how much of the current url has been loaded. More...
void	setURLUsed (const string &_url_used)
	Set the url that is currently loaded.
const string &	getURLUsed ()
	Get the url that is currently loaded.
void	setURLBase (const string &_url_base)
	Set the url base address.
const string &	getURLBase ()
	Get the current url base address.
string	resolveURLAsFile (const string &url, bool *is_tmp_file=NULL)
	Get the url as a local file.
string	resolveURLAsString (const string &url)
	Get the content of the URL as a string.
bool	removeTmpFile (const string &file)
	Remove a tmpfile with the given name. More...

Public Attributes
H3DUniquePtr< MFString >	url
	The urls in decreasing order of preference.

Protected Member Functions
string	resolveURL (const string &_url, bool return_contents, bool *is_tmp_file=NULL)
	Helper function for resolveURLAs*() functions.
void	addInlinePrefix (const string &s)
	Add a inline prefix that this node supports.
int	getInlinedContentOffset (const std::string &url)
	If the URL contains any inline prefix, return the index of the start of the inlined content. More...

Protected Attributes
string	url_used
	If loadStatus() returns LOADED this string should contain the url that is loaded. More...
string	url_base
	The base URL for urls in this url object. More...
list< string >	supported_inline_prefixes
	A list of inline prefixes that are supported by this url object. More...

Detailed Description

This abstract interface is inherited by all nodes that contain data located on the World Wide Web, such as AudioClip, ImageTexture and Inline.

All url fields can hold multiple string values. The strings in these fields indicate multiple locations to search for data in decreasing order of preference. If the browser cannot locate or interpret the data specified by the first location, it shall try the second and subsequent locations in order until a location containing interpretable data is encountered. X3D browsers only have to interpret a single string. If no interpretable locations are found, the node type defines the resultant default behaviour.

Member Enumeration Documentation

LoadStatus

enum H3D::X3DUrlObject::LoadStatus

The load status of the given url.

Enumerator
INIT	The url has not been tried to load yet.
LOADED	The url has been successfully loaded.
LOADING	The url is currently loading.
FAILED	The loading of the url failed.

Member Function Documentation

getInlinedContentOffset()

int X3DUrlObject::getInlinedContentOffset ( const std::string &  url )

protected

If the URL contains any inline prefix, return the index of the start of the inlined content.

Otherwise (if there is no inline prefix) return 0

Referenced by resolveURL().

loadProgress()

virtual H3DFloat H3D::X3DUrlObject::loadProgress ( )

inlinevirtual

The loadProgress() functions returns a value between 0 and 1 indicating how much of the current url has been loaded.

1 means that the file has been sucessfully loaded. The only requirement of this function is that if the url has been successfully loaded the function returns 1.

Referenced by H3D::LoadSensor::traverseSG().

removeTmpFile()

bool X3DUrlObject::removeTmpFile

(

const string &

file

)

Remove a tmpfile with the given name.

Returns true on success, or false if no such file exists or the removal failed.

References H3DUtil::ResourceResolver::releaseTmpFileName().

Member Data Documentation

supported_inline_prefixes

list< string > H3D::X3DUrlObject::supported_inline_prefixes

protected

A list of inline prefixes that are supported by this url object.

E.g. "glsl", "python", etc

Referenced by addInlinePrefix().

url_base

string H3D::X3DUrlObject::url_base

protected

The base URL for urls in this url object.

All relative paths will start from this. Will be set to ResourceResolver::getBaseURL() when created.

Referenced by resolveURL().

url_used

string H3D::X3DUrlObject::url_used

protected

If loadStatus() returns LOADED this string should contain the url that is loaded.

All subclasses of X3DUrlObject should set this when successfully loaded a file.

Referenced by H3D::ShaderPart::loadStatus().

---

The documentation for this class was generated from the following files:

• X3DUrlObject.h
• X3DUrlObject.cpp
