The ShaderPart node defines the source for a single object to be used by a ComposedShader node. More...

#include <H3D/ShaderPart.h>

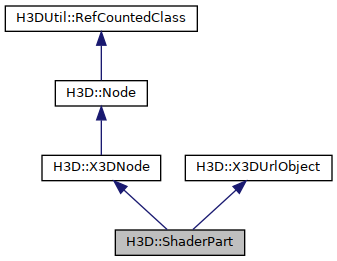

Inheritance diagram for H3D::ShaderPart:

Classes
class	SFShaderString
	Update the string to use as shader depending from the urls given. More...

Public Member Functions
	ShaderPart (Inst< SFNode > _metadata=0, Inst< MFString > _url=0, Inst< SFString > _type=0, Inst< SFShaderString > _shaderString=0, Inst< SFBool > _forceReload=0)
	Constructor.

virtual GLhandleARB	compileShader ()
	Compile the shader using the shader_string field as text input. More...

void	setParentComposedShader (ComposedShader *s)
	Set the ComposedShader instance.that this ShaderPart is a child to.

ComposedShader *	getParentComposedShader ()
	Get the ComposedShader instance that this ShaderPart is a child to.

bool	modifyShaderConstants (Field *field)
	Look for a constant with the name matching field->getName(). More...

bool	replaceString (string &string_to_update, const std::string &string_start, const std::string &string_end, const std::string &to_insert, const std::string &conditional_string="")
	Look for string_start and string_end. More...

GLhandleARB	getShaderHandle ()
	Get the handle to the shader object that currently is used for this ShaderPart.

virtual bool	isCompiled ()
	Returns true if the shader part is compiled and up to date. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual X3DUrlObject::LoadStatus	loadStatus ()
	The loadStatus function returns the status of the loading of the current urls in order to be used with the LoadSensor node.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual void	traverseSG (TraverseInfo &ti)
	traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::X3DUrlObject
	X3DUrlObject (Inst< MFString > _url=0)
	Constructor.

virtual H3DFloat	loadProgress ()
	The loadProgress() functions returns a value between 0 and 1 indicating how much of the current url has been loaded. More...

void	setURLUsed (const string &_url_used)
	Set the url that is currently loaded.

const string &	getURLUsed ()
	Get the url that is currently loaded.

void	setURLBase (const string &_url_base)
	Set the url base address.

const string &	getURLBase ()
	Get the current url base address.

string	resolveURLAsFile (const string &url, bool *is_tmp_file=NULL)
	Get the url as a local file.

string	resolveURLAsString (const string &url)
	Get the content of the URL as a string.

bool	removeTmpFile (const string &file)
	Remove a tmpfile with the given name. More...

Public Attributes
H3DUniquePtr< SFString >	type
	The type field indicates whether this object shall be compiled as a vertex shader, fragment shader, or other future-defined shader type. More...

H3DUniquePtr< SFShaderString >	shaderString
	A field that contains the string loaded from file and to be used as input to the shader. More...

H3DUniquePtr< SFBool >	forceReload
	The forceReload field is used to force the reloading of this shaderPart and also cause the composed shader recompile and relink. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::X3DUrlObject
H3DUniquePtr< MFString >	url
	The urls in decreasing order of preference.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Member Functions
bool	getConstantVariableString (Field *const in_variable, std::string &out_name, std::string &out_type, std::string &out_field_value)
	Extract all necessary data from a field.

std::string	shaderStringFromURL (const std::string &shader_url)
	Given the URL of a shader source, return the source code, or "" on failure.

std::string	preProcess (const std::string &input, const std::string &_url, int depth=0)
	Given the raw shader source, return the preprocessed source having parsed all preprocessor commands, e.g., includes etc. More...

void	updateShaderConstantValues (std::string &input, bool update_all_values)
	Update shader string with new values for constants. More...

void	updateSinglePassStereoValues (std::string &input)
	Update shader string for us in single pass stereo render mode.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Protected Member Functions inherited from H3D::X3DUrlObject
string	resolveURL (const string &_url, bool return_contents, bool *is_tmp_file=NULL)
	Helper function for resolveURLAs*() functions.

void	addInlinePrefix (const string &s)
	Add a inline prefix that this node supports.

int	getInlinedContentOffset (const std::string &url)
	If the URL contains any inline prefix, return the index of the start of the inlined content. More...

Protected Attributes
ComposedShader *	parent_composed_shader
	The ComposedShader instance that this ShaderPart is a child to.

GLhandleARB	shader_handle
	The handle to the shader object used for this ShaderPart.

Protected Attributes inherited from H3D::X3DUrlObject
string	url_used
	If loadStatus() returns LOADED this string should contain the url that is loaded. More...

string	url_base
	The base URL for urls in this url object. More...

list< string >	supported_inline_prefixes
	A list of inline prefixes that are supported by this url object. More...

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Types inherited from H3D::X3DUrlObject
enum	LoadStatus { INIT , LOADED , LOADING , FAILED }
	The load status of the given url. More...

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The ShaderPart node defines the source for a single object to be used by a ComposedShader node.

The source is not required to be a complete shader for all of the vertex/fragment processing.

The type field indicates whether this object shall be compiled as a vertex shader, fragment shader, or other future-defined shader type.

The shader source is read from the URL specified by the url field. When the url field contains no values ([]), this object instance is ignored. Shader source files shall be plain text encoded as specified for MIME type text/plain and interpreted according to the type field.

Preprocessor: Preprocessor commands are supported as an extension to the X3D standard. These begin "#pragma h3dapi [command] [arguments]".

Supported commands:

include "url_to_include" - The contents of the file pointed to by the specified URL are imported and used to replace the include statement before the shader is compiled.

Examples:

ComposedShader.x3d ( Source )

Internal routes:

Member Function Documentation

◆ compileShader()

GLhandleARB ShaderPart::compileShader ( )

virtual

Compile the shader using the shader_string field as text input.

Returns a handle to the compiled shader or 0 if compiling failed.

References shader_handle, and shaderString.

Referenced by H3D::ComposedShader::render().

◆ defaultXMLContainerField()

virtual string H3D::ShaderPart::defaultXMLContainerField ( )

inlinevirtual

Returns the default xml containerField attribute value.

For this node it is "parts".

Reimplemented from H3D::Node.

◆ isCompiled()

bool ShaderPart::isCompiled ( )

virtual

Returns true if the shader part is compiled and up to date.

False if compilation is required.

References shaderString.

Referenced by H3D::ComposedShader::render().

◆ modifyShaderConstants()

bool H3D::ShaderPart::modifyShaderConstants ( Field * field )

Look for a constant with the name matching field->getName().

Then replace the value of that constant with the value of field->getValue(). Returns true on success.

References shaderString.

◆ preProcess()

std::string ShaderPart::preProcess	(	const std::string &	input,
		const std::string &	_url,
		int	depth = `0`
	)

protected

Given the raw shader source, return the preprocessed source having parsed all preprocessor commands, e.g., includes etc.

Parameters

input	The raw shader source code, including preprocessor commands
_url	The URL from which the raw source code was loaded (used for base of relative includes)
depth	The current recursion depth. The root caller should always leave this as the default 0.

Returns: The preprocessed shader source, with all preprocessor commands applied.

◆ replaceString()

bool H3D::ShaderPart::replaceString	(	std::string &	shader_string,
		const std::string &	string_start,
		const std::string &	string_end,
		const std::string &	to_insert,
		const std::string &	conditional_string = `""`
	)

Look for string_start and string_end.

If to_insert can fit in properly, we replace. Returns true on success.

If conditional_string isn't empty, we need to be able to find it, else we return false;

◆ updateShaderConstantValues()

void ShaderPart::updateShaderConstantValues	(	std::string &	input,
		bool	update_all_values
	)

protected

Update shader string with new values for constants.

Parameters

input	Shader string to update.
update_all_values	If true, all constants will be updated, if false, only the constants that have changed will be updated.

Member Data Documentation

◆ forceReload

H3DUniquePtr< SFBool > H3D::ShaderPart::forceReload

The forceReload field is used to force the reloading of this shaderPart and also cause the composed shader recompile and relink.

Directly change its value from tree view of h3dviewer, or route someother field to it will both work.

Access type: inputOutput

Referenced by H3D::ShaderPart::SFShaderString::doFullRebuild(), and ShaderPart().

◆ shaderString

H3DUniquePtr< SFShaderString > H3D::ShaderPart::shaderString

A field that contains the string loaded from file and to be used as input to the shader.

Access should logically be outputOnly, but is inputOutput for backward compatibility (to avoid access exceptions in external code). It may be changed in future (major) releases.

Access type: inputOutput

Referenced by compileShader(), isCompiled(), modifyShaderConstants(), setParentComposedShader(), and ShaderPart().

◆ type

H3DUniquePtr< SFString > H3D::ShaderPart::type

The type field indicates whether this object shall be compiled as a vertex shader, fragment shader, or other future-defined shader type.

Valid values are "VERTEX", "FRAGMENT","GEOMETRY" "TESS_CONTROL" or "TESS_EVALUATION".

Access type: initializeOnly

Referenced by H3D::H3DGeneratedShaderNode::H3DGeneratedShaderNode(), and ShaderPart().

The documentation for this class was generated from the following files:
