The IndexedTriangleSet node represents a 3D shape composed of a collection of individual triangles. More...

#include <H3D/IndexedTriangleSet.h>

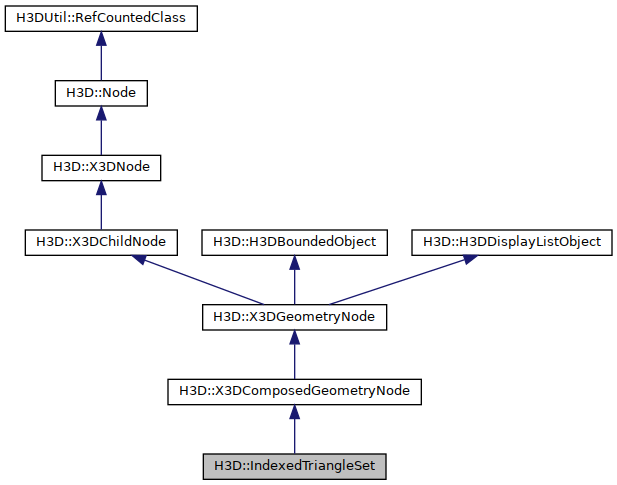

Inheritance diagram for H3D::IndexedTriangleSet:

Classes
class	AutoNormal
	Specialized field for automatically generating normals from coordinates. More...

class	AutoTangent
	Specialized field for automatically generating two FloatVertexAttribute nodes representing the tangent and binormal of each vertex(or face if normalPerVertex is false). More...

class	NotEnoughColors
	Thrown if the number of colors in the color field is less than the number coordinates in the coord field. More...

class	NotEnoughTextureCoordinates
	Thrown if the number of texture coordinates in the color field is less than the number coordinates in the coord field. More...

Public Types
typedef CoordBoundField	SFBound
	The bound field for IndexedFaceSet is a CoordBoundField.

Public Types inherited from H3D::X3DComposedGeometryNode
typedef DependentSFNode< X3DColorNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DColorNode::propertyChanged > >	SFColorNode
	The SFColorNode is dependent on the propertyChanged field of the contained X3DColorNode.

typedef DependentSFNode< X3DCoordinateNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DCoordinateNode::propertyChanged > >	SFCoordinateNode
	The SFCoordinateNode is dependent on the propertyChanged field of the contained X3DCoordinateNode.

typedef DependentSFNode< X3DNormalNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DNormalNode::propertyChanged > >	SFNormalNode
	The SFNormalNode is dependent on the propertyChanged field of the contained X3DNormalNode.

typedef DependentSFNode< X3DTextureCoordinateNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DTextureCoordinateNode::propertyChanged > >	SFTextureCoordinateNode
	The SFTextureCoordinteNode is dependent on the propertyChanged field of the contained X3DTextureCoordinateNode.

typedef DependentSFNode< FogCoordinate, FieldRef< X3DGeometricPropertyNode, Field, &FogCoordinate::propertyChanged > >	SFFogCoordinate
	The SFFogCoordinate is dependent on the propertyChanged. More...

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
	IndexedTriangleSet (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< SFColorNode > _color=0, Inst< SFCoordinateNode > _coord=0, Inst< SFNormalNode > _normal=0, Inst< SFTextureCoordinateNode > _texCoord=0, Inst< SFBool > _ccw=0, Inst< SFBool > _colorPerVertex=0, Inst< SFBool > _normalPerVertex=0, Inst< SFBool > _solid=0, Inst< MFVertexAttributeNode > _attrib=0, Inst< AutoNormal > _autoNormal=0, Inst< MFInt32 > _set_index=0, Inst< MFInt32 > _index=0, Inst< SFFogCoordinate > _fogCoord=0, Inst< SFInt32InstanceCount > _instanceCount=0)
	Constructor.

virtual	~IndexedTriangleSet ()
	Destructor.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. More...

virtual void	render ()
	Renders the IndexedTriangleSet with OpenGL.

virtual int	nrTriangles ()
	The number of triangles renderered in this geometry.

virtual bool	supportsTangentAttributes ()
	Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g. More...

void	setRenderPatches (bool _renderPatches)
	Explicitly enable or disable the rendering of patches for tessellation.

bool	getRenderPatches ()
	Returns true if rendering using patches for tessellation is enabled.

virtual void	glRender ()
	Function overridden from HAPIGLShape. More...

Public Member Functions inherited from H3D::X3DComposedGeometryNode
virtual void	startTexGen (X3DTextureCoordinateNode *tex_coord)
	Start texture coordinate generation. More...

virtual void	stopTexGen (X3DTextureCoordinateNode *tex_coord)
	Stop texture coordinate generation.

virtual void	renderTexCoord (int index, X3DTextureCoordinateNode *tc)
	Render the texure coordinate with the given index from the tc argument. More...

virtual void	renderTexCoordArray (X3DTextureCoordinateNode *tc)
	Render the X3DTextureCoordinate as an array. More...

virtual void	disableTexCoordArray (X3DTextureCoordinateNode *tc)
	Disable the arrays that were enabled in renderTexCoordArray().

virtual void	renderTexCoordVertexBufferObject (X3DTextureCoordinateNode *tc)
	Render the X3DTextureCoordinate as a vertex buffer object. More...

virtual void	disableTexCoordVertexBufferObject (X3DTextureCoordinateNode *tc)
	Disable the vertex buffer objects that were enabled in renderTexCoordArray().

virtual Matrix4f	getDefaultTexGenMatrix ()
	Gets the matrix that transforms from object space to texture coordinate space in the default case when no texCoord node is specified. More...

	X3DComposedGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< SFColorNode > _color=0, Inst< SFCoordinateNode > _coord=0, Inst< SFNormalNode > _normal=0, Inst< SFTextureCoordinateNode > _texCoord=0, Inst< SFBool > _ccw=0, Inst< SFBool > _colorPerVertex=0, Inst< SFBool > _normalPerVertex=0, Inst< SFBool > _solid=0, Inst< MFVertexAttributeNode > _attrib=0, Inst< SFFogCoordinate > _fogCoord=0)
	Constructor.

Public Member Functions inherited from H3D::X3DGeometryNode
	X3DGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< MFVec3f > _contactTexCoord=0, Inst< SFBoundTree > _boundTree=0, Inst< SFVec3f > _centerOfMass=0)
	Constructor.

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and this geometry. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on this geometry to point p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the geometry. More...

virtual H3DShadowObjectNode *	getShadowObject ()
	Get the H3DShadowObjectNode used to create a shadow volume for this geometry. More...

void	useCulling (bool enabled)
	This function should be used by the render() function to disable or enable face culling. More...

bool	usingCulling ()
	Returns if face culling is in use or not.

void	allowCulling (bool allow)
	Control if face culling is allowed or not. More...

void	useBackFaceCulling (bool enabled)
	Enabling/disabling back face culling. More...

bool	allowingCulling ()
	Returns true if back face culling is allowed, false otherwise.

void	setCullFace (GLenum face)
	Set which side of a polygon to cull. More...

GLenum	getCullFace ()
	Get which face will be culled if culling is enabled.

template<class OptionNodeType >
void	getOptionNode (OptionNodeType *&option)
	Get the first option node of the type of the pointer given as argument from the renderOptions fieeld The option argument will contain the node afterwards, or NULL if no option of that type exists.

int	getHapticShapeId (unsigned int index)
	Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device. More...

virtual	~X3DGeometryNode ()
	Destructor.

HAPI::HAPIHapticShape *	getOpenGLHapticShape (unsigned int hd_index, H3DSurfaceNode *_surface, const Matrix4f &_transform, int _nr_vertices=-1)
	Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual void	getBound (HAPI::Vec3 &center, HAPI::Vec3 &size)
	Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode. More...

virtual void	initialize ()
	Changes behaviour of X3DGeometryNode to be a thread safe RefCountedClass.

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DBoundedObject
	H3DBoundedObject (Inst< SFBound > _bound=0)
	Constructor.

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Attributes
H3DUniquePtr< AutoNormal >	autoNormal
	Auto-generated normals that are used if the normal field is NULL. More...

H3DUniquePtr< AutoTangent >	autoTangent
	Auto-generated vertex attributes for tangents and binormals. More...

H3DUniquePtr< MFInt32 >	set_index
	Field for setting the value of the index field. More...

H3DUniquePtr< MFInt32 >	index
	The index field is used to specify the vertices of each triangle from the coord field. More...

H3DUniquePtr< SFInt32InstanceCount >	instanceCount
	If 0 or greater, then instanced rendering is used to render instanceCount instances of the mesh. More...

Public Attributes inherited from H3D::X3DComposedGeometryNode
H3DUniquePtr< SFColorNode >	color
	Contains an X3DColorNode whose colors are applied to the X3DComposedGeometryNode. More...

H3DUniquePtr< SFCoordinateNode >	coord
	An X3DCoordinate node with the coordinates to use. More...

H3DUniquePtr< SFNormalNode >	normal
	Contains an X3DNormalNode which normals are applied to the X3DComposedGeometryNode. More...

H3DUniquePtr< SFTextureCoordinateNode >	texCoord
	Contains an X3DTextureCoordinateNode which texture coordinates are applied to the X3DComposedGeometryNode. More...

H3DUniquePtr< SFBool >	ccw
	The ccw field defines the ordering of the vertex coordinates of the geometry with respect to user-given or automatically generated normal vectors used in the lighting model equations. More...

H3DUniquePtr< SFBool >	colorPerVertex
	If TRUE the colors in the color field is applied per vertex, otherwise it is applied per face. More...

H3DUniquePtr< SFBool >	normalPerVertex
	If TRUE the normals in the normal field is applied per vertex, otherwise it is applied per face. More...

H3DUniquePtr< SFBool >	solid
	The solid field determines whether one or both sides of each polygon shall be displayed. More...

H3DUniquePtr< MFVertexAttributeNode >	attrib
	If the attrib field is not empty it shall contain a list of X3DVertexAttributeNode instances with per-vertex attribute information for programmable shaders. More...

H3DUniquePtr< SFFogCoordinate >	fogCoord
	If the fogCoord field is not empty, it shall contain a list of per-vertex depth values for calculating fog depth. More...

Public Attributes inherited from H3D::X3DGeometryNode
H3DUniquePtr< MFBool >	isTouched
	Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop. More...

H3DUniquePtr< MFVec3f >	force
	The last force delivered by this geometry to the haptics device. More...

H3DUniquePtr< MFVec3f >	contactPoint
	The last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactTexCoord
	The texture coordinate of last the contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactNormal
	The normal at the last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< SFVec3f >	centerOfMass
	The field contains center of mass for the object, based on its bounding box. More...

H3DUniquePtr< SFBoundTree >	boundTree
	Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode. More...

H3DUniquePtr< MFOptionsNode >	options
	Contains nodes with options for haptics and graphics rendering. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DBoundedObject
H3DUniquePtr< SFBound >	bound
	The field containing the bound object. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DComposedGeometryNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DGeometryNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Attributes
bool	render_tangents
	This will be set to true in traverseSG if the render function is supposed to render tangent vertex attributes.

bool	render_patches
	This will be set to true in traverseSG if the render function is supposed to render GL_PATCHES instead of GL_TRIANGLES. More...

H3DUniquePtr< Field >	vboFieldsUpToDate
	Internal field used to know if vertex buffer object can be created. More...

Protected Attributes inherited from H3D::X3DGeometryNode
AutoRef< Node >	shadow_volume
	The shadow volume used for this geometry when shadows enabled. More...

vector< pair< int, pair< Matrix4f, H3DTime > > >	haptic_shape_ids
	identifiers for the shapes geometry.

Additional Inherited Members
Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::X3DGeometryNode
static void	cleanUpFunction (void *userdata)
	Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The IndexedTriangleSet node represents a 3D shape composed of a collection of individual triangles.

IndexedTriangleSet uses the indices in its index field to specify the vertices of each triangle from the coord field. Each triangle is formed from a set of three vertices of the Coordinate node identified by three consecutive indices from the index field. If the index field does not contain a multiple of three coordinate values, the remaining vertices shall be ignored.

The IndexedTriangleSet node is specified in the local coordinate system and is affected by the transformations of its ancestors. If values are provided for the color, normal and texCoord fields, the values are applied in the same manner as the values from the coord field and there shall be at least as many values as are present in the coord field. The value of the colorPerVertex field is ignored and always treated as TRUE. If the normal field is not supplied, normals shall be generated as follows:

If normalPerVertex is TRUE, the normal at each vertex shall be the average of the normals for all triangles that share that vertex.
If normalPerVertex is FALSE, the normal at each vertex shall be perpendicular to the face for that triangle.

Examples:

IndexedTriangleSet.x3d ( Source )

Internal routes:

Member Function Documentation

◆ glRender()

virtual void H3D::IndexedTriangleSet::glRender ( )

inlinevirtual

Function overridden from HAPIGLShape.

Just call the displayList->callList per default

Reimplemented from H3D::X3DGeometryNode.

◆ supportsTangentAttributes()

virtual bool H3D::IndexedTriangleSet::supportsTangentAttributes ( )

inlinevirtual

Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g.

PhongShader. IndexedTriangleSet does support this.

Reimplemented from H3D::X3DGeometryNode.

◆ traverseSG()

void IndexedTriangleSet::traverseSG ( TraverseInfo & ti )

virtual

Traverse the scenegraph.

A HAPIHapticShape is added for haptic rendering if haptics is enabled.

Parameters

ti	The TraverseInfo object containing information about the traversal.

Reimplemented from H3D::X3DGeometryNode.

References H3D::H3DDisplayListObject::displayList, H3DUtil::RefCountedClass::getName(), H3D::TraverseInfo::getUserData(), render_patches, render_tangents, H3D::X3DComposedGeometryNode::solid, H3D::X3DGeometryNode::traverseSG(), and H3D::X3DGeometryNode::useBackFaceCulling().

Member Data Documentation

◆ autoNormal

H3DUniquePtr< AutoNormal > H3D::IndexedTriangleSet::autoNormal

Auto-generated normals that are used if the normal field is NULL.

Only accessable in C++.

Referenced by IndexedTriangleSet(), and render().

◆ autoTangent

H3DUniquePtr< AutoTangent > H3D::IndexedTriangleSet::autoTangent

Auto-generated vertex attributes for tangents and binormals.

Only accessable in C++.

Referenced by IndexedTriangleSet(), and render().

◆ index

H3DUniquePtr< MFInt32 > H3D::IndexedTriangleSet::index

The index field is used to specify the vertices of each triangle from the coord field.

Each triangle is formed from a set of three vertices of the Coordinate node identified by three consecutive indices from the index field. If the index field does not contain a multiple of three coordinate values, the remaining vertices shall be ignored. NOTE: The access type differs from the X3D standard.

Access type: inputOutput

Referenced by IndexedTriangleSet(), and render().

◆ instanceCount

H3DUniquePtr< SFInt32InstanceCount > H3D::IndexedTriangleSet::instanceCount

If 0 or greater, then instanced rendering is used to render instanceCount instances of the mesh.

NOTE: Instanced rendering is not supported if normalPerVertex is false. NOTE: Enabling instanced rendering will disable displaylists for this geometry (since instance rendering is not supported for displaylists). Disabling it again will set the cachemode to OPTIONS. It is up to subclasses of IndexedTriangleSet to implement any other kind of behaviour cache mode of displayList.

Access type: inputOutput
Default value: -1

Referenced by IndexedTriangleSet(), and render().

◆ render_patches

bool H3D::IndexedTriangleSet::render_patches

protected

This will be set to true in traverseSG if the render function is supposed to render GL_PATCHES instead of GL_TRIANGLES.

If multiple uses of the IndexedTriangleSet then whether patches are rendered or not is decided by the last usage to be traversed.

Referenced by render(), and traverseSG().

◆ set_index

H3DUniquePtr< MFInt32 > H3D::IndexedTriangleSet::set_index

Field for setting the value of the index field.

Access type: inputOnly

Referenced by IndexedTriangleSet().

◆ vboFieldsUpToDate

H3DUniquePtr< Field > H3D::IndexedTriangleSet::vboFieldsUpToDate

protected

Internal field used to know if vertex buffer object can be created.

C++ only field

Referenced by IndexedTriangleSet(), and render().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ glRender()

◆ supportsTangentAttributes()

◆ traverseSG()

Member Data Documentation

◆ autoNormal

◆ autoTangent

◆ index

◆ instanceCount

◆ render_patches

◆ set_index

◆ vboFieldsUpToDate
