This abstract node type is the base type for all node types that specify per-vertex attribute information to the shader. More...

#include <H3D/X3DVertexAttributeNode.h>

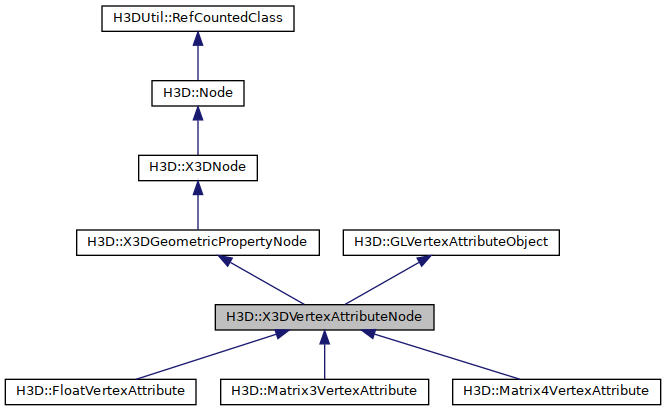

Inheritance diagram for H3D::X3DVertexAttributeNode:

Public Member Functions
	X3DVertexAttributeNode (Inst< SFNode > _metadata=0, Inst< SFString > _name=0, Inst< SFInt32 > _divisor=0)
	Constructor.

virtual void	render (int)
	Perform the OpenGL commands to set the vertex attribute with the given index. More...

virtual void	renderArray ()
	Perform the OpenGL commands to set the vertex attributes as a an vertex attribute array on the attribute with the given index.

virtual void	disableArray ()
	Disable the array state enabled in renderArray().

void	setAttribIndex (int _attrib_index)
	Set the attribute index this vertex attribute should be rendered as. More...

virtual void	setAttributeData ()
	Implement the method to specify data and releated information.

virtual void	renderVBO ()
	VBO rendering implementation.

virtual void	disableVBO ()
	VBO disabling implementation.

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

Public Member Functions inherited from H3D::X3DGeometricPropertyNode
	X3DGeometricPropertyNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual void	traverseSG (TraverseInfo &ti)
	traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::GLVertexAttributeObject
	GLVertexAttributeObject (VERTEXATTRIBUTE::VERTEXATTRIBUTETYPE type)
	Constructor.

virtual	~GLVertexAttributeObject ()
	Destructor.

virtual bool	preRenderCheckFail ()
	pre-render check to dertermine if need to render this vertex attribute

void	renderVertexBufferObject ()
	Perform the OpenGL commands to render all vertices as a vertex buffer object.

void	disableVertexBufferObject ()
	Disable the vertex buffer object enabled in renderVertexBufferObject().

virtual void	updateVertexBufferObject ()
	Perform the OpenGL commands to update vertex attribute data/format.

Public Attributes
H3DUniquePtr< SFString >	name
	The name field describes a name that is mapped to the shading language-specific name for describing per-vertex data. More...

H3DUniquePtr< SFInt32 >	divisor
	If non-zero, for instanced rendering, the divisor specifies the number of instances that will pass between updates of the attribute. More...

Public Attributes inherited from H3D::X3DGeometricPropertyNode
H3DUniquePtr< Field >	propertyChanged
	Field that indicated whether the properties have changed. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::GLVertexAttributeObject
H3DUniquePtr< SFBool >	isDynamic
	Option to indicate whether this vertex attribute is dynamic or not Access type: inputOutput Default value: false.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Protected Attributes inherited from H3D::GLVertexAttributeObject
H3DUniquePtr< Field >	vboFieldsUpToDate
	Internal field used to know if vertex buffer object can be created. More...

Detailed Description

This abstract node type is the base type for all node types that specify per-vertex attribute information to the shader.

The name field describes a name that is mapped to the shading language-specific name for describing per-vertex data.

Member Function Documentation

◆ defaultXMLContainerField()

virtual string H3D::X3DVertexAttributeNode::defaultXMLContainerField ( )

inlinevirtual

Returns the default xml containerField attribute value.

For this node it is "attrib".

Reimplemented from H3D::Node.

◆ render()

virtual void H3D::X3DVertexAttributeNode::render ( int )

inlinevirtual

Perform the OpenGL commands to set the vertex attribute with the given index.

value_index is the index of the value in the value field that is to be used. The vertex attribute will be rendered as the attribute index specified by the setAttribFunction.

Reimplemented in H3D::Matrix4VertexAttribute, H3D::Matrix3VertexAttribute, and H3D::FloatVertexAttribute.

Referenced by H3D::IndexedFaceSet::render(), H3D::IndexedLineSet::render(), H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::LineSet::render(), H3D::TriangleFanSet::render(), and H3D::TriangleStripSet::render().
