The IndexedLineSet node represents a 3D geometry formed by constructing polylines from 3D vertices specified in the coord field. More...

#include <H3D/IndexedLineSet.h>

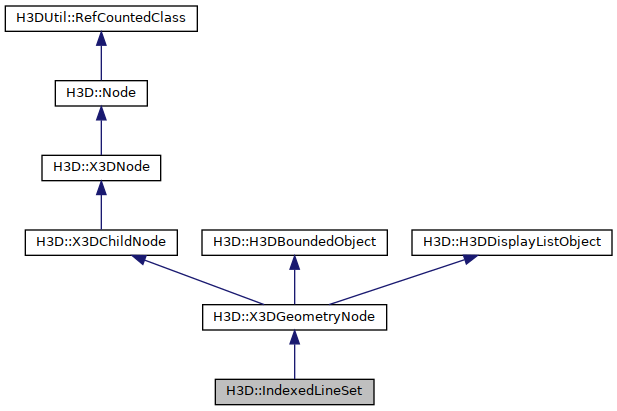

Inheritance diagram for H3D::IndexedLineSet:

Classes
class	DisplayList
	Display list is extended in order to set color to emissive color from material outside of display list, since we have to do a glGet to get the value. More...

class	InvalidColorIndex
	Thrown when the colorIndex field does not match the coordIndex field properly. More...

class	InvalidColorIndexSize
	Thrown when the colorIndex field's size does not match the coordIndex field properly. More...

class	MFVertexAttributeNode
	The MFVertexAttributeNode is dependent on the propertyChanged field of the contained X3DVertexAttributeNode. More...

Public Types
typedef DependentSFNode< X3DCoordinateNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DCoordinateNode::propertyChanged > >	SFCoordinateNode
	SFCoordinateNode is dependent on coordChanged field in X3DCoordinateNode.

typedef DependentSFNode< X3DColorNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DColorNode::propertyChanged > >	SFColorNode
	SFColorNode is dependent on colorChanged field in X3DColorNode.

typedef DependentSFNode< FogCoordinate, FieldRef< X3DGeometricPropertyNode, Field, &FogCoordinate::propertyChanged > >	SFFogCoordinate
	The SFFogCoordinate is dependent on the propertyChanged field of the contained FogCoordinate.

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
	IndexedLineSet (Inst< SFNode > _metadata=0, Inst< CoordBoundField > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFInt32 > _set_colorIndex=0, Inst< MFInt32 > _set_coordIndex=0, Inst< SFColorNode > _color=0, Inst< SFCoordinateNode > _coord=0, Inst< MFInt32 > _colorIndex=0, Inst< SFBool > _colorPerVertex=0, Inst< MFInt32 > _coordIndex=0, Inst< SFFogCoordinate > _fogCoord=0, Inst< MFVertexAttributeNode > _attrib=0)
	Constructor.

virtual int	nrLines ()
	The number of lines rendered by this geometry.

virtual void	render ()
	Render the IndexedLineSet with OpenGL.

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the geometry. More...

Public Member Functions inherited from H3D::X3DGeometryNode
	X3DGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< MFVec3f > _contactTexCoord=0, Inst< SFBoundTree > _boundTree=0, Inst< SFVec3f > _centerOfMass=0)
	Constructor.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and this geometry. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on this geometry to point p. More...

virtual void	glRender ()
	Function overridden from HAPIGLShape. More...

virtual H3DShadowObjectNode *	getShadowObject ()
	Get the H3DShadowObjectNode used to create a shadow volume for this geometry. More...

void	useCulling (bool enabled)
	This function should be used by the render() function to disable or enable face culling. More...

bool	usingCulling ()
	Returns if face culling is in use or not.

void	allowCulling (bool allow)
	Control if face culling is allowed or not. More...

void	useBackFaceCulling (bool enabled)
	Enabling/disabling back face culling. More...

bool	allowingCulling ()
	Returns true if back face culling is allowed, false otherwise.

void	setCullFace (GLenum face)
	Set which side of a polygon to cull. More...

GLenum	getCullFace ()
	Get which face will be culled if culling is enabled.

template<class OptionNodeType >
void	getOptionNode (OptionNodeType *&option)
	Get the first option node of the type of the pointer given as argument from the renderOptions fieeld The option argument will contain the node afterwards, or NULL if no option of that type exists.

int	getHapticShapeId (unsigned int index)
	Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device. More...

virtual	~X3DGeometryNode ()
	Destructor.

HAPI::HAPIHapticShape *	getOpenGLHapticShape (unsigned int hd_index, H3DSurfaceNode *_surface, const Matrix4f &_transform, int _nr_vertices=-1)
	Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual bool	supportsTangentAttributes ()
	Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g. More...

virtual void	getBound (HAPI::Vec3 &center, HAPI::Vec3 &size)
	Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode. More...

virtual void	initialize ()
	Changes behaviour of X3DGeometryNode to be a thread safe RefCountedClass.

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DBoundedObject
	H3DBoundedObject (Inst< SFBound > _bound=0)
	Constructor.

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Attributes
H3DUniquePtr< MFInt32 >	set_colorIndex
	Field for setting the value of the colorIndex field. More...

H3DUniquePtr< MFInt32 >	set_coordIndex
	Field for setting the value of the coordIndex field. More...

H3DUniquePtr< SFColorNode >	color
	Contains an X3DColorNode which colors are applied to the X3DComposedGeometryNode. More...

H3DUniquePtr< SFCoordinateNode >	coord
	The coord field specifies the 3D vertices of the line set and contains a X3DCoordinateNode. More...

H3DUniquePtr< MFInt32 >	colorIndex
	Indices into the color field. More...

H3DUniquePtr< SFBool >	colorPerVertex
	If TRUE the colors in the color field are applied per vertex, otherwise it is applied per polyline. More...

H3DUniquePtr< MFInt32 >	coordIndex
	Indices into the coord field. More...

H3DUniquePtr< SFFogCoordinate >	fogCoord
	If the fogCoord field is not empty, it shall contain a list of per-vertex depth values for calculating fog depth. More...

H3DUniquePtr< MFVertexAttributeNode >	attrib
	If the attrib field is not empty it shall contain a list of X3DVertexAttributeNode instances with per-vertex attribute information for programmable shaders. More...

Public Attributes inherited from H3D::X3DGeometryNode
H3DUniquePtr< MFBool >	isTouched
	Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop. More...

H3DUniquePtr< MFVec3f >	force
	The last force delivered by this geometry to the haptics device. More...

H3DUniquePtr< MFVec3f >	contactPoint
	The last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactTexCoord
	The texture coordinate of last the contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactNormal
	The normal at the last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< SFVec3f >	centerOfMass
	The field contains center of mass for the object, based on its bounding box. More...

H3DUniquePtr< SFBoundTree >	boundTree
	Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode. More...

H3DUniquePtr< MFOptionsNode >	options
	Contains nodes with options for haptics and graphics rendering. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DBoundedObject
H3DUniquePtr< SFBound >	bound
	The field containing the bound object. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase instance for this node.

Static Public Attributes inherited from H3D::X3DGeometryNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Attributes
H3DUniquePtr< Field >	vboFieldsUpToDate
	Internal field used to know if vertex buffer object can be created. More...

Protected Attributes inherited from H3D::X3DGeometryNode
AutoRef< Node >	shadow_volume
	The shadow volume used for this geometry when shadows enabled. More...

vector< pair< int, pair< Matrix4f, H3DTime > > >	haptic_shape_ids
	identifiers for the shapes geometry.

Additional Inherited Members
Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::X3DGeometryNode
static void	cleanUpFunction (void *userdata)
	Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The IndexedLineSet node represents a 3D geometry formed by constructing polylines from 3D vertices specified in the coord field.

IndexedLineSet uses the indices in its coordIndex field to specify the polylines by connecting vertices from the coord field. An index of "-1" indicates that the current polyline has ended and the next one begins. The last polyline may be (but does not have to be) followed by a "-1". IndexedLineSet is specified in the local coordinate system and is affected by the transformations of its ancestors.

The coord field specifies the 3D vertices of the line set and contains a X3DCoordinateNode.

Lines are not lit, are not texture-mapped, and do not participate in collision detection. The width of lines is implementation dependent and each line segment is solid (i.e., not dashed).

If the color field is not NULL, it shall contain a Color node. The colours are applied to the line(s) as follows:

If colorPerVertex is FALSE:
1. If the colorIndex field is not empty, one colour is used for each polyline of the IndexedLineSet. There shall be at least as many indices in the colorIndex field as there are polylines in the IndexedLineSet. If the greatest index in the colorIndex field is N, there shall be N+1 colours in the Color node. The colorIndex field shall not contain any negative entries.
2. If the colorIndex field is empty, the colours from the Color node are applied to each polyline of the IndexedLineSet in order. There shall be at least as many colours in the Color node as there are polylines.
If colorPerVertex is TRUE:
1. If the colorIndex field is not empty, colours are applied to each vertex of the IndexedLineSet in exactly the same manner that the coordIndex field is used to supply coordinates for each vertex from the Coordinate node. The colorIndex field shall contain at least as many indices as the coordIndex field and shall contain end-of-polyline markers (-1) in exactly the same places as the coordIndex field. If the greatest index in the colorIndex field is N, there shall be N+1 colours in the Color node.
2. If the colorIndex field is empty, the coordIndex field is used to choose colours from the Color node. If the greatest index in the coordIndex field is N, there shall be N+1 colours in the Color node.

If the color field is NULL and there is a Material defined for the Appearance affecting this IndexedLineSet, the emissiveColor of the Material shall be used to draw the lines.

Examples:

IndexedLineSet.x3d ( Source )

Internal routes:

Member Function Documentation

◆ movingSphereIntersect()

bool H3D::IndexedLineSet::movingSphereIntersect	(	H3DFloat	radius,
		const Vec3f &	from,
		const Vec3f &	to,
		NodeIntersectResult &	result
	)

virtual

Detect collision between a moving sphere and the geometry.

Parameters

radius	The radius of the sphere
from	The start position of the sphere
to	The end position of the sphere.
result	A struct containing various results of intersections such as which geometries intersected the moving sphere.

Returns: true if intersected, false otherwise.

Reimplemented from H3D::X3DGeometryNode.

Member Data Documentation

◆ attrib

H3DUniquePtr< MFVertexAttributeNode > H3D::IndexedLineSet::attrib

If the attrib field is not empty it shall contain a list of X3DVertexAttributeNode instances with per-vertex attribute information for programmable shaders.

Access type: inputOutput

Referenced by IndexedLineSet(), and render().

◆ color

H3DUniquePtr< SFColorNode > H3D::IndexedLineSet::color

Contains an X3DColorNode which colors are applied to the X3DComposedGeometryNode.

If the color field is NULL and there is a Material defined for the Appearance affecting this IndexedLineSet, the emissiveColor of the Material shall be used to draw the lines. If a color is not NULL colors are applied as described in the detailed description Access type: inputOutput

Referenced by H3D::IndexedLineSet::DisplayList::callList(), IndexedLineSet(), and render().

◆ colorIndex

H3DUniquePtr< MFInt32 > H3D::IndexedLineSet::colorIndex

Indices into the color field.

See Detailed description for details on how it is used.

Access type: inputOutput
Value range: [0,inf) or -1

Referenced by IndexedLineSet(), and render().

◆ colorPerVertex

H3DUniquePtr< SFBool > H3D::IndexedLineSet::colorPerVertex

If TRUE the colors in the color field are applied per vertex, otherwise it is applied per polyline.

Access type: inputOutput
Default value: TRUE

Referenced by IndexedLineSet(), and render().

◆ coord

H3DUniquePtr< SFCoordinateNode > H3D::IndexedLineSet::coord

The coord field specifies the 3D vertices of the line set and contains a X3DCoordinateNode.

Access type: inputOutput

Referenced by IndexedLineSet(), and render().

◆ coordIndex

H3DUniquePtr< MFInt32 > H3D::IndexedLineSet::coordIndex

Indices into the coord field.

See Detailed description for details on how it is used.

Access type: inputOutput
Value range: [0,inf) or -1

Referenced by IndexedLineSet(), and render().

◆ fogCoord

H3DUniquePtr< SFFogCoordinate > H3D::IndexedLineSet::fogCoord

If the fogCoord field is not empty, it shall contain a list of per-vertex depth values for calculating fog depth.

Access type: inputOutput

Referenced by IndexedLineSet(), and render().

◆ set_colorIndex

H3DUniquePtr< MFInt32 > H3D::IndexedLineSet::set_colorIndex

Field for setting the value of the colorIndex field.

Access type: inputOnly

Referenced by IndexedLineSet().

◆ set_coordIndex

H3DUniquePtr< MFInt32 > H3D::IndexedLineSet::set_coordIndex

Field for setting the value of the coordIndex field.

Access type: inputOnly

Referenced by IndexedLineSet().

◆ vboFieldsUpToDate

H3DUniquePtr< Field > H3D::IndexedLineSet::vboFieldsUpToDate

protected

Internal field used to know if vertex buffer object can be created.

C++ only field

Referenced by IndexedLineSet(), and render().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ movingSphereIntersect()

Member Data Documentation

◆ attrib

◆ color

◆ colorIndex

◆ colorPerVertex

◆ coord

◆ coordIndex

◆ fogCoord

◆ set_colorIndex

◆ set_coordIndex

◆ vboFieldsUpToDate
