This is the base node type for all geometry in X3D. More...

#include <H3D/X3DGeometryNode.h>

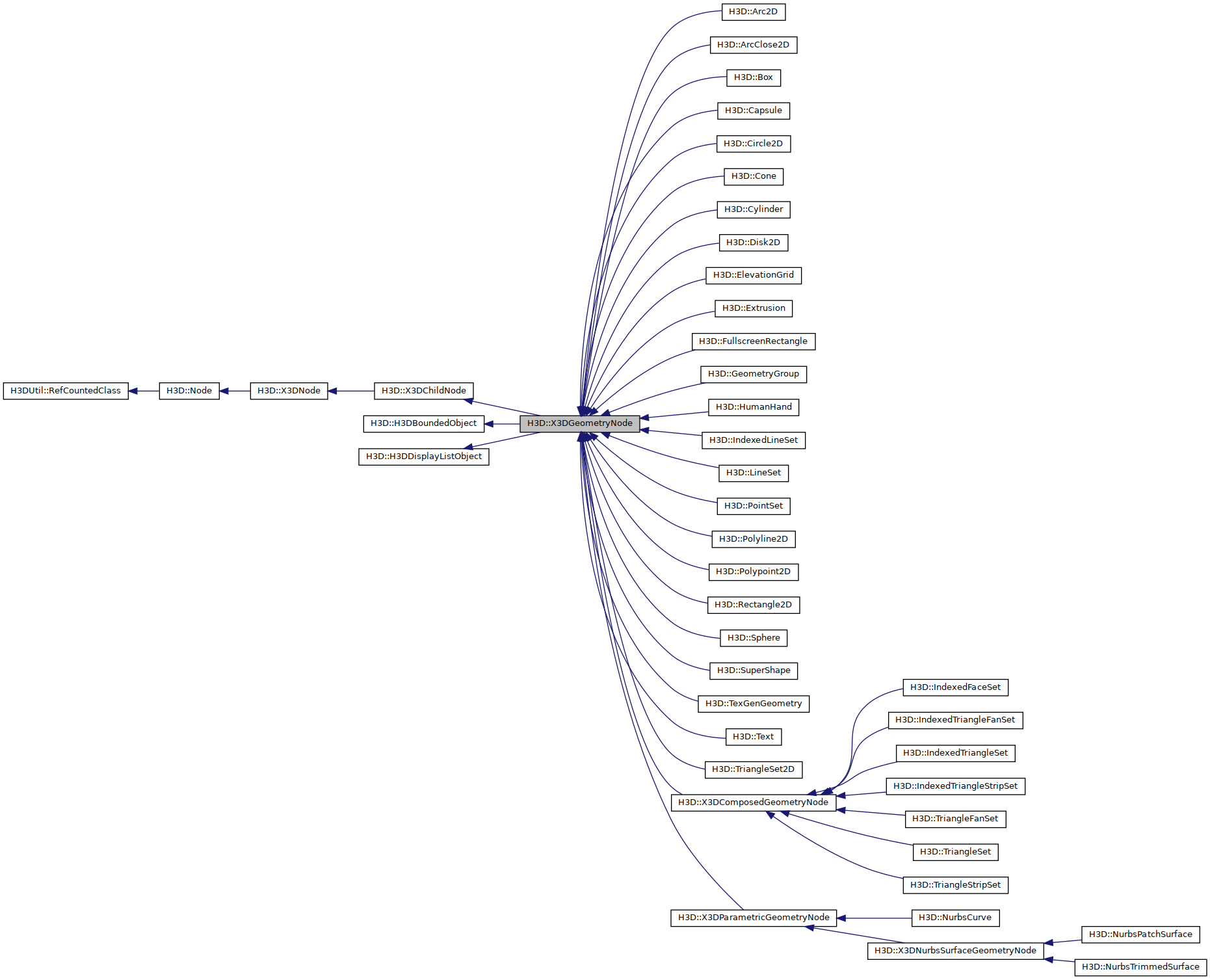

Inheritance diagram for H3D::X3DGeometryNode:

Classes
class	BugWorkaroundDisplayList
	This is just a dummy class to get around a bug in Visual C++ 7.1 If the X3DGeometry::DisplayList inherits directly from H3DDisplayListObject::Display list the application will crash if trying to call H3DDisplayListObject::DisplayList::callList By using an intermediate class the bug dissappears. More...

class	DisplayList
	Display list is extended in order to set front sidedness of triangles outside the display list. More...

class	SFBoundTree
	The SFBoundTree constructs a BinaryBoundTree that can be used for collision detection as well as fast collection of haptic primitives (triangles, points, lines). More...

Public Member Functions
	X3DGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< MFVec3f > _contactTexCoord=0, Inst< SFBoundTree > _boundTree=0, Inst< SFVec3f > _centerOfMass=0)
	Constructor.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and this geometry. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on this geometry to point p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the geometry. More...

virtual void	glRender ()
	Function overridden from HAPIGLShape. More...

virtual H3DShadowObjectNode *	getShadowObject ()
	Get the H3DShadowObjectNode used to create a shadow volume for this geometry. More...

void	useCulling (bool enabled)
	This function should be used by the render() function to disable or enable face culling. More...

bool	usingCulling ()
	Returns if face culling is in use or not.

void	allowCulling (bool allow)
	Control if face culling is allowed or not. More...

void	useBackFaceCulling (bool enabled)
	Enabling/disabling back face culling. More...

bool	allowingCulling ()
	Returns true if back face culling is allowed, false otherwise.

void	setCullFace (GLenum face)
	Set which side of a polygon to cull. More...

GLenum	getCullFace ()
	Get which face will be culled if culling is enabled.

template<class OptionNodeType >
void	getOptionNode (OptionNodeType *&option)
	Get the first option node of the type of the pointer given as argument from the renderOptions fieeld The option argument will contain the node afterwards, or NULL if no option of that type exists.

int	getHapticShapeId (unsigned int index)
	Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device. More...

virtual	~X3DGeometryNode ()
	Destructor.

HAPI::HAPIHapticShape *	getOpenGLHapticShape (unsigned int hd_index, H3DSurfaceNode *_surface, const Matrix4f &_transform, int _nr_vertices=-1)
	Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual bool	supportsTangentAttributes ()
	Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g. More...

virtual void	getBound (HAPI::Vec3 &center, HAPI::Vec3 &size)
	Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode. More...

virtual void	initialize ()
	Changes behaviour of X3DGeometryNode to be a thread safe RefCountedClass.

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DBoundedObject
	H3DBoundedObject (Inst< SFBound > _bound=0)
	Constructor.

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Attributes
H3DUniquePtr< MFBool >	isTouched
	Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop. More...

H3DUniquePtr< MFVec3f >	force
	The last force delivered by this geometry to the haptics device. More...

H3DUniquePtr< MFVec3f >	contactPoint
	The last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactTexCoord
	The texture coordinate of last the contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactNormal
	The normal at the last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< SFVec3f >	centerOfMass
	The field contains center of mass for the object, based on its bounding box. More...

H3DUniquePtr< SFBoundTree >	boundTree
	Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode. More...

H3DUniquePtr< MFOptionsNode >	options
	Contains nodes with options for haptics and graphics rendering. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DBoundedObject
H3DUniquePtr< SFBound >	bound
	The field containing the bound object. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Protected Member Functions
static void	cleanUpFunction (void *userdata)
	Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Protected Attributes
AutoRef< Node >	shadow_volume
	The shadow volume used for this geometry when shadows enabled. More...

vector< pair< int, pair< Matrix4f, H3DTime > > >	haptic_shape_ids
	identifiers for the shapes geometry.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Detailed Description

This is the base node type for all geometry in X3D.

Member Function Documentation

◆ allowCulling()

void H3D::X3DGeometryNode::allowCulling ( bool allow )

inline

Control if face culling is allowed or not.

Used when rendering HLFeedbackBuffer or HLDepthBuffer shapes in order not to have back face culling on when rendering shapes with OpenHaptics.

◆ cleanUpFunction()

static void H3D::X3DGeometryNode::cleanUpFunction ( void * userdata )

inlinestaticprotected

Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time.

The X3DGeometryNode is not automatically reference counted when sent to HAPIHapticShape.

Referenced by H3D::Sphere::traverseSG().

◆ closestPoint()

virtual void H3D::X3DGeometryNode::closestPoint	(	const Vec3f &	p,
		NodeIntersectResult &	result
	)

virtual

Find closest point on this geometry to point p.

Parameters

p	The point to find the closest point to.
result	A struct containing various results of closest points such as which geometries the closest points where detected on.

Reimplemented from H3D::Node.

Reimplemented in H3D::Sphere, H3D::HumanHand, and H3D::GeometryGroup.

Referenced by H3D::PlanarReflector::closestPoint(), H3D::X3DShapeNode::closestPoint(), and H3D::MagneticGeometryEffect::traverseSG().

◆ defaultXMLContainerField()

virtual string H3D::X3DGeometryNode::defaultXMLContainerField ( )

inlinevirtual

Returns the default xml containerField attribute value.

For this node it is "geometry".

Reimplemented from H3D::Node.

◆ getBound()

virtual void H3D::X3DGeometryNode::getBound	(	HAPI::Vec3 &	center,
		HAPI::Vec3 &	size
	)

inlinevirtual

Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode.

An axis aligned bounding box containing all the primitives rendered by the glRender function. If no such bounding box is available, size should be set to Vec3( -1, -1, -1 )

References H3D::BoxBound::center, and H3D::BoxBound::size.

◆ getHapticShapeId()

int H3D::X3DGeometryNode::getHapticShapeId ( unsigned int index )

Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device.

In the future it will have more uses. Since the geometry can appear in several places in the scene graph it can contain several shape ids (one for each place). Which one to get is determined by the index argument.

Referenced by H3D::TraverseInfo::addHapticShape(), and H3D::TraverseInfo::addHapticShapeToAll().

◆ getOpenGLHapticShape()

HAPI::HAPIHapticShape* H3D::X3DGeometryNode::getOpenGLHapticShape	(	unsigned int	hd_index,
		H3DSurfaceNode *	_surface,
		const Matrix4f &	_transform,
		int	_nr_vertices = `-1`
	)

Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode.

Which type depents on possible OpenHapticsOptions nodes in the options field and the default settings in OpenHapticsSettings bindable node.

◆ getShadowObject()

virtual H3DShadowObjectNode* H3D::X3DGeometryNode::getShadowObject ( )

virtual

Get the H3DShadowObjectNode used to create a shadow volume for this geometry.

Reimplemented in H3D::Sphere.

Referenced by H3D::X3DShapeNode::traverseSG().

◆ glRender()

virtual void H3D::X3DGeometryNode::glRender ( )

inlinevirtual

Function overridden from HAPIGLShape.

Just call the displayList->callList per default

Reimplemented in H3D::IndexedTriangleSet, and H3D::GeometryGroup.

◆ lineIntersect()

virtual bool H3D::X3DGeometryNode::lineIntersect	(	const Vec3f &	from,
		const Vec3f &	to,
		LineIntersectResult &	result
	)

virtual

Detect intersection between a line segment and this geometry.

Parameters

from	The start of the line segment.
to	The end of the line segment.
result	Contains info about the closest intersection for every object that intersects the line.

Returns: true if intersected, false otherwise.

Reimplemented from H3D::Node.

Reimplemented in H3D::Text, H3D::Sphere, H3D::HumanHand, and H3D::GeometryGroup.

Referenced by H3D::PlanarReflector::lineIntersect(), and H3D::X3DShapeNode::lineIntersect().

◆ movingSphereIntersect()

virtual bool H3D::X3DGeometryNode::movingSphereIntersect	(	H3DFloat	radius,
		const Vec3f &	from,
		const Vec3f &	to,
		NodeIntersectResult &	result
	)

virtual

Detect collision between a moving sphere and the geometry.

Parameters

radius	The radius of the sphere
from	The start position of the sphere
to	The end position of the sphere.
result	A struct containing various results of intersections such as which geometries intersected the moving sphere.

Returns: true if intersected, false otherwise.

Reimplemented from H3D::Node.

Reimplemented in H3D::Sphere, H3D::PointSet, H3D::IndexedLineSet, H3D::HumanHand, and H3D::GeometryGroup.

Referenced by H3D::PlanarReflector::movingSphereIntersect(), and H3D::X3DShapeNode::movingSphereIntersect().

◆ setCullFace()

void H3D::X3DGeometryNode::setCullFace ( GLenum face )

inline

Set which side of a polygon to cull.

Valid values are GL_FRONT or GL_BACK

Referenced by H3D::ParticleSystem::render(), and H3D::X3DShapeNode::render().

◆ supportsTangentAttributes()

virtual bool H3D::X3DGeometryNode::supportsTangentAttributes ( )

inlinevirtual

Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g.

PhongShader.

Reimplemented in H3D::IndexedTriangleSet, H3D::IndexedFaceSet, and H3D::GeometryGroup.

◆ traverseSG()

virtual void H3D::X3DGeometryNode::traverseSG ( TraverseInfo & ti )

virtual

Traverse the scenegraph.

A HAPIHapticShape is added for haptic rendering if haptics is enabled.

Parameters

ti	The TraverseInfo object containing information about the traversal.

Reimplemented from H3D::Node.

Reimplemented in H3D::X3DNurbsSurfaceGeometryNode, H3D::TriangleStripSet, H3D::TriangleSet2D, H3D::TriangleSet, H3D::TriangleFanSet, H3D::Text, H3D::TexGenGeometry, H3D::SuperShape, H3D::Sphere, H3D::Rectangle2D, H3D::LineSet, H3D::IndexedTriangleStripSet, H3D::IndexedTriangleSet, H3D::IndexedTriangleFanSet, H3D::IndexedFaceSet, H3D::HumanHand, H3D::GeometryGroup, H3D::Extrusion, H3D::ElevationGrid, H3D::Disk2D, H3D::Cylinder, H3D::Cone, H3D::Capsule, H3D::Box, and H3D::ArcClose2D.

◆ useBackFaceCulling()

void H3D::X3DGeometryNode::useBackFaceCulling ( bool enabled )

inline

◆ useCulling()

void H3D::X3DGeometryNode::useCulling ( bool enabled )

inline

This function should be used by the render() function to disable or enable face culling.

DO NOT USE glEnable/glDisable to do this, since it will cause problems with OpenHaptics.

Referenced by H3D::ParticleSystem::render(), and H3D::X3DShapeNode::render().

Member Data Documentation

◆ boundTree

H3DUniquePtr< SFBoundTree > H3D::X3DGeometryNode::boundTree

Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode.

C++-only field.

Referenced by H3D::ShadowGeometry::SFGeometryNode::onAdd(), H3D::ShadowGeometry::SFGeometryNode::onRemove(), H3D::MagneticGeometryEffect::traverseSG(), and H3D::ShadowGeometry::update().

◆ centerOfMass

H3DUniquePtr< SFVec3f > H3D::X3DGeometryNode::centerOfMass

The field contains center of mass for the object, based on its bounding box.

The point is given in local coordinates of the X3DGeometryNode.

Access type: inputOutput

◆ contactNormal

H3DUniquePtr< MFVec3f > H3D::X3DGeometryNode::contactNormal

The normal at the last contact points of the HapticDevices on the geometry.

The field contains a normal for each of the points in contactPoint. The value will be an empty vector before the first contact. The contact normal is given in local coordinates of the X3DGeometryNode.

Access type: outputOnly

Referenced by H3D::DeformableShape::traverseSG(), H3D::GeometryGroup::IsTouched::update(), and H3D::H3DHapticsDevice::updateDeviceValues().

◆ contactPoint

H3DUniquePtr< MFVec3f > H3D::X3DGeometryNode::contactPoint

The last contact points of the HapticDevices on the geometry.

The field contains a contact point for each HapticsDevice with the index as specified in the DeviceInfo node. The value will be an empty vector before the first contact. The contact point is given in local coordinates of the X3DGeometryNode.

Access type: outputOnly

Referenced by H3D::DeformableShape::traverseSG(), H3D::GeometryGroup::IsTouched::update(), and H3D::H3DHapticsDevice::updateDeviceValues().

◆ contactTexCoord

H3DUniquePtr< MFVec3f > H3D::X3DGeometryNode::contactTexCoord

The texture coordinate of last the contact points of the HapticDevices on the geometry.

The field contains a contact point for each HapticsDevice with the index as specified in the DeviceInfo node. The value will be an empty vector before the first contact. NOTE: Will not return correct texture coordinate when using OpenHapticsRenderer.

Access type: outputOnly

Referenced by H3D::GeometryGroup::IsTouched::update(), and H3D::H3DHapticsDevice::updateDeviceValues().

◆ force

H3DUniquePtr< MFVec3f > H3D::X3DGeometryNode::force

The last force delivered by this geometry to the haptics device.

The field contains a force vector for each HapticsDevice with the index as specified in the DeviceInfo node. The value will be an empty vector before the first contact.

Referenced by H3D::DeformableShape::traverseSG(), H3D::GeometryGroup::IsTouched::update(), and H3D::H3DHapticsDevice::updateDeviceValues().

◆ isTouched

H3DUniquePtr< MFBool > H3D::X3DGeometryNode::isTouched

Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop.

The field contains a boolean for each HapticsDevice with the index as specified in the DeviceInfo node. You can get the contact point from the contactPoint field. The value will be an empty vector before the first contact.

Access type: outputOnly

Referenced by H3D::DeformableShape::traverseSG(), and H3D::H3DHapticsDevice::updateDeviceValues().

◆ options

H3DUniquePtr< MFOptionsNode > H3D::X3DGeometryNode::options

Contains nodes with options for haptics and graphics rendering.

Access type: inputOutput

◆ shadow_volume

AutoRef< Node > H3D::X3DGeometryNode::shadow_volume

protected

The shadow volume used for this geometry when shadows enabled.

Note: If you decide to use this variable in subclasses getShadowObject Make sure that you do take care of the circular reference somehow. See source code for how it is done in X3DGeometryNode.

The documentation for this class was generated from the following file:

X3DGeometryNode.h

Classes

Public Member Functions

Public Attributes

Static Public Attributes

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ allowCulling()

◆ cleanUpFunction()

◆ closestPoint()

◆ defaultXMLContainerField()

◆ getBound()

◆ getHapticShapeId()

◆ getOpenGLHapticShape()

◆ getShadowObject()

◆ glRender()

◆ lineIntersect()

◆ movingSphereIntersect()

◆ setCullFace()

◆ supportsTangentAttributes()

◆ traverseSG()

◆ useBackFaceCulling()

◆ useCulling()

Member Data Documentation

◆ boundTree

◆ centerOfMass

◆ contactNormal

◆ contactPoint

◆ contactTexCoord

◆ force

◆ isTouched

◆ options

◆ shadow_volume
