The ElevationGrid node specifies a uniform rectangular grid of varying height in the Y=0 plane of the local coordinate system. More...

#include <H3D/ElevationGrid.h>

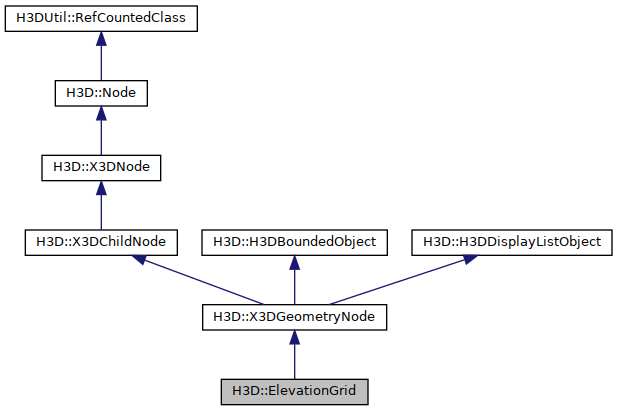

Inheritance diagram for H3D::ElevationGrid:

Classes
class	AutoNormal
	Specialized field for automatically generating normals from coordinates. More...

class	DisplayList
	Display list is extended in order to set front sidedness of triangles outside the display list. More...

class	SFBound
	SFBound is specialized update itself from the fields of the ElevationGrid. More...

Public Types
typedef DependentSFNode< X3DColorNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DColorNode::propertyChanged > >	SFColorNode
	The SFColorNode is dependent on the propertyChanged field of the contained X3DColorNode.

typedef DependentSFNode< X3DNormalNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DNormalNode::propertyChanged > >	SFNormalNode
	The SFNormalNode is dependent on the propertyChanged field of the contained X3DNormalNode.

typedef DependentSFNode< X3DTextureCoordinateNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DTextureCoordinateNode::propertyChanged > >	SFTextureCoordinateNode
	The SFTextureCoordinteNode is dependent on the propertyChanged field of the contained X3DTextureCoordinateNode.

typedef DependentMFNode< X3DVertexAttributeNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DVertexAttributeNode::propertyChanged > >	MFVertexAttributeNode
	The MFVertexAttributeNode is dependent on the propertyChanged field of the contained X3DVertexAttributeNode.

typedef DependentSFNode< FogCoordinate, FieldRef< X3DGeometricPropertyNode, Field, &FogCoordinate::propertyChanged > >	SFFogCoordinate
	The SFFogCoordinate is dependent on the propertyChanged field of the contained FogCoordinate.

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
virtual void	startTexGen (TextureCoordinateGenerator *tex_coord_gen)
	Start texture coordinate generation. More...

virtual void	stopTexGen (TextureCoordinateGenerator *tex_coord_gen)
	Stop texture coordinate generation.

virtual void	render ()
	Render the ElevationGrid with OpenGL.

virtual int	nrTriangles ()
	The number of triangles renderered in this geometry.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. More...

	ElevationGrid (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< SFColorNode > _color=0, Inst< SFNormalNode > _normal=0, Inst< SFTextureCoordinateNode > _texCoord=0, Inst< SFBool > _ccw=0, Inst< SFBool > _colorPerVertex=0, Inst< SFBool > _normalPerVertex=0, Inst< SFBool > _solid=0, Inst< MFVertexAttributeNode > _attrib=0, Inst< AutoNormal > _autoNormal=0, Inst< SFFloat > _creaseAngle=0, Inst< SFInt32 > _xDimension=0, Inst< SFInt32 > _zDimension=0, Inst< SFFloat > _xSpacing=0, Inst< SFFloat > _zSpacing=0, Inst< MFFloat > _height=0, Inst< SFFogCoordinate > _fogCoord=0)
	Constructor.

Public Member Functions inherited from H3D::X3DGeometryNode
	X3DGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< MFVec3f > _contactTexCoord=0, Inst< SFBoundTree > _boundTree=0, Inst< SFVec3f > _centerOfMass=0)
	Constructor.

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and this geometry. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on this geometry to point p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the geometry. More...

virtual void	glRender ()
	Function overridden from HAPIGLShape. More...

virtual H3DShadowObjectNode *	getShadowObject ()
	Get the H3DShadowObjectNode used to create a shadow volume for this geometry. More...

void	useCulling (bool enabled)
	This function should be used by the render() function to disable or enable face culling. More...

bool	usingCulling ()
	Returns if face culling is in use or not.

void	allowCulling (bool allow)
	Control if face culling is allowed or not. More...

void	useBackFaceCulling (bool enabled)
	Enabling/disabling back face culling. More...

bool	allowingCulling ()
	Returns true if back face culling is allowed, false otherwise.

void	setCullFace (GLenum face)
	Set which side of a polygon to cull. More...

GLenum	getCullFace ()
	Get which face will be culled if culling is enabled.

template<class OptionNodeType >
void	getOptionNode (OptionNodeType *&option)
	Get the first option node of the type of the pointer given as argument from the renderOptions fieeld The option argument will contain the node afterwards, or NULL if no option of that type exists.

int	getHapticShapeId (unsigned int index)
	Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device. More...

virtual	~X3DGeometryNode ()
	Destructor.

HAPI::HAPIHapticShape *	getOpenGLHapticShape (unsigned int hd_index, H3DSurfaceNode *_surface, const Matrix4f &_transform, int _nr_vertices=-1)
	Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual bool	supportsTangentAttributes ()
	Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g. More...

virtual void	getBound (HAPI::Vec3 &center, HAPI::Vec3 &size)
	Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode. More...

virtual void	initialize ()
	Changes behaviour of X3DGeometryNode to be a thread safe RefCountedClass.

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DBoundedObject
	H3DBoundedObject (Inst< SFBound > _bound=0)
	Constructor.

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Attributes
H3DUniquePtr< SFColorNode >	color
	Contains an X3DColorNode whose colors are applied to the ElevationGrid. More...

H3DUniquePtr< SFNormalNode >	normal
	Contains an X3DNormalNode which colors are applied to the ElevationGrid. More...

H3DUniquePtr< SFTextureCoordinateNode >	texCoord
	Contains an X3DTextureCoordinateNode which colors are applied to the ElevationGrid. More...

H3DUniquePtr< SFBool >	ccw
	The ccw field defines the ordering of the vertex coordinates of the geometry with respect to user-given or automatically generated normal vectors used in the lighting model equations. More...

H3DUniquePtr< SFBool >	colorPerVertex
	If TRUE the colors in the color field is applied per vertex, otherwise it is applied per face. More...

H3DUniquePtr< SFBool >	normalPerVertex
	If TRUE the normals in the normal field is applied per vertex, otherwise it is applied per face. More...

H3DUniquePtr< SFBool >	solid
	The solid field determines whether one or both sides of each polygon shall be displayed. More...

H3DUniquePtr< MFVertexAttributeNode >	attrib
	If the attrib field is not empty it shall contain a list of X3DVertexAttributeNode instances with per-vertex attribute information for programmable shaders. More...

H3DUniquePtr< SFFloat >	creaseAngle
	The creaseAngle field affects how default normals are generated. More...

H3DUniquePtr< SFInt32 >	xDimension
	The number of elements in the grid height array in the x direction. More...

H3DUniquePtr< SFInt32 >	zDimension
	The number of elements in the grid height array in the z direction. More...

H3DUniquePtr< SFFloat >	xSpacing
	The distance between vertices in the x direction. More...

H3DUniquePtr< SFFloat >	zSpacing
	The distance between vertices in the z direction. More...

H3DUniquePtr< MFFloat >	height
	The height field is an xDimension by zDimension array of scalar values representing the height above the grid for each vertex. More...

H3DUniquePtr< AutoNormal >	autoNormal
	Auto-generated normals that are used if the normal field is NULL. More...

H3DUniquePtr< SFFogCoordinate >	fogCoord
	If the fogCoord field is not empty, it shall contain a list of per-vertex depth values for calculating fog depth. More...

Public Attributes inherited from H3D::X3DGeometryNode
H3DUniquePtr< MFBool >	isTouched
	Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop. More...

H3DUniquePtr< MFVec3f >	force
	The last force delivered by this geometry to the haptics device. More...

H3DUniquePtr< MFVec3f >	contactPoint
	The last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactTexCoord
	The texture coordinate of last the contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactNormal
	The normal at the last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< SFVec3f >	centerOfMass
	The field contains center of mass for the object, based on its bounding box. More...

H3DUniquePtr< SFBoundTree >	boundTree
	Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode. More...

H3DUniquePtr< MFOptionsNode >	options
	Contains nodes with options for haptics and graphics rendering. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DBoundedObject
H3DUniquePtr< SFBound >	bound
	The field containing the bound object. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DGeometryNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Attributes
H3DUniquePtr< Field >	vboFieldsUpToDate
	Internal field used to know if vertex buffer object can be created. More...

Protected Attributes inherited from H3D::X3DGeometryNode
AutoRef< Node >	shadow_volume
	The shadow volume used for this geometry when shadows enabled. More...

vector< pair< int, pair< Matrix4f, H3DTime > > >	haptic_shape_ids
	identifiers for the shapes geometry.

Additional Inherited Members
Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::X3DGeometryNode
static void	cleanUpFunction (void *userdata)
	Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The ElevationGrid node specifies a uniform rectangular grid of varying height in the Y=0 plane of the local coordinate system.

The geometry is described by a scalar array of height values that specify the height of a surface above each point of the grid.

The xDimension and zDimension fields indicate the number of elements of the grid height array in the X and Z directions. Both xDimension and zDimension shall be greater than or equal to zero. If either the xDimension or the zDimension is less than two, the ElevationGrid contains no quadrilaterals. The vertex locations for the rectangles are defined by the height field and the xSpacing and zSpacing fields:

The height field is an xDimension by zDimension array of scalar values representing the height above the grid for each vertex.
The xSpacing and zSpacing fields indicate the distance between vertices in the X and Z directions respectively, and shall be greater than zero.

The color field specifies per-vertex or per-quadrilateral colours for the ElevationGrid node depending on the value of colorPerVertex. If the color field is NULL, the ElevationGrid node is rendered with the overall attributes of the Shape node enclosing the ElevationGrid node).

The colorPerVertex field determines whether colours specified in the color field are applied to each vertex or each quadrilateral of the ElevationGrid node. If colorPerVertex is FALSE and the color field is not NULL, the color field shall specify a Color node containing at least (xDimension-1)×(zDimension-1) colours; one for each quadrilateral.

If colorPerVertex is TRUE and the color field is not NULL, the color field shall specify a Color node containing at least xDimension × zDimension colours, one for each vertex.

The normal field specifies per-vertex or per-quadrilateral normals for the ElevationGrid node. If the normal field is NULL, normals are automatically generated, using the creaseAngle field to determine if and how normals are smoothed across the surface(see Section 11.2.3 in the X3D specification).

The normalPerVertex field determines whether normals are applied to each vertex or each quadrilateral of the ElevationGrid node depending on the value of normalPerVertex. If normalPerVertex is FALSE and the normal node is not NULL, the normal field shall specify a Normal node containing at least (xDimension-1)×(zDimension-1) normals; one for each quadrilateral

If normalPerVertex is TRUE and the normal field is not NULL, the normal field shall specify a Normal node containing at least xDimension × zDimension normals; one for each vertex.

The texCoord field specifies per-vertex texture coordinates for the ElevationGrid node. If texCoord is NULL, default texture coordinates are applied to the geometry. The default texture coordinates range from (0,0) at the first vertex to (1,1) at the last vertex. The S texture coordinate is aligned with the positive X-axis, and the T texture coordinate with positive Z-axis. If texCoord is not NULL, it shall specify a TextureCoordinate node containing at least (xDimension)×(zDimension) texture coordinates; one for each vertex.

By default, the quadrilaterals are defined with a counterclockwise ordering. Hence, the Y-component of the normal is positive. Setting the ccw field to FALSE reverses the normal direction. Backface culling is enabled when the solid field is TRUE.

Examples:

ElevationGrid.x3d ( Source )
ElevationGrid1.x3d ( Source )

Internal routes:

Member Function Documentation

◆ startTexGen()

void ElevationGrid::startTexGen ( TextureCoordinateGenerator * tex_coord_gen )

virtual

Start texture coordinate generation.

Texture coordinates will be generated for all texture units used by the currently active texture. If tex_coord_gen is NULL then texture coordinates will be generated from the bounding box of the geometry as defined in the X3D specification. If tex_coord_gen is not NULL then we use the TextureCoordinateGenerator to define the texture coordinate generation.

References H3D::H3DBoundedObject::bound, H3D::BoxBound::center, H3D::X3DTextureNode::getActiveTexture(), H3D_FULL_LOCATION, H3DAbs(), H3D::BoxBound::size, H3D::TextureCoordinateGenerator::startTexGen(), and H3D::MultiTexture::texture.

Referenced by render().

◆ traverseSG()

void ElevationGrid::traverseSG ( TraverseInfo & ti )

virtual

Traverse the scenegraph.

A HAPIHapticShape is added for haptic rendering if haptics is enabled.

Parameters

ti	The TraverseInfo object containing information about the traversal.

Reimplemented from H3D::X3DGeometryNode.

References solid, H3D::X3DGeometryNode::traverseSG(), and H3D::X3DGeometryNode::useBackFaceCulling().

Member Data Documentation

◆ attrib

H3DUniquePtr< MFVertexAttributeNode > H3D::ElevationGrid::attrib

If the attrib field is not empty it shall contain a list of X3DVertexAttributeNode instances with per-vertex attribute information for programmable shaders.

Access type: inputOutput

Referenced by ElevationGrid(), and render().

◆ autoNormal

H3DUniquePtr< AutoNormal > H3D::ElevationGrid::autoNormal

Auto-generated normals that are used if the normal field is NULL.

Only accessable in C++.

Referenced by ElevationGrid(), and render().

◆ ccw

H3DUniquePtr< SFBool > H3D::ElevationGrid::ccw

The ccw field defines the ordering of the vertex coordinates of the geometry with respect to user-given or automatically generated normal vectors used in the lighting model equations.

If ccw is TRUE, the normals shall follow the right hand rule; the orientation of each normal with respect to the vertices (taken in order) shall be such that the vertices appear to be oriented in a counterclockwise order when the vertices are viewed (in the local coordinate system of the Shape) from the opposite direction as the normal. If ccw is FALSE, the normals shall be oriented in the opposite direction. If normals are not generated but are supplied using a Normal node, and the orientation of the normals does not match the setting of the ccw field, results are undefined.

Access type: inputOutput
Default value: TRUE

Referenced by H3D::ElevationGrid::DisplayList::callList(), and ElevationGrid().

◆ color

H3DUniquePtr< SFColorNode > H3D::ElevationGrid::color

Contains an X3DColorNode whose colors are applied to the ElevationGrid.

If the color field is NULL, the geometry shall be rendered normally using the Material and texture defined in the Appearance node

Access type: inputOutput

Referenced by ElevationGrid(), and render().

◆ colorPerVertex

H3DUniquePtr< SFBool > H3D::ElevationGrid::colorPerVertex

If TRUE the colors in the color field is applied per vertex, otherwise it is applied per face.

Access type: inputOutput
Default value: TRUE

Referenced by ElevationGrid(), and render().

◆ creaseAngle

H3DUniquePtr< SFFloat > H3D::ElevationGrid::creaseAngle

The creaseAngle field affects how default normals are generated.

If the angle between the geometric normals of two adjacent faces is less than the crease angle, normals shall be calculated so that the faces are shaded smoothly across the edge; otherwise, normals shall be calculated so that a lighting discontinuity across the edge is produced.

Access type: inputOutput
Default value: 0
Valid range: [0-inf]

Referenced by ElevationGrid(), and render().

◆ fogCoord

H3DUniquePtr< SFFogCoordinate > H3D::ElevationGrid::fogCoord

If the fogCoord field is not empty, it shall contain a list of per-vertex depth values for calculating fog depth.

Access type: inputOutput

Referenced by ElevationGrid(), and render().

◆ height

H3DUniquePtr< MFFloat > H3D::ElevationGrid::height

The height field is an xDimension by zDimension array of scalar values representing the height above the grid for each vertex.

Access type: inputOutput
Default value: []

Referenced by ElevationGrid(), and render().

◆ normal

H3DUniquePtr< SFNormalNode > H3D::ElevationGrid::normal

Contains an X3DNormalNode which colors are applied to the ElevationGrid.

If the normal field is NULL, the normals are automatically generated in accordance with the node's definition. If the node does not define a behaviour, the default is to generate an averaged normal for all faces that share that vertex.

Access type: inputOutput

Referenced by ElevationGrid(), and render().

◆ normalPerVertex

H3DUniquePtr< SFBool > H3D::ElevationGrid::normalPerVertex

If TRUE the normals in the normal field is applied per vertex, otherwise it is applied per face.

Access type: inputOutput
Default value: TRUE

Referenced by ElevationGrid(), and render().

◆ solid

H3DUniquePtr< SFBool > H3D::ElevationGrid::solid

The solid field determines whether one or both sides of each polygon shall be displayed.

If solid is FALSE, each polygon shall be visible regardless of the viewing direction (i.e., no backface culling shall be done, and two sided lighting shall be performed to illuminate both sides of lit surfaces). If solid is TRUE, back face culling will be performed.

Access type: inputOutput
Default value: TRUE

Referenced by ElevationGrid(), and traverseSG().

◆ texCoord

H3DUniquePtr< SFTextureCoordinateNode > H3D::ElevationGrid::texCoord

Contains an X3DTextureCoordinateNode which colors are applied to the ElevationGrid.

Access type: inputOutput

Referenced by ElevationGrid(), and render().

◆ vboFieldsUpToDate

H3DUniquePtr< Field > H3D::ElevationGrid::vboFieldsUpToDate

protected

Internal field used to know if vertex buffer object can be created.

C++ only field

Referenced by ElevationGrid(), and render().

◆ xDimension

H3DUniquePtr< SFInt32 > H3D::ElevationGrid::xDimension

The number of elements in the grid height array in the x direction.

Access type: inputOutput
Default value: 0
Valid range: [0-inf]

Referenced by ElevationGrid(), and render().

◆ xSpacing

H3DUniquePtr< SFFloat > H3D::ElevationGrid::xSpacing

The distance between vertices in the x direction.

Access type: inputOutput
Default value: 1.0
Valid range: (0-inf]

Referenced by ElevationGrid(), and render().

◆ zDimension

H3DUniquePtr< SFInt32 > H3D::ElevationGrid::zDimension

The number of elements in the grid height array in the z direction.

Access type: inputOutput
Default value: 0
Valid range: [0-inf]

Referenced by ElevationGrid(), and render().

◆ zSpacing

H3DUniquePtr< SFFloat > H3D::ElevationGrid::zSpacing

The distance between vertices in the z direction.

Access type: inputOutput
Default value: 1.0
Valid range: (0-inf]

Referenced by ElevationGrid(), and render().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ startTexGen()

◆ traverseSG()

Member Data Documentation

◆ attrib

◆ autoNormal

◆ ccw

◆ color

◆ colorPerVertex

◆ creaseAngle

◆ fogCoord

◆ height

◆ normal

◆ normalPerVertex

◆ solid

◆ texCoord

◆ vboFieldsUpToDate

◆ xDimension

◆ xSpacing

◆ zDimension

◆ zSpacing
