This abstract node type is the base type for all node types which specify texture coordinates. More...

#include <H3D/X3DTextureCoordinateNode.h>

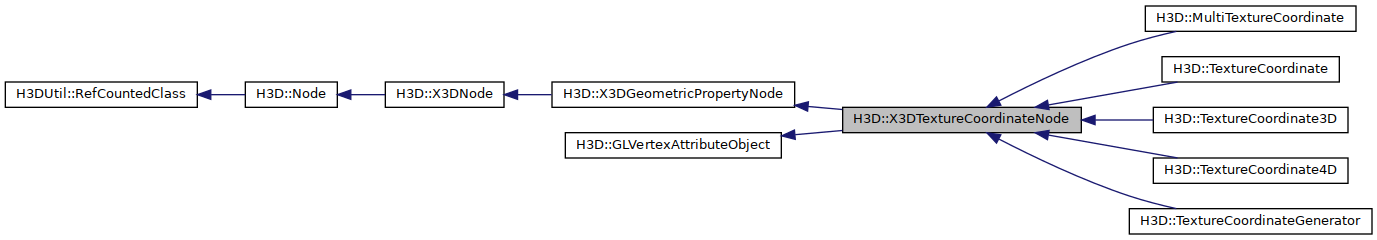

Inheritance diagram for H3D::X3DTextureCoordinateNode:

Public Member Functions
	X3DTextureCoordinateNode (Inst< SFNode > _metadata=0)
	Constructor.

virtual bool	supportsExplicitTexCoords ()
	Returns true if the node supports rendering of explicit texture coordinates.

virtual void	render (int)
	Perform the OpenGL commands to render a texture coordinate given the index of the texture coordinate.

virtual void	renderForTextureUnit (int, unsigned int)
	Render the texture coordinate for given texture unit.

void	renderForTextureUnits (int index, unsigned int start_unit, unsigned int end_unit)
	Render the texture coordinate for the texture units between and including start_unit and end_unit.

void	renderForActiveTexture (int index)
	Render the texture coordinate for all texture units used by the texture in X3DTextureNode::getActiveTexture.

void	renderForTexture (int index, X3DTextureNode *t)
	Render the texture coordinate for all texture units used by the texture.

virtual unsigned int	nrAvailableTexCoords ()
	Returns the number of texture coordinates this node can render. More...

virtual void	renderArray ()
	Perform the OpenGL commands to render all texture coordinates as an arary.

void	renderArrayForTexture (X3DTextureNode *t)
	Render the texture coordinate for all texture units used by the texture.

void	renderArrayForActiveTexture ()
	Render the texture coordinate for all texture units used by the texture in X3DTextureNode::getActiveTexture.

virtual void	renderArrayForTextureUnit (unsigned int texture_unit)
	Perform the OpenGL commands to render all texture coordinates as an array for the given texture unit.

void	renderArrayForTextureUnits (unsigned int start_unit, unsigned int end_unit)
	Perform the OpenGL commands to render all texture coordinates as an array for the texture units between and including start_unit and end_unit.

virtual void	disableArray ()
	Disable the array state enabled in renderArray().

void	disableArrayForTexture (X3DTextureNode *t)
	Disable the array state enabled in renderArrayForTexture.

void	disableArrayForActiveTexture ()
	Disable the array state enabled in renderArrayForActiveTexture.

virtual void	disableArrayForTextureUnit (unsigned int texture_unit)
	Disable the array state enabled in renderArrayForTextureUnit().

void	disableArrayForTextureUnits (unsigned int start_unit, unsigned int end_unit)
	Disable the array state enabled in renderArrayForTextureUnits().

void	renderVertexBufferObjectForTexture (X3DTextureNode *t)
	Render the texture coordinate for all texture units used by the texture.

void	renderVertexBufferObjectForActiveTexture ()
	Render the texture coordinate for all texture units used by the texture in X3DTextureNode::getActiveTexture.

virtual void	renderVertexBufferObjectForTextureUnit (unsigned int texture_unit)
	Perform the OpenGL commands to render all texture coordinates as an vertex buffer object for the given texture unit.

void	renderVertexBufferObjectForTextureUnits (unsigned int start_unit, unsigned int end_unit)
	Perform the OpenGL commands to render all texture coordinates as an vertex buffer object for the texture units between and including start_unit and end_unit.

virtual void	setAttributeData ()
	Implement the method to specify data and releated information.

virtual void	renderVBO ()
	VBO rendering implementation.

virtual void	disableVBO ()
	VBO disabling implementation.

void	disableVertexBufferObjectForTexture (X3DTextureNode *t)
	Disable the vertex buffer object state state enabled in renderVertexBufferObjectForTexture.

void	disableVertexBufferObjectForActiveTexture ()
	Disable the vertex buffer object state enabled in renderVertexBufferObjectForActiveTexture.

virtual void	disableVertexBufferObjectForTextureUnit (unsigned int texture_unit)
	Disable the vertex buffer object state enabled in renderVertexBufferObjectForTextureUnit().

void	disableVertexBufferObjectForTextureUnits (unsigned int start_unit, unsigned int end_unit)
	Disable the vertex buffer object state enabled in renderVertexBufferObjectForTextureUnits().

virtual bool	supportsTexGen ()
	Returns true if the node supports rendering of explicit texture coordinates.

virtual void	startTexGen ()
	Start hardware texture coordinate generation. More...

virtual void	stopTexGen ()
	Stop the texture coordinate generation started with startTexGen().

virtual bool	supportsGetTexCoord (unsigned int)
	Returns true if the getTexCoord function is available for use. More...

virtual Vec4f	getTexCoord (int, unsigned int)
	Gets texture coordinate of the given index and texture unit. More...

virtual void	startTexGenForTexture (X3DTextureNode *t)
	Start hardware texture coordinate generateion for all texture units used by the texture

void	startTexGenForActiveTexture ()
	Start hardware texture coordinate generateion for all texture units used by the texture in X3DTextureNode::getActiveTexture.

virtual void	stopTexGenForTexture (X3DTextureNode *t)
	Stop texture coordinate generateion for all texture units used by the texture

void	stopTexGenForActiveTexture ()
	Stop hardware texture coordinate generateion for all texture units used by the texture in X3DTextureNode::getActiveTexture.

void	startTexGenForTextureUnits (unsigned int start_unit, unsigned int end_unit)
	Start hardware texture coordinate generation for the texture units between and including start_unit and end_unit. More...

virtual void	startTexGenForTextureUnit (unsigned int texture_unit)
	Start hardware texture coordinate generation for the texture unit specified. More...

void	stopTexGenForTextureUnits (unsigned int start_unit, unsigned int end_unit)
	Stop the texture coordinate generation started with startTexGenForTextureUnits().

virtual void	stopTexGenForTextureUnit (unsigned int texture_unit)
	Stop hardware texture coordinate generation for the texture unit specified. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

Public Member Functions inherited from H3D::X3DGeometricPropertyNode
	X3DGeometricPropertyNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual void	traverseSG (TraverseInfo &ti)
	traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::GLVertexAttributeObject
	GLVertexAttributeObject (VERTEXATTRIBUTE::VERTEXATTRIBUTETYPE type)
	Constructor.

virtual	~GLVertexAttributeObject ()
	Destructor.

virtual bool	preRenderCheckFail ()
	pre-render check to dertermine if need to render this vertex attribute

void	renderVertexBufferObject ()
	Perform the OpenGL commands to render all vertices as a vertex buffer object.

void	disableVertexBufferObject ()
	Disable the vertex buffer object enabled in renderVertexBufferObject().

virtual void	updateVertexBufferObject ()
	Perform the OpenGL commands to update vertex attribute data/format.

Static Public Member Functions
static void	renderTexCoordForActiveTexture (const Vec3f &tc)
	Render the texture coordinate for all texture units used by the texture in X3DTextureNode::getActiveTexture.

static void	renderTexCoordForTexture (const Vec3f &tc, X3DTextureNode *t)
	Render the texture coordinate for all texture units used by the given texture .

static void	renderVertexBufferObjectForActiveTexture (GLint size, GLenum type, GLsizei stride, const GLvoid *pointer)
	Render the vertex buffer object for all texture units used by the texture in X3DTextureNode::getActiveTexture. More...

static void	renderVertexBufferObjectForTexture (GLint size, GLenum type, GLsizei stride, const GLvoid pointer, X3DTextureNode t)
	Render the vertex buffer object for all texture units used by the given texture. More...

static void	disableVBOForActiveTexture ()
	Function that corresponds to the static version of the function renderVertexBufferObjectForActiveTexture. More...

static void	disableVBOForTexture (X3DTextureNode *t)
	Function that corresponds to the static version of the function renderVertexBufferObjectForTexture. More...

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Attributes
unsigned int	texture_index
	the current texture index

Protected Attributes inherited from H3D::GLVertexAttributeObject
H3DUniquePtr< Field >	vboFieldsUpToDate
	Internal field used to know if vertex buffer object can be created. More...

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Attributes inherited from H3D::X3DGeometricPropertyNode
H3DUniquePtr< Field >	propertyChanged
	Field that indicated whether the properties have changed. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::GLVertexAttributeObject
H3DUniquePtr< SFBool >	isDynamic
	Option to indicate whether this vertex attribute is dynamic or not Access type: inputOutput Default value: false.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

This abstract node type is the base type for all node types which specify texture coordinates.

It adds a new geometric property node type to those specified in 11 Rendering component.

Texture coordinate nodes comes in two flavours, types that generate texture coordinates and nodes that specify the texture coordinates explicitly. There are two groups of functions, one for each of the types. When a user wants to use a function he should first check if it is supported by calling the supportsExplicitTexCoords() and supportsTexGen() functions.

Member Function Documentation

◆ defaultXMLContainerField()

virtual string H3D::X3DTextureCoordinateNode::defaultXMLContainerField ( )

inlinevirtual

Returns the default xml containerField attribute value.

For this node it is "texCoord".

Reimplemented from H3D::Node.

◆ disableVBOForActiveTexture()

void X3DTextureCoordinateNode::disableVBOForActiveTexture ( )

static

Function that corresponds to the static version of the function renderVertexBufferObjectForActiveTexture.

Disables state for active texture.

References disableVBOForTexture(), and H3D::X3DTextureNode::getActiveTexture().

Referenced by H3D::Cylinder::render(), H3D::FullscreenRectangle::render(), and H3D::Sphere::render().

◆ disableVBOForTexture()

void X3DTextureCoordinateNode::disableVBOForTexture ( X3DTextureNode * t )

static

Function that corresponds to the static version of the function renderVertexBufferObjectForTexture.

Disables state for given texture.

References H3D::MultiTexture::texture.

Referenced by disableVBOForActiveTexture().

◆ getTexCoord()

virtual Vec4f H3D::X3DTextureCoordinateNode::getTexCoord	(	int	,
		unsigned int
	)

inlinevirtual

Gets texture coordinate of the given index and texture unit.

This function is only valid if supporteGetTexCoord returns true. TextureCoordinateGenerator e.g. does not support this function.

Reimplemented in H3D::TextureCoordinate, H3D::TextureCoordinate4D, H3D::TextureCoordinate3D, and H3D::MultiTextureCoordinate.

References Vec4f().

Referenced by H3D::MultiTextureCoordinate::getTexCoord(), and H3D::IndexedFaceSet::AutoTangent::getTexCoord().

◆ nrAvailableTexCoords()

virtual unsigned int H3D::X3DTextureCoordinateNode::nrAvailableTexCoords ( )

inlinevirtual

Returns the number of texture coordinates this node can render.

-1 means that the node is a texture coordinate generator in which case nr available coords has no meaning.

Reimplemented in H3D::TextureCoordinate4D, H3D::TextureCoordinate3D, H3D::TextureCoordinate, and H3D::MultiTextureCoordinate.

Referenced by H3D::MultiTextureCoordinate::nrAvailableTexCoords(), H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleFanSet::render(), H3D::TriangleSet::render(), and H3D::TriangleStripSet::render().

◆ renderVertexBufferObjectForActiveTexture()

void X3DTextureCoordinateNode::renderVertexBufferObjectForActiveTexture	(	GLint	size,
		GLenum	type,
		GLsizei	stride,
		const GLvoid *	pointer
	)

static

Render the vertex buffer object for all texture units used by the texture in X3DTextureNode::getActiveTexture.

The arguments to this function are the same arguments as to glTexCoordPointer when using vertex buffer objects since this function is basically a wrapper around that function to handle the case of the texture being a MultiTexture.

References H3D::X3DTextureNode::getActiveTexture(), and renderVertexBufferObjectForTexture().

Referenced by H3D::ElevationGrid::render(), and H3D::X3DComposedGeometryNode::renderTexCoordVertexBufferObject().

◆ renderVertexBufferObjectForTexture()

void X3DTextureCoordinateNode::renderVertexBufferObjectForTexture	(	GLint	size,
		GLenum	type,
		GLsizei	stride,
		const GLvoid *	pointer,
		X3DTextureNode *	t
	)

static

Render the vertex buffer object for all texture units used by the given texture.

The other arguments to this function are the same arguments as to glTexCoordPointer when using vertex buffer objects since this function is basically a wrapper around that function to handle the case of the texture being a MultiTexture.

References H3D::MultiTexture::texture.

Referenced by renderVertexBufferObjectForActiveTexture().
