This is the base node type for all composed 3D geometry in X3D. More...

#include <H3D/X3DComposedGeometryNode.h>

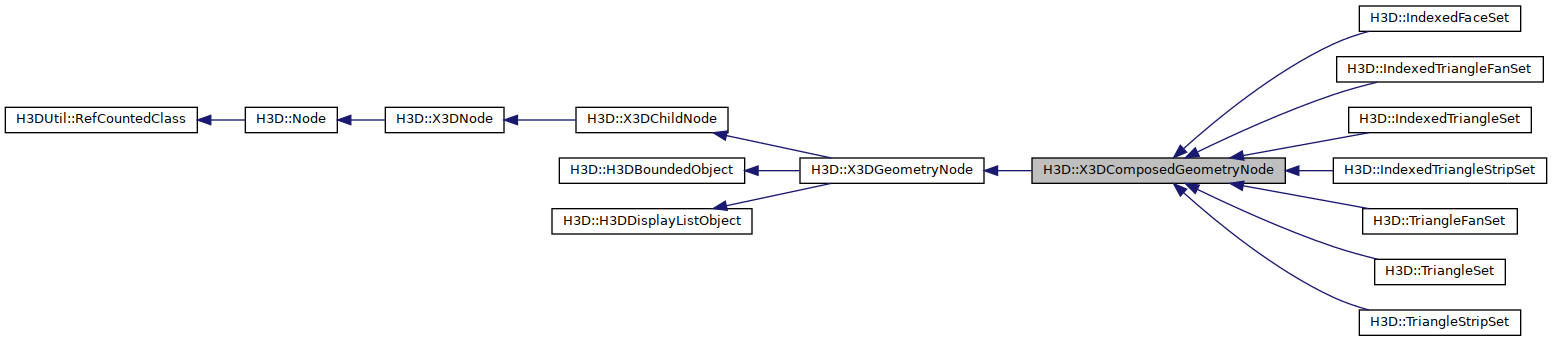

Inheritance diagram for H3D::X3DComposedGeometryNode:

Classes
class	DisplayList
	Display list is extended in order to set front sidedness of triangles outside the display list. More...

class	MFVertexAttributeNode
	The MFVertexAttributeNode is dependent on the propertyChanged field of the contained X3DVertexAttributeNode. More...

Public Types
typedef DependentSFNode< X3DColorNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DColorNode::propertyChanged > >	SFColorNode
	The SFColorNode is dependent on the propertyChanged field of the contained X3DColorNode.

typedef DependentSFNode< X3DCoordinateNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DCoordinateNode::propertyChanged > >	SFCoordinateNode
	The SFCoordinateNode is dependent on the propertyChanged field of the contained X3DCoordinateNode.

typedef DependentSFNode< X3DNormalNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DNormalNode::propertyChanged > >	SFNormalNode
	The SFNormalNode is dependent on the propertyChanged field of the contained X3DNormalNode.

typedef DependentSFNode< X3DTextureCoordinateNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DTextureCoordinateNode::propertyChanged > >	SFTextureCoordinateNode
	The SFTextureCoordinteNode is dependent on the propertyChanged field of the contained X3DTextureCoordinateNode.

typedef DependentSFNode< FogCoordinate, FieldRef< X3DGeometricPropertyNode, Field, &FogCoordinate::propertyChanged > >	SFFogCoordinate
	The SFFogCoordinate is dependent on the propertyChanged. More...

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
virtual void	startTexGen (X3DTextureCoordinateNode *tex_coord)
	Start texture coordinate generation. More...

virtual void	stopTexGen (X3DTextureCoordinateNode *tex_coord)
	Stop texture coordinate generation.

virtual void	renderTexCoord (int index, X3DTextureCoordinateNode *tc)
	Render the texure coordinate with the given index from the tc argument. More...

virtual void	renderTexCoordArray (X3DTextureCoordinateNode *tc)
	Render the X3DTextureCoordinate as an array. More...

virtual void	disableTexCoordArray (X3DTextureCoordinateNode *tc)
	Disable the arrays that were enabled in renderTexCoordArray().

virtual void	renderTexCoordVertexBufferObject (X3DTextureCoordinateNode *tc)
	Render the X3DTextureCoordinate as a vertex buffer object. More...

virtual void	disableTexCoordVertexBufferObject (X3DTextureCoordinateNode *tc)
	Disable the vertex buffer objects that were enabled in renderTexCoordArray().

virtual Matrix4f	getDefaultTexGenMatrix ()
	Gets the matrix that transforms from object space to texture coordinate space in the default case when no texCoord node is specified. More...

	X3DComposedGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< SFColorNode > _color=0, Inst< SFCoordinateNode > _coord=0, Inst< SFNormalNode > _normal=0, Inst< SFTextureCoordinateNode > _texCoord=0, Inst< SFBool > _ccw=0, Inst< SFBool > _colorPerVertex=0, Inst< SFBool > _normalPerVertex=0, Inst< SFBool > _solid=0, Inst< MFVertexAttributeNode > _attrib=0, Inst< SFFogCoordinate > _fogCoord=0)
	Constructor.

Public Member Functions inherited from H3D::X3DGeometryNode
	X3DGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< MFVec3f > _contactTexCoord=0, Inst< SFBoundTree > _boundTree=0, Inst< SFVec3f > _centerOfMass=0)
	Constructor.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and this geometry. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on this geometry to point p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the geometry. More...

virtual void	glRender ()
	Function overridden from HAPIGLShape. More...

virtual H3DShadowObjectNode *	getShadowObject ()
	Get the H3DShadowObjectNode used to create a shadow volume for this geometry. More...

void	useCulling (bool enabled)
	This function should be used by the render() function to disable or enable face culling. More...

bool	usingCulling ()
	Returns if face culling is in use or not.

void	allowCulling (bool allow)
	Control if face culling is allowed or not. More...

void	useBackFaceCulling (bool enabled)
	Enabling/disabling back face culling. More...

bool	allowingCulling ()
	Returns true if back face culling is allowed, false otherwise.

void	setCullFace (GLenum face)
	Set which side of a polygon to cull. More...

GLenum	getCullFace ()
	Get which face will be culled if culling is enabled.

template<class OptionNodeType >
void	getOptionNode (OptionNodeType *&option)
	Get the first option node of the type of the pointer given as argument from the renderOptions fieeld The option argument will contain the node afterwards, or NULL if no option of that type exists.

int	getHapticShapeId (unsigned int index)
	Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device. More...

virtual	~X3DGeometryNode ()
	Destructor.

HAPI::HAPIHapticShape *	getOpenGLHapticShape (unsigned int hd_index, H3DSurfaceNode *_surface, const Matrix4f &_transform, int _nr_vertices=-1)
	Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual bool	supportsTangentAttributes ()
	Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g. More...

virtual void	getBound (HAPI::Vec3 &center, HAPI::Vec3 &size)
	Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode. More...

virtual void	initialize ()
	Changes behaviour of X3DGeometryNode to be a thread safe RefCountedClass.

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DBoundedObject
	H3DBoundedObject (Inst< SFBound > _bound=0)
	Constructor.

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Attributes
H3DUniquePtr< SFColorNode >	color
	Contains an X3DColorNode whose colors are applied to the X3DComposedGeometryNode. More...

H3DUniquePtr< SFCoordinateNode >	coord
	An X3DCoordinate node with the coordinates to use. More...

H3DUniquePtr< SFNormalNode >	normal
	Contains an X3DNormalNode which normals are applied to the X3DComposedGeometryNode. More...

H3DUniquePtr< SFTextureCoordinateNode >	texCoord
	Contains an X3DTextureCoordinateNode which texture coordinates are applied to the X3DComposedGeometryNode. More...

H3DUniquePtr< SFBool >	ccw
	The ccw field defines the ordering of the vertex coordinates of the geometry with respect to user-given or automatically generated normal vectors used in the lighting model equations. More...

H3DUniquePtr< SFBool >	colorPerVertex
	If TRUE the colors in the color field is applied per vertex, otherwise it is applied per face. More...

H3DUniquePtr< SFBool >	normalPerVertex
	If TRUE the normals in the normal field is applied per vertex, otherwise it is applied per face. More...

H3DUniquePtr< SFBool >	solid
	The solid field determines whether one or both sides of each polygon shall be displayed. More...

H3DUniquePtr< MFVertexAttributeNode >	attrib
	If the attrib field is not empty it shall contain a list of X3DVertexAttributeNode instances with per-vertex attribute information for programmable shaders. More...

H3DUniquePtr< SFFogCoordinate >	fogCoord
	If the fogCoord field is not empty, it shall contain a list of per-vertex depth values for calculating fog depth. More...

Public Attributes inherited from H3D::X3DGeometryNode
H3DUniquePtr< MFBool >	isTouched
	Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop. More...

H3DUniquePtr< MFVec3f >	force
	The last force delivered by this geometry to the haptics device. More...

H3DUniquePtr< MFVec3f >	contactPoint
	The last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactTexCoord
	The texture coordinate of last the contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactNormal
	The normal at the last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< SFVec3f >	centerOfMass
	The field contains center of mass for the object, based on its bounding box. More...

H3DUniquePtr< SFBoundTree >	boundTree
	Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode. More...

H3DUniquePtr< MFOptionsNode >	options
	Contains nodes with options for haptics and graphics rendering. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DBoundedObject
H3DUniquePtr< SFBound >	bound
	The field containing the bound object. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DGeometryNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Additional Inherited Members
Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::X3DGeometryNode
static void	cleanUpFunction (void *userdata)
	Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Protected Attributes inherited from H3D::X3DGeometryNode
AutoRef< Node >	shadow_volume
	The shadow volume used for this geometry when shadows enabled. More...

vector< pair< int, pair< Matrix4f, H3DTime > > >	haptic_shape_ids
	identifiers for the shapes geometry.

Detailed Description

This is the base node type for all composed 3D geometry in X3D.

A composed geometry node type defines an abstract type that composes geometry from a set of nodes that define individual components. Composed geometry may have color, coordinates, normal and texture coordinates supplied. The rendered output of the combination of these is dependent on the concrete node definition. However, in general, the following rules shall be applied for all nodes:

If the color field is not NULL, it shall contain an X3DColorNode node whose colours are applied to the vertices or faces of the X3DComposedGeometryNode as follows:
If colorPerVertex is FALSE, colours are applied to each face. If colorPerVertex is true, colours are applied to each vertex.
If the color field is NULL, the geometry shall be rendered normally using the Material and texture defined in the Appearance node (see 12.2.2 Appearance node for details).
If normalPerVertex is FALSE, colours are applied to each face. If normalPerVertex is true, colours are applied to each vertex.
If the normal field is not NULL, it shall contain a Normal node whose normals are applied to the vertices or faces of the X3DComposedGeometryNode in a manner exactly equivalent to that described above for applying colours to vertices/faces (where normalPerVertex corresponds to colorPerVertex and normalIndex corresponds to colorIndex).
If the normal field is NULL, the browser shall automatically generate normals in accordance with the node's definition. If the node does not define a behaviour, the default is to generate an averaged normal for all faces that share that vertex.

If the texCoord field is not NULL, it shall contain a TextureCoordinate node.

If the attrib field is not empty it shall contain a list of X3DVertexAttributeNode instances with per-vertex attribute information for programmable shaders.

If the fogCoord field is not empty, it shall contain a list of per-vertex depth values for calculating fog depth.

Internal routes:

Member Typedef Documentation

◆ SFFogCoordinate

typedef DependentSFNode< FogCoordinate, FieldRef< X3DGeometricPropertyNode, Field, &FogCoordinate::propertyChanged > > H3D::X3DComposedGeometryNode::SFFogCoordinate

The SFFogCoordinate is dependent on the propertyChanged.

field of the contained FogCoordinate.

Member Function Documentation

◆ getDefaultTexGenMatrix()

Matrix4f X3DComposedGeometryNode::getDefaultTexGenMatrix ( )

virtual

Gets the matrix that transforms from object space to texture coordinate space in the default case when no texCoord node is specified.

References H3D::H3DBoundedObject::bound, H3D::BoxBound::center, H3DAbs(), and H3D::BoxBound::size.

Referenced by H3D::IndexedFaceSet::AutoTangent::getTexCoord(), and startTexGen().

◆ renderTexCoord()

void X3DComposedGeometryNode::renderTexCoord	(	int	index,
		X3DTextureCoordinateNode *	tc
	)

virtual

Render the texure coordinate with the given index from the tc argument.

If the currently active texture is a MultiTexture the texture coordinate will be rendered for the texture units of all textures in MultiTexture. tc must not be NULL.

References H3D::X3DTextureCoordinateNode::renderForActiveTexture().

Referenced by H3D::IndexedFaceSet::render(), H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleFanSet::render(), and H3D::TriangleStripSet::render().

◆ renderTexCoordArray()

void X3DComposedGeometryNode::renderTexCoordArray ( X3DTextureCoordinateNode * tc )

virtual

Render the X3DTextureCoordinate as an array.

If the currently active texture is a MultiTexture it will be rendered for the texture units of all textures in MultiTexture. tc must not be NULL.

References H3D::X3DTextureCoordinateNode::renderArrayForActiveTexture().

Referenced by H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleFanSet::render(), H3D::TriangleSet::render(), and H3D::TriangleStripSet::render().

◆ renderTexCoordVertexBufferObject()

void X3DComposedGeometryNode::renderTexCoordVertexBufferObject ( X3DTextureCoordinateNode * tc )

virtual

Render the X3DTextureCoordinate as a vertex buffer object.

If the currently active texture is a MultiTexture it will be rendered for the texture units of all textures in MultiTexture. tc must not be NULL.

References H3D::X3DTextureCoordinateNode::renderVertexBufferObjectForActiveTexture().

Referenced by H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleSet::render(), and H3D::TriangleStripSet::render().

◆ startTexGen()

void X3DComposedGeometryNode::startTexGen ( X3DTextureCoordinateNode * tex_coord )

virtual

Start texture coordinate generation.

Texture coordinates will be generated for all texture units used by the currently active texture. If tex_coord is NULL then texture coordinates will be generated from the bounding box of the geometry as defined in the X3D specification. If tex_coord is not NULL then we use the TextureCoordinateGenerator to define the texture coordinate generation.

References H3D::X3DTextureNode::getActiveTexture(), getDefaultTexGenMatrix(), H3D::X3DTextureCoordinateNode::startTexGenForActiveTexture(), and H3D::MultiTexture::texture.

Referenced by H3D::IndexedFaceSet::render(), H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleFanSet::render(), H3D::TriangleSet::render(), and H3D::TriangleStripSet::render().

Member Data Documentation

◆ attrib

H3DUniquePtr< MFVertexAttributeNode > H3D::X3DComposedGeometryNode::attrib

If the attrib field is not empty it shall contain a list of X3DVertexAttributeNode instances with per-vertex attribute information for programmable shaders.

Access type: inputOutput

Referenced by H3D::IndexedFaceSet::render(), H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleFanSet::render(), H3D::TriangleSet::render(), H3D::TriangleStripSet::render(), and X3DComposedGeometryNode().

◆ ccw

H3DUniquePtr< SFBool > H3D::X3DComposedGeometryNode::ccw

The ccw field defines the ordering of the vertex coordinates of the geometry with respect to user-given or automatically generated normal vectors used in the lighting model equations.

If ccw is TRUE, the normals shall follow the right hand rule; the orientation of each normal with respect to the vertices (taken in order) shall be such that the vertices appear to be oriented in a counterclockwise order when the vertices are viewed (in the local coordinate system of the Shape) from the opposite direction as the normal. If ccw is FALSE, the normals shall be oriented in the opposite direction. If normals are not generated but are supplied using a Normal node, and the orientation of the normals does not match the setting of the ccw field, results are undefined.

Access type: inputOutput
Default value: TRUE

Referenced by H3D::X3DComposedGeometryNode::DisplayList::callList(), H3D::IndexedFaceSet::IndexedFaceSet(), H3D::IndexedTriangleFanSet::IndexedTriangleFanSet(), H3D::IndexedTriangleSet::IndexedTriangleSet(), H3D::IndexedTriangleStripSet::IndexedTriangleStripSet(), H3D::TriangleFanSet::TriangleFanSet(), H3D::TriangleSet::TriangleSet(), H3D::TriangleStripSet::TriangleStripSet(), and X3DComposedGeometryNode().

◆ color

H3DUniquePtr< SFColorNode > H3D::X3DComposedGeometryNode::color

Contains an X3DColorNode whose colors are applied to the X3DComposedGeometryNode.

If the color field is NULL, the geometry shall be rendered normally using the Material and texture defined in the Appearance node

Access type: inputOutput

Referenced by H3D::IndexedFaceSet::render(), H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleFanSet::render(), H3D::TriangleSet::render(), H3D::TriangleStripSet::render(), and X3DComposedGeometryNode().

◆ colorPerVertex

H3DUniquePtr< SFBool > H3D::X3DComposedGeometryNode::colorPerVertex

If TRUE the colors in the color field is applied per vertex, otherwise it is applied per face.

Access type: inputOutput
Default value: TRUE

Referenced by H3D::IndexedFaceSet::IndexedFaceSet(), H3D::IndexedFaceSet::render(), and X3DComposedGeometryNode().

◆ coord

H3DUniquePtr< SFCoordinateNode > H3D::X3DComposedGeometryNode::coord

An X3DCoordinate node with the coordinates to use.

Access type: inputOutput

Referenced by H3D::IndexedFaceSet::IndexedFaceSet(), H3D::IndexedTriangleFanSet::IndexedTriangleFanSet(), H3D::IndexedTriangleSet::IndexedTriangleSet(), H3D::IndexedTriangleStripSet::IndexedTriangleStripSet(), H3D::DeformableShape::SFGeometryNode::onAdd(), H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleFanSet::render(), H3D::TriangleSet::render(), H3D::TriangleStripSet::render(), H3D::DeformableShape::traverseSG(), H3D::TriangleFanSet::TriangleFanSet(), H3D::TriangleSet::TriangleSet(), H3D::TriangleStripSet::TriangleStripSet(), and X3DComposedGeometryNode().

◆ fogCoord

H3DUniquePtr< SFFogCoordinate > H3D::X3DComposedGeometryNode::fogCoord

If the fogCoord field is not empty, it shall contain a list of per-vertex depth values for calculating fog depth.

Access type: inputOutput

Referenced by H3D::IndexedFaceSet::render(), H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleFanSet::render(), H3D::TriangleSet::render(), H3D::TriangleStripSet::render(), and X3DComposedGeometryNode().

◆ normal

H3DUniquePtr< SFNormalNode > H3D::X3DComposedGeometryNode::normal

Contains an X3DNormalNode which normals are applied to the X3DComposedGeometryNode.

If the normal field is NULL, the normals are automatically generated in accordance with the node's definition. If the node does not define a behaviour, the default is to generate an averaged normal for all faces that share that vertex.

Access type: inputOutput

Referenced by H3D::IndexedFaceSet::render(), H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleFanSet::render(), H3D::TriangleSet::render(), H3D::TriangleStripSet::render(), and X3DComposedGeometryNode().

◆ normalPerVertex

H3DUniquePtr< SFBool > H3D::X3DComposedGeometryNode::normalPerVertex

If TRUE the normals in the normal field is applied per vertex, otherwise it is applied per face.

Access type: inputOutput
Default value: TRUE

Referenced by H3D::IndexedFaceSet::IndexedFaceSet(), H3D::IndexedTriangleFanSet::IndexedTriangleFanSet(), H3D::IndexedTriangleSet::IndexedTriangleSet(), H3D::IndexedTriangleStripSet::IndexedTriangleStripSet(), H3D::IndexedFaceSet::render(), H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleFanSet::render(), H3D::TriangleStripSet::render(), H3D::TriangleFanSet::TriangleFanSet(), H3D::TriangleSet::TriangleSet(), H3D::TriangleStripSet::TriangleStripSet(), and X3DComposedGeometryNode().

◆ solid

H3DUniquePtr< SFBool > H3D::X3DComposedGeometryNode::solid

The solid field determines whether one or both sides of each polygon shall be displayed.

If solid is FALSE, each polygon shall be visible regardless of the viewing direction (i.e., no backface culling shall be done, and two sided lighting shall be performed to illuminate both sides of lit surfaces). If solid is TRUE, back face culling will be performed.

Access type: inputOutput
Default value: TRUE

Referenced by H3D::IndexedFaceSet::IndexedFaceSet(), H3D::IndexedFaceSet::traverseSG(), H3D::IndexedTriangleFanSet::traverseSG(), H3D::IndexedTriangleSet::traverseSG(), H3D::IndexedTriangleStripSet::traverseSG(), H3D::TriangleFanSet::traverseSG(), H3D::TriangleSet::traverseSG(), H3D::TriangleStripSet::traverseSG(), and X3DComposedGeometryNode().

◆ texCoord

H3DUniquePtr< SFTextureCoordinateNode > H3D::X3DComposedGeometryNode::texCoord

Contains an X3DTextureCoordinateNode which texture coordinates are applied to the X3DComposedGeometryNode.

Access type: inputOutput

Referenced by H3D::IndexedFaceSet::IndexedFaceSet(), H3D::IndexedTriangleSet::IndexedTriangleSet(), H3D::IndexedFaceSet::render(), H3D::IndexedTriangleFanSet::render(), H3D::IndexedTriangleSet::render(), H3D::IndexedTriangleStripSet::render(), H3D::TriangleFanSet::render(), H3D::TriangleSet::render(), H3D::TriangleStripSet::render(), and X3DComposedGeometryNode().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ SFFogCoordinate

Member Function Documentation

◆ getDefaultTexGenMatrix()

◆ renderTexCoord()

◆ renderTexCoordArray()

◆ renderTexCoordVertexBufferObject()

◆ startTexGen()

Member Data Documentation

◆ attrib

◆ ccw

◆ color

◆ colorPerVertex

◆ coord

◆ fogCoord

◆ normal

◆ normalPerVertex

◆ solid

◆ texCoord
