The Capsule node specifies a cylinder, with half-sphere as end caps, centred at (0,0,0) in the local coordinate system and with a central axis oriented along the local Y-axis. More...

#include <H3D/Capsule.h>

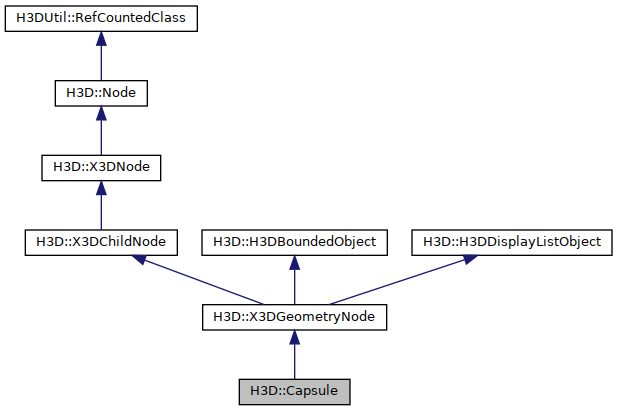

Inheritance diagram for H3D::Capsule:

Classes
class	SFBound
	SFBound is specialized update itself from the radius and heigh field of the Capsule node. More...

Public Member Functions
	Capsule (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< SFBool > _bottom=0, Inst< SFFloat > _height=0, Inst< SFFloat > _radius=0, Inst< SFBool > _side=0, Inst< SFBool > _solid=0, Inst< SFBool > _top=0)
	Constructor.

	~Capsule ()
	Destructor.

virtual void	render ()
	Renders the Capsule with OpenGL. More...

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. Adds a HapticCapsule if haptics is enabled.

virtual int	nrTriangles ()
	The number of triangles rendered by this geometry.

Public Member Functions inherited from H3D::X3DGeometryNode
	X3DGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< MFVec3f > _contactTexCoord=0, Inst< SFBoundTree > _boundTree=0, Inst< SFVec3f > _centerOfMass=0)
	Constructor.

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and this geometry. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on this geometry to point p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the geometry. More...

virtual void	glRender ()
	Function overridden from HAPIGLShape. More...

virtual H3DShadowObjectNode *	getShadowObject ()
	Get the H3DShadowObjectNode used to create a shadow volume for this geometry. More...

void	useCulling (bool enabled)
	This function should be used by the render() function to disable or enable face culling. More...

bool	usingCulling ()
	Returns if face culling is in use or not.

void	allowCulling (bool allow)
	Control if face culling is allowed or not. More...

void	useBackFaceCulling (bool enabled)
	Enabling/disabling back face culling. More...

bool	allowingCulling ()
	Returns true if back face culling is allowed, false otherwise.

void	setCullFace (GLenum face)
	Set which side of a polygon to cull. More...

GLenum	getCullFace ()
	Get which face will be culled if culling is enabled.

template<class OptionNodeType >
void	getOptionNode (OptionNodeType *&option)
	Get the first option node of the type of the pointer given as argument from the renderOptions fieeld The option argument will contain the node afterwards, or NULL if no option of that type exists.

int	getHapticShapeId (unsigned int index)
	Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device. More...

virtual	~X3DGeometryNode ()
	Destructor.

HAPI::HAPIHapticShape *	getOpenGLHapticShape (unsigned int hd_index, H3DSurfaceNode *_surface, const Matrix4f &_transform, int _nr_vertices=-1)
	Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual bool	supportsTangentAttributes ()
	Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g. More...

virtual void	getBound (HAPI::Vec3 &center, HAPI::Vec3 &size)
	Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode. More...

virtual void	initialize ()
	Changes behaviour of X3DGeometryNode to be a thread safe RefCountedClass.

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DBoundedObject
	H3DBoundedObject (Inst< SFBound > _bound=0)
	Constructor.

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Attributes
H3DUniquePtr< SFBool >	bottom
	Specifies if the bottom of the Capsule should be rendered or not. More...

H3DUniquePtr< SFFloat >	height
	The height of the Capsule in meters. More...

H3DUniquePtr< SFFloat >	radius
	The radius of the Capsule. More...

H3DUniquePtr< SFBool >	side
	Specifies if the sides of the Capsule should be rendered or not. More...

H3DUniquePtr< SFBool >	solid
	The solid field determines whether the Capsule is visible when viewed from the inside. More...

H3DUniquePtr< SFBool >	top
	Specifies if the top of the Capsule should be rendered or not. More...

Public Attributes inherited from H3D::X3DGeometryNode
H3DUniquePtr< MFBool >	isTouched
	Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop. More...

H3DUniquePtr< MFVec3f >	force
	The last force delivered by this geometry to the haptics device. More...

H3DUniquePtr< MFVec3f >	contactPoint
	The last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactTexCoord
	The texture coordinate of last the contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactNormal
	The normal at the last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< SFVec3f >	centerOfMass
	The field contains center of mass for the object, based on its bounding box. More...

H3DUniquePtr< SFBoundTree >	boundTree
	Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode. More...

H3DUniquePtr< MFOptionsNode >	options
	Contains nodes with options for haptics and graphics rendering. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DBoundedObject
H3DUniquePtr< SFBound >	bound
	The field containing the bound object. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase instance for this node.

Static Public Attributes inherited from H3D::X3DGeometryNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Attributes
H3DUniquePtr< Field >	vboFieldsUpToDate
	Internal field used to know if vertex buffer object can be created. More...

Protected Attributes inherited from H3D::X3DGeometryNode
AutoRef< Node >	shadow_volume
	The shadow volume used for this geometry when shadows enabled. More...

vector< pair< int, pair< Matrix4f, H3DTime > > >	haptic_shape_ids
	identifiers for the shapes geometry.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::X3DGeometryNode
static void	cleanUpFunction (void *userdata)
	Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The Capsule node specifies a cylinder, with half-sphere as end caps, centred at (0,0,0) in the local coordinate system and with a central axis oriented along the local Y-axis.

By default, the cylinder is sized at "-1" to "+1" in all three dimensions. The radius field specifies the radius of the cylinder and end-caps and the height field specifies the height of capsule, i.e. the distance between the centers of the half-sphere end caps. Both radius and height shall be greater than zero.

The capsule has three parts: the side, the top and the bottom. Each part has an associated SFBool field that indicates whether the part exists (TRUE) or does not exist (FALSE). Parts which do not exist are not rendered and not eligible for intersection tests.

The solid field determines whether the cylinder is visible when viewed from the inside. If solid is false both sides of the cylinder will be rendered.

Examples:

Capsule.x3d ( Source )

Internal routes:

Member Function Documentation

◆ render()

void Capsule::render ( )

virtual

Renders the Capsule with OpenGL.

Create side vertices.

Reimplemented from H3D::Node.

References angle, bottom, H3D::GlobalSettings::getActive(), H3D::GlobalSettings::getOptionNode(), H3D::X3DGeometryNode::getOptionNode(), H3DCos(), H3DSin(), height, H3D::GraphicsOptions::preferVertexBufferObject, radius, H3D::Node::render(), H3D::X3DTextureCoordinateNode::renderVertexBufferObjectForActiveTexture(), side, top, vboFieldsUpToDate, and x.

Member Data Documentation

◆ bottom

H3DUniquePtr< SFBool > H3D::Capsule::bottom

Specifies if the bottom of the Capsule should be rendered or not.

Access type: inputOutput
Default value: TRUE

Referenced by Capsule(), nrTriangles(), and render().

◆ height

H3DUniquePtr< SFFloat > H3D::Capsule::height

The height of the Capsule in meters.

Access type: inputOutput
Default value: 2
Valid range: >0

Referenced by Capsule(), and render().

◆ radius

H3DUniquePtr< SFFloat > H3D::Capsule::radius

The radius of the Capsule.

Access type: inputOutput
Default value: 1
Valid range: >0

Referenced by Capsule(), and render().

◆ side

H3DUniquePtr< SFBool > H3D::Capsule::side

Specifies if the sides of the Capsule should be rendered or not.

Access type: inputOutput
Default value: TRUE

Referenced by Capsule(), nrTriangles(), and render().

◆ solid

H3DUniquePtr< SFBool > H3D::Capsule::solid

The solid field determines whether the Capsule is visible when viewed from the inside.

If solid is false both sides of the sphere will be rendered.

Access type: inputOutput
Default value: TRUE

Referenced by Capsule(), and traverseSG().

◆ top

H3DUniquePtr< SFBool > H3D::Capsule::top

Specifies if the top of the Capsule should be rendered or not.

Access type: inputOutput
Default value: TRUE

Referenced by Capsule(), nrTriangles(), and render().

◆ vboFieldsUpToDate

H3DUniquePtr< Field > H3D::Capsule::vboFieldsUpToDate

protected

Internal field used to know if vertex buffer object can be created.

C++ only field

Referenced by Capsule(), and render().

The documentation for this class was generated from the following files:
