The TexGenGeometry node is a wrapper node that lets you specify a TextureCoordinateGenerator node to generate the texture coordinates of a geometry instead of using the default ones. More...
#include <H3D/TexGenGeometry.h>

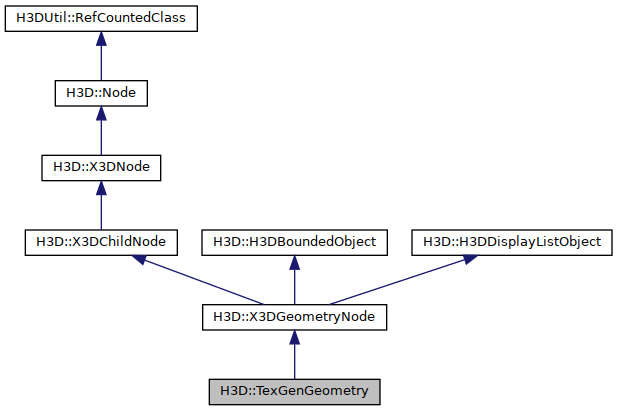

Inheritance diagram for H3D::TexGenGeometry:
Classes | |
| class | SFGeometryNode |
| The SFGeometryNode keeps a route between the contained X3DGeometryNode's bound field and the bound field ot the TexGenGeometry. More... | |
Public Types | |
| typedef DependentSFNode< TextureCoordinateGenerator, FieldRef< X3DGeometricPropertyNode, Field, &X3DGeometricPropertyNode::propertyChanged > > | SFTexCoordGenNode |
| The SFTextureCoordinteNode is dependent on the propertyChanged field of the contained TextureCoordinateGenerator. | |
 Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
Public Member Functions | |
| TexGenGeometry (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< SFGeometryNode > _geometry=0, Inst< SFTexCoordGenNode > _texCoord=0) | |
| Constructor. | |
| virtual void | render () |
| Starts texture coord generation and renders the geometry. | |
| virtual void | traverseSG (TraverseInfo &ti) |
| Traverse the scenegraph. | |
| virtual int | nrTriangles () |
| The number of triangles renderered in this geometry. | |
| Public Member Functions inherited from H3D::X3DGeometryNode | |
| X3DGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< MFVec3f > _contactTexCoord=0, Inst< SFBoundTree > _boundTree=0, Inst< SFVec3f > _centerOfMass=0) | |
| Constructor. | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and this geometry. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on this geometry to point p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the geometry. More... | |
| virtual void | glRender () |
| Function overridden from HAPIGLShape. More... | |
| virtual H3DShadowObjectNode * | getShadowObject () |
| Get the H3DShadowObjectNode used to create a shadow volume for this geometry. More... | |
| void | useCulling (bool enabled) |
| This function should be used by the render() function to disable or enable face culling. More... | |
| bool | usingCulling () |
| Returns if face culling is in use or not. | |
| void | allowCulling (bool allow) |
| Control if face culling is allowed or not. More... | |
| void | useBackFaceCulling (bool enabled) |
| Enabling/disabling back face culling. More... | |
| bool | allowingCulling () |
| Returns true if back face culling is allowed, false otherwise. | |
| void | setCullFace (GLenum face) |
| Set which side of a polygon to cull. More... | |
| GLenum | getCullFace () |
| Get which face will be culled if culling is enabled. | |
| template<class OptionNodeType > | |
| void | getOptionNode (OptionNodeType *&option) |
| Get the first option node of the type of the pointer given as argument from the renderOptions fieeld The option argument will contain the node afterwards, or NULL if no option of that type exists. | |
| int | getHapticShapeId (unsigned int index) |
| Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device. More... | |
| virtual | ~X3DGeometryNode () |
| Destructor. | |
| HAPI::HAPIHapticShape * | getOpenGLHapticShape (unsigned int hd_index, H3DSurfaceNode *_surface, const Matrix4f &_transform, int _nr_vertices=-1) |
| Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode. More... | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| virtual bool | supportsTangentAttributes () |
| Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g. More... | |
| virtual void | getBound (HAPI::Vec3 ¢er, HAPI::Vec3 &size) |
| Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode. More... | |
| virtual void | initialize () |
| Changes behaviour of X3DGeometryNode to be a thread safe RefCountedClass. | |
| Public Member Functions inherited from H3D::X3DChildNode | |
| X3DChildNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| Public Member Functions inherited from H3D::H3DBoundedObject | |
| H3DBoundedObject (Inst< SFBound > _bound=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::H3DDisplayListObject | |
| H3DDisplayListObject (Inst< DisplayList > _displayList=0) | |
| Constructor. | |
Public Attributes | |
| H3DUniquePtr< SFGeometryNode > | geometry |
| The geometry field contains the X3DGeometryNode that we want to generate texture coordinates for. More... | |
| H3DUniquePtr< SFTexCoordGenNode > | texCoord |
| The texCoord field contains the TextureCoordinateGenerator node to use to generate texture coordinates. More... | |
| Public Attributes inherited from H3D::X3DGeometryNode | |
| H3DUniquePtr< MFBool > | isTouched |
| Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop. More... | |
| H3DUniquePtr< MFVec3f > | force |
| The last force delivered by this geometry to the haptics device. More... | |
| H3DUniquePtr< MFVec3f > | contactPoint |
| The last contact points of the HapticDevices on the geometry. More... | |
| H3DUniquePtr< MFVec3f > | contactTexCoord |
| The texture coordinate of last the contact points of the HapticDevices on the geometry. More... | |
| H3DUniquePtr< MFVec3f > | contactNormal |
| The normal at the last contact points of the HapticDevices on the geometry. More... | |
| H3DUniquePtr< SFVec3f > | centerOfMass |
| The field contains center of mass for the object, based on its bounding box. More... | |
| H3DUniquePtr< SFBoundTree > | boundTree |
| Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode. More... | |
| H3DUniquePtr< MFOptionsNode > | options |
| Contains nodes with options for haptics and graphics rendering. More... | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
| Public Attributes inherited from H3D::H3DBoundedObject | |
| H3DUniquePtr< SFBound > | bound |
| The field containing the bound object. More... | |
| Public Attributes inherited from H3D::H3DDisplayListObject | |
| H3DUniquePtr< DisplayList > | displayList |
| The DisplayList instance handling the OpenGL caching of this object. | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DGeometryNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
Additional Inherited Members | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Static Protected Member Functions inherited from H3D::X3DGeometryNode | |
| static void | cleanUpFunction (void *userdata) |
| Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
| Protected Attributes inherited from H3D::X3DGeometryNode | |
| AutoRef< Node > | shadow_volume |
| The shadow volume used for this geometry when shadows enabled. More... | |
| vector< pair< int, pair< Matrix4f, H3DTime > > > | haptic_shape_ids |
| identifiers for the shapes geometry. | |
Detailed Description
The TexGenGeometry node is a wrapper node that lets you specify a TextureCoordinateGenerator node to generate the texture coordinates of a geometry instead of using the default ones.
Examples:
- Internal routes:
Member Data Documentation
◆ geometry
| H3DUniquePtr< SFGeometryNode > H3D::TexGenGeometry::geometry |
The geometry field contains the X3DGeometryNode that we want to generate texture coordinates for.
Access type: inputOutput
Referenced by render(), TexGenGeometry(), and traverseSG().
◆ texCoord
| H3DUniquePtr< SFTexCoordGenNode > H3D::TexGenGeometry::texCoord |
The texCoord field contains the TextureCoordinateGenerator node to use to generate texture coordinates.
Access type: inputOutput
Referenced by render(), and TexGenGeometry().
The documentation for this class was generated from the following files:
