The X3DNurbsSurfaceGeometryNode represents the abstract geometry type for all types of NURBS surfaces. More...

#include <H3D/X3DNurbsSurfaceGeometryNode.h>

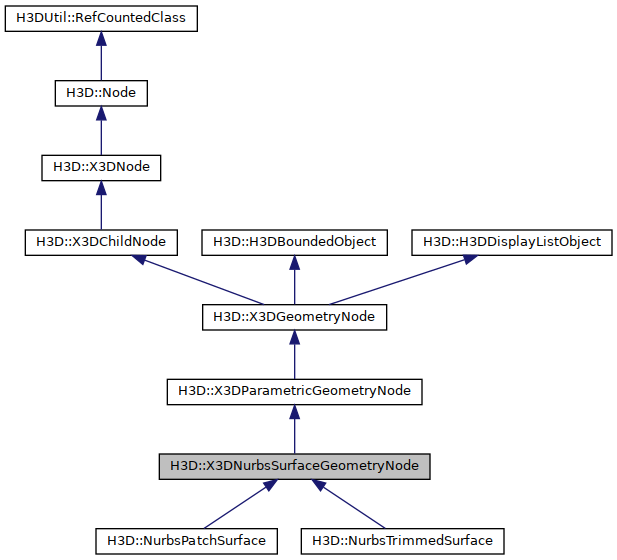

Inheritance diagram for H3D::X3DNurbsSurfaceGeometryNode:

Classes
class	TexCoordOrNurbsTex
	This field class takes as input SFNode field and checks whether this is one of the allowed textureNodes or not. More...

Public Types
typedef DependentSFNode< X3DCoordinateNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DCoordinateNode::propertyChanged > >	SFCoordinateNode
	The SFCoordinateNode is dependent on the propertyChanged field of the contained X3DCoordinateNode.

typedef DependentSFNode< X3DGeometricPropertyNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DGeometricPropertyNode::propertyChanged > >	TexCoordOrNurbsTexDependent
	The SFTextureCoordinteNode is dependent on the propertyChanged field of the contained X3DTextureCoordinateNode or NurbsTextureCoordinate which both inherits from X3DGeometricPropertyNode.

typedef CoordBoundField	SFBound
	The bound field for X3DNurbsSurfaceGeometryNode is a CoordBoundField.

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
	~X3DNurbsSurfaceGeometryNode ()
	Destructor.

	X3DNurbsSurfaceGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< SFCoordinateNode > _controlPoint=0, Inst< TexCoordOrNurbsTex > _texCoord=0, Inst< SFInt32 > _uTessellation=0, Inst< SFInt32 > _vTessellation=0, Inst< MFDouble > _weight=0, Inst< SFBool > _solid=0, Inst< SFBool > _uClosed=0, Inst< SFBool > _vClosed=0, Inst< SFInt32 > _uDimension=0, Inst< SFInt32 > _vDimension=0, Inst< MFDouble > _uKnot=0, Inst< MFDouble > _vKnot=0, Inst< SFInt32 > _uOrder=0, Inst< SFInt32 > _vOrder=0)
	Constructor.

virtual void	render ()
	Render the X3DNurbsSurfaceGeometryNode with OpenGL.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph.

virtual int	nrTriangles ()
	The number of triangles renderered in this geometry, we don't know so return -1.

virtual void	renderBetweenBeginEnd (GLUnurbsObj , X3DTextureCoordinateNode , TextureCoordinateGenerator , NurbsTextureCoordinate , GLfloat , GLfloat , GLfloat , GLfloat , GLfloat , H3DInt32 &, GLfloat , H3DInt32 &, H3DInt32 &, H3DInt32 &)
	Function called by render to render the small part that differs between NurbsPatchSurface and NurbsTrimmedSurface. More...

Public Member Functions inherited from H3D::X3DParametricGeometryNode
	X3DParametricGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0)
	Constructor.

Public Member Functions inherited from H3D::X3DGeometryNode
	X3DGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< MFVec3f > _contactTexCoord=0, Inst< SFBoundTree > _boundTree=0, Inst< SFVec3f > _centerOfMass=0)
	Constructor.

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and this geometry. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on this geometry to point p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the geometry. More...

virtual void	glRender ()
	Function overridden from HAPIGLShape. More...

virtual H3DShadowObjectNode *	getShadowObject ()
	Get the H3DShadowObjectNode used to create a shadow volume for this geometry. More...

void	useCulling (bool enabled)
	This function should be used by the render() function to disable or enable face culling. More...

bool	usingCulling ()
	Returns if face culling is in use or not.

void	allowCulling (bool allow)
	Control if face culling is allowed or not. More...

void	useBackFaceCulling (bool enabled)
	Enabling/disabling back face culling. More...

bool	allowingCulling ()
	Returns true if back face culling is allowed, false otherwise.

void	setCullFace (GLenum face)
	Set which side of a polygon to cull. More...

GLenum	getCullFace ()
	Get which face will be culled if culling is enabled.

template<class OptionNodeType >
void	getOptionNode (OptionNodeType *&option)
	Get the first option node of the type of the pointer given as argument from the renderOptions fieeld The option argument will contain the node afterwards, or NULL if no option of that type exists.

int	getHapticShapeId (unsigned int index)
	Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device. More...

virtual	~X3DGeometryNode ()
	Destructor.

HAPI::HAPIHapticShape *	getOpenGLHapticShape (unsigned int hd_index, H3DSurfaceNode *_surface, const Matrix4f &_transform, int _nr_vertices=-1)
	Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual bool	supportsTangentAttributes ()
	Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g. More...

virtual void	getBound (HAPI::Vec3 &center, HAPI::Vec3 &size)
	Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode. More...

virtual void	initialize ()
	Changes behaviour of X3DGeometryNode to be a thread safe RefCountedClass.

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DBoundedObject
	H3DBoundedObject (Inst< SFBound > _bound=0)
	Constructor.

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Attributes
H3DUniquePtr< SFCoordinateNode >	controlPoint
	controlPoint defines a set of control points of dimension uDimension × vDimension. More...

H3DUniquePtr< TexCoordOrNurbsTex >	texCoord
	texCoord provides additional information on how to generate texture coordinates. More...

H3DUniquePtr< SFInt32 >	uTessellation
	uTesselation provides a hint to the tessellation system of the nurbs surface. More...

H3DUniquePtr< SFInt32 >	vTessellation
	vTesselation provides a hint to the tessellation system of the nurbs surface. More...

H3DUniquePtr< MFDouble >	weight
	A weight value that shall be greater than zero is assigned to each controlPoint. More...

H3DUniquePtr< SFBool >	solid
	Specifies if both sides of the Sphere should be rendered or only the outside. More...

H3DUniquePtr< SFBool >	uClosed
	The uClosed defines whether the curve should be rendered as a closed object in the u direction. More...

H3DUniquePtr< SFBool >	vClosed
	The vClosed defines whether the curve should be rendered as a closed object in the v direction. More...

H3DUniquePtr< SFInt32 >	uDimension
	Defines the number of control points in the u dimension. More...

H3DUniquePtr< SFInt32 >	vDimension
	Defines the number of control points in the v dimension. More...

H3DUniquePtr< MFDouble >	uKnot
	Defines the knot values of the surface in the u dimension. More...

H3DUniquePtr< MFDouble >	vKnot
	Defines the knot values of the surface in the v dimension. More...

H3DUniquePtr< SFInt32 >	uOrder
	Defines the order of the surface in the u dimension. More...

H3DUniquePtr< SFInt32 >	vOrder
	Defines the order of the surface in the v dimension. More...

Public Attributes inherited from H3D::X3DGeometryNode
H3DUniquePtr< MFBool >	isTouched
	Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop. More...

H3DUniquePtr< MFVec3f >	force
	The last force delivered by this geometry to the haptics device. More...

H3DUniquePtr< MFVec3f >	contactPoint
	The last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactTexCoord
	The texture coordinate of last the contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactNormal
	The normal at the last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< SFVec3f >	centerOfMass
	The field contains center of mass for the object, based on its bounding box. More...

H3DUniquePtr< SFBoundTree >	boundTree
	Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode. More...

H3DUniquePtr< MFOptionsNode >	options
	Contains nodes with options for haptics and graphics rendering. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DBoundedObject
H3DUniquePtr< SFBound >	bound
	The field containing the bound object. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DGeometryNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Attributes
H3DUniquePtr< Field >	printWarning
	A field used to check if a warning should be printed. More...

Protected Attributes inherited from H3D::X3DGeometryNode
AutoRef< Node >	shadow_volume
	The shadow volume used for this geometry when shadows enabled. More...

vector< pair< int, pair< Matrix4f, H3DTime > > >	haptic_shape_ids
	identifiers for the shapes geometry.

Additional Inherited Members
Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::X3DGeometryNode
static void	cleanUpFunction (void *userdata)
	Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The X3DNurbsSurfaceGeometryNode represents the abstract geometry type for all types of NURBS surfaces.

uDimension and vDimension define the number of control points in the u and v dimensions.

uOrder and vOrder define the order of the surface in the u and v dimensions.

uKnot and vKnot define the knot values of the surface in the u and v dimensions.

uClosed and vClosed define whether or not the specific dimension is to be evaluated as a closed surface or not in the u and v dimensions.

controlPoint defines a set of control points of dimension uDimension × vDimension. This set of points defines a mesh where the points do not have a uniform spacing. uDimension points define a polyline in u-direction followed by further u-polylines with the v-parameter in ascending order. The number of control points shall be equal or greater than the order. A closed surface shall be specified by repeating the limiting control points and setting the closed field to TRUE. If the closed field is set to FALSE, the implementation shall not be required to smoothly blend the edges of the surface in that dimension into a continuous surface. If the last set of control points are not identical, the field is ignored.

The control vertex corresponding to the control point P[i,j] on the control grid is:

P[i,j].x = controlPoints[i + ( j × uDimension)].x P[i,j].y = controlPoints[i + ( j × uDimension)].y P[i,j].z = controlPoints[i + ( j × uDimension)].z P[i,j].w = weight[ i + (j × uDimension)]

where 0 = i < uDimension and 0 = j < vDimension.

For an implementation subdividing the surface in a equal number of subdivision steps, tessellation values could be interpreted in the following way:

if a tessellation value is greater than 0, the number of tessellation points is:

tessellation+1;

if a tessellation value is smaller than 0, the number of tessellation points is:

-tessellation × (u/v)dimension)+1;

if a tessellation value is 0, the number of tessellation points is:

(2 × (u/v)dimension)+1.

For implementations doing tessellations based on chord length, tessellation values less than zero are interpreted as the maximum chord length deviation in pixels. Implementations doing fully automatic tessellation may ignore the tessellation hint parameters.

texCoord provides additional information on how to generate texture coordinates. By default, texture coordinates in the unit square (or cube for 3D coordinates) are generated automatically from the parametric subdivision. A NurbsTextureCoordinate node or simply a TextureCoordinate node can then be used to compute a texture coordinate given a u/v parameter of the NurbsSurface. The NurbsTextureCoordinate also supports non-animated surfaces to specify a "chord length"-based texture coordinate parametrization.

The solid field determines whether the surface is visible when viewed from the inside

closed defines whether the curve should be rendered as a closed object in the given parametric direction allowing the object to be closed in one direction, but not the other (EXAMPLE cylinder).

Internal routes:

Member Function Documentation

◆ renderBetweenBeginEnd()

virtual void H3D::X3DNurbsSurfaceGeometryNode::renderBetweenBeginEnd	(	GLUnurbsObj *	,
		X3DTextureCoordinateNode *	,
		TextureCoordinateGenerator *	,
		NurbsTextureCoordinate *	,
		GLfloat *	,
		GLfloat *	,
		GLfloat *	,
		GLfloat *	,
		GLfloat *	,
		H3DInt32 &	,
		GLfloat *	,
		H3DInt32 &	,
		H3DInt32 &	,
		H3DInt32 &
	)

inlinevirtual

Function called by render to render the small part that differs between NurbsPatchSurface and NurbsTrimmedSurface.

The arguments are things that are needed to render that difference.

Reimplemented in H3D::NurbsTrimmedSurface, and H3D::NurbsPatchSurface.

Referenced by render().

Member Data Documentation

◆ controlPoint

H3DUniquePtr< SFCoordinateNode > H3D::X3DNurbsSurfaceGeometryNode::controlPoint

controlPoint defines a set of control points of dimension uDimension × vDimension.

This set of points defines a mesh where the points do not have a uniform spacing. uDimension points define a polyline in u-direction followed by further u-polylines with the v-parameter in ascending order. The number of control points shall be equal or greater than the order.

Access type: inputOutput

Referenced by render(), and X3DNurbsSurfaceGeometryNode().

◆ printWarning

H3DUniquePtr< Field > H3D::X3DNurbsSurfaceGeometryNode::printWarning

protected

A field used to check if a warning should be printed.

C++ internal field only.

Referenced by render(), and X3DNurbsSurfaceGeometryNode().

◆ solid

H3DUniquePtr< SFBool > H3D::X3DNurbsSurfaceGeometryNode::solid

Specifies if both sides of the Sphere should be rendered or only the outside.

Both are rendered if false, outside only it true.

Access type: inputOutput
Default value: TRUE

Referenced by traverseSG(), and X3DNurbsSurfaceGeometryNode().

◆ texCoord

H3DUniquePtr< TexCoordOrNurbsTex > H3D::X3DNurbsSurfaceGeometryNode::texCoord

texCoord provides additional information on how to generate texture coordinates.

By default, texture coordinates in the unit square (or cube for 3D coordinates) are generated automatically from the parametric subdivision. A NurbsTextureCoordinate node or simply a TextureCoordinate node can then be used to compute a texture coordinate given a u/v parameter of the NurbsSurface.

Access type: inputOutput

Referenced by render(), and X3DNurbsSurfaceGeometryNode().

◆ uClosed

H3DUniquePtr< SFBool > H3D::X3DNurbsSurfaceGeometryNode::uClosed

The uClosed defines whether the curve should be rendered as a closed object in the u direction.

Access type: inputOutput
Default value: FALSE

Referenced by X3DNurbsSurfaceGeometryNode().

◆ uDimension

H3DUniquePtr< SFInt32 > H3D::X3DNurbsSurfaceGeometryNode::uDimension

Defines the number of control points in the u dimension.

Access type: inputOutput
Default value: 0

Referenced by render(), H3D::NurbsPatchSurface::renderBetweenBeginEnd(), H3D::NurbsTrimmedSurface::renderBetweenBeginEnd(), and X3DNurbsSurfaceGeometryNode().

◆ uKnot

H3DUniquePtr< MFDouble > H3D::X3DNurbsSurfaceGeometryNode::uKnot

Defines the knot values of the surface in the u dimension.

Access type: inputOutput

Referenced by render(), and X3DNurbsSurfaceGeometryNode().

◆ uOrder

H3DUniquePtr< SFInt32 > H3D::X3DNurbsSurfaceGeometryNode::uOrder

Defines the order of the surface in the u dimension.

Access type: inputOutput
Default value: 3

Referenced by render(), H3D::NurbsPatchSurface::renderBetweenBeginEnd(), H3D::NurbsTrimmedSurface::renderBetweenBeginEnd(), and X3DNurbsSurfaceGeometryNode().

◆ uTessellation

H3DUniquePtr< SFInt32 > H3D::X3DNurbsSurfaceGeometryNode::uTessellation

uTesselation provides a hint to the tessellation system of the nurbs surface.

Access type: inputOutput
Default value: 0

Referenced by X3DNurbsSurfaceGeometryNode().

◆ vClosed

H3DUniquePtr< SFBool > H3D::X3DNurbsSurfaceGeometryNode::vClosed

The vClosed defines whether the curve should be rendered as a closed object in the v direction.

Access type: inputOutput
Default value: FALSE

Referenced by X3DNurbsSurfaceGeometryNode().

◆ vDimension

H3DUniquePtr< SFInt32 > H3D::X3DNurbsSurfaceGeometryNode::vDimension

Defines the number of control points in the v dimension.

Access type: inputOutput
Default value: 0

Referenced by render(), and X3DNurbsSurfaceGeometryNode().

◆ vKnot

H3DUniquePtr< MFDouble > H3D::X3DNurbsSurfaceGeometryNode::vKnot

Defines the knot values of the surface in the v dimension.

Access type: inputOutput

Referenced by render(), and X3DNurbsSurfaceGeometryNode().

◆ vOrder

H3DUniquePtr< SFInt32 > H3D::X3DNurbsSurfaceGeometryNode::vOrder

Defines the order of the surface in the v dimension.

Access type: inputOutput
Default value: 3

Referenced by render(), H3D::NurbsPatchSurface::renderBetweenBeginEnd(), H3D::NurbsTrimmedSurface::renderBetweenBeginEnd(), and X3DNurbsSurfaceGeometryNode().

◆ vTessellation

H3DUniquePtr< SFInt32 > H3D::X3DNurbsSurfaceGeometryNode::vTessellation

vTesselation provides a hint to the tessellation system of the nurbs surface.

Access type: inputOutput
Default value: 0

Referenced by X3DNurbsSurfaceGeometryNode().

◆ weight

H3DUniquePtr< MFDouble > H3D::X3DNurbsSurfaceGeometryNode::weight

A weight value that shall be greater than zero is assigned to each controlPoint.

The ordering of the values is equivalent to the ordering of the control point values. The number of values shall be identical to the number of control points. If the length of the weight vector is 0, the default weight 1.0 is assumed for each control point, thus defining a non-Rational curve. If the number of weight values is less than the number of control points, all weight values shall be ignored and a value of 1.0 shall be used.

Access type: inputOutput

Referenced by render(), and X3DNurbsSurfaceGeometryNode().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ renderBetweenBeginEnd()

Member Data Documentation

◆ controlPoint

◆ printWarning

◆ solid

◆ texCoord

◆ uClosed

◆ uDimension

◆ uKnot

◆ uOrder

◆ uTessellation

◆ vClosed

◆ vDimension

◆ vKnot

◆ vOrder

◆ vTessellation

◆ weight
