The NurbsTextureCoordinate node is a NURBS surface existing in the parametric domain of its surface host specifying the mapping of the texture onto the surface. More...

#include <H3D/NurbsTextureCoordinate.h>

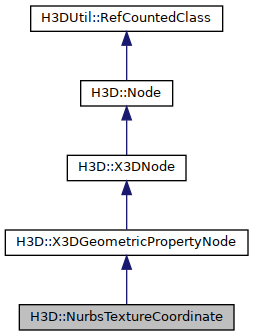

Inheritance diagram for H3D::NurbsTextureCoordinate:

Public Member Functions
void	renderTexForNurbs (GLUnurbsObj *nurbs_object)
	Calls OpenGL routines to render the texture.

	~NurbsTextureCoordinate ()
	Destructor.

	NurbsTextureCoordinate (Inst< SFNode > _metadata=0, Inst< MFVec2f > _controlPoint=0, Inst< MFFloat > _weight=0, Inst< SFInt32 > _uDimension=0, Inst< SFInt32 > _vDimension=0, Inst< MFDouble > _uKnot=0, Inst< MFDouble > _vKnot=0, Inst< SFInt32 > _uOrder=0, Inst< SFInt32 > _vOrder=0)
	Constructor.

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

Public Member Functions inherited from H3D::X3DGeometricPropertyNode
	X3DGeometricPropertyNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual void	traverseSG (TraverseInfo &ti)
	traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Attributes
H3DUniquePtr< MFVec2f >	controlPoint
	controlPoint defines a set of control points of dimension uDimension x vDimension. More...

H3DUniquePtr< MFFloat >	weight
	A weight value that shall be greater than zero is assigned to each controlPoint. More...

H3DUniquePtr< SFInt32 >	uDimension
	Defines the number of control points in the u dimension. More...

H3DUniquePtr< SFInt32 >	vDimension
	Defines the number of control points in the v dimension. More...

H3DUniquePtr< MFDouble >	uKnot
	Defines the knot values of the surface in the u dimension. More...

H3DUniquePtr< MFDouble >	vKnot
	Defines the knot values of the surface in the v dimension. More...

H3DUniquePtr< SFInt32 >	uOrder
	Defines the order of the surface in the u dimension. More...

H3DUniquePtr< SFInt32 >	vOrder
	Defines the order of the surface in the v dimension. More...

Public Attributes inherited from H3D::X3DGeometricPropertyNode
H3DUniquePtr< Field >	propertyChanged
	Field that indicated whether the properties have changed. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The NurbsTextureCoordinate node is a NURBS surface existing in the parametric domain of its surface host specifying the mapping of the texture onto the surface.

The parameters are as specified in NurbsTextureCoordinate with the exception that the control points are specified in (u, v) coordinates.

The tessellation process generates 2D texture coordinates. If a NurbsTextureCoordinate is undefined, texture coordinates are computed by the client on the basis of parametric step size. Conventional vertex parameters do not apply on NURBS surfaces because triangles are only available after polygonalization. However, the conventional texture transform may be used.

NurbsTextureCoordinate nodes are accessed through the texCoord field of a node derived from NurbsTextureCoordinate. A NurbsTextureCoordinate node separately encountered is ignored.

Examples:

NurbsTextureCoordinate.x3d ( Source )

Internal routes:

Member Function Documentation

◆ defaultXMLContainerField()

virtual string H3D::NurbsTextureCoordinate::defaultXMLContainerField ( )

inlinevirtual

Returns the default xml containerField attribute value.

For this node it is "texCoord".

Reimplemented from H3D::Node.

Member Data Documentation

◆ controlPoint

H3DUniquePtr< MFVec2f > H3D::NurbsTextureCoordinate::controlPoint

controlPoint defines a set of control points of dimension uDimension x vDimension.

This set of points defines a mesh where the points do not have a uniform spacing. uDimension points define a polyline in u-direction followed by further u-polylines with the v-parameter in ascending order. The number of control points shall be equal or greater than the order. The control points are specified as (u, v) coordinates in this node.

Access type: inputOutput

Referenced by NurbsTextureCoordinate(), and renderTexForNurbs().

◆ uDimension

H3DUniquePtr< SFInt32 > H3D::NurbsTextureCoordinate::uDimension

Defines the number of control points in the u dimension.

Access type: inputOutput
Default value: 0

Referenced by NurbsTextureCoordinate(), and renderTexForNurbs().

◆ uKnot

H3DUniquePtr< MFDouble > H3D::NurbsTextureCoordinate::uKnot

Defines the knot values of the surface in the u dimension.

Access type: inputOutput

Referenced by NurbsTextureCoordinate(), and renderTexForNurbs().

◆ uOrder

H3DUniquePtr< SFInt32 > H3D::NurbsTextureCoordinate::uOrder

Defines the order of the surface in the u dimension.

Access type: inputOutput
Default value: 3

Referenced by NurbsTextureCoordinate(), and renderTexForNurbs().

◆ vDimension

H3DUniquePtr< SFInt32 > H3D::NurbsTextureCoordinate::vDimension

Defines the number of control points in the v dimension.

Access type: inputOutput
Default value: 0

Referenced by NurbsTextureCoordinate(), and renderTexForNurbs().

◆ vKnot

H3DUniquePtr< MFDouble > H3D::NurbsTextureCoordinate::vKnot

Defines the knot values of the surface in the v dimension.

Access type: inputOutput

Referenced by NurbsTextureCoordinate(), and renderTexForNurbs().

◆ vOrder

H3DUniquePtr< SFInt32 > H3D::NurbsTextureCoordinate::vOrder

Defines the order of the surface in the v dimension.

Access type: inputOutput
Default value: 3

Referenced by NurbsTextureCoordinate(), and renderTexForNurbs().

◆ weight

H3DUniquePtr< MFFloat > H3D::NurbsTextureCoordinate::weight

A weight value that shall be greater than zero is assigned to each controlPoint.

The ordering of the values is equivalent to the ordering of the control point values. The number of values shall be identical to the number of control points. If the length of the weight vector is 0, the default weight 1.0 is assumed for each control point, thus defining a non-Rational curve. If the number of weight values is less than the number of control points, all weight values shall be ignored and a value of 1.0 shall be used.

Access type: inputOutput

Referenced by NurbsTextureCoordinate(), and renderTexForNurbs().

The documentation for this class was generated from the following files:
