The NurbsPatchSurface node is a contiguous NURBS surface patch. More...
#include <H3D/NurbsPatchSurface.h>
Public Member Functions | |
| NurbsPatchSurface (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< SFCoordinateNode > _controlPoint=0, Inst< TexCoordOrNurbsTex > _texCoord=0, Inst< SFInt32 > _uTessellation=0, Inst< SFInt32 > _vTessellation=0, Inst< MFDouble > _weight=0, Inst< SFBool > _solid=0, Inst< SFBool > _uClosed=0, Inst< SFBool > _vClosed=0, Inst< SFInt32 > _uDimension=0, Inst< SFInt32 > _vDimension=0, Inst< MFDouble > _uKnot=0, Inst< MFDouble > _vKnot=0, Inst< SFInt32 > _uOrder=0, Inst< SFInt32 > _vOrder=0) | |
| Constructor. | |
| virtual void | renderBetweenBeginEnd (GLUnurbsObj *_nurbs_object, X3DTextureCoordinateNode *tex_coord_node, TextureCoordinateGenerator *tex_coord_gen, NurbsTextureCoordinate *nurbs_tex_coord, GLfloat *texKnotU, GLfloat *texKnotV, GLfloat *texCoordinates, GLfloat *u_knots, GLfloat *v_knots, H3DInt32 &sizeOfVertex, GLfloat *withWeights, H3DInt32 &uSizeToUse, H3DInt32 &vSizeToUse, H3DInt32 &map2Vertex3Or4) |
| Function called by render to render the small part that differs between NurbsPatchSurface and NurbsTrimmedSurface. More... | |
 Public Member Functions inherited from H3D::X3DNurbsSurfaceGeometryNode | |
| ~X3DNurbsSurfaceGeometryNode () | |
| Destructor. | |
| X3DNurbsSurfaceGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< SFCoordinateNode > _controlPoint=0, Inst< TexCoordOrNurbsTex > _texCoord=0, Inst< SFInt32 > _uTessellation=0, Inst< SFInt32 > _vTessellation=0, Inst< MFDouble > _weight=0, Inst< SFBool > _solid=0, Inst< SFBool > _uClosed=0, Inst< SFBool > _vClosed=0, Inst< SFInt32 > _uDimension=0, Inst< SFInt32 > _vDimension=0, Inst< MFDouble > _uKnot=0, Inst< MFDouble > _vKnot=0, Inst< SFInt32 > _uOrder=0, Inst< SFInt32 > _vOrder=0) | |
| Constructor. | |
| virtual void | render () |
| Render the X3DNurbsSurfaceGeometryNode with OpenGL. | |
| virtual void | traverseSG (TraverseInfo &ti) |
| Traverse the scenegraph. | |
| virtual int | nrTriangles () |
| The number of triangles renderered in this geometry, we don't know so return -1. | |
| Public Member Functions inherited from H3D::X3DParametricGeometryNode | |
| X3DParametricGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DGeometryNode | |
| X3DGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< MFVec3f > _contactTexCoord=0, Inst< SFBoundTree > _boundTree=0, Inst< SFVec3f > _centerOfMass=0) | |
| Constructor. | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and this geometry. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on this geometry to point p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the geometry. More... | |
| virtual void | glRender () |
| Function overridden from HAPIGLShape. More... | |
| virtual H3DShadowObjectNode * | getShadowObject () |
| Get the H3DShadowObjectNode used to create a shadow volume for this geometry. More... | |
| void | useCulling (bool enabled) |
| This function should be used by the render() function to disable or enable face culling. More... | |
| bool | usingCulling () |
| Returns if face culling is in use or not. | |
| void | allowCulling (bool allow) |
| Control if face culling is allowed or not. More... | |
| void | useBackFaceCulling (bool enabled) |
| Enabling/disabling back face culling. More... | |
| bool | allowingCulling () |
| Returns true if back face culling is allowed, false otherwise. | |
| void | setCullFace (GLenum face) |
| Set which side of a polygon to cull. More... | |
| GLenum | getCullFace () |
| Get which face will be culled if culling is enabled. | |
| template<class OptionNodeType > | |
| void | getOptionNode (OptionNodeType *&option) |
| Get the first option node of the type of the pointer given as argument from the renderOptions fieeld The option argument will contain the node afterwards, or NULL if no option of that type exists. | |
| int | getHapticShapeId (unsigned int index) |
| Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device. More... | |
| virtual | ~X3DGeometryNode () |
| Destructor. | |
| HAPI::HAPIHapticShape * | getOpenGLHapticShape (unsigned int hd_index, H3DSurfaceNode *_surface, const Matrix4f &_transform, int _nr_vertices=-1) |
| Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode. More... | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| virtual bool | supportsTangentAttributes () |
| Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g. More... | |
| virtual void | getBound (HAPI::Vec3 ¢er, HAPI::Vec3 &size) |
| Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode. More... | |
| virtual void | initialize () |
| Changes behaviour of X3DGeometryNode to be a thread safe RefCountedClass. | |
| Public Member Functions inherited from H3D::X3DChildNode | |
| X3DChildNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| Public Member Functions inherited from H3D::H3DBoundedObject | |
| H3DBoundedObject (Inst< SFBound > _bound=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::H3DDisplayListObject | |
| H3DDisplayListObject (Inst< DisplayList > _displayList=0) | |
| Constructor. | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNurbsSurfaceGeometryNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DGeometryNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
Additional Inherited Members | |
| Public Types inherited from H3D::X3DNurbsSurfaceGeometryNode | |
| typedef DependentSFNode< X3DCoordinateNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DCoordinateNode::propertyChanged > > | SFCoordinateNode |
| The SFCoordinateNode is dependent on the propertyChanged field of the contained X3DCoordinateNode. | |
| typedef DependentSFNode< X3DGeometricPropertyNode, FieldRef< X3DGeometricPropertyNode, Field, &X3DGeometricPropertyNode::propertyChanged > > | TexCoordOrNurbsTexDependent |
| The SFTextureCoordinteNode is dependent on the propertyChanged field of the contained X3DTextureCoordinateNode or NurbsTextureCoordinate which both inherits from X3DGeometricPropertyNode. | |
| typedef CoordBoundField | SFBound |
| The bound field for X3DNurbsSurfaceGeometryNode is a CoordBoundField. | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Public Attributes inherited from H3D::X3DNurbsSurfaceGeometryNode | |
| H3DUniquePtr< SFCoordinateNode > | controlPoint |
| controlPoint defines a set of control points of dimension uDimension × vDimension. More... | |
| H3DUniquePtr< TexCoordOrNurbsTex > | texCoord |
| texCoord provides additional information on how to generate texture coordinates. More... | |
| H3DUniquePtr< SFInt32 > | uTessellation |
| uTesselation provides a hint to the tessellation system of the nurbs surface. More... | |
| H3DUniquePtr< SFInt32 > | vTessellation |
| vTesselation provides a hint to the tessellation system of the nurbs surface. More... | |
| H3DUniquePtr< MFDouble > | weight |
| A weight value that shall be greater than zero is assigned to each controlPoint. More... | |
| H3DUniquePtr< SFBool > | solid |
| Specifies if both sides of the Sphere should be rendered or only the outside. More... | |
| H3DUniquePtr< SFBool > | uClosed |
| The uClosed defines whether the curve should be rendered as a closed object in the u direction. More... | |
| H3DUniquePtr< SFBool > | vClosed |
| The vClosed defines whether the curve should be rendered as a closed object in the v direction. More... | |
| H3DUniquePtr< SFInt32 > | uDimension |
| Defines the number of control points in the u dimension. More... | |
| H3DUniquePtr< SFInt32 > | vDimension |
| Defines the number of control points in the v dimension. More... | |
| H3DUniquePtr< MFDouble > | uKnot |
| Defines the knot values of the surface in the u dimension. More... | |
| H3DUniquePtr< MFDouble > | vKnot |
| Defines the knot values of the surface in the v dimension. More... | |
| H3DUniquePtr< SFInt32 > | uOrder |
| Defines the order of the surface in the u dimension. More... | |
| H3DUniquePtr< SFInt32 > | vOrder |
| Defines the order of the surface in the v dimension. More... | |
| Public Attributes inherited from H3D::X3DGeometryNode | |
| H3DUniquePtr< MFBool > | isTouched |
| Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop. More... | |
| H3DUniquePtr< MFVec3f > | force |
| The last force delivered by this geometry to the haptics device. More... | |
| H3DUniquePtr< MFVec3f > | contactPoint |
| The last contact points of the HapticDevices on the geometry. More... | |
| H3DUniquePtr< MFVec3f > | contactTexCoord |
| The texture coordinate of last the contact points of the HapticDevices on the geometry. More... | |
| H3DUniquePtr< MFVec3f > | contactNormal |
| The normal at the last contact points of the HapticDevices on the geometry. More... | |
| H3DUniquePtr< SFVec3f > | centerOfMass |
| The field contains center of mass for the object, based on its bounding box. More... | |
| H3DUniquePtr< SFBoundTree > | boundTree |
| Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode. More... | |
| H3DUniquePtr< MFOptionsNode > | options |
| Contains nodes with options for haptics and graphics rendering. More... | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
| Public Attributes inherited from H3D::H3DBoundedObject | |
| H3DUniquePtr< SFBound > | bound |
| The field containing the bound object. More... | |
| Public Attributes inherited from H3D::H3DDisplayListObject | |
| H3DUniquePtr< DisplayList > | displayList |
| The DisplayList instance handling the OpenGL caching of this object. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Static Protected Member Functions inherited from H3D::X3DGeometryNode | |
| static void | cleanUpFunction (void *userdata) |
| Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
| Protected Attributes inherited from H3D::X3DNurbsSurfaceGeometryNode | |
| H3DUniquePtr< Field > | printWarning |
| A field used to check if a warning should be printed. More... | |
| Protected Attributes inherited from H3D::X3DGeometryNode | |
| AutoRef< Node > | shadow_volume |
| The shadow volume used for this geometry when shadows enabled. More... | |
| vector< pair< int, pair< Matrix4f, H3DTime > > > | haptic_shape_ids |
| identifiers for the shapes geometry. | |
Detailed Description
The NurbsPatchSurface node is a contiguous NURBS surface patch.
uDimension and vDimension define the number of control points in the u and v dimensions.
uOrder and vOrder define the order of the surface in the u and v dimensions.
uKnot and vKnot define the knot values of the surface in the u and v dimensions.
uClosed and vClosed define whether or not the specific dimension is to be evaluated as a closed surface or not in the u and v dimensions.
controlPoint defines a set of control points of dimension uDimension × vDimension. This set of points defines a mesh where the points do not have a uniform spacing. uDimension points define a polyline in u-direction followed by further u-polylines with the v-parameter in ascending order. The number of control points shall be equal or greater than the order. A closed surface shall be specified by repeating the limiting control points and setting the closed field to TRUE. If the closed field is set to FALSE, the implementation shall not be required to smoothly blend the edges of the surface in that dimension into a continuous surface. If the last set of control points are not identical, the field is ignored.
The control vertex corresponding to the control point P[i,j] on the control grid is:
P[i,j].x = controlPoints[i + ( j × uDimension)].x P[i,j].y = controlPoints[i + ( j × uDimension)].y P[i,j].z = controlPoints[i + ( j × uDimension)].z P[i,j].w = weight[ i + (j × uDimension)]
where 0 = i < uDimension and 0 = j < vDimension.
For an implementation subdividing the surface in a equal number of subdivision steps, tessellation values could be interpreted in the following way:
if a tessellation value is greater than 0, the number of tessellation points is:
tessellation+1;
if a tessellation value is smaller than 0, the number of tessellation points is:
-tessellation × (u/v)dimension)+1;
if a tessellation value is 0, the number of tessellation points is:
(2 × (u/v)dimension)+1.
For implementations doing tessellations based on chord length, tessellation values less than zero are interpreted as the maximum chord length deviation in pixels. Implementations doing fully automatic tessellation may ignore the tessellation hint parameters.
texCoord provides additional information on how to generate texture coordinates. By default, texture coordinates in the unit square (or cube for 3D coordinates) are generated automatically from the parametric subdivision. A NurbsTextureCoordinate node or simply a TextureCoordinate node can then be used to compute a texture coordinate given a u/v parameter of the NurbsSurface. The NurbsTextureCoordinate also supports non-animated surfaces to specify a "chord length"-based texture coordinate parametrization.
The solid field determines whether the surface is visible when viewed from the inside
closed defines whether the curve should be rendered as a closed object in the given parametric direction allowing the object to be closed in one direction, but not the other (EXAMPLE cylinder).
Examples:
- Internal routes:
Member Function Documentation
◆ renderBetweenBeginEnd()
|
virtual |
Function called by render to render the small part that differs between NurbsPatchSurface and NurbsTrimmedSurface.
The arguments are things that are needed to render that difference.

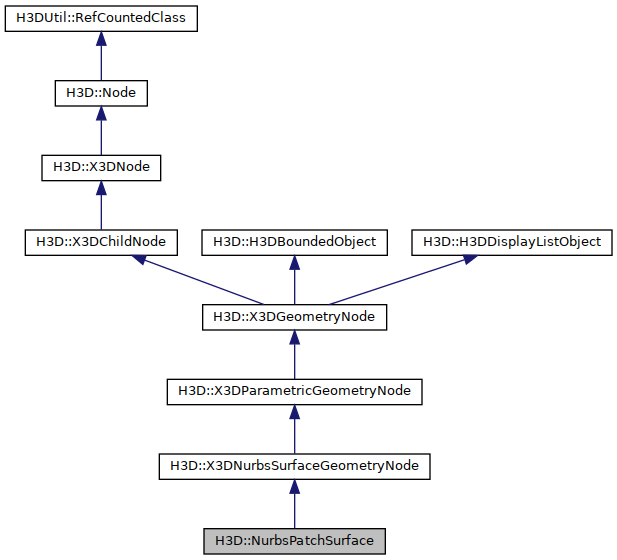

Reimplemented from H3D::X3DNurbsSurfaceGeometryNode.
References H3D::NurbsTextureCoordinate::renderTexForNurbs(), H3D::TextureCoordinateGenerator::startTexGen(), H3D::X3DNurbsSurfaceGeometryNode::uDimension, H3D::X3DNurbsSurfaceGeometryNode::uOrder, and H3D::X3DNurbsSurfaceGeometryNode::vOrder.
The documentation for this class was generated from the following files:
