The Extrusion node specifies geometric shapes based on a two dimensional cross-section extruded along a three dimensional spine in the local coordinate system. More...

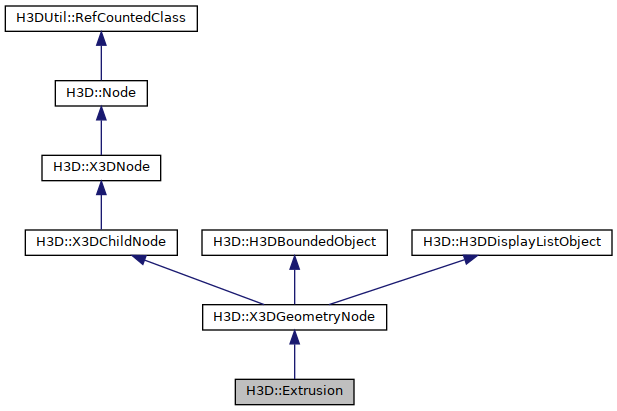

#include <H3D/Extrusion.h>
Classes | |
| class | AutoNormal |
| Specialized field for automatically generating normals from coordinates. More... | |
| class | SFBound |
| SFBound is specialized update itself from the fields of the Extrusion. More... | |
| class | VertexVector |
| Specialized field vertex coordinates from the fields affecting this, the resulting vertexVector will be used both in render and in bound. More... | |
Public Types | |
| typedef DependentSFNode< Normal, FieldRef< X3DGeometricPropertyNode, Field, &X3DNormalNode::propertyChanged > > | SFNormalNode |
| The SFNormalNode is dependent on the propertyChanged field of the contained Normal. | |
 Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
Public Member Functions | |
| virtual void | render () |
| Render the Extrusion with OpenGL. | |
| virtual int | nrTriangles () |
| An upper bound on the number of triangles. | |
| virtual void | traverseSG (TraverseInfo &ti) |
| Traverse the scenegraph. More... | |
| Extrusion (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< SFBool > _beginCap=0, Inst< SFBool > _ccw=0, Inst< SFBool > _convex=0, Inst< SFFloat > _creaseAngle=0, Inst< MFVec2f > _crossSection=0, Inst< SFBool > _endCap=0, Inst< MFRotation > _orientation=0, Inst< MFVec2f > _scale=0, Inst< SFBool > _solid=0, Inst< MFVec3f > _spine=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DGeometryNode | |
| X3DGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< MFVec3f > _contactTexCoord=0, Inst< SFBoundTree > _boundTree=0, Inst< SFVec3f > _centerOfMass=0) | |
| Constructor. | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and this geometry. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on this geometry to point p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the geometry. More... | |
| virtual void | glRender () |
| Function overridden from HAPIGLShape. More... | |
| virtual H3DShadowObjectNode * | getShadowObject () |
| Get the H3DShadowObjectNode used to create a shadow volume for this geometry. More... | |
| void | useCulling (bool enabled) |
| This function should be used by the render() function to disable or enable face culling. More... | |
| bool | usingCulling () |
| Returns if face culling is in use or not. | |
| void | allowCulling (bool allow) |
| Control if face culling is allowed or not. More... | |
| void | useBackFaceCulling (bool enabled) |
| Enabling/disabling back face culling. More... | |
| bool | allowingCulling () |
| Returns true if back face culling is allowed, false otherwise. | |
| void | setCullFace (GLenum face) |
| Set which side of a polygon to cull. More... | |
| GLenum | getCullFace () |
| Get which face will be culled if culling is enabled. | |
| template<class OptionNodeType > | |
| void | getOptionNode (OptionNodeType *&option) |
| Get the first option node of the type of the pointer given as argument from the renderOptions fieeld The option argument will contain the node afterwards, or NULL if no option of that type exists. | |
| int | getHapticShapeId (unsigned int index) |
| Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device. More... | |
| virtual | ~X3DGeometryNode () |
| Destructor. | |
| HAPI::HAPIHapticShape * | getOpenGLHapticShape (unsigned int hd_index, H3DSurfaceNode *_surface, const Matrix4f &_transform, int _nr_vertices=-1) |
| Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode. More... | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| virtual bool | supportsTangentAttributes () |
| Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g. More... | |
| virtual void | getBound (HAPI::Vec3 ¢er, HAPI::Vec3 &size) |
| Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode. More... | |
| virtual void | initialize () |
| Changes behaviour of X3DGeometryNode to be a thread safe RefCountedClass. | |
| Public Member Functions inherited from H3D::X3DChildNode | |
| X3DChildNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| Public Member Functions inherited from H3D::H3DBoundedObject | |
| H3DBoundedObject (Inst< SFBound > _bound=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::H3DDisplayListObject | |
| H3DDisplayListObject (Inst< DisplayList > _displayList=0) | |
| Constructor. | |
Public Attributes | |
| H3DUniquePtr< SFBool > | beginCap |
| When the beginCap or endCap fields are specified as TRUE, planar cap surfaces will be generated regardless of whether the crossSection is a closed curve. More... | |
| H3DUniquePtr< SFBool > | ccw |
| The ccw field defines the ordering of the vertex coordinates of the geometry with respect to user-given or automatically generated normal vectors used in the lighting model equations. More... | |
| H3DUniquePtr< SFBool > | convex |
| The convex field indicates whether all polygons in the shape are convex (TRUE). More... | |
| H3DUniquePtr< SFFloat > | creaseAngle |
| The creaseAngle field affects how default normals are generated. More... | |
| H3DUniquePtr< MFVec2f > | crossSection |
| A 2D crossSection piecewise linear curve (described as a series of connected vertices). More... | |
| H3DUniquePtr< SFBool > | endCap |
| When the beginCap or endCap fields are specified as TRUE, planar cap surfaces will be generated regardless of whether the crossSection is a closed curve. More... | |
| H3DUniquePtr< MFRotation > | orientation |
| A list of 3D orientation parameters used to orient the crossSection. More... | |
| H3DUniquePtr< MFVec2f > | scale |
| A list of 2D scale parameters used to scale the crossSection. More... | |
| H3DUniquePtr< SFBool > | solid |
| The solid field determines whether one or both sides of each polygon shall be displayed. More... | |
| H3DUniquePtr< MFVec3f > | spine |
| A 3D spine piecewise linear curve (also described as a series of connected vertices). More... | |
| H3DUniquePtr< VertexVector > | vertexVector |
| The vector of vertices constructing the extrusion-shape Only accessable in C++. | |
| H3DUniquePtr< AutoNormal > | autoNormal |
| Auto-generated normals. More... | |
| Public Attributes inherited from H3D::X3DGeometryNode | |
| H3DUniquePtr< MFBool > | isTouched |
| Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop. More... | |
| H3DUniquePtr< MFVec3f > | force |
| The last force delivered by this geometry to the haptics device. More... | |
| H3DUniquePtr< MFVec3f > | contactPoint |
| The last contact points of the HapticDevices on the geometry. More... | |
| H3DUniquePtr< MFVec3f > | contactTexCoord |
| The texture coordinate of last the contact points of the HapticDevices on the geometry. More... | |
| H3DUniquePtr< MFVec3f > | contactNormal |
| The normal at the last contact points of the HapticDevices on the geometry. More... | |
| H3DUniquePtr< SFVec3f > | centerOfMass |
| The field contains center of mass for the object, based on its bounding box. More... | |
| H3DUniquePtr< SFBoundTree > | boundTree |
| Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode. More... | |
| H3DUniquePtr< MFOptionsNode > | options |
| Contains nodes with options for haptics and graphics rendering. More... | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
| Public Attributes inherited from H3D::H3DBoundedObject | |
| H3DUniquePtr< SFBound > | bound |
| The field containing the bound object. More... | |
| Public Attributes inherited from H3D::H3DDisplayListObject | |
| H3DUniquePtr< DisplayList > | displayList |
| The DisplayList instance handling the OpenGL caching of this object. | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DGeometryNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
Additional Inherited Members | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Static Protected Member Functions inherited from H3D::X3DGeometryNode | |
| static void | cleanUpFunction (void *userdata) |
| Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
| Protected Attributes inherited from H3D::X3DGeometryNode | |
| AutoRef< Node > | shadow_volume |
| The shadow volume used for this geometry when shadows enabled. More... | |
| vector< pair< int, pair< Matrix4f, H3DTime > > > | haptic_shape_ids |
| identifiers for the shapes geometry. | |
Detailed Description
The Extrusion node specifies geometric shapes based on a two dimensional cross-section extruded along a three dimensional spine in the local coordinate system.
The cross-section can be scaled and rotated at each spine point to produce a wide variety of shapes.
Examples:
- Extrusion.x3d ( Source )
- Internal routes:
Member Function Documentation
◆ traverseSG()
|
virtual |
Traverse the scenegraph.
A HAPIHapticShape is added for haptic rendering if haptics is enabled.
- Parameters
-
ti The TraverseInfo object containing information about the traversal.
Reimplemented from H3D::X3DGeometryNode.
References solid, H3D::X3DGeometryNode::traverseSG(), and H3D::X3DGeometryNode::useBackFaceCulling().
Member Data Documentation
◆ autoNormal
| H3DUniquePtr< AutoNormal > H3D::Extrusion::autoNormal |
◆ beginCap
| H3DUniquePtr< SFBool > H3D::Extrusion::beginCap |
When the beginCap or endCap fields are specified as TRUE, planar cap surfaces will be generated regardless of whether the crossSection is a closed curve.
If crossSection is not a closed curve, the caps are generated by adding a final point to crossSection that is equal to the initial point. An open surface can still have a cap, resulting (for a simple case) in a shape analogous to a soda can sliced in half vertically. These surfaces are generated even if spine is also a closed curve. If a field value is FALSE, the corresponding cap is not generated.
Access type: inputOutput
Default value: TRUE
Referenced by Extrusion(), and render().
◆ ccw
| H3DUniquePtr< SFBool > H3D::Extrusion::ccw |
The ccw field defines the ordering of the vertex coordinates of the geometry with respect to user-given or automatically generated normal vectors used in the lighting model equations.
If ccw is TRUE, the normals shall follow the right hand rule; the orientation of each normal with respect to the vertices (taken in order) shall be such that the vertices appear to be oriented in a counterclockwise order when the vertices are viewed (in the local coordinate system of the Shape) from the opposite direction as the normal. If ccw is FALSE, the normals shall be oriented in the opposite direction. If normals are not generated but are supplied using a Normal node, and the orientation of the normals does not match the setting of the ccw field, results are undefined.
Access type: inputOutput
Default value: TRUE
Referenced by Extrusion(), and render().
◆ convex
| H3DUniquePtr< SFBool > H3D::Extrusion::convex |
The convex field indicates whether all polygons in the shape are convex (TRUE).
A polygon is convex if it is planar, does not intersect itself, and all of the interior angles at its vertices are less than 180 degrees. Non planar and self intersecting polygons may produce undefined results even if the convex field is FALSE.
Access type: inputOutput
Default value: TRUE
Referenced by Extrusion().
◆ creaseAngle
| H3DUniquePtr< SFFloat > H3D::Extrusion::creaseAngle |
The creaseAngle field affects how default normals are generated.
If the angle between the geometric normals of two adjacent faces is less than the crease angle, normals shall be calculated so that the faces are shaded smoothly across the edge; otherwise, normals shall be calculated so that a lighting discontinuity across the edge is produced.
Access type: inputOutput
Default value: 0
Valid range: [0-inf]
Referenced by Extrusion(), and render().
◆ crossSection
| H3DUniquePtr< MFVec2f > H3D::Extrusion::crossSection |
A 2D crossSection piecewise linear curve (described as a series of connected vertices).
The cross-section can be scaled and rotated at each spine point to produce a wide variety of shapes.
Access type: inputOutput
Default value: [1 1 1 -1 -1 -1 -1 1 1 1]
Referenced by Extrusion(), and render().
◆ endCap
| H3DUniquePtr< SFBool > H3D::Extrusion::endCap |
When the beginCap or endCap fields are specified as TRUE, planar cap surfaces will be generated regardless of whether the crossSection is a closed curve.
If crossSection is not a closed curve, the caps are generated by adding a final point to crossSection that is equal to the initial point. An open surface can still have a cap, resulting (for a simple case) in a shape analogous to a soda can sliced in half vertically. These surfaces are generated even if spine is also a closed curve. If a field value is FALSE, the corresponding cap is not generated.
Access type: inputOutput
Default value: TRUE
Referenced by Extrusion(), and render().
◆ orientation
| H3DUniquePtr< MFRotation > H3D::Extrusion::orientation |
A list of 3D orientation parameters used to orient the crossSection.
If the number of orientation values is greater than the number of spine points, the excess values are ignored. If it contains one value, it is applied at all spine points. The results are undefined if the number of orientation values is greater than one but less than the number of spine points. The final orientation of each cross-section is computed by first orienting it relative to the spine segments on either side of point at which the cross-section is placed. This is known as the spine-aligned cross-section plane (SCP), and is designed to provide a smooth transition from one spine segment to the next. The SCP is then rotated by the corresponding orientation value. This rotation is performed relative to the SCP. For example, to impart twist in the cross-section, a rotation about the Y-axis (0 1 0) would be used. Other orientations are valid and rotate the cross-section out of the SCP. The unmodified SCP for point is has its y-axis in the direction of the spine point i-1 to i+1. The x and z axis are perpendicular to this direction.
Access type: inputOutput
Default value: 0 0 1 0
Referenced by Extrusion().
◆ scale
| H3DUniquePtr< MFVec2f > H3D::Extrusion::scale |
A list of 2D scale parameters used to scale the crossSection.
If the number of scale values is greater than the number of spine points, the excess values are ignored. If it contains one value, it is applied at all spine points. The results are undefined if the number of scale values is greater than one but less than the number of spine points.
Access type: inputOutput
Default value: 1 1
Referenced by Extrusion().
◆ solid
| H3DUniquePtr< SFBool > H3D::Extrusion::solid |
The solid field determines whether one or both sides of each polygon shall be displayed.
If solid is FALSE, each polygon shall be visible regardless of the viewing direction (i.e., no backface culling shall be done, and two sided lighting shall be performed to illuminate both sides of lit surfaces). If solid is TRUE, back face culling will be performed.
Access type: inputOutput
Default value: TRUE
Referenced by Extrusion(), and traverseSG().
◆ spine
| H3DUniquePtr< MFVec3f > H3D::Extrusion::spine |
A 3D spine piecewise linear curve (also described as a series of connected vertices).
Access type: inputOutput
Default value: [0 0 0 0 1 0]
Referenced by Extrusion(), and render().
The documentation for this class was generated from the following files:
