The Text node specifies a two-sided, flat text string object positioned in the Z=0 plane of the local coordinate system based on values defined in the fontStyle field (see FontStyle). More...

#include <H3D/Text.h>

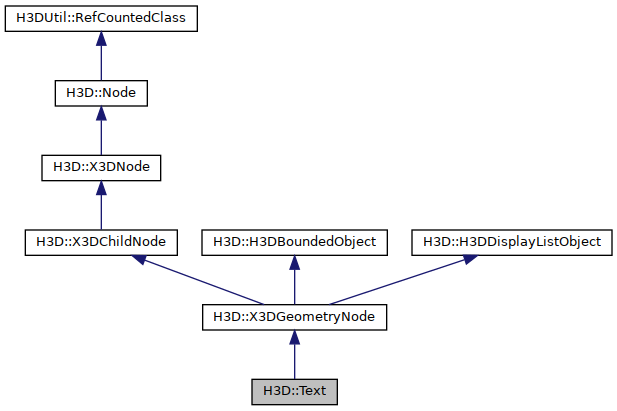

Inheritance diagram for H3D::Text:

Classes
class	DisplayList
	We extend the DisplayList to build the fonts of the X3DFontStyleNode in the fontStyle field of the Text node this DisplayList resides in. More...

class	OutputUpdater
	Internal field class to update values of origin, textBounds, lineBounds. More...

class	SFBound
	The SFBound field is specialized to update itself from the values in the fields of the Text node. More...

Public Member Functions
	Text (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< SFFontStyleNode > _fontStyle=0, Inst< MFFloat > _length=0, Inst< SFFloat > _maxExtent=0, Inst< MFString > _string=0, Inst< MFVec2f > _lineBounds=0, Inst< SFVec3f > _origin=0, Inst< SFVec2f > _textBounds=0, Inst< SFBool > _solid=0, Inst< OutputUpdater > _outputUpdater=0)
	Constructor.

virtual void	render ()
	Render the text with OpenGL.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. More...

virtual int	nrTriangles ()
	The number of triangles renderered in this geometry, we don't know so return -1.

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the texts bounding box. More...

Public Member Functions inherited from H3D::X3DGeometryNode
	X3DGeometryNode (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< DisplayList > _displayList=0, Inst< MFBool > _isTouched=0, Inst< MFVec3f > _force=0, Inst< MFVec3f > _contactPoint=0, Inst< MFVec3f > _contactNormal=0, Inst< MFVec3f > _contactTexCoord=0, Inst< SFBoundTree > _boundTree=0, Inst< SFVec3f > _centerOfMass=0)
	Constructor.

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on this geometry to point p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the geometry. More...

virtual void	glRender ()
	Function overridden from HAPIGLShape. More...

virtual H3DShadowObjectNode *	getShadowObject ()
	Get the H3DShadowObjectNode used to create a shadow volume for this geometry. More...

void	useCulling (bool enabled)
	This function should be used by the render() function to disable or enable face culling. More...

bool	usingCulling ()
	Returns if face culling is in use or not.

void	allowCulling (bool allow)
	Control if face culling is allowed or not. More...

void	useBackFaceCulling (bool enabled)
	Enabling/disabling back face culling. More...

bool	allowingCulling ()
	Returns true if back face culling is allowed, false otherwise.

void	setCullFace (GLenum face)
	Set which side of a polygon to cull. More...

GLenum	getCullFace ()
	Get which face will be culled if culling is enabled.

template<class OptionNodeType >
void	getOptionNode (OptionNodeType *&option)
	Get the first option node of the type of the pointer given as argument from the renderOptions fieeld The option argument will contain the node afterwards, or NULL if no option of that type exists.

int	getHapticShapeId (unsigned int index)
	Get a shape id to be used for rendering of this geometry with HLAPI for the given haptics device. More...

virtual	~X3DGeometryNode ()
	Destructor.

HAPI::HAPIHapticShape *	getOpenGLHapticShape (unsigned int hd_index, H3DSurfaceNode *_surface, const Matrix4f &_transform, int _nr_vertices=-1)
	Returns a either a HLFeedbackShape or a HLDepthBufferShape with the X3DGeometryNode. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual bool	supportsTangentAttributes ()
	Returns true if this geometry supports the automatic generation of tangents and binormals as FloatVertexAttribues(needed by e.g. More...

virtual void	getBound (HAPI::Vec3 &center, HAPI::Vec3 &size)
	Overriden from HAPIGLShape to use the bound field in he X3DGeometryNode. More...

virtual void	initialize ()
	Changes behaviour of X3DGeometryNode to be a thread safe RefCountedClass.

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DBoundedObject
	H3DBoundedObject (Inst< SFBound > _bound=0)
	Constructor.

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Attributes
H3DUniquePtr< SFFontStyleNode >	fontStyle
	The style the text should be rendered with. More...

H3DUniquePtr< MFFloat >	length
	The length field contains an MFFloat value that specifies the length of each text string in the local coordinate system. More...

H3DUniquePtr< SFFloat >	maxExtent
	The maxExtent field limits and compresses all of the text strings if the length of the maximum string is longer than the maximum extent, as measured in the local coordinate system. More...

H3DUniquePtr< MFString >	stringF
	The strings to render. More...

H3DUniquePtr< MFVec2f >	lineBounds
	A set of 2D vectors where each vector contains the size of the 2D bounding box for each line of rendered text in local text x and y units. More...

H3DUniquePtr< SFVec3f >	origin
	3D position that specifies the origin of the text local coordinate system in units of the coordinate system in which the Text node is embedded. More...

H3DUniquePtr< SFVec2f >	textBounds
	The dimensions of Text node's 2D bounding box. More...

H3DUniquePtr< SFBool >	solid
	The solid field determines whether one or both sides of each polygon shall be displayed. More...

Public Attributes inherited from H3D::X3DGeometryNode
H3DUniquePtr< MFBool >	isTouched
	Tells if a HapticsDevice has been in contact with the geometry in the last scenegraph loop. More...

H3DUniquePtr< MFVec3f >	force
	The last force delivered by this geometry to the haptics device. More...

H3DUniquePtr< MFVec3f >	contactPoint
	The last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactTexCoord
	The texture coordinate of last the contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< MFVec3f >	contactNormal
	The normal at the last contact points of the HapticDevices on the geometry. More...

H3DUniquePtr< SFVec3f >	centerOfMass
	The field contains center of mass for the object, based on its bounding box. More...

H3DUniquePtr< SFBoundTree >	boundTree
	Contains a tree of the HAPI::GeometryPrimitives that build up the X3DGeometryNode. More...

H3DUniquePtr< MFOptionsNode >	options
	Contains nodes with options for haptics and graphics rendering. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::H3DBoundedObject
H3DUniquePtr< SFBound >	bound
	The field containing the bound object. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DGeometryNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Member Functions
void	updateLineBounds ()
	Calculates and updates lineBounds field value.

virtual void	scaleToMaxExtent (const std::vector< std::string > &text, X3DFontStyleNode *font)
	Scales the scene so that the text given would be contained within the value of the maxExtent field. More...

virtual void	justifyMinor (const std::vector< std::string > &text, X3DFontStyleNode *font)
	Justify the text in the minor alignment by translating it in the way described in the FontStyle node.

virtual void	moveToNewLine (const std::string &text, X3DFontStyleNode *font)
	Move to the position of the next line. More...

virtual void	renderTextLine (const std::string &text, X3DFontStyleNode *font)
	Render a line of text in the style of the X3DFontStyleNode given. More...

virtual void	justifyLine (const std::string &text, X3DFontStyleNode *font)
	Justify the line of text in the major alignment by translating it in the way described in the FontStyle node.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Protected Attributes
H3DUniquePtr< OutputUpdater >	outputUpdater
	Internal field to update output fields origin, lineBounds, textBounds.

Protected Attributes inherited from H3D::X3DGeometryNode
AutoRef< Node >	shadow_volume
	The shadow volume used for this geometry when shadows enabled. More...

vector< pair< int, pair< Matrix4f, H3DTime > > >	haptic_shape_ids
	identifiers for the shapes geometry.

Static Protected Attributes
static AutoRef< FontStyle >	default_font_style
	The font style to use when no style is specified.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Static Protected Member Functions inherited from H3D::X3DGeometryNode
static void	cleanUpFunction (void *userdata)
	Function sent to HAPIHapticsShape created to allow for deletion of X3DGeometryNode at the correct time. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The Text node specifies a two-sided, flat text string object positioned in the Z=0 plane of the local coordinate system based on values defined in the fontStyle field (see FontStyle).

Text nodes may contain multiple text strings specified using the UTF-8 encoding. The text strings are stored in the order in which the text mode characters are to be produced as defined by the parameters in the FontStyle node.

The text strings are contained in the string field. The fontStyle field contains one FontStyle node that specifies the font size, font family and style, direction of the text strings, and any specific language rendering techniques used for the text.

The maxExtent field limits and compresses all of the text strings if the length of the maximum string is longer than the maximum extent, as measured in the local coordinate system. If the text string with the maximum length is shorter than the maxExtent, then there is no compressing. The maximum extent is measured horizontally for horizontal text (FontStyle node: horizontal=TRUE) and vertically for vertical text (FontStyle node: horizontal=FALSE). The maxExtent field shall be greater than or equal to zero.

The length field contains an MFFloat value that specifies the length of each text string in the local coordinate system. If the string is too short, it is stretched (either by scaling the text or by adding space between the characters). If the string is too long, it is compressed (either by scaling the text or by subtracting space between the characters). If a length value is missing (for example, if there are four strings but only three length values), the missing values are considered to be 0. The length field shall be greater than or equal to zero.

Specifying a value of 0 for both the maxExtent and length fields indicates that the string may be any length.

The solid field determines whether one or both sides of each polygon shall be displayed. If solid is FALSE, each polygon is visible regardless of the viewing direction and if it is TRUE back face culling is performed to only show the front face of the polygons.

Examples:

Text.x3d ( Source )
Text1.x3d ( Source )

Internal routes:

Member Function Documentation

◆ lineIntersect()

bool Text::lineIntersect	(	const Vec3f &	from,
		const Vec3f &	to,
		LineIntersectResult &	result
	)

virtual

Detect intersection between a line segment and the texts bounding box.

Parameters

from	The start of the line segment.
to	The end of the line segment.
result	Contains info about the closest intersection for every object that intersects the line.

Returns: true if intersected, false otherwise.

Reimplemented from H3D::X3DGeometryNode.

References H3D::Node::LineIntersectResult::addPtDevMap(), H3D::Node::NodeIntersectResult::addResults(), H3D::H3DBoundedObject::bound, H3D::Node::LineIntersectResult::detect_pt_device, H3D::Node::LineIntersectResult::hasCurrentPointingDevice(), and H3D::Bound::lineSegmentIntersect().

◆ moveToNewLine()

void Text::moveToNewLine	(	const std::string &	text,
		X3DFontStyleNode *	font
	)

protectedvirtual

Move to the position of the next line.

What the next line is depends on the values in the FontStyle node, i.e. if the text is horizontal, if it is top to bottom or the other way around, spacing etc.

References H3D::X3DFontStyleNode::getAlignment(), H3D::X3DFontStyleNode::getSpacing(), H3D::X3DFontStyleNode::isLeftToRight(), H3D::X3DFontStyleNode::isTopToBottom(), and H3D::X3DFontStyleNode::stringDimensions().

Referenced by render().

◆ renderTextLine()

void Text::renderTextLine	(	const std::string &	text,
		X3DFontStyleNode *	font
	)

protectedvirtual

Render a line of text in the style of the X3DFontStyleNode given.

The OpenGL transform matrices will not be changed by the call.

References H3D::X3DFontStyleNode::charDimensions(), H3D::X3DFontStyleNode::getAlignment(), H3D::X3DFontStyleNode::isLeftToRight(), H3D::X3DFontStyleNode::isTopToBottom(), H3D::X3DFontStyleNode::renderChar(), and H3D::X3DFontStyleNode::renderHorizontalLine().

Referenced by render().

◆ scaleToMaxExtent()

void Text::scaleToMaxExtent	(	const std::vector< std::string > &	text,
		X3DFontStyleNode *	font
	)

protectedvirtual

Scales the scene so that the text given would be contained within the value of the maxExtent field.

The length field is inspected as well as the dimensions of the text to determine what the scale should be.

References H3D::X3DFontStyleNode::getAlignment(), length, maxExtent, and H3D::X3DFontStyleNode::stringDimensions().

Referenced by render().

◆ traverseSG()

void Text::traverseSG ( TraverseInfo & ti )

virtual

Traverse the scenegraph.

A HAPIHapticShape is added for haptic rendering if haptics is enabled.

Parameters

ti	The TraverseInfo object containing information about the traversal.

Reimplemented from H3D::X3DGeometryNode.

References solid, H3D::X3DGeometryNode::traverseSG(), and H3D::X3DGeometryNode::useBackFaceCulling().

Member Data Documentation

◆ fontStyle

H3DUniquePtr< SFFontStyleNode > H3D::Text::fontStyle

The style the text should be rendered with.

See X3DFontStyleNode.

Access type: inputOutput

Referenced by render(), Text(), and updateLineBounds().

◆ length

H3DUniquePtr< MFFloat > H3D::Text::length

The length field contains an MFFloat value that specifies the length of each text string in the local coordinate system.

If the string is too short, it is stretched (either by scaling the text or by adding space between the characters). If the string is too long, it is compressed (either by scaling the text or by subtracting space between the characters). If a length value is missing (for example, if there are four strings but only three length values), the missing values are considered to be 0. The length field shall be greater than or equal to zero.

Access type: inputOutput
Default value: []
Valid range: >=0

Referenced by render(), scaleToMaxExtent(), Text(), and H3D::Text::OutputUpdater::update().

◆ lineBounds

H3DUniquePtr< MFVec2f > H3D::Text::lineBounds

A set of 2D vectors where each vector contains the size of the 2D bounding box for each line of rendered text in local text x and y units.

Access type: outputOnly

Referenced by updateLineBounds().

◆ maxExtent

H3DUniquePtr< SFFloat > H3D::Text::maxExtent

The maxExtent field limits and compresses all of the text strings if the length of the maximum string is longer than the maximum extent, as measured in the local coordinate system.

If the text string with the maximum length is shorter than the maxExtent, then there is no compressing. The maximum extent is measured horizontally for horizontal text (FontStyle node: horizontal=TRUE) and vertically for vertical text (FontStyle node: horizontal=FALSE). The maxExtent field shall be greater than or equal to zero.

Access type: inputOutput
Default value: 0
Valid range: >=0

Referenced by scaleToMaxExtent(), Text(), and H3D::Text::OutputUpdater::update().

◆ origin

H3DUniquePtr< SFVec3f > H3D::Text::origin

3D position that specifies the origin of the text local coordinate system in units of the coordinate system in which the Text node is embedded.

The value of the origin field represents the upper left corner of the textBounds.

Access type: outputOnly

Referenced by H3D::Text::OutputUpdater::update().

◆ solid

H3DUniquePtr< SFBool > H3D::Text::solid

The solid field determines whether one or both sides of each polygon shall be displayed.

If solid is FALSE, each polygon is visible regardless of the viewing direction and if it is TRUE back face culling is performed to only show the front face of the polygons.

Access type: inputOutput
Default value: FALSE

Referenced by Text(), and traverseSG().

◆ stringF

H3DUniquePtr< MFString > H3D::Text::stringF

The strings to render.

Each string will be on its own line.

Access type: inputOutput

Referenced by render(), Text(), and updateLineBounds().

◆ textBounds

H3DUniquePtr< SFVec2f > H3D::Text::textBounds

The dimensions of Text node's 2D bounding box.

Access type: outputOnly

Referenced by H3D::Text::OutputUpdater::update().

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ lineIntersect()

◆ moveToNewLine()

◆ renderTextLine()

◆ scaleToMaxExtent()

◆ traverseSG()

Member Data Documentation

◆ fontStyle

◆ length

◆ lineBounds

◆ maxExtent

◆ origin

◆ solid

◆ stringF

◆ textBounds
