The PlanarReflector defines a geometry which will act as a mirror in the scene. More...

#include <H3D/PlanarReflector.h>

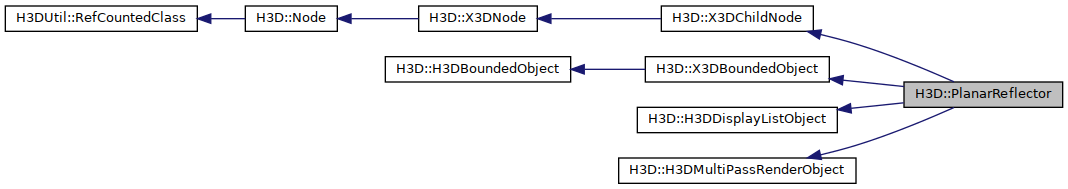

Inheritance diagram for H3D::PlanarReflector:

Classes
class	SFGeometryNode
	SFGeometryNode is dependent on the displayList field of its encapsulated X3DGeometryNode node, i.e. More...

Public Member Functions
	PlanarReflector (Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< SFVec3f > _bboxCenter=0, Inst< SFVec3f > _bboxSize=0, Inst< DisplayList > _displayList=0, Inst< SFGeometryNode > _geometry=0, Inst< SFFloat > _reflectivity=0, Inst< SFColor > _color=0)
	Constructor.

virtual void	initialize ()
	Sets up the bound field using the bboxCenter and bboxSize fields. More...

virtual void	renderPostViewpoint (X3DChildNode n, X3DViewpointNode vp)
	Render the mirrored scene and the mirror.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. Calls traverseSG on appeance and geometry.

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the X3DGeometryNode in the field geometry. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on the node in the field geometry. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the geometry in the geometry field. More...

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::H3DBoundedObject
	H3DBoundedObject (Inst< SFBound > _bound=0)
	Constructor.

Public Member Functions inherited from H3D::H3DDisplayListObject
	H3DDisplayListObject (Inst< DisplayList > _displayList=0)
	Constructor.

Public Member Functions inherited from H3D::H3DMultiPassRenderObject
	H3DMultiPassRenderObject ()
	Constructor.

virtual	~H3DMultiPassRenderObject ()
	Destructor.

virtual void	renderPreViewpoint (X3DChildNode , X3DViewpointNode )
	This function will be called before any viewpoint calls has been made when rendering the scene and before the scene is rendered. More...

virtual void	renderPostScene (X3DChildNode , X3DViewpointNode )
	This function will be called after the scene has been rendered. More...

void	resetCounter ()
	Reset the counter.

Public Attributes
H3DUniquePtr< SFGeometryNode >	geometry
	Contains the X3DGeometryNode to be rendered. More...

H3DUniquePtr< SFFloat >	reflectivity
	The reflectivity of the mirror. More...

H3DUniquePtr< SFColor >	color
	The color of the mirror. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::X3DBoundedObject
H3DUniquePtr< SFVec3f >	bboxCenter
	Specifies a the center of an axis-aligned bounding box enclosing the node. More...

H3DUniquePtr< SFVec3f >	bboxSize
	Specifies a the size of an axis-aligned bounding box enclosing the node. More...

Public Attributes inherited from H3D::H3DBoundedObject
H3DUniquePtr< SFBound >	bound
	The field containing the bound object. More...

Public Attributes inherited from H3D::H3DDisplayListObject
H3DUniquePtr< DisplayList >	displayList
	The DisplayList instance handling the OpenGL caching of this object.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Static Public Member Functions inherited from H3D::H3DMultiPassRenderObject
static void	renderPreViewpointAll (X3DChildNode n, X3DViewpointNode vp)
	Run renderPreViewpoint on all instances of H3DMultiPassRenderObject.

static void	renderPostViewpointAll (X3DChildNode n, X3DViewpointNode vp)
	Run renderPostViewpoint on all instances of H3DMultiPassRenderObject.

static void	renderPostSceneAll (X3DChildNode n, X3DViewpointNode vp)
	Run renderPostScene on all instances of H3DMultiPassRenderObject.

static void	resetCounters ()
	Run resetCounter on all instances of H3DMultiPassRenderObject.

static void	setMultiPassTransparencyAll (bool b)
	If multi pass transparency is set to true the scene should be rendered three times graphically, once for all solid objects, once for the back side of transparent objects and once for the front face of transparent objects. More...

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

The PlanarReflector defines a geometry which will act as a mirror in the scene.

Note that it is up to the user to set visibilityLimit of NavigationInfo to a value that is big enough for the PlanarReflector to function properly. If the user of the application is allowed to navigate anywhere in the scene set visibilityLimit to 0.0.

Examples:

PlanarReflector.x3d ( Source )

Internal routes:

Member Function Documentation

◆ closestPoint()

void PlanarReflector::closestPoint	(	const Vec3f &	p,
		NodeIntersectResult &	result
	)

virtual

Find closest point on the node in the field geometry.

Parameters

p	The point to find the closest point to.
result	A struct containing various results of closest points such as which geometries the closest points where detected on.

Reimplemented from H3D::Node.

References H3D::X3DGeometryNode::closestPoint(), and geometry.

◆ initialize()

virtual void H3D::PlanarReflector::initialize ( )

inlinevirtual

Sets up the bound field using the bboxCenter and bboxSize fields.

If bboxSize is (-1, -1, -1) the bound will be the bound of the geometry field. Otherwise it will be a BoxBound with center and origin determined by the bboxCenter and bboxOrigin fields.

Reimplemented from H3DUtil::RefCountedClass.

References H3D::H3DBoundedObject::bound, H3D::BoxBound::center, H3DUtil::RefCountedClass::initialize(), and H3D::BoxBound::size.

◆ lineIntersect()

bool PlanarReflector::lineIntersect	(	const Vec3f &	from,
		const Vec3f &	to,
		LineIntersectResult &	result
	)

virtual

Detect intersection between a line segment and the X3DGeometryNode in the field geometry.

Parameters

from	The start of the line segment.
to	The end of the line segment.
result	Contains info about the closest intersection for every object that intersects the line.

Returns: true if intersected, false otherwise.

Reimplemented from H3D::Node.

References geometry, and H3D::X3DGeometryNode::lineIntersect().

◆ movingSphereIntersect()

bool PlanarReflector::movingSphereIntersect	(	H3DFloat	radius,
		const Vec3f &	from,
		const Vec3f &	to,
		NodeIntersectResult &	result
	)

virtual

Detect collision between a moving sphere and the geometry in the geometry field.

Parameters

radius	The radius of the sphere
from	The start position of the sphere
to	The end position of the sphere.
result	A struct containing various results of intersections such as which geometries intersected the moving sphere.

Returns: true if intersected, false otherwise.

Reimplemented from H3D::Node.

References geometry, and H3D::X3DGeometryNode::movingSphereIntersect().

Member Data Documentation

◆ color

H3DUniquePtr< SFColor > H3D::PlanarReflector::color

The color of the mirror.

Access type: inputOutput Default value: 1 1 1

Referenced by PlanarReflector(), and renderPostViewpoint().

◆ geometry

H3DUniquePtr< SFGeometryNode > H3D::PlanarReflector::geometry

Contains the X3DGeometryNode to be rendered.

Access type: inputOutput

Referenced by closestPoint(), lineIntersect(), movingSphereIntersect(), PlanarReflector(), renderPostViewpoint(), and traverseSG().

◆ reflectivity

H3DUniquePtr< SFFloat > H3D::PlanarReflector::reflectivity

The reflectivity of the mirror.

A value of 1 means total reflectivity, i.e. the mirror itself will not be visible.

Access type: inputOutput Default value: 0.9 Value range: [0-1]

Referenced by PlanarReflector(), and renderPostViewpoint().
