No scripting is supported with the Script node yet. More...
#include <H3D/Script.h>

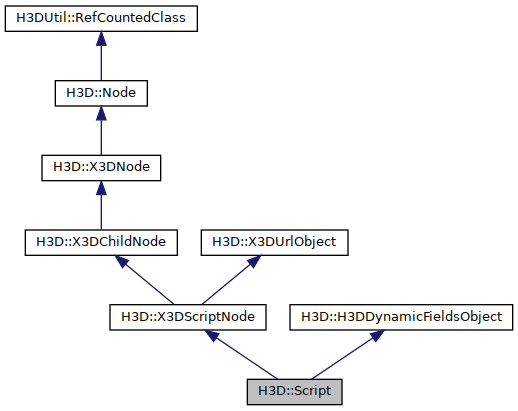

Inheritance diagram for H3D::Script:
Public Member Functions | |
| ~Script () | |
| Destructor. | |
| virtual void | traverseSG (TraverseInfo &ti) |
| traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More... | |
| virtual bool | addField (const string &_name, const Field::AccessType &access, Field *field) |
| Override the addField method from H3DDynamicFieldsObject to add the field to the script engine. More... | |
 Public Member Functions inherited from H3D::X3DChildNode | |
| X3DChildNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual void | render () |
| the render() function is used for the depth-first rendering traversal of the scene-graph. More... | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and the Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| Public Member Functions inherited from H3D::X3DUrlObject | |
| X3DUrlObject (Inst< MFString > _url=0) | |
| Constructor. | |
| virtual LoadStatus | loadStatus () |
| The loadStatus function returns the status of the loading of the current urls in order to be used with the LoadSensor node. | |
| virtual H3DFloat | loadProgress () |
| The loadProgress() functions returns a value between 0 and 1 indicating how much of the current url has been loaded. More... | |
| void | setURLUsed (const string &_url_used) |
| Set the url that is currently loaded. | |
| const string & | getURLUsed () |
| Get the url that is currently loaded. | |
| void | setURLBase (const string &_url_base) |
| Set the url base address. | |
| const string & | getURLBase () |
| Get the current url base address. | |
| string | resolveURLAsFile (const string &url, bool *is_tmp_file=NULL) |
| Get the url as a local file. | |
| string | resolveURLAsString (const string &url) |
| Get the content of the URL as a string. | |
| bool | removeTmpFile (const string &file) |
| Remove a tmpfile with the given name. More... | |
| Public Member Functions inherited from H3D::H3DDynamicFieldsObject | |
| virtual bool | removeField (const string &_name) |
| Remove a field from the Node. More... | |
| field_iterator | firstField () |
| Get an iterator to the first of the dynamic fields. | |
| field_iterator | endField () |
| Get an iterator pointing to the end of the dynamic fields. | |
| virtual void | clearFields () |
| Remove all dynamic fields that have been previously added. | |
| H3DDynamicFieldsObject () | |
| Constructor. | |
Public Attributes | |
| H3DUniquePtr< SFBool > | directOutput |
| Field is not supported by H3DAPI yet. | |
| H3DUniquePtr< SFBool > | mustEvaluate |
| Field is not supported by H3DAPI yet. | |
| Public Attributes inherited from H3D::X3DScriptNode | |
| H3DUniquePtr< SFScriptString > | scriptString |
| Internal field that contains the string loaded from file and to be used as input to the shader. | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
| Public Attributes inherited from H3D::X3DUrlObject | |
| H3DUniquePtr< MFString > | url |
| The urls in decreasing order of preference. | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The X3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DScriptNode | |
| static H3DNodeDatabase | database |
| The X3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
Additional Inherited Members | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Public Types inherited from H3D::X3DUrlObject | |
| enum | LoadStatus { INIT , LOADED , LOADING , FAILED } |
| The load status of the given url. More... | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Protected Member Functions inherited from H3D::X3DUrlObject | |
| string | resolveURL (const string &_url, bool return_contents, bool *is_tmp_file=NULL) |
| Helper function for resolveURLAs*() functions. | |
| void | addInlinePrefix (const string &s) |
| Add a inline prefix that this node supports. | |
| int | getInlinedContentOffset (const std::string &url) |
| If the URL contains any inline prefix, return the index of the start of the inlined content. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
| Protected Attributes inherited from H3D::X3DUrlObject | |
| string | url_used |
| If loadStatus() returns LOADED this string should contain the url that is loaded. More... | |
| string | url_base |
| The base URL for urls in this url object. More... | |
| list< string > | supported_inline_prefixes |
| A list of inline prefixes that are supported by this url object. More... | |
Detailed Description
No scripting is supported with the Script node yet.
Member Function Documentation
◆ addField()
|
virtual |
Override the addField method from H3DDynamicFieldsObject to add the field to the script engine.
Disable because outputOnly fields would not work otherwise They should be settable from within the script but not from outside.
Reimplemented from H3D::H3DDynamicFieldsObject.
References H3D::H3DDynamicFieldsObject::addField(), H3D::SpiderMonkeySAI::addField(), H3D::SpiderMonkeySAI::isInitialized(), and H3D::Field::setAccessCheck().
◆ traverseSG()
|
virtual |
traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph.
During this traversal things can be updated in the node and HapticObject instances to be rendered should be added to the TraverseInfo object.
- Parameters
-
ti The TraverseInfo object containing information about the traversal.
Reimplemented from H3D::Node.
References H3D::Scene::addCallback(), and H3D::SpiderMonkeySAI::isInitialized().
The documentation for this class was generated from the following files:
