Interface to the dynamic Python library for executing script code as part of the API. More...

#include <H3D/PythonScript.h>

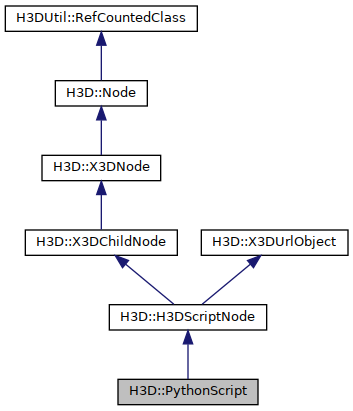

Inheritance diagram for H3D::PythonScript:

Public Member Functions
	PythonScript (Inst< MFString > _url=0, Inst< MFNode > _references=0, Inst< SFString > _moduleName=0)
	Constructor.

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

	~PythonScript ()
	Destructor.

virtual Field *	lookupField (const string &_name) const
	lookupField() returns the field pointer to the field with the specified string field name, used when creating nodes via the H3DNodeDatabase service.

virtual PyObject *	getPythonAttribute (const string &_name)
	Returns the python object with the specified name from the python module used by the PythonScript node. More...

virtual void	getTopLevelFields (vector< pair< string, Field * > > &fields)
	Adds the fields at the top level of the PythonScript node and its Python variable name to the given vector.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. More...

std::string	execute (const std::string &_command)
	Execute the specified python code string, returning the stdout, stderr or the string representation of the resulting object.

virtual void	initialize ()
	Initialize is called once upon the first reference of the RefCountedClass.

PyObject *	getPythonModule ()
	Returns a borrowed reference to the PyModule object use by the PythonScript node.

Public Member Functions inherited from H3D::H3DScriptNode
	~H3DScriptNode ()
	Destructor.

void	addNamedNodes (X3D::DEFNodes *dn)
	Add all nodes from the given DEFNodes instance to the scripts set of named nodes. More...

void	addNamedNode (const string &_name, Node *n)
	Add a named node to the script. More...

int	removeNamedNode (const string &_name)
	Remove the named node with the provided name. More...

void	clearNamedNodes ()
	Remove all named nodes.

Node *	getNamedNode (const string &_name)
	Returns the named node with the given name. More...

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Member Functions inherited from H3D::X3DUrlObject
	X3DUrlObject (Inst< MFString > _url=0)
	Constructor.

virtual LoadStatus	loadStatus ()
	The loadStatus function returns the status of the loading of the current urls in order to be used with the LoadSensor node.

virtual H3DFloat	loadProgress ()
	The loadProgress() functions returns a value between 0 and 1 indicating how much of the current url has been loaded. More...

void	setURLUsed (const string &_url_used)
	Set the url that is currently loaded.

const string &	getURLUsed ()
	Get the url that is currently loaded.

void	setURLBase (const string &_url_base)
	Set the url base address.

const string &	getURLBase ()
	Get the current url base address.

string	resolveURLAsFile (const string &url, bool *is_tmp_file=NULL)
	Get the url as a local file.

string	resolveURLAsString (const string &url)
	Get the content of the URL as a string.

bool	removeTmpFile (const string &file)
	Remove a tmpfile with the given name. More...

Static Public Member Functions
static bool	initPythonHome (const std::string &exe_with_full_path)
	Initialize the python home environment. More...

static void	allowMainThreadPython ()
	Allow python code to run in the main thread. More...

static void	disallowMainThreadPython ()
	Don't allow python code to run in the main thread, instead letting other python threads run without disruptions(see allowMainThreadPython for more info).

static bool	mainThreadPythonAllowed ()
	Returns true if python code is allowed to run in main thread at the moment.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Public Attributes
H3DUniquePtr< MFNode >	references
	Through this field one can pass references to Nodes in the scene graph that can then be access through the 'references' variable in the Python script. More...

H3DUniquePtr< SFString >	moduleName
	Specify a specific moduleName for the pythonscript. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Public Attributes inherited from H3D::X3DUrlObject
H3DUniquePtr< MFString >	url
	The urls in decreasing order of preference.

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::H3DScriptNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Types inherited from H3D::X3DUrlObject
enum	LoadStatus { INIT , LOADED , LOADING , FAILED }
	The load status of the given url. More...

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Protected Member Functions inherited from H3D::X3DUrlObject
string	resolveURL (const string &_url, bool return_contents, bool *is_tmp_file=NULL)
	Helper function for resolveURLAs*() functions.

void	addInlinePrefix (const string &s)
	Add a inline prefix that this node supports.

int	getInlinedContentOffset (const std::string &url)
	If the URL contains any inline prefix, return the index of the start of the inlined content. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Protected Attributes inherited from H3D::X3DUrlObject
string	url_used
	If loadStatus() returns LOADED this string should contain the url that is loaded. More...

string	url_base
	The base URL for urls in this url object. More...

list< string >	supported_inline_prefixes
	A list of inline prefixes that are supported by this url object. More...

Detailed Description

Interface to the dynamic Python library for executing script code as part of the API.

Examples:

PythonScript.x3d ( Source )

Member Function Documentation

◆ allowMainThreadPython()

void PythonScript::allowMainThreadPython ( )

static

Allow python code to run in the main thread.

This must be called before any calls to python functions from the main thread.

The reason for this is to be able to start and run other Python threads from within the script. Python handles tread safety by only allowing one python thread to execute at any one time. It lets on thread run for a certain number of instructions then switch to the next thread for the same number of instructions and so on. The problem is that the main python script in H3D most of the time does not execute anything. Things only happen on events by fields and in the traverseSG function which causes the other python threads to lock up since the main thread never executes the number of instructions required to move on to the next thread. In order to let these other threads run when the main python thread does nothing we encapsulate all python code that is executed in main thread within allowMainThreadPython/disallowMainThreadPython calls. After disallowMainThreadPython is called all other python threads can run without waiting for the main thread. However this means that we must call allowMainThreadPython before any python code that runs in the main thread or the program will crash.

◆ getPythonAttribute()

PyObject * PythonScript::getPythonAttribute ( const string & _name )

virtual

Returns the python object with the specified name from the python module used by the PythonScript node.

NULL if no object with the specified name is found. The return value is a new reference to the python object.

Referenced by H3D::PyNode::getAttr().

◆ initPythonHome()

bool PythonScript::initPythonHome ( const std::string & exe_with_full_path )

static

Initialize the python home environment.

Parameters

exe_with_full_path The absolute path to the executable (current process), including the executable

Returns: True if the python home was found and set properly, False otherwise

Note: This function does nothing if the cmake option PYTHON_USE_LOCAL_ENV is not defined or not TRUE; Otherwise, it tries to find the python libs near the given executable path, to deduce which; directory should be set as python home.; This method should be called before Py_Inititalize, i.e. any PythonScript ctor (instanciation)

Warning: Keep in mind that most method do not support long path (> 256 characters), so keep in mind that any dev, installation and deployment must keep a short path

◆ traverseSG()

void PythonScript::traverseSG ( TraverseInfo & ti )

virtual

Traverse the scenegraph.

Used in PythonScript to call a function in python once per scene graph loop.

Parameters

ti	The TraverseInfo object containing information about the traversal.

Reimplemented from H3D::Node.

Member Data Documentation

◆ moduleName

H3DUniquePtr< SFString > H3D::PythonScript::moduleName

Specify a specific moduleName for the pythonscript.

This name should be unique among all PythonScript nodes in the scene. It should also differ from previously existing python modules. If this field is empty an automatically generated name will be used. This field should be used if one python script should import the functionality from another python script. See the H3DAPI manual for an example.

Access type: initializeOnly

◆ references

H3DUniquePtr< MFNode > H3D::PythonScript::references

Through this field one can pass references to Nodes in the scene graph that can then be access through the 'references' variable in the Python script.

Access type: initializeOnly
