H3DImageLoaderNode is a virtual base class for classes that read an image file format such as PNG or JPEG and construct an Image class with the data from the file. More...

#include <H3D/H3DImageLoaderNode.h>

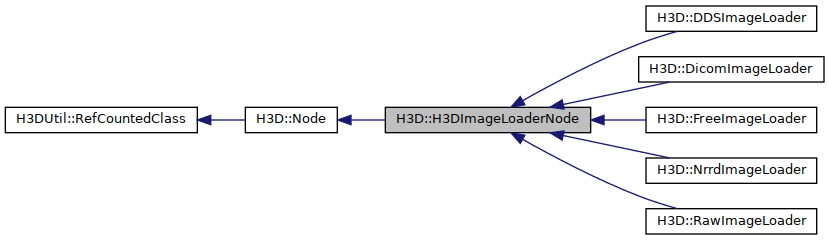

Inheritance diagram for H3D::H3DImageLoaderNode:

Classes
struct	FileReaderRegistration
	Class used to register a class to the registered file readers. More...

Public Types
typedef bool(*	SupportsFileFunc) (const string &url)
	Function ptr type for callback to ask if loader supports a url.

typedef bool(*	SupportsStreamFunc) (istream &is)
	Function ptr type for callback to ask if loader supports a stream.

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Public Member Functions
	H3DImageLoaderNode ()
	Constructor.

virtual Image *	loadImage (const string &url)=0
	Pure virtual function to load an Image from a url. More...

virtual Image *	loadImage (istream &)
	Load an image from an istream. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual void	traverseSG (TraverseInfo &ti)
	traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Static Public Member Functions
static H3DImageLoaderNode *	getSupportedFileReader (const string &url)
	Given an url to a file, it returns an instance of a H3DImageLoaderNode class that can handle that file type. More...

static H3DImageLoaderNode *	getSupportedFileReader (istream &is)
	Given an istream, it returns an instance of a H3DImageLoaderNode class that can handle that image type. More...

static void	registerFileReader (const string &name, CreateNodeFunc create, SupportsFileFunc supports, SupportsStreamFunc supports_stream=NULL)
	Register a file reader that can then be returned by getSupportedFileReader(). More...

static void	registerFileReader (const FileReaderRegistration &fr)
	Register a file reader that can then be returned by getSupportedFileReader().

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Additional Inherited Members
Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

H3DImageLoaderNode is a virtual base class for classes that read an image file format such as PNG or JPEG and construct an Image class with the data from the file.

Each subclass must define the loadImage () function. It is used by e.g. the ImageTexture node.

Member Function Documentation

◆ defaultXMLContainerField()

virtual string H3D::H3DImageLoaderNode::defaultXMLContainerField ( )

inlinevirtual

Returns the default xml containerField attribute value.

For this node it is "imageLoader".

Reimplemented from H3D::Node.

◆ getSupportedFileReader() [1/2]

H3DImageLoaderNode * H3DImageLoaderNode::getSupportedFileReader ( const string & url )

static

Given an url to a file, it returns an instance of a H3DImageLoaderNode class that can handle that file type.

If no such class is registered NULL is returned.

Referenced by H3D::Image3DTexture::SFImage::loadImage(), and H3D::ImageTexture::SFImage::loadImage().

◆ getSupportedFileReader() [2/2]

H3DImageLoaderNode * H3DImageLoaderNode::getSupportedFileReader ( istream & is )

static

Given an istream, it returns an instance of a H3DImageLoaderNode class that can handle that image type.

If no such class is registered NULL is returned.

◆ loadImage() [1/2]

virtual Image* H3D::H3DImageLoaderNode::loadImage ( const string & url )

pure virtual

Pure virtual function to load an Image from a url.

Returns: An Image * with the image data loaded from the url.

Implemented in H3D::RawImageLoader, H3D::NrrdImageLoader, H3D::FreeImageLoader, H3D::DicomImageLoader, and H3D::DDSImageLoader.

Referenced by H3D::Image3DTexture::SFImage::loadImage(), and H3D::ImageTexture::SFImage::loadImage().

◆ loadImage() [2/2]

virtual Image* H3D::H3DImageLoaderNode::loadImage ( istream & )

inlinevirtual

Load an image from an istream.

Does not need to be implemented for all image loaders

Returns: An Image * with the image data loaded from the url. Returns NULL if not implemented for image loader.

Reimplemented in H3D::FreeImageLoader, and H3D::DDSImageLoader.

◆ registerFileReader()

static void H3D::H3DImageLoaderNode::registerFileReader	(	const string &	name,
		CreateNodeFunc	create,
		SupportsFileFunc	supports,
		SupportsStreamFunc	supports_stream = `NULL`
	)

inlinestatic

Register a file reader that can then be returned by getSupportedFileReader().

Parameters

name	The name of the class
create	A function for creating an instance of that class.
supports	A function to determine if the class supports a given file type.
supports_stream	A function to determine if the class supports loading from a file stream.

The documentation for this class was generated from the following files:
