This is a field which value can be set by a string from the X3D parser. More...

#include <H3D/Field.h>

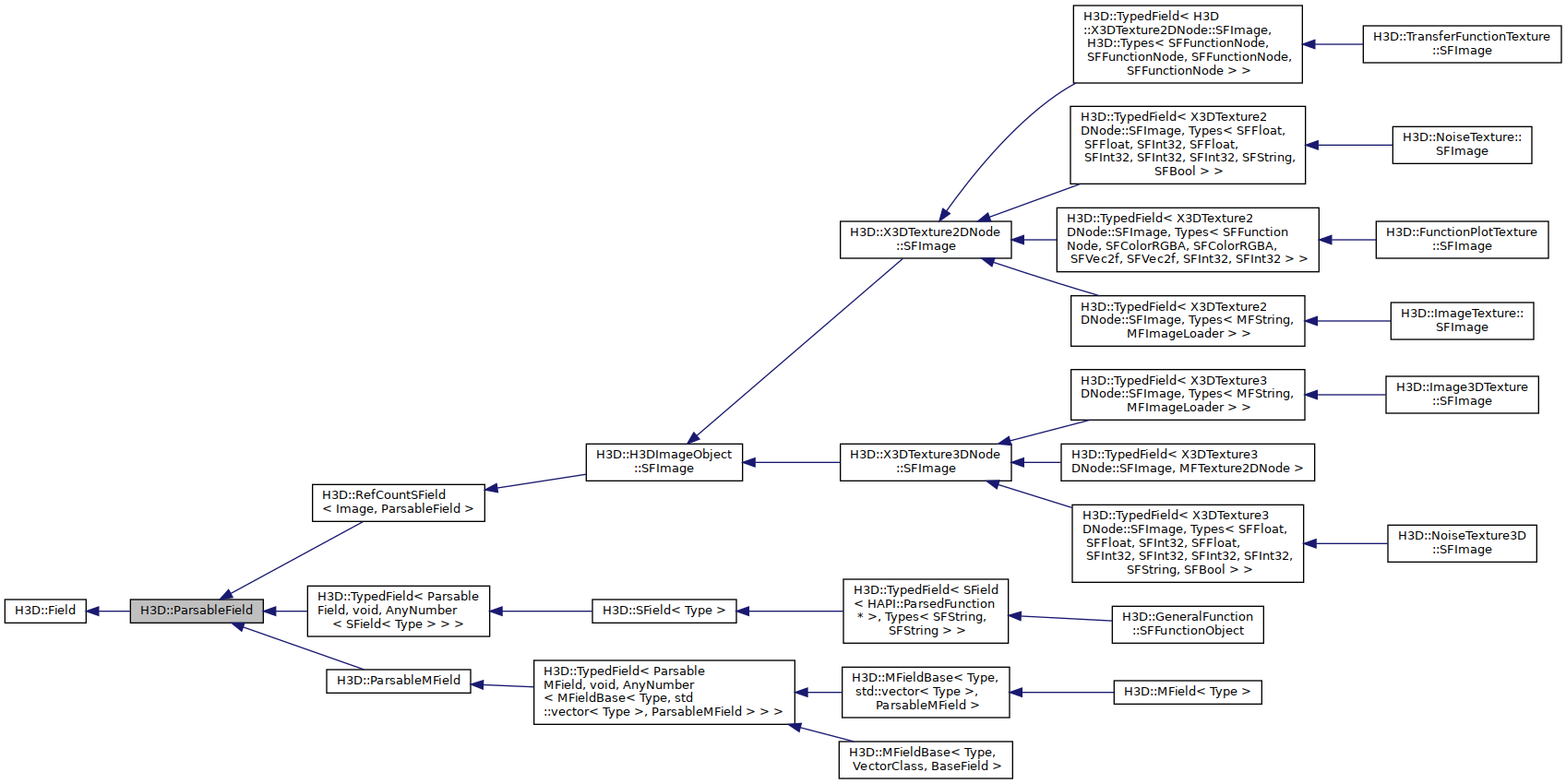

Inheritance diagram for H3D::ParsableField:

Public Member Functions
virtual void	setValueFromString (const string &s)=0
	Set the value of the field given a string. More...

virtual string	getValueAsString (const string &=" ")
	Get the value of the field as a string. More...

Public Member Functions inherited from H3D::Field
	Field ()
	Constructor.

virtual	~Field ()
	Destructor.

virtual void	checkFieldType (Field *f, int index)
	Check that a given input field is of the correct type. More...

void	setName (string _name)
	Sets local the name of the field. Will be used in error reporting.

string	getName ()
	Gets the name of the field.

string	getFullName ()
	Get the full name of the field including the name of the owner node if it exists (ownername.fieldname). More...

virtual string	getTypeName ()
	Returns a string name for this field type.

virtual X3DTypes::X3DType	getX3DType ()
	Returns the X3DType of the field.

virtual void	route (Field *, int id=0)
	Set up a route from this field to the field given as argument. More...

virtual void	routeNoEvent (Field *, int id=0)
	Set up a route from this field to the field given as argument. More...

virtual void	unroute (Field *)
	Remove the route from this field to the field given as argument.

virtual Field *	replaceRoute (Field *f, unsigned int i, int id=0)
	Replace the i:th route to f with a route from this field. More...

virtual Field *	replaceRouteNoEvent (Field *f, unsigned int i, int id=0)
	Replace the i:th route to f with a route from this field. More...

template<class F >
void	route (H3DUniquePtr< F > &f, int id=0)
	Set up a route from this field to the field residing in the H3DUniquePtr given as argument. More...

template<class F >
void	routeNoEvent (H3DUniquePtr< F > &f, int id=0)
	Set up a route from this field to the field residing in the H3DUniquePtr given as argument. More...

template<class F >
void	unroute (H3DUniquePtr< F > &f)
	Remove the route from this field to the field residing in the H3DUniquePtr given as argument.

void	unrouteAll ()
	Remove all the routes from this field.

virtual void	upToDate ()
	Check that the field is up-to-date, if not update() is called to make it up-to-date.

bool	isUpToDate ()
	Returns true if the field is up to date, i.e. More...

virtual void	touch ()
	Generates an event from this field.

Node *	getOwner ()
	Get the Node that contains this field.

void	setOwner (Node *n)
	Set the Node that contains this field.

void	setAccessType (AccessType _access_type)
	Set the access type of the field.

AccessType	getAccessType ()
	Get the access type of the field.

bool	routesTo (Field *f)
	Returns true if this field is routed to the field given as argument.

bool	hasRouteFrom (Field *f)
	Returns true if the field given as argument is routed to this field.

const FieldVector &	getRoutesIn ()
	Get the Fields that are routed to this Field.

const FieldSet &	getRoutesOut ()
	Get the Fields this Field is routed to.

const Event &	getLatestEvent ()
	Get the latest event.

void	setAccessCheck (bool on)
	Set access type checking on or off. More...

bool	isAccessCheckOn ()
	Returns true if checking of access types is on.

Additional Inherited Members
Public Types inherited from H3D::Field
enum	AccessType { INITIALIZE_ONLY , OUTPUT_ONLY , INPUT_ONLY , INPUT_OUTPUT }
	The different access types that a field can have. More...

Static Public Member Functions inherited from H3D::Field
static string	classTypeName ()
	Returns a string name for this field type. More...

Protected Member Functions inherited from H3D::Field
virtual void	startEvent ()
	Start a new event from this field. More...

virtual void	propagateEvent (Event e)
	Propagates an event to all Fields we are routed to. More...

virtual void	routeFrom (Field *, int id)
	Set up a route to this field from the field given as argument.

virtual void	unrouteFrom (Field *)
	Remove the route to this field from the field given as argument.

virtual Field *	replaceRouteFrom (Field *f, unsigned int i, int id)
	Replace the i:th route to this field with the field given as argument.

virtual void	update ()
	This function will be called to update the field if it has a pending event when the upToDate() function is called.

void	checkAccessTypeRoute (Field *f, int id)
	Check the access type is correct for performing a route from this field to f. More...

void	checkAccessTypeRouteFrom (Field *f, int id)
	Check the access type is correct for performing a route from f to this field. More...

void	checkAccessTypeGet (int id)
	Check the access type is valid for getting the value of a field. More...

void	checkAccessTypeSet (int id)
	Check the access type is valid for changing the value of a field. More...

int	ownerId ()
	Gets the id of the owner node, -1 if no owner.

bool	isProgramSetting ()
	Returns true if this field is part of program settings fields. More...

void	markProgramSetting (bool used_as_setting)
	Set it this field is used by program settings fields in scene or not.

Protected Attributes inherited from H3D::Field
string	name
	The name of the field.

bool	event_lock
	If true, stops events from being propagated. More...

bool	update_lock
	If true, stops the update() function from being called in the upToDate() function.

FieldSet	routes_out
	The Fields that this field is routed to.

FieldVector	routes_in
	The Field that are routed to this field.

Event	event
	The last event that happened.

Node *	owner
	The node that contain this field. More...

AccessType	access_type
	The type of access to the field.

bool	access_check_on
	If true, access type checks will be done when getting/setting values and setting up routes. More...
