Implementation of a particle. More...

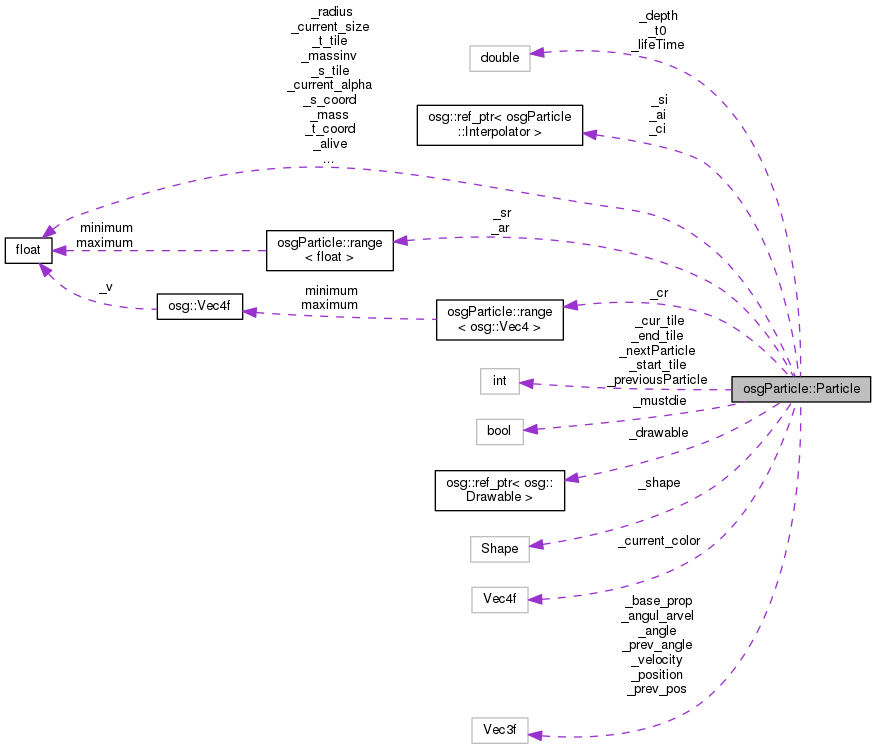

Collaboration diagram for osgParticle::Particle:

[legend]

Public Types
enum	{ INVALID_INDEX = -1 }

enum	Shape { POINT, QUAD, QUAD_TRIANGLESTRIP, HEXAGON, LINE, USER }
	Shape of particles. More...

Public Member Functions
Shape	getShape () const
	Get the shape of the particle.

void	setShape (Shape s)
	Set the shape of the particle.

bool	isAlive () const
	Get whether the particle is still alive.

double	getLifeTime () const
	Get the life time of the particle (in seconds).

double	getAge () const
	Get the age of the particle (in seconds).

const rangef &	getSizeRange () const
	Get the minimum and maximum values for polygon size.

const rangef &	getAlphaRange () const
	Get the minimum and maximum values for alpha.

const rangev4 &	getColorRange () const
	Get the minimum and maximum values for color.

const Interpolator *	getSizeInterpolator () const
	Get the interpolator for computing the size of polygons.

const Interpolator *	getAlphaInterpolator () const
	Get the interpolator for computing alpha values.

const Interpolator *	getColorInterpolator () const
	Get the interpolator for computing color values.

float	getRadius () const
	Get the physical radius of the particle. More...

float	getMass () const
	Get the mass of the particle. More...

float	getMassInv () const
	Get `1 / getMass()`.

const osg::Vec3 &	getPosition () const
	Get the position vector.

const osg::Vec3 &	getVelocity () const
	Get the velocity vector. More...

const osg::Vec3 &	getPreviousPosition () const
	Get the previous position (the position before last update).

const osg::Vec3 &	getAngle () const
	Get the angle vector.

const osg::Vec3 &	getAngularVelocity () const
	Get the rotational velocity vector.

const osg::Vec3 &	getPreviousAngle () const
	Get the previous angle vector.

const osg::Vec4 &	getCurrentColor () const
	Get the current color.

float	getCurrentAlpha () const
	Get the current alpha.

float	getSTexCoord () const
	Get the s texture coordinate of the bottom left of the particle.

float	getTTexCoord () const
	Get the t texture coordinate of the bottom left of the particle.

int	getTileS () const
	Get width of texture tile.

int	getTileT () const
	Get height of texture tile.

int	getNumTiles () const
	Get number of texture tiles.

void	kill ()
	Kill the particle on next update NOTE: after calling this function, the `isAlive()` method will still return true until the particle is updated again.

void	setLifeTime (double t)
	Set the life time of the particle.

void	setSizeRange (const rangef &r)
	Set the minimum and maximum values for polygon size.

void	setAlphaRange (const rangef &r)
	Set the minimum and maximum values for alpha.

void	setColorRange (const rangev4 &r)
	Set the minimum and maximum values for color.

void	setSizeInterpolator (Interpolator *ri)
	Set the interpolator for computing size values.

template<class T >
void	setSizeInterpolator (const osg::ref_ptr< T > &ri)

void	setAlphaInterpolator (Interpolator *ai)
	Set the interpolator for computing alpha values.

template<class T >
void	setAlphaInterpolator (const osg::ref_ptr< T > &ri)

void	setColorInterpolator (Interpolator *ci)
	Set the interpolator for computing color values.

template<class T >
void	setColorInterpolator (const osg::ref_ptr< T > &ri)

void	setRadius (float r)
	Set the physical radius of the particle. More...

void	setMass (float m)
	Set the mass of the particle. More...

void	setPosition (const osg::Vec3 &p)
	Set the position vector.

void	setVelocity (const osg::Vec3 &v)
	Set the velocity vector. More...

void	addVelocity (const osg::Vec3 &dv)
	Add a vector to the velocity vector.

void	transformPositionVelocity (const osg::Matrix &xform)
	Transform position and velocity vectors by a matrix.

void	transformPositionVelocity (const osg::Matrix &xform1, const osg::Matrix &xform2, float r)
	Transform position and velocity vectors by a combination of two matrices.

void	setAngle (const osg::Vec3 &a)
	Set the angle vector.

void	setAngularVelocity (const osg::Vec3 &v)
	Set the angular velocity vector. More...

void	addAngularVelocity (const osg::Vec3 &dv)
	Add a vector to the angular velocity vector.

void	transformAngleVelocity (const osg::Matrix &xform)
	Transform angle and angularVelocity vectors by a matrix.

bool	update (double dt, bool onlyTimeStamp)
	Update the particle (don't call this method manually). More...

void	beginRender (osg::GLBeginEndAdapter *gl) const
	Perform some pre-rendering tasks. Called automatically by particle systems.

void	render (osg::GLBeginEndAdapter *gl, const osg::Vec3 &xpos, const osg::Vec3 &px, const osg::Vec3 &py, float scale=1.0f) const
	Render the particle. Called automatically by particle systems.

void	render (osg::RenderInfo &renderInfo, const osg::Vec3 &xpos, const osg::Vec3 &xrot) const
	Render the particle with user-defined drawable.

void	endRender (osg::GLBeginEndAdapter *gl) const
	Perform some post-rendering tasks. Called automatically by particle systems.

float	getCurrentSize () const
	Get the current (interpolated) polygon size. Valid only after the first call to update().

void	setTextureTileRange (int sTile, int tTile, int startTile, int endTile)
	Specify how the particle texture is tiled. More...

void	setTextureTile (int sTile, int tTile, int end=-1)
	Same as above, range starts at 0 and ends at end.

int	getStartTile () const

int	getEndTile () const

void	setPreviousParticle (int previous)
	Set the previous particle.

int	getPreviousParticle () const
	Get the previous particle.

void	setNextParticle (int next)
	Set the next particle.

int	getNextParticle () const
	Get the const next particle.

void	setDepth (double d)
	Set the depth of the particle.

double	getDepth () const
	Get the depth of the particle.

void	setDrawable (osg::Drawable *d)
	Set the user-defined particle drawable.

osg::Drawable *	getDrawable () const
	Get the user-defined particle drawable.

bool	operator< (const Particle &P) const
	Sorting operator.

void	setUpTexCoordsAsPartOfConnectedParticleSystem (ParticleSystem *ps)
	Method for initializing a particles texture coords as part of a connected particle system.

Protected Attributes
Shape	_shape

rangef	_sr

rangef	_ar

rangev4	_cr

osg::ref_ptr< Interpolator >	_si

osg::ref_ptr< Interpolator >	_ai

osg::ref_ptr< Interpolator >	_ci

bool	_mustdie

double	_lifeTime

float	_radius

float	_mass

float	_massinv

osg::Vec3	_prev_pos

osg::Vec3	_position

osg::Vec3	_velocity

osg::Vec3	_prev_angle

osg::Vec3	_angle

osg::Vec3	_angul_arvel

double	_t0

float	_alive

float	_current_size

float	_current_alpha

osg::Vec3	_base_prop

osg::Vec4	_current_color

float	_s_tile

float	_t_tile

int	_start_tile

int	_end_tile

int	_cur_tile

float	_s_coord

float	_t_coord

int	_previousParticle

int	_nextParticle

double	_depth

osg::ref_ptr< osg::Drawable >	_drawable

Friends
class	ParticleSystem

Detailed Description

Implementation of a particle.

Objects of this class are particles, they have some graphical properties and some physical properties. Particles are created by emitters and then placed into Particle Systems, where they live and get updated at each frame. Particles can either live forever (lifeTime < 0), or die after a specified time (lifeTime >= 0). For each property which is defined as a range of values, a "current" value will be evaluated at each frame by interpolating the min and max values so that curr_value = min when t == 0, and curr_value = max when t == lifeTime. You may customize the interpolator objects to achieve any kind of transition. If you want the particle to live forever, set its lifetime to any value <= 0; in that case, no interpolation is done to compute real-time properties, and only minimum values are used.

Member Enumeration Documentation

◆ Shape

enum osgParticle::Particle::Shape

Shape of particles.

NOTE: the LINE shape should be used in conjunction with FIXED alignment mode (see ParticleSystem).

Member Function Documentation

◆ getMass()

float osgParticle::Particle::getMass ( ) const

inline

Get the mass of the particle.

For built-in operators to work correctly, remember that the mass is expressed in kg.

◆ getRadius()

float osgParticle::Particle::getRadius ( ) const

inline

Get the physical radius of the particle.

For built-in operators to work correctly, lengths must be expressed in meters.

◆ getVelocity()

const osg::Vec3 & osgParticle::Particle::getVelocity ( ) const

inline

Get the velocity vector.

For built-in operators to work correctly, remember that velocity components are expressed in meters per second.

◆ setAngularVelocity()

void osgParticle::Particle::setAngularVelocity ( const osg::Vec3 & v )

inline

Set the angular velocity vector.

Components x, y and z are angles of rotation around the respective axis (in radians).

◆ setMass()

void osgParticle::Particle::setMass ( float m )

inline

Set the mass of the particle.

For built-in operators to work correctly, remember that the mass is expressed in kg.

◆ setRadius()

void osgParticle::Particle::setRadius ( float r )

inline

Set the physical radius of the particle.

For built-in operators to work correctly, lengths must be expressed in meters.

◆ setTextureTileRange()

void osgParticle::Particle::setTextureTileRange	(	int	sTile,
		int	tTile,
		int	startTile,
		int	endTile
	)

inline

Specify how the particle texture is tiled.

All tiles in the given range are sequentially displayed during the lifetime of the particle. When no range is given, all tiles are displayed during the lifetime.

◆ setVelocity()

void osgParticle::Particle::setVelocity ( const osg::Vec3 & v )

inline

Set the velocity vector.

For built-in operators to work correctly, remember that velocity components are expressed in meters per second.

◆ update()

bool osgParticle::Particle::update	(	double	dt,
		bool	onlyTimeStamp
	)

Update the particle (don't call this method manually).

This method is called automatically by ParticleSystem::update(); it updates the graphical properties of the particle for the current time, checks whether the particle is still alive, and then updates its position by computing P = P + V * dt (where P is the position and V is the velocity).

The documentation for this class was generated from the following file:

/home/karlu20/private/installs/OpenSceneGraph/include/osgParticle/Particle
