Inheritance diagram for osgUtil::Statistics:

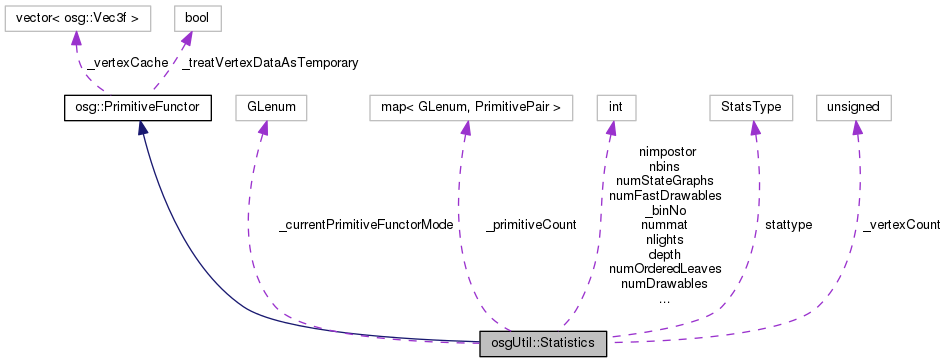

Collaboration diagram for osgUtil::Statistics:

Public Types
enum	StatsType { STAT_NONE, STAT_FRAMERATE, STAT_GRAPHS, STAT_PRIMS, STAT_PRIMSPERVIEW, STAT_PRIMSPERBIN, STAT_DC, STAT_RESTART }

typedef std::pair< unsigned int, unsigned int >	PrimitivePair

typedef std::map< GLenum, PrimitivePair >	PrimitiveValueMap

typedef std::map< GLenum, unsigned int >	PrimitiveCountMap

Public Member Functions
void	reset ()

void	setType (StatsType t)

virtual void	setVertexArray (unsigned int count, const osg::Vec3 *)
	Sets the array of vertices used to describe the primitives. More...

virtual void	setVertexArray (unsigned int count, const osg::Vec2 *)
	Sets the array of vertices used to describe the primitives. More...

virtual void	setVertexArray (unsigned int count, const osg::Vec4 *)
	Sets the array of vertices used to describe the primitives. More...

virtual void	setVertexArray (unsigned int count, const osg::Vec3d *)
	Sets the array of vertices used to describe the primitives. More...

virtual void	setVertexArray (unsigned int count, const osg::Vec2d *)
	Sets the array of vertices used to describe the primitives. More...

virtual void	setVertexArray (unsigned int count, const osg::Vec4d *)
	Sets the array of vertices used to describe the primitives. More...

virtual void	drawArrays (GLenum mode, GLint, GLsizei count)
	Mimics the OpenGL `glDrawArrays()` function.

virtual void	drawElements (GLenum mode, GLsizei count, const GLubyte *)
	Mimics the OpenGL `glDrawElements()` function.

virtual void	drawElements (GLenum mode, GLsizei count, const GLushort *)
	Mimics the OpenGL `glDrawElements()` function.

virtual void	drawElements (GLenum mode, GLsizei count, const GLuint *)
	Mimics the OpenGL `glDrawElements()` function.

virtual void	begin (GLenum mode)
	Mimics the OpenGL `glBegin()` function.

void	vertex ()

virtual void	vertex (float, float, float)
	Mimics the OpenGL `glVertex()` "family of functions".

virtual void	vertex (const osg::Vec3 &)
	Mimics the OpenGL `glVertex()` "family of functions".

virtual void	vertex (const osg::Vec2 &)
	Mimics the OpenGL `glVertex()` "family of functions".

virtual void	vertex (const osg::Vec4 &)
	Mimics the OpenGL `glVertex()` "family of functions".

virtual void	vertex (float, float)
	Mimics the OpenGL `glVertex()` "family of functions".

virtual void	vertex (float, float, float, float)
	Mimics the OpenGL `glVertex()` "family of functions".

virtual void	end ()
	Mimics the OpenGL `glEnd()` function.

void	addDrawable ()

void	addFastDrawable ()

void	addMatrix ()

void	addLight (int np)

void	addImpostor (int np)

int	getBins ()

void	setDepth (int d)

void	addBins (int np)

void	setBinNo (int n)

void	addStateGraphs (int n)

void	addOrderedLeaves (int n)

void	add (const Statistics &stats)

PrimitiveCountMap &	getPrimitiveCountMap ()

const PrimitiveCountMap &	getPrimitiveCountMap () const

PrimitiveValueMap &	getPrimitiveValueMap ()

const PrimitiveValueMap &	getPrimitiveValueMap () const

PrimitiveCountMap::iterator	GetPrimitivesBegin ()
	deprecated

PrimitiveCountMap::iterator	GetPrimitivesEnd ()
	deprecated

Public Member Functions inherited from osg::PrimitiveFunctor
void	useVertexCacheAsVertexArray ()

Public Attributes
int	numDrawables

int	nummat

int	nbins

int	numStateGraphs

int	numFastDrawables

int	nlights

int	depth

int	_binNo

StatsType	stattype

int	nimpostor

int	numOrderedLeaves

unsigned int	_vertexCount

PrimitiveValueMap	_primitiveCount

GLenum	_currentPrimitiveFunctorMode

Public Attributes inherited from osg::PrimitiveFunctor
std::vector< Vec3 >	_vertexCache

bool	_treatVertexDataAsTemporary

Detailed Description

Statistics base class.

Used to extract primitive information from the renderBin(s). Add a case of getStats(osgUtil::Statistics *stat) for any new drawable (or drawable derived class) that you generate (eg see Geometry.cpp). There are 20 types of drawable counted - actually only 14 cases can occur in reality. these represent sets of GL_POINTS, GL_LINES GL_LINESTRIPS, LOOPS, TRIANGLES, TRI-fans, tristrips, quads, quadstrips etc The number of triangles rendered is inferred: each triangle = 1 triangle (number of vertices/3) each quad = 2 triangles (nverts/2) each trifan or tristrip = (length-2) triangles and so on.
