osg::DisplaySettings Class Reference

DisplaySettings class for encapsulating what visuals are required and have been set up, and the status of stereo viewing. More...

Inheritance diagram for osg::DisplaySettings:

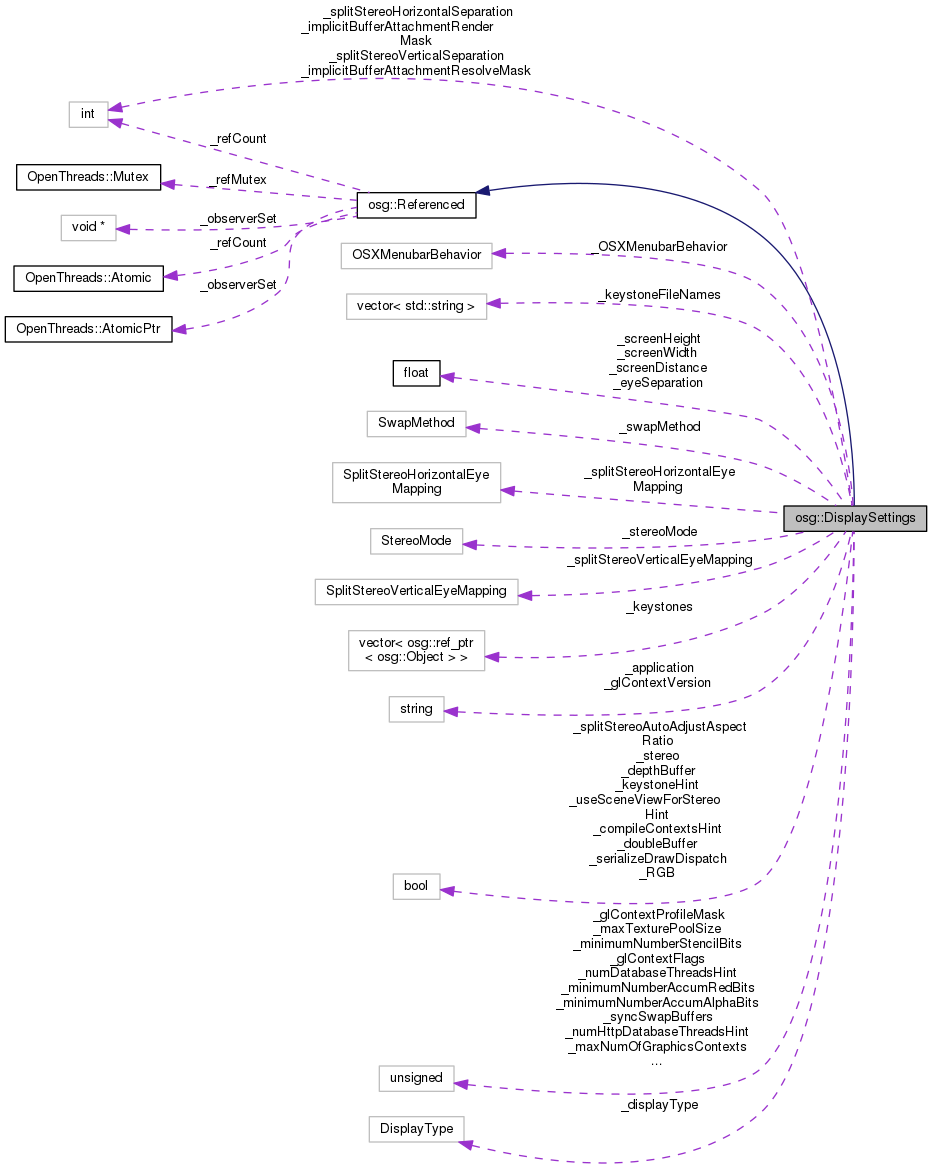

Collaboration diagram for osg::DisplaySettings:

Public Types
enum	DisplayType { MONITOR, POWERWALL, REALITY_CENTER, HEAD_MOUNTED_DISPLAY }
enum	StereoMode {   QUAD_BUFFER, ANAGLYPHIC, HORIZONTAL_SPLIT, VERTICAL_SPLIT,   LEFT_EYE, RIGHT_EYE, HORIZONTAL_INTERLACE, VERTICAL_INTERLACE,   CHECKERBOARD }
enum	SplitStereoHorizontalEyeMapping { LEFT_EYE_LEFT_VIEWPORT, LEFT_EYE_RIGHT_VIEWPORT }
enum	SplitStereoVerticalEyeMapping { LEFT_EYE_TOP_VIEWPORT, LEFT_EYE_BOTTOM_VIEWPORT }
enum	ImplicitBufferAttachment { IMPLICIT_DEPTH_BUFFER_ATTACHMENT = (1 << 0), IMPLICIT_STENCIL_BUFFER_ATTACHMENT = (1 << 1), IMPLICIT_COLOR_BUFFER_ATTACHMENT = (1 << 2), DEFAULT_IMPLICIT_BUFFER_ATTACHMENT = IMPLICIT_COLOR_BUFFER_ATTACHMENT | IMPLICIT_DEPTH_BUFFER_ATTACHMENT }
	Methods used to set and get defaults for Cameras implicit buffer attachments. More...
enum	SwapMethod { SWAP_DEFAULT, SWAP_EXCHANGE, SWAP_COPY, SWAP_UNDEFINED }
enum	OSXMenubarBehavior { MENUBAR_AUTO_HIDE, MENUBAR_FORCE_HIDE, MENUBAR_FORCE_SHOW }
typedef int	ImplicitBufferAttachmentMask
typedef std::vector< std::string >	FileNames
typedef std::vector< osg::ref_ptr< osg::Object > >	Objects

Public Member Functions
	DisplaySettings (ArgumentParser &arguments)
	DisplaySettings (const DisplaySettings &vs)
DisplaySettings &	operator= (const DisplaySettings &vs)
void	setDisplaySettings (const DisplaySettings &vs)
void	merge (const DisplaySettings &vs)
void	setDefaults ()
void	readEnvironmentalVariables ()
	read the environmental variables. More...
void	readCommandLine (ArgumentParser &arguments)
	read the commandline arguments. More...
void	setDisplayType (DisplayType type)
DisplayType	getDisplayType () const
void	setStereo (bool on)
bool	getStereo () const
void	setStereoMode (StereoMode mode)
StereoMode	getStereoMode () const
void	setEyeSeparation (float eyeSeparation)
float	getEyeSeparation () const
void	setSplitStereoHorizontalEyeMapping (SplitStereoHorizontalEyeMapping m)
SplitStereoHorizontalEyeMapping	getSplitStereoHorizontalEyeMapping () const
void	setSplitStereoHorizontalSeparation (int s)
int	getSplitStereoHorizontalSeparation () const
void	setSplitStereoVerticalEyeMapping (SplitStereoVerticalEyeMapping m)
SplitStereoVerticalEyeMapping	getSplitStereoVerticalEyeMapping () const
void	setSplitStereoVerticalSeparation (int s)
int	getSplitStereoVerticalSeparation () const
void	setSplitStereoAutoAdjustAspectRatio (bool flag)
bool	getSplitStereoAutoAdjustAspectRatio () const
void	setScreenWidth (float width)
float	getScreenWidth () const
void	setScreenHeight (float height)
float	getScreenHeight () const
void	setScreenDistance (float distance)
float	getScreenDistance () const
void	setDoubleBuffer (bool flag)
bool	getDoubleBuffer () const
void	setRGB (bool flag)
bool	getRGB () const
void	setDepthBuffer (bool flag)
bool	getDepthBuffer () const
void	setMinimumNumAlphaBits (unsigned int bits)
unsigned int	getMinimumNumAlphaBits () const
bool	getAlphaBuffer () const
void	setMinimumNumStencilBits (unsigned int bits)
unsigned int	getMinimumNumStencilBits () const
bool	getStencilBuffer () const
void	setMinimumNumAccumBits (unsigned int red, unsigned int green, unsigned int blue, unsigned int alpha)
unsigned int	getMinimumNumAccumRedBits () const
unsigned int	getMinimumNumAccumGreenBits () const
unsigned int	getMinimumNumAccumBlueBits () const
unsigned int	getMinimumNumAccumAlphaBits () const
bool	getAccumBuffer () const
void	setMaxNumberOfGraphicsContexts (unsigned int num)
unsigned int	getMaxNumberOfGraphicsContexts () const
void	setNumMultiSamples (unsigned int samples)
unsigned int	getNumMultiSamples () const
bool	getMultiSamples () const
void	setCompileContextsHint (bool useCompileContexts)
bool	getCompileContextsHint () const
void	setSerializeDrawDispatch (bool serializeDrawDispatch)
bool	getSerializeDrawDispatch () const
void	setUseSceneViewForStereoHint (bool hint)
bool	getUseSceneViewForStereoHint () const
void	setNumOfDatabaseThreadsHint (unsigned int numThreads)
	Set the hint for the total number of threads in the DatbasePager set up, inclusive of the number of http dedicated threads. More...
unsigned int	getNumOfDatabaseThreadsHint () const
	Get the hint for total number of threads in the DatbasePager set up, inclusive of the number of http dedicated threads. More...
void	setNumOfHttpDatabaseThreadsHint (unsigned int numThreads)
	Set the hint for number of threads in the DatbasePager to dedicate to reading http requests. More...
unsigned int	getNumOfHttpDatabaseThreadsHint () const
	Get the hint for number of threads in the DatbasePager dedicated to reading http requests. More...
void	setApplication (const std::string &application)
const std::string &	getApplication ()
void	setMaxTexturePoolSize (unsigned int size)
unsigned int	getMaxTexturePoolSize () const
void	setMaxBufferObjectPoolSize (unsigned int size)
unsigned int	getMaxBufferObjectPoolSize () const
void	setImplicitBufferAttachmentMask (ImplicitBufferAttachmentMask renderMask=DisplaySettings::DEFAULT_IMPLICIT_BUFFER_ATTACHMENT, ImplicitBufferAttachmentMask resolveMask=DisplaySettings::DEFAULT_IMPLICIT_BUFFER_ATTACHMENT)
void	setImplicitBufferAttachmentRenderMask (ImplicitBufferAttachmentMask implicitBufferAttachmentRenderMask)
void	setImplicitBufferAttachmentResolveMask (ImplicitBufferAttachmentMask implicitBufferAttachmentResolveMask)
ImplicitBufferAttachmentMask	getImplicitBufferAttachmentRenderMask () const
	Get mask selecting default implicit buffer attachments for Cameras primary FBOs. More...
ImplicitBufferAttachmentMask	getImplicitBufferAttachmentResolveMask () const
	Get mask selecting default implicit buffer attachments for Cameras secondary MULTISAMPLE FBOs. More...
void	setSwapMethod (SwapMethod swapMethod)
	Select preferred swap method.
SwapMethod	getSwapMethod (void)
	Get preferred swap method.
void	setSyncSwapBuffers (unsigned int numFrames=0)
	Set whether Arb Sync should be used to manage the swaps buffers, 0 disables the use of the sync, greater than zero enables sync based on number of frames specified. More...
unsigned int	getSyncSwapBuffers () const
	Set whether Arb Sync should be used to manage the swaps buffers. More...
void	setGLContextVersion (const std::string &version)
	Set the hint of which OpenGL version to attempt to create a graphics context for. More...
const std::string	getGLContextVersion () const
	Get the hint of which OpenGL version to attempt to create a graphics context for. More...
void	setGLContextFlags (unsigned int flags)
	Set the hint of the flags to use in when creating graphic contexts. More...
unsigned int	getGLContextFlags () const
	Get the hint of the flags to use in when creating graphic contexts. More...
void	setGLContextProfileMask (unsigned int mask)
	Set the hint of the profile mask to use in when creating graphic contexts. More...
unsigned int	getGLContextProfileMask () const
	Get the hint of the profile mask to use in when creating graphic contexts. More...
void	setNvOptimusEnablement (int value)
	Set the NvOptimusEnablement value. More...
int	getNvOptimusEnablement () const
	Get the NvOptimusEnablement value. More...
void	setKeystoneHint (bool enabled)
bool	getKeystoneHint () const
void	setKeystoneFileNames (const FileNames &filenames)
FileNames &	getKeystoneFileNames ()
const FileNames &	getKeystoneFileNames () const
void	setKeystones (const Objects &objects)
Objects &	getKeystones ()
const Objects &	getKeystones () const
OSXMenubarBehavior	getOSXMenubarBehavior () const
void	setOSXMenubarBehavior (OSXMenubarBehavior hint)
virtual osg::Matrixd	computeLeftEyeProjectionImplementation (const osg::Matrixd &projection) const
	helper function for computing the left eye projection matrix. More...
virtual osg::Matrixd	computeLeftEyeViewImplementation (const osg::Matrixd &view, double eyeSeperationScale=1.0) const
	helper function for computing the left eye view matrix. More...
virtual osg::Matrixd	computeRightEyeProjectionImplementation (const osg::Matrixd &projection) const
	helper function for computing the right eye view matrix. More...
virtual osg::Matrixd	computeRightEyeViewImplementation (const osg::Matrixd &view, double eyeSeperationScale=1.0) const
	helper function for computing the right eye view matrix. More...
Public Member Functions inherited from osg::Referenced
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
virtual void	setThreadSafeRefUnref (bool threadSafe)
	Set whether to use a mutex to ensure ref() and unref() are thread safe. More...
bool	getThreadSafeRefUnref () const
	Get whether a mutex is used to ensure ref() and unref() are thread safe. More...
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
	Get the mutex used to ensure thread safety of ref()/unref(). More...
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
	Increment the reference count by one, indicating that this object has another pointer which is referencing it. More...
int	unref () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...
int	unref_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...
int	referenceCount () const
	Return the number of pointers currently referencing this object. More...
ObserverSet *	getObserverSet () const
	Get the ObserverSet if one is attached, otherwise return NULL. More...
ObserverSet *	getOrCreateObserverSet () const
	Get the ObserverSet if one is attached, otherwise create an ObserverSet, attach it, then return this newly created ObserverSet. More...
void	addObserver (Observer *observer) const
	Add a Observer that is observing this object, notify the Observer when this object gets deleted. More...
void	removeObserver (Observer *observer) const
	Remove Observer that is observing this object. More...

Static Public Member Functions
static ref_ptr< DisplaySettings > &	instance ()
	Maintain a DisplaySettings singleton for objects to query at runtime. More...
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
	Get the optional global Referenced mutex, this can be shared between all osg::Referenced. More...
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
	Set whether reference counting should use a mutex for thread safe reference counting. More...
static bool	getThreadSafeReferenceCounting ()
	Get whether reference counting is active. More...
static void	setDeleteHandler (DeleteHandler *handler)
	Set a DeleteHandler to which deletion of all referenced counted objects will be delegated. More...
static DeleteHandler *	getDeleteHandler ()
	Get a DeleteHandler. More...

Protected Attributes
DisplayType	_displayType
bool	_stereo
StereoMode	_stereoMode
float	_eyeSeparation
float	_screenWidth
float	_screenHeight
float	_screenDistance
SplitStereoHorizontalEyeMapping	_splitStereoHorizontalEyeMapping
int	_splitStereoHorizontalSeparation
SplitStereoVerticalEyeMapping	_splitStereoVerticalEyeMapping
int	_splitStereoVerticalSeparation
bool	_splitStereoAutoAdjustAspectRatio
bool	_doubleBuffer
bool	_RGB
bool	_depthBuffer
unsigned int	_minimumNumberAlphaBits
unsigned int	_minimumNumberStencilBits
unsigned int	_minimumNumberAccumRedBits
unsigned int	_minimumNumberAccumGreenBits
unsigned int	_minimumNumberAccumBlueBits
unsigned int	_minimumNumberAccumAlphaBits
unsigned int	_maxNumOfGraphicsContexts
unsigned int	_numMultiSamples
bool	_compileContextsHint
bool	_serializeDrawDispatch
bool	_useSceneViewForStereoHint
unsigned int	_numDatabaseThreadsHint
unsigned int	_numHttpDatabaseThreadsHint
std::string	_application
unsigned int	_maxTexturePoolSize
unsigned int	_maxBufferObjectPoolSize
ImplicitBufferAttachmentMask	_implicitBufferAttachmentRenderMask
ImplicitBufferAttachmentMask	_implicitBufferAttachmentResolveMask
std::string	_glContextVersion
unsigned int	_glContextFlags
unsigned int	_glContextProfileMask
SwapMethod	_swapMethod
unsigned int	_syncSwapBuffers
bool	_keystoneHint
FileNames	_keystoneFileNames
Objects	_keystones
OSXMenubarBehavior	_OSXMenubarBehavior
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount
OpenThreads::Mutex *	_refMutex
int	_refCount
void *	_observerSet

Additional Inherited Members
Protected Member Functions inherited from osg::Referenced
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const

Detailed Description

DisplaySettings class for encapsulating what visuals are required and have been set up, and the status of stereo viewing.

Member Enumeration Documentation

ImplicitBufferAttachment

enum osg::DisplaySettings::ImplicitBufferAttachment

Methods used to set and get defaults for Cameras implicit buffer attachments.

For more info: See description of Camera::setImplicitBufferAttachment method

DisplaySettings implicit buffer attachment selection defaults to: DEPTH and COLOR for both primary (Render) FBO and secondary Multisample (Resolve) FBO ie: IMPLICIT_DEPTH_BUFFER_ATTACHMENT | IMPLICIT_COLOR_BUFFER_ATTACHMENT

Member Function Documentation

computeLeftEyeProjectionImplementation()

virtual osg::Matrixd osg::DisplaySettings::computeLeftEyeProjectionImplementation ( const osg::Matrixd &  projection ) const

virtual

helper function for computing the left eye projection matrix.

computeLeftEyeViewImplementation()

virtual osg::Matrixd osg::DisplaySettings::computeLeftEyeViewImplementation ( const osg::Matrixd &  view, double  eyeSeperationScale = 1.0  ) const

virtual

helper function for computing the left eye view matrix.

computeRightEyeProjectionImplementation()

virtual osg::Matrixd osg::DisplaySettings::computeRightEyeProjectionImplementation ( const osg::Matrixd &  projection ) const

virtual

helper function for computing the right eye view matrix.

computeRightEyeViewImplementation()

virtual osg::Matrixd osg::DisplaySettings::computeRightEyeViewImplementation ( const osg::Matrixd &  view, double  eyeSeperationScale = 1.0  ) const

virtual

helper function for computing the right eye view matrix.

getGLContextFlags()

unsigned int osg::DisplaySettings::getGLContextFlags ( ) const

inline

Get the hint of the flags to use in when creating graphic contexts.

getGLContextProfileMask()

unsigned int osg::DisplaySettings::getGLContextProfileMask ( ) const

inline

Get the hint of the profile mask to use in when creating graphic contexts.

getGLContextVersion()

const std::string osg::DisplaySettings::getGLContextVersion ( ) const

inline

Get the hint of which OpenGL version to attempt to create a graphics context for.

getImplicitBufferAttachmentRenderMask()

ImplicitBufferAttachmentMask osg::DisplaySettings::getImplicitBufferAttachmentRenderMask ( ) const

inline

Get mask selecting default implicit buffer attachments for Cameras primary FBOs.

getImplicitBufferAttachmentResolveMask()

ImplicitBufferAttachmentMask osg::DisplaySettings::getImplicitBufferAttachmentResolveMask ( ) const

inline

Get mask selecting default implicit buffer attachments for Cameras secondary MULTISAMPLE FBOs.

getNumOfDatabaseThreadsHint()

unsigned int osg::DisplaySettings::getNumOfDatabaseThreadsHint ( ) const

inline

Get the hint for total number of threads in the DatbasePager set up, inclusive of the number of http dedicated threads.

getNumOfHttpDatabaseThreadsHint()

unsigned int osg::DisplaySettings::getNumOfHttpDatabaseThreadsHint ( ) const

inline

Get the hint for number of threads in the DatbasePager dedicated to reading http requests.

getNvOptimusEnablement()

int osg::DisplaySettings::getNvOptimusEnablement

(

)

const

Get the NvOptimusEnablement value.

getSyncSwapBuffers()

unsigned int osg::DisplaySettings::getSyncSwapBuffers ( ) const

inline

Set whether Arb Sync should be used to manage the swaps buffers.

instance()

static ref_ptr<DisplaySettings>& osg::DisplaySettings::instance ( )

static

Maintain a DisplaySettings singleton for objects to query at runtime.

readCommandLine()

void osg::DisplaySettings::readCommandLine

(

ArgumentParser &

arguments

)

read the commandline arguments.

readEnvironmentalVariables()

void osg::DisplaySettings::readEnvironmentalVariables

(

)

read the environmental variables.

setGLContextFlags()

void osg::DisplaySettings::setGLContextFlags ( unsigned int  flags )

inline

Set the hint of the flags to use in when creating graphic contexts.

setGLContextProfileMask()

void osg::DisplaySettings::setGLContextProfileMask ( unsigned int  mask )

inline

Set the hint of the profile mask to use in when creating graphic contexts.

setGLContextVersion()

void osg::DisplaySettings::setGLContextVersion ( const std::string &  version )

inline

Set the hint of which OpenGL version to attempt to create a graphics context for.

setNumOfDatabaseThreadsHint()

void osg::DisplaySettings::setNumOfDatabaseThreadsHint ( unsigned int  numThreads )

inline

Set the hint for the total number of threads in the DatbasePager set up, inclusive of the number of http dedicated threads.

setNumOfHttpDatabaseThreadsHint()

void osg::DisplaySettings::setNumOfHttpDatabaseThreadsHint ( unsigned int  numThreads )

inline

Set the hint for number of threads in the DatbasePager to dedicate to reading http requests.

setNvOptimusEnablement()

void osg::DisplaySettings::setNvOptimusEnablement

(

int

value

)

Set the NvOptimusEnablement value.

Default can be set using OSG_NvOptimusEnablement env var.

setSyncSwapBuffers()

void osg::DisplaySettings::setSyncSwapBuffers ( unsigned int  numFrames = 0 )

inline

Set whether Arb Sync should be used to manage the swaps buffers, 0 disables the use of the sync, greater than zero enables sync based on number of frames specified.

---

The documentation for this class was generated from the following file:

• /home/karlu20/private/installs/OpenSceneGraph/include/osg/DisplaySettings
