osg::ShadowVolumeOccluder Class Reference

ShadowVolumeOccluder is a helper class for implementing shadow occlusion culling. More...

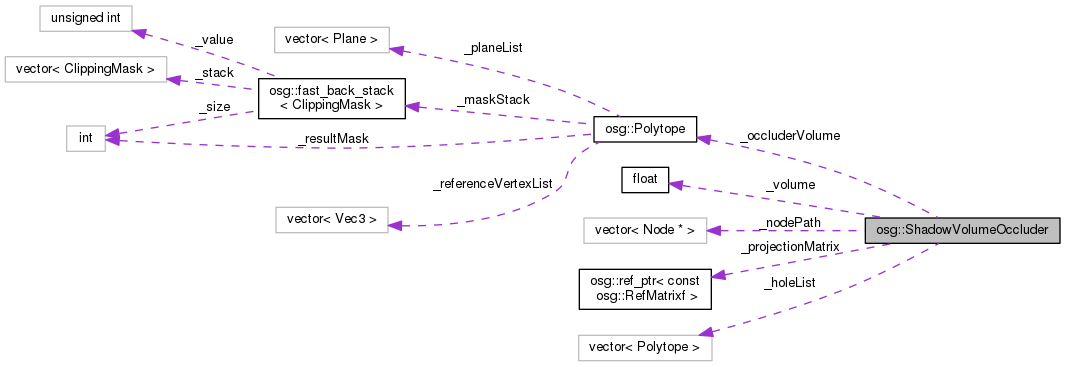

Collaboration diagram for osg::ShadowVolumeOccluder:

Public Types
typedef std::vector< Polytope >	HoleList

Public Member Functions
	ShadowVolumeOccluder (const ShadowVolumeOccluder &svo)
bool	operator< (const ShadowVolumeOccluder &svo) const
bool	computeOccluder (const NodePath &nodePath, const ConvexPlanarOccluder &occluder, CullStack &cullStack, bool createDrawables=false)
	compute the shadow volume occluder. More...
void	disableResultMasks ()
void	pushCurrentMask ()
void	popCurrentMask ()
bool	matchProjectionMatrix (const osg::Matrix &matrix) const
	return true if the matrix passed in matches the projection matrix that this ShadowVolumeOccluder is associated with. More...
void	setNodePath (NodePath &nodePath)
	Set the NodePath which describes which node in the scene graph that this occluder is attached to. More...
NodePath &	getNodePath ()
const NodePath &	getNodePath () const
float	getVolume () const
	get the volume of the occluder minus its holes, in eye coords, the volume is normalized by dividing by the volume of the view frustum in eye coords. More...
Polytope &	getOccluder ()
	return the occluder polytope. More...
const Polytope &	getOccluder () const
	return the const occluder polytope. More...
HoleList &	getHoleList ()
	return the list of holes. More...
const HoleList &	getHoleList () const
	return the const list of holes. More...
bool	contains (const std::vector< Vec3 > &vertices)
	return true if the specified vertex list is contained entirely within this shadow occluder volume. More...
bool	contains (const BoundingSphere &bound)
	return true if the specified bounding sphere is contained entirely within this shadow occluder volume. More...
bool	contains (const BoundingBox &bound)
	return true if the specified bounding box is contained entirely within this shadow occluder volume. More...
void	transformProvidingInverse (const osg::Matrix &matrix)

Protected Attributes
float	_volume
NodePath	_nodePath
ref_ptr< const RefMatrix >	_projectionMatrix
Polytope	_occluderVolume
HoleList	_holeList

Detailed Description

ShadowVolumeOccluder is a helper class for implementing shadow occlusion culling.

Member Function Documentation

computeOccluder()

bool osg::ShadowVolumeOccluder::computeOccluder	(	const NodePath &	nodePath,
		const ConvexPlanarOccluder &	occluder,
		CullStack &	cullStack,
		bool	createDrawables = false
	)

compute the shadow volume occluder.

contains() [1/3]

bool osg::ShadowVolumeOccluder::contains

(

const std::vector< Vec3 > &

vertices

)

return true if the specified vertex list is contained entirely within this shadow occluder volume.

contains() [2/3]

bool osg::ShadowVolumeOccluder::contains

(

const BoundingSphere &

bound

)

return true if the specified bounding sphere is contained entirely within this shadow occluder volume.

contains() [3/3]

bool osg::ShadowVolumeOccluder::contains

(

const BoundingBox &

bound

)

return true if the specified bounding box is contained entirely within this shadow occluder volume.

getHoleList() [1/2]

HoleList& osg::ShadowVolumeOccluder::getHoleList ( )

inline

return the list of holes.

getHoleList() [2/2]

const HoleList& osg::ShadowVolumeOccluder::getHoleList ( ) const

inline

return the const list of holes.

getOccluder() [1/2]

Polytope& osg::ShadowVolumeOccluder::getOccluder ( )

inline

return the occluder polytope.

getOccluder() [2/2]

const Polytope& osg::ShadowVolumeOccluder::getOccluder ( ) const

inline

return the const occluder polytope.

getVolume()

float osg::ShadowVolumeOccluder::getVolume ( ) const

inline

get the volume of the occluder minus its holes, in eye coords, the volume is normalized by dividing by the volume of the view frustum in eye coords.

matchProjectionMatrix()

bool osg::ShadowVolumeOccluder::matchProjectionMatrix ( const osg::Matrix &  matrix ) const

inline

return true if the matrix passed in matches the projection matrix that this ShadowVolumeOccluder is associated with.

setNodePath()

void osg::ShadowVolumeOccluder::setNodePath ( NodePath &  nodePath )

inline

Set the NodePath which describes which node in the scene graph that this occluder is attached to.

---

The documentation for this class was generated from the following file:

• /home/karlu20/private/installs/OpenSceneGraph/include/osg/ShadowVolumeOccluder
