EventQueue implementation for collecting and adapting windowing events. More...

Inheritance diagram for osgGA::EventQueue:

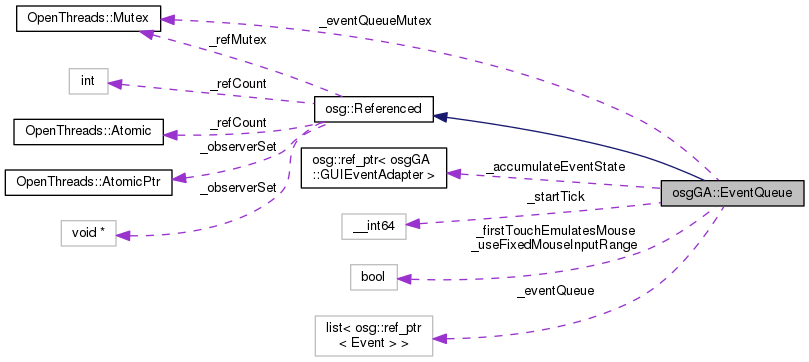

Collaboration diagram for osgGA::EventQueue:

[legend]

Public Types
typedef std::list< osg::ref_ptr< Event > >	Events

Public Member Functions
	EventQueue (GUIEventAdapter::MouseYOrientation mouseYOrientation=GUIEventAdapter::Y_INCREASING_DOWNWARDS)

bool	empty () const

void	setEvents (Events &events)
	Set events. More...

bool	takeEvents (Events &events)
	Take the entire event queue leaving the EventQueue' event queue empty. More...

bool	takeEvents (Events &events, double cutOffTime)
	Take the events that were recorded before with specified time queue. More...

bool	copyEvents (Events &events) const
	Take a copy the entire event queue leaving the EventQueue' event queue intact. More...

void	appendEvents (Events &events)
	Add events to end of event queue. More...

void	addEvent (Event *event)
	Add an event to the end of the event queue. More...

void	setUseFixedMouseInputRange (bool useFixedMouseInputRange)
	Specify if mouse coordinates should be transformed into a pre defined input range, or whether they should be simply based on as local coordinates to the window that generated the mouse events. More...

bool	getUseFixedMouseInputRange ()
	Get whether the mouse coordinates should be transformed into a pre defined input range. More...

void	setGraphicsContext (osg::GraphicsContext *context)
	Set the graphics context associated with this event queue. More...

osg::GraphicsContext *	getGraphicsContext ()

const osg::GraphicsContext *	getGraphicsContext () const

void	syncWindowRectangleWithGraphicsContext ()
	Read the window record dimensions from the graphics context. More...

void	setMouseInputRange (float xMin, float yMin, float xMax, float yMax)
	Set the mouse input range. More...

osgGA::GUIEventAdapter *	windowResize (int x, int y, int width, int height)
	Method for adapting window resize event, placing this event on the back of the event queue. More...

osgGA::GUIEventAdapter *	windowResize (int x, int y, int width, int height, double time)
	Method for adapting window resize event, placing this event on the back of the event queue, with specified time. More...

osgGA::GUIEventAdapter *	mouseScroll (GUIEventAdapter::ScrollingMotion sm)
	Method for adapting mouse scroll wheel events, placing this event on the back of the event queue. More...

osgGA::GUIEventAdapter *	mouseScroll (GUIEventAdapter::ScrollingMotion sm, double time)
	Method for adapting mouse scroll wheel events, placing this event on the back of the event queue, with specified time. More...

osgGA::GUIEventAdapter *	mouseScroll2D (float x, float y)
	Method for adapting mouse scroll wheel events, placing this event on the back of the event queue. More...

osgGA::GUIEventAdapter *	mouseScroll2D (float x, float y, double time)
	Method for adapting mouse scroll wheel events, placing this event on the back of the event queue. More...

osgGA::GUIEventAdapter *	penPressure (float pressure)
	Method for adapting pen pressure events, placing this event on the back of the event queue. More...

osgGA::GUIEventAdapter *	penPressure (float pressure, double time)
	Method for adapting pen pressure events, placing this event on the back of the event queue, with specified time. More...

osgGA::GUIEventAdapter *	penOrientation (float tiltX, float tiltY, float rotation)
	Method for adapting pen orientation events, placing this event on the back of the event queue. More...

osgGA::GUIEventAdapter *	penOrientation (float tiltX, float tiltY, float rotation, double time)
	Method for adapting pen orientation events, placing this event on the back of the event queue, with specified time. More...

osgGA::GUIEventAdapter *	penProximity (GUIEventAdapter::TabletPointerType pt, bool isEntering)
	Method for adapting pen proximity events, placing this event on the back of the event queue. More...

osgGA::GUIEventAdapter *	penProximity (GUIEventAdapter::TabletPointerType pt, bool isEntering, double time)
	Method for adapting pen proximity events, placing this event on the back of the event queue, with specified time. More...

void	mouseWarped (float x, float y)
	Method for updating in response to a mouse warp. More...

osgGA::GUIEventAdapter *	mouseMotion (float x, float y)
	Method for adapting mouse motion events, placing this event on the back of the event queue. More...

osgGA::GUIEventAdapter *	mouseMotion (float x, float y, double time)
	Method for adapting mouse motion events, placing this event on the back of the event queue, with specified time. More...

osgGA::GUIEventAdapter *	mouseButtonPress (float x, float y, unsigned int button)
	Method for adapting mouse button pressed events, placing this event on the back of the event queue. More...

osgGA::GUIEventAdapter *	mouseButtonPress (float x, float y, unsigned int button, double time)
	Method for adapting mouse button pressed events, placing this event on the back of the event queue, with specified time. More...

osgGA::GUIEventAdapter *	mouseDoubleButtonPress (float x, float y, unsigned int button)
	Method for adapting mouse button pressed events, placing this event on the back of the event queue. More...

osgGA::GUIEventAdapter *	mouseDoubleButtonPress (float x, float y, unsigned int button, double time)
	Method for adapting mouse button pressed events, placing this event on the back of the event queue, with specified time. More...

osgGA::GUIEventAdapter *	mouseButtonRelease (float x, float y, unsigned int button)
	Method for adapting mouse button release events, placing this event on the back of the event queue. More...

osgGA::GUIEventAdapter *	mouseButtonRelease (float x, float y, unsigned int button, double time)
	Method for adapting mouse button release events, placing this event on the back of the event queue, with specified time. More...

osgGA::GUIEventAdapter *	keyPress (int key, int unmodifiedKey=0)
	Method for adapting keyboard press events. More...

osgGA::GUIEventAdapter *	keyPress (int key, double time, int unmodifiedKey=0)
	Method for adapting keyboard press events. More...

osgGA::GUIEventAdapter *	keyRelease (int key, int unmodifiedKey=0)
	Method for adapting keyboard press events. More...

osgGA::GUIEventAdapter *	keyRelease (int key, double time, int unmodifiedKey=0)
	Method for adapting keyboard press events. More...

GUIEventAdapter *	touchBegan (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y, double time)

GUIEventAdapter *	touchBegan (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y)

GUIEventAdapter *	touchMoved (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y, double time)

GUIEventAdapter *	touchMoved (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y)

GUIEventAdapter *	touchEnded (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y, unsigned int tap_count, double time)

GUIEventAdapter *	touchEnded (unsigned int id, GUIEventAdapter::TouchPhase phase, float x, float y, unsigned int tap_count)

osgGA::GUIEventAdapter *	closeWindow ()
	Method for adapting close window events. More...

osgGA::GUIEventAdapter *	closeWindow (double time)
	Method for adapting close window event with specified event time. More...

osgGA::GUIEventAdapter *	quitApplication ()
	Method for adapting application quit events. More...

osgGA::GUIEventAdapter *	quitApplication (double time)
	Method for adapting application quit events with specified event time. More...

osgGA::GUIEventAdapter *	frame (double time)
	Method for adapting frame events. More...

void	setStartTick (osg::Timer_t tick)

osg::Timer_t	getStartTick () const

double	getTime () const

void	clear ()
	clear all events from queue. More...

GUIEventAdapter *	createEvent ()
	convenience method for create an event ready to fill in. More...

void	setCurrentEventState (GUIEventAdapter *ea)

GUIEventAdapter *	getCurrentEventState ()

const GUIEventAdapter *	getCurrentEventState () const

GUIEventAdapter *	userEvent (osg::Referenced *userEventData)
	Method for adapting user defined events.

GUIEventAdapter *	userEvent (osg::Referenced *userEventData, double time)
	Method for adapting user defined events with specified event time.

void	setFirstTouchEmulatesMouse (bool b)

bool	getFirstTouchEmulatesMouse () const

Public Member Functions inherited from osg::Referenced
	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

virtual void	setThreadSafeRefUnref (bool threadSafe)
	Set whether to use a mutex to ensure ref() and unref() are thread safe. More...

bool	getThreadSafeRefUnref () const
	Get whether a mutex is used to ensure ref() and unref() are thread safe. More...

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const
	Get the mutex used to ensure thread safety of ref()/unref(). More...

OpenThreads::Mutex *	getRefMutex () const

int	ref () const
	Increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

int	unref () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	unref_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	referenceCount () const
	Return the number of pointers currently referencing this object. More...

ObserverSet *	getObserverSet () const
	Get the ObserverSet if one is attached, otherwise return NULL. More...

ObserverSet *	getOrCreateObserverSet () const
	Get the ObserverSet if one is attached, otherwise create an ObserverSet, attach it, then return this newly created ObserverSet. More...

void	addObserver (Observer *observer) const
	Add a Observer that is observing this object, notify the Observer when this object gets deleted. More...

void	removeObserver (Observer *observer) const
	Remove Observer that is observing this object. More...

Protected Member Functions
EventQueue &	operator= (const EventQueue &)
	Prevent unwanted copy operator. More...

Protected Member Functions inherited from osg::Referenced
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
osg::ref_ptr< GUIEventAdapter >	_accumulateEventState

bool	_useFixedMouseInputRange

osg::Timer_t	_startTick

OpenThreads::Mutex	_eventQueueMutex

Events	_eventQueue

bool	_firstTouchEmulatesMouse

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

OpenThreads::Mutex *	_refMutex

int	_refCount

void *	_observerSet

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
	Get the optional global Referenced mutex, this can be shared between all osg::Referenced. More...

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
	Set whether reference counting should use a mutex for thread safe reference counting. More...

static bool	getThreadSafeReferenceCounting ()
	Get whether reference counting is active. More...

static void	setDeleteHandler (DeleteHandler *handler)
	Set a DeleteHandler to which deletion of all referenced counted objects will be delegated. More...

static DeleteHandler *	getDeleteHandler ()
	Get a DeleteHandler. More...

Detailed Description

EventQueue implementation for collecting and adapting windowing events.

Member Function Documentation

◆ addEvent()

void osgGA::EventQueue::addEvent ( Event * event )

Add an event to the end of the event queue.

◆ appendEvents()

void osgGA::EventQueue::appendEvents ( Events & events )

Add events to end of event queue.

◆ clear()

void osgGA::EventQueue::clear ( )

clear all events from queue.

◆ closeWindow() [1/2]

osgGA::GUIEventAdapter* osgGA::EventQueue::closeWindow ( )

inline

Method for adapting close window events.

◆ closeWindow() [2/2]

osgGA::GUIEventAdapter* osgGA::EventQueue::closeWindow ( double time )

Method for adapting close window event with specified event time.

◆ copyEvents()

bool osgGA::EventQueue::copyEvents ( Events & events ) const

Take a copy the entire event queue leaving the EventQueue' event queue intact.

◆ createEvent()

GUIEventAdapter* osgGA::EventQueue::createEvent ( )

convenience method for create an event ready to fill in.

Clones the getCurrentEventState() to produce a up to date event state.

◆ frame()

osgGA::GUIEventAdapter* osgGA::EventQueue::frame ( double time )

Method for adapting frame events.

◆ getUseFixedMouseInputRange()

bool osgGA::EventQueue::getUseFixedMouseInputRange ( )

inline

Get whether the mouse coordinates should be transformed into a pre defined input range.

◆ keyPress() [1/2]

osgGA::GUIEventAdapter* osgGA::EventQueue::keyPress	(	int	key,
		int	unmodifiedKey = `0`
	)

inline

Method for adapting keyboard press events.

Note, special keys such as Ctrl/Function keys should be adapted to GUIEventAdapter::KeySymbol mappings.

◆ keyPress() [2/2]

osgGA::GUIEventAdapter* osgGA::EventQueue::keyPress	(	int	key,
		double	time,
		int	unmodifiedKey = `0`
	)

Method for adapting keyboard press events.

Note, special keys such as Ctrl/Function keys should be adapted to GUIEventAdapter::KeySymbol mappings, with specified time.

◆ keyRelease() [1/2]

osgGA::GUIEventAdapter* osgGA::EventQueue::keyRelease	(	int	key,
		int	unmodifiedKey = `0`
	)

inline

Method for adapting keyboard press events.

Note, special keys such as Ctrl/Function keys should be adapted to GUIEventAdapter::KeySymbol mappings.

◆ keyRelease() [2/2]

osgGA::GUIEventAdapter* osgGA::EventQueue::keyRelease	(	int	key,
		double	time,
		int	unmodifiedKey = `0`
	)

Method for adapting keyboard press events.

Note, special keys such as Ctrl/Function keys should be adapted to GUIEventAdapter::KeySymbol mappings, with specified time.
