Event class for storing Keyboard, mouse and window events. More...

Inheritance diagram for osgGA::GUIEventAdapter:

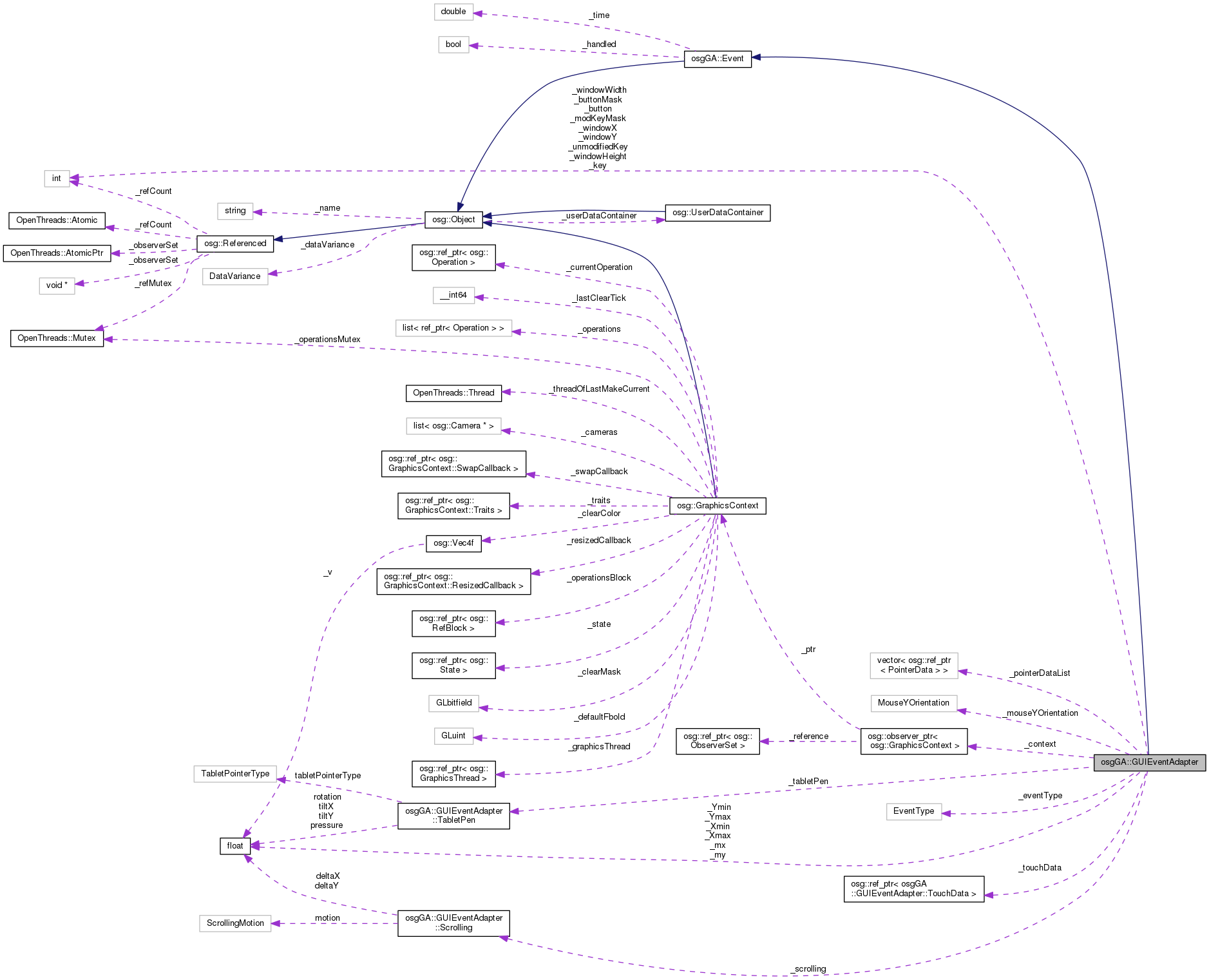

Collaboration diagram for osgGA::GUIEventAdapter:

[legend]

Classes
struct	Scrolling

struct	TabletPen

class	TouchData

Public Types
enum	MouseButtonMask { LEFT_MOUSE_BUTTON = 1<<0, MIDDLE_MOUSE_BUTTON = 1<<1, RIGHT_MOUSE_BUTTON = 1<<2 }

enum	EventType { NONE = 0, PUSH = 1<<0, RELEASE = 1<<1, DOUBLECLICK = 1<<2, DRAG = 1<<3, MOVE = 1<<4, KEYDOWN = 1<<5, KEYUP = 1<<6, FRAME = 1<<7, RESIZE = 1<<8, SCROLL = 1<<9, PEN_PRESSURE = 1<<10, PEN_ORIENTATION = 1<<11, PEN_PROXIMITY_ENTER = 1<<12, PEN_PROXIMITY_LEAVE = 1<<13, CLOSE_WINDOW = 1<<14, QUIT_APPLICATION = 1<<15, USER = 1<<16 }

enum	KeySymbol { KEY_Space = 0x20, KEY_0 = '0', KEY_1 = '1', KEY_2 = '2', KEY_3 = '3', KEY_4 = '4', KEY_5 = '5', KEY_6 = '6', KEY_7 = '7', KEY_8 = '8', KEY_9 = '9', KEY_A = 'a', KEY_B = 'b', KEY_C = 'c', KEY_D = 'd', KEY_E = 'e', KEY_F = 'f', KEY_G = 'g', KEY_H = 'h', KEY_I = 'i', KEY_J = 'j', KEY_K = 'k', KEY_L = 'l', KEY_M = 'm', KEY_N = 'n', KEY_O = 'o', KEY_P = 'p', KEY_Q = 'q', KEY_R = 'r', KEY_S = 's', KEY_T = 't', KEY_U = 'u', KEY_V = 'v', KEY_W = 'w', KEY_X = 'x', KEY_Y = 'y', KEY_Z = 'z', KEY_Exclaim = 0x21, KEY_Quotedbl = 0x22, KEY_Hash = 0x23, KEY_Dollar = 0x24, KEY_Ampersand = 0x26, KEY_Quote = 0x27, KEY_Leftparen = 0x28, KEY_Rightparen = 0x29, KEY_Asterisk = 0x2A, KEY_Plus = 0x2B, KEY_Comma = 0x2C, KEY_Minus = 0x2D, KEY_Period = 0x2E, KEY_Slash = 0x2F, KEY_Colon = 0x3A, KEY_Semicolon = 0x3B, KEY_Less = 0x3C, KEY_Equals = 0x3D, KEY_Greater = 0x3E, KEY_Question = 0x3F, KEY_At = 0x40, KEY_Leftbracket = 0x5B, KEY_Backslash = 0x5C, KEY_Rightbracket = 0x5D, KEY_Caret = 0x5E, KEY_Underscore = 0x5F, KEY_Backquote = 0x60, KEY_BackSpace = 0xFF08, KEY_Tab = 0xFF09, KEY_Linefeed = 0xFF0A, KEY_Clear = 0xFF0B, KEY_Return = 0xFF0D, KEY_Pause = 0xFF13, KEY_Scroll_Lock = 0xFF14, KEY_Sys_Req = 0xFF15, KEY_Escape = 0xFF1B, KEY_Delete = 0xFFFF, KEY_Home = 0xFF50, KEY_Left = 0xFF51, KEY_Up = 0xFF52, KEY_Right = 0xFF53, KEY_Down = 0xFF54, KEY_Prior = 0xFF55, KEY_Page_Up = 0xFF55, KEY_Next = 0xFF56, KEY_Page_Down = 0xFF56, KEY_End = 0xFF57, KEY_Begin = 0xFF58, KEY_Select = 0xFF60, KEY_Print = 0xFF61, KEY_Execute = 0xFF62, KEY_Insert = 0xFF63, KEY_Undo = 0xFF65, KEY_Redo = 0xFF66, KEY_Menu = 0xFF67, KEY_Find = 0xFF68, KEY_Cancel = 0xFF69, KEY_Help = 0xFF6A, KEY_Break = 0xFF6B, KEY_Mode_switch = 0xFF7E, KEY_Script_switch = 0xFF7E, KEY_Num_Lock = 0xFF7F, KEY_KP_Space = 0xFF80, KEY_KP_Tab = 0xFF89, KEY_KP_Enter = 0xFF8D, KEY_KP_F1 = 0xFF91, KEY_KP_F2 = 0xFF92, KEY_KP_F3 = 0xFF93, KEY_KP_F4 = 0xFF94, KEY_KP_Home = 0xFF95, KEY_KP_Left = 0xFF96, KEY_KP_Up = 0xFF97, KEY_KP_Right = 0xFF98, KEY_KP_Down = 0xFF99, KEY_KP_Prior = 0xFF9A, KEY_KP_Page_Up = 0xFF9A, KEY_KP_Next = 0xFF9B, KEY_KP_Page_Down = 0xFF9B, KEY_KP_End = 0xFF9C, KEY_KP_Begin = 0xFF9D, KEY_KP_Insert = 0xFF9E, KEY_KP_Delete = 0xFF9F, KEY_KP_Equal = 0xFFBD, KEY_KP_Multiply = 0xFFAA, KEY_KP_Add = 0xFFAB, KEY_KP_Separator = 0xFFAC, KEY_KP_Subtract = 0xFFAD, KEY_KP_Decimal = 0xFFAE, KEY_KP_Divide = 0xFFAF, KEY_KP_0 = 0xFFB0, KEY_KP_1 = 0xFFB1, KEY_KP_2 = 0xFFB2, KEY_KP_3 = 0xFFB3, KEY_KP_4 = 0xFFB4, KEY_KP_5 = 0xFFB5, KEY_KP_6 = 0xFFB6, KEY_KP_7 = 0xFFB7, KEY_KP_8 = 0xFFB8, KEY_KP_9 = 0xFFB9, KEY_F1 = 0xFFBE, KEY_F2 = 0xFFBF, KEY_F3 = 0xFFC0, KEY_F4 = 0xFFC1, KEY_F5 = 0xFFC2, KEY_F6 = 0xFFC3, KEY_F7 = 0xFFC4, KEY_F8 = 0xFFC5, KEY_F9 = 0xFFC6, KEY_F10 = 0xFFC7, KEY_F11 = 0xFFC8, KEY_F12 = 0xFFC9, KEY_F13 = 0xFFCA, KEY_F14 = 0xFFCB, KEY_F15 = 0xFFCC, KEY_F16 = 0xFFCD, KEY_F17 = 0xFFCE, KEY_F18 = 0xFFCF, KEY_F19 = 0xFFD0, KEY_F20 = 0xFFD1, KEY_F21 = 0xFFD2, KEY_F22 = 0xFFD3, KEY_F23 = 0xFFD4, KEY_F24 = 0xFFD5, KEY_F25 = 0xFFD6, KEY_F26 = 0xFFD7, KEY_F27 = 0xFFD8, KEY_F28 = 0xFFD9, KEY_F29 = 0xFFDA, KEY_F30 = 0xFFDB, KEY_F31 = 0xFFDC, KEY_F32 = 0xFFDD, KEY_F33 = 0xFFDE, KEY_F34 = 0xFFDF, KEY_F35 = 0xFFE0, KEY_Shift_L = 0xFFE1, KEY_Shift_R = 0xFFE2, KEY_Control_L = 0xFFE3, KEY_Control_R = 0xFFE4, KEY_Caps_Lock = 0xFFE5, KEY_Shift_Lock = 0xFFE6, KEY_Meta_L = 0xFFE7, KEY_Meta_R = 0xFFE8, KEY_Alt_L = 0xFFE9, KEY_Alt_R = 0xFFEA, KEY_Super_L = 0xFFEB, KEY_Super_R = 0xFFEC, KEY_Hyper_L = 0xFFED, KEY_Hyper_R = 0xFFEE }

enum	ModKeyMask { MODKEY_LEFT_SHIFT = 0x0001, MODKEY_RIGHT_SHIFT = 0x0002, MODKEY_LEFT_CTRL = 0x0004, MODKEY_RIGHT_CTRL = 0x0008, MODKEY_LEFT_ALT = 0x0010, MODKEY_RIGHT_ALT = 0x0020, MODKEY_LEFT_META = 0x0040, MODKEY_RIGHT_META = 0x0080, MODKEY_LEFT_SUPER = 0x0100, MODKEY_RIGHT_SUPER = 0x0200, MODKEY_LEFT_HYPER = 0x0400, MODKEY_RIGHT_HYPER = 0x0800, MODKEY_NUM_LOCK = 0x1000, MODKEY_CAPS_LOCK = 0x2000, MODKEY_CTRL = (MODKEY_LEFT_CTRL\|MODKEY_RIGHT_CTRL), MODKEY_SHIFT = (MODKEY_LEFT_SHIFT\|MODKEY_RIGHT_SHIFT), MODKEY_ALT = (MODKEY_LEFT_ALT\|MODKEY_RIGHT_ALT), MODKEY_META = (MODKEY_LEFT_META\|MODKEY_RIGHT_META), MODKEY_SUPER = (MODKEY_LEFT_SUPER\|MODKEY_RIGHT_SUPER), MODKEY_HYPER = (MODKEY_LEFT_HYPER\|MODKEY_RIGHT_HYPER) }

enum	MouseYOrientation { Y_INCREASING_UPWARDS, Y_INCREASING_DOWNWARDS }

enum	ScrollingMotion { SCROLL_NONE, SCROLL_LEFT, SCROLL_RIGHT, SCROLL_UP, SCROLL_DOWN, SCROLL_2D }

enum	TabletPointerType { UNKNOWN = 0, PEN, PUCK, ERASER }

enum	TouchPhase { TOUCH_UNKNOWN, TOUCH_BEGAN, TOUCH_MOVED, TOUCH_STATIONERY, TOUCH_ENDED }

typedef std::vector< osg::ref_ptr< PointerData > >	PointerDataList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	GUIEventAdapter (const GUIEventAdapter &rhs, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgGA, GUIEventAdapter)

virtual GUIEventAdapter *	asGUIEventAdapter ()

virtual const GUIEventAdapter *	asGUIEventAdapter () const

void	setEventType (EventType Type)
	set the event type. More...

virtual EventType	getEventType () const
	get the event type. More...

double	time () const
	deprecated function for getting time of event. More...

void	setGraphicsContext (osg::GraphicsContext *context)

osg::GraphicsContext *	getGraphicsContext ()

const osg::GraphicsContext *	getGraphicsContext () const

void	setWindowRectangle (int x, int y, int width, int height, bool updateMouseRange=true)
	set window rectangle. More...

void	setWindowX (int v)
	set window x origin. More...

int	getWindowX () const
	get window x origin. More...

void	setWindowY (int v)
	set window x origin. More...

int	getWindowY () const
	get window y origin. More...

void	setWindowWidth (int v)
	set window width. More...

int	getWindowWidth () const
	get window width. More...

void	setWindowHeight (int v)
	set window height. More...

int	getWindowHeight () const
	get window height. More...

void	setKey (int key)
	set key pressed. More...

virtual int	getKey () const
	get key pressed, return -1 if inappropriate for this GUIEventAdapter. More...

void	setUnmodifiedKey (int key)
	set virtual key pressed. More...

int	getUnmodifiedKey () const
	get virtual key pressed. More...

void	setButton (int button)
	set button pressed/released. More...

int	getButton () const
	button pressed/released, return -1 if inappropriate for this GUIEventAdapter. More...

void	setInputRange (float Xmin, float Ymin, float Xmax, float Ymax)
	set mouse input range. More...

void	setXmin (float v)
	set mouse minimum x. More...

float	getXmin () const
	get mouse minimum x. More...

void	setXmax (float v)
	set mouse maximum x. More...

float	getXmax () const
	get mouse maximum x. More...

void	setYmin (float v)
	set mouse minimum x. More...

float	getYmin () const
	get mouse minimum y. More...

void	setYmax (float v)
	set mouse maximum y. More...

float	getYmax () const
	get mouse maximum y. More...

void	setX (float x)
	set current mouse x position. More...

float	getX () const
	get current mouse x position. More...

void	setY (float y)
	set current mouse y position. More...

float	getY () const
	get current mouse y position. More...

float	getXnormalized () const

float	getYnormalized () const

float	getXnormalized () const
	return the current mouse x value normalized to the range of -1 to 1. More...

float	getYnormalized () const
	return the current mouse y value normalized to the range of -1 to 1. More...

void	setMouseYOrientation (MouseYOrientation myo)
	set mouse-Y orientation (mouse-Y increases upwards or downwards).

MouseYOrientation	getMouseYOrientation () const
	get mouse-Y orientation (mouse-Y increases upwards or downwards).

void	setMouseYOrientationAndUpdateCoords (MouseYOrientation myo)
	set mouse-Y orientation (mouse-Y increases upwards or downwards) and recompute variables

void	setButtonMask (int mask)
	set current mouse button state.

int	getButtonMask () const
	get current mouse button state.

void	setModKeyMask (int mask)
	set modifier key mask.

int	getModKeyMask () const
	get modifier key mask.

void	setScrollingMotion (ScrollingMotion motion)
	set scrolling motion (for EventType::SCROLL).

ScrollingMotion	getScrollingMotion () const
	get scrolling motion (for EventType::SCROLL).

void	setScrollingMotionDelta (float x, float y)
	set the scrolling delta to x,y and the scrolling motion to SCROLL_2D.

void	setScrollingDeltaX (float v)
	set the scrolling x-delta.

float	getScrollingDeltaX () const
	get the scrolling x-delta.

void	setScrollingDeltaY (float v)
	set the scrolling y-delta.

float	getScrollingDeltaY () const
	get the scrolling y-delta.

void	setPenPressure (float pressure)
	set the tablet pen pressure (range 0..1).

float	getPenPressure () const
	get the tablet pen pressure (range 0..1).

void	setPenTiltX (float tiltX)
	set the tablet pen tiltX in degrees.

float	getPenTiltX () const
	get the tablet pen tiltX in degrees.

void	setPenTiltY (float tiltY)
	set the tablet pen tiltY in degrees.

float	getPenTiltY () const
	get the tablet pen tiltY in degrees.

void	setPenRotation (float rotation)
	set the tablet pen rotation around the Z-axis in degrees.

float	getPenRotation () const
	get the tablet pen rotation around the Z-axis in degrees.

void	setTabletPointerType (TabletPointerType pt)
	set the tablet pointer type.

TabletPointerType	getTabletPointerType () const
	get the tablet pointer type.

const osg::Matrix	getPenOrientation () const
	set the orientation from a tablet input device as a matrix.

void	addTouchPoint (unsigned int id, TouchPhase phase, float x, float y, unsigned int tapCount=0)

void	setTouchData (TouchData *td)

TouchData *	getTouchData () const

bool	isMultiTouchEvent () const

float	getTouchPointNormalizedX (unsigned int ndx) const

float	getTouchPointNormalizedY (unsigned int ndx) const

void	setPointerDataList (const PointerDataList &pdl)

PointerDataList &	getPointerDataList ()

const PointerDataList &	getPointerDataList () const

unsigned int	getNumPointerData () const

PointerData *	getPointerData (unsigned int i)

const PointerData *	getPointerData (unsigned int i) const

PointerData *	getPointerData (osg::Object *obj)

const PointerData *	getPointerData (osg::Object *obj) const

void	addPointerData (PointerData *pd)

void	copyPointerDataFrom (const osgGA::GUIEventAdapter &sourceEvent)

Public Member Functions inherited from osgGA::Event
	Event (const Event &rhs, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osgGA, Event)

void	setHandled (bool handled) const
	Set whether this event has been handled by an event handler or not. More...

bool	getHandled () const
	Get whether this event has been handled by an event handler or not. More...

void	setTime (double time)
	set time in seconds of event. More...

double	getTime () const
	get time in seconds of event. More...

Public Member Functions inherited from osg::Object
	Object ()
	Construct an object. More...

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor, optional CopyOp object can be used to control shallow vs deep copying of dynamic data. More...

virtual Object *	cloneType () const =0
	Clone the type of an object, with Object* return type. More...

virtual Object *	clone (const CopyOp &) const =0
	Clone an object, with Object* return type. More...

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0
	return the name of the object's library. More...

virtual const char *	className () const =0
	return the name of the object's class type. More...

std::string	getCompoundClassName () const
	return the compound class name that combines the library name and class name. More...

virtual Node *	asNode ()
	Convert 'this' into a Node pointer if Object is a Node, otherwise return 0. More...

virtual const Node *	asNode () const
	convert 'const this' into a const Node pointer if Object is a Node, otherwise return 0. More...

virtual NodeVisitor *	asNodeVisitor ()
	Convert 'this' into a NodeVisitor pointer if Object is a NodeVisitor, otherwise return 0. More...

virtual const NodeVisitor *	asNodeVisitor () const
	convert 'const this' into a const NodeVisitor pointer if Object is a NodeVisitor, otherwise return 0. More...

virtual StateAttribute *	asStateAttribute ()
	Convert 'this' into a StateAttribute pointer if Object is a StateAttribute, otherwise return 0. More...

virtual const StateAttribute *	asStateAttribute () const
	convert 'const this' into a const StateAttribute pointer if Object is a StateAttribute, otherwise return 0. More...

virtual Uniform *	asUniform ()
	Convert 'this' into a Uniform pointer if Object is a Uniform, otherwise return 0. More...

virtual const Uniform *	asUniform () const
	convert 'const this' into a const Uniform pointer if Object is a Uniform, otherwise return 0. More...

virtual void	setThreadSafeRefUnref (bool threadSafe)
	Set whether to use a mutex to ensure ref() and unref() are thread safe. More...

virtual void	setName (const std::string &name)
	Set the name of object using C++ style string. More...

void	setName (const char *name)
	Set the name of object using a C style string. More...

const std::string &	getName () const
	Get the name of object. More...

void	setDataVariance (DataVariance dv)
	Set the data variance of this object. More...

DataVariance	getDataVariance () const
	Get the data variance of this object. More...

virtual void	computeDataVariance ()
	Compute the DataVariance based on an assessment of callback etc. More...

void	setUserDataContainer (osg::UserDataContainer *udc)
	set the UserDataContainer object. More...

template<class T >
void	setUserDataContainer (const ref_ptr< T > &udc)

osg::UserDataContainer *	getUserDataContainer ()
	get the UserDataContainer attached to this object. More...

const osg::UserDataContainer *	getUserDataContainer () const
	get the const UserDataContainer attached to this object. More...

osg::UserDataContainer *	getOrCreateUserDataContainer ()
	Convenience method that returns the UserDataContainer, and if one doesn't already exist creates and assigns a DefaultUserDataContainer to the Object and then return this new UserDataContainer. More...

virtual void	setUserData (Referenced *obj)
	Set user data, data must be subclassed from Referenced to allow automatic memory handling. More...

template<class T >
void	setUserData (const ref_ptr< T > &ud)

virtual Referenced *	getUserData ()
	Get user data. More...

virtual const Referenced *	getUserData () const
	Get const user data. More...

template<typename T >
bool	getUserValue (const std::string &name, T &value) const
	Convenience method that casts the named UserObject to osg::TemplateValueObject<T> and gets the value. More...

template<typename T >
void	setUserValue (const std::string &name, const T &value)
	Convenience method that creates the osg::TemplateValueObject<T> to store the specified value and adds it as a named UserObject. More...

virtual void	resizeGLObjectBuffers (unsigned int)
	Resize any per context GLObject buffers to specified size. More...

virtual void	releaseGLObjects (osg::State *=0) const
	If State is non-zero, this function releases any associated OpenGL objects for the specified graphics context. More...

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const
	provide implementation of osg::Object::getUserValue(..) template

Public Member Functions inherited from osg::Referenced
	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const
	Get whether a mutex is used to ensure ref() and unref() are thread safe. More...

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const
	Get the mutex used to ensure thread safety of ref()/unref(). More...

OpenThreads::Mutex *	getRefMutex () const

int	ref () const
	Increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

int	unref () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	unref_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	referenceCount () const
	Return the number of pointers currently referencing this object. More...

ObserverSet *	getObserverSet () const
	Get the ObserverSet if one is attached, otherwise return NULL. More...

ObserverSet *	getOrCreateObserverSet () const
	Get the ObserverSet if one is attached, otherwise create an ObserverSet, attach it, then return this newly created ObserverSet. More...

void	addObserver (Observer *observer) const
	Add a Observer that is observing this object, notify the Observer when this object gets deleted. More...

void	removeObserver (Observer *observer) const
	Remove Observer that is observing this object. More...

Static Public Member Functions
static osg::ref_ptr< GUIEventAdapter > &	getAccumulatedEventState ()
	Get the accumulated event state singleton. More...

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
	Get the optional global Referenced mutex, this can be shared between all osg::Referenced. More...

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
	Set whether reference counting should use a mutex for thread safe reference counting. More...

static bool	getThreadSafeReferenceCounting ()
	Get whether reference counting is active. More...

static void	setDeleteHandler (DeleteHandler *handler)
	Set a DeleteHandler to which deletion of all referenced counted objects will be delegated. More...

static DeleteHandler *	getDeleteHandler ()
	Get a DeleteHandler. More...

Protected Member Functions
virtual	~GUIEventAdapter ()
	Force users to create on heap, so that multiple referencing is safe. More...

Protected Member Functions inherited from osg::Object
virtual	~Object ()
	Object destructor. More...

Protected Member Functions inherited from osg::Referenced
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
EventType	_eventType

osg::observer_ptr< osg::GraphicsContext >	_context

int	_windowX

int	_windowY

int	_windowWidth

int	_windowHeight

int	_key

int	_unmodifiedKey

int	_button

float	_Xmin

float	_Xmax

float	_Ymin

float	_Ymax

float	_mx

float	_my

int	_buttonMask

int	_modKeyMask

MouseYOrientation	_mouseYOrientation

Scrolling	_scrolling

TabletPen	_tabletPen

osg::ref_ptr< TouchData >	_touchData

PointerDataList	_pointerDataList

Protected Attributes inherited from osgGA::Event
bool	_handled

double	_time

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

OpenThreads::Mutex *	_refMutex

int	_refCount

void *	_observerSet

Detailed Description

Event class for storing Keyboard, mouse and window events.

Constructor & Destructor Documentation

◆ ~GUIEventAdapter()

virtual osgGA::GUIEventAdapter::~GUIEventAdapter ( )

protectedvirtual

Force users to create on heap, so that multiple referencing is safe.

Member Function Documentation

◆ getAccumulatedEventState()

static osg::ref_ptr<GUIEventAdapter>& osgGA::GUIEventAdapter::getAccumulatedEventState ( )

static

Get the accumulated event state singleton.

Typically all EventQueue will share this single GUIEventAdapter object for tracking the mouse position, keyboard and mouse masks.

◆ getButton()

int osgGA::GUIEventAdapter::getButton ( ) const

inline

button pressed/released, return -1 if inappropriate for this GUIEventAdapter.

◆ getEventType()

virtual EventType osgGA::GUIEventAdapter::getEventType ( ) const

inlinevirtual

get the event type.

◆ getKey()

virtual int osgGA::GUIEventAdapter::getKey ( ) const

inlinevirtual

get key pressed, return -1 if inappropriate for this GUIEventAdapter.

◆ getUnmodifiedKey()

int osgGA::GUIEventAdapter::getUnmodifiedKey ( ) const

inline

get virtual key pressed.

◆ getWindowHeight()

int osgGA::GUIEventAdapter::getWindowHeight ( ) const

inline

get window height.

◆ getWindowWidth()

int osgGA::GUIEventAdapter::getWindowWidth ( ) const

inline

get window width.

◆ getWindowX()

int osgGA::GUIEventAdapter::getWindowX ( ) const

inline

get window x origin.

◆ getWindowY()

int osgGA::GUIEventAdapter::getWindowY ( ) const

inline

get window y origin.

◆ getX()

float osgGA::GUIEventAdapter::getX ( ) const

inline

get current mouse x position.

◆ getXmax()

float osgGA::GUIEventAdapter::getXmax ( ) const

inline

get mouse maximum x.

◆ getXmin()

float osgGA::GUIEventAdapter::getXmin ( ) const

inline

get mouse minimum x.

◆ getXnormalized()

float osgGA::GUIEventAdapter::getXnormalized ( ) const

inline

return the current mouse x value normalized to the range of -1 to 1.

-1 would be the left hand side of the window. 0.0 would be the middle of the window. +1 would be the right hand side of the window.

◆ getY()

float osgGA::GUIEventAdapter::getY ( ) const

inline

get current mouse y position.

◆ getYmax()

float osgGA::GUIEventAdapter::getYmax ( ) const

inline

get mouse maximum y.

◆ getYmin()

float osgGA::GUIEventAdapter::getYmin ( ) const

inline

get mouse minimum y.

◆ getYnormalized()

float osgGA::GUIEventAdapter::getYnormalized ( ) const

inline

return the current mouse y value normalized to the range of -1 to 1.

-1 would be the bottom of the window. 0.0 would be the middle of the window. +1 would be the top of the window.

◆ setButton()

void osgGA::GUIEventAdapter::setButton ( int button )

inline

set button pressed/released.

◆ setEventType()

void osgGA::GUIEventAdapter::setEventType ( EventType Type )

inline

set the event type.

◆ setInputRange()

void osgGA::GUIEventAdapter::setInputRange	(	float	Xmin,
		float	Ymin,
		float	Xmax,
		float	Ymax
	)

set mouse input range.

◆ setKey()

void osgGA::GUIEventAdapter::setKey ( int key )

inline

set key pressed.

◆ setUnmodifiedKey()

void osgGA::GUIEventAdapter::setUnmodifiedKey ( int key )

inline

set virtual key pressed.

◆ setWindowHeight()

void osgGA::GUIEventAdapter::setWindowHeight ( int v )

inline

set window height.

◆ setWindowRectangle()

void osgGA::GUIEventAdapter::setWindowRectangle	(	int	x,
		int	y,
		int	width,
		int	height,
		bool	updateMouseRange = `true`
	)

set window rectangle.

◆ setWindowWidth()

void osgGA::GUIEventAdapter::setWindowWidth ( int v )

inline

set window width.

◆ setWindowX()

void osgGA::GUIEventAdapter::setWindowX ( int v )

inline

set window x origin.

◆ setWindowY()

void osgGA::GUIEventAdapter::setWindowY ( int v )

inline

set window x origin.

◆ setX()

void osgGA::GUIEventAdapter::setX ( float x )

inline

set current mouse x position.

◆ setXmax()

void osgGA::GUIEventAdapter::setXmax ( float v )

inline

set mouse maximum x.

◆ setXmin()

void osgGA::GUIEventAdapter::setXmin ( float v )

inline

set mouse minimum x.

◆ setY()

void osgGA::GUIEventAdapter::setY ( float y )

inline

set current mouse y position.

◆ setYmax()

void osgGA::GUIEventAdapter::setYmax ( float v )

inline

set mouse maximum y.

◆ setYmin()

void osgGA::GUIEventAdapter::setYmin ( float v )

inline

set mouse minimum x.

◆ time()

double osgGA::GUIEventAdapter::time ( ) const

inline

deprecated function for getting time of event.

The documentation for this class was generated from the following file:

/home/karlu20/private/installs/OpenSceneGraph/include/osgGA/GUIEventAdapter

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~GUIEventAdapter()

Member Function Documentation

◆ getAccumulatedEventState()

◆ getButton()

◆ getEventType()

◆ getKey()

◆ getUnmodifiedKey()

◆ getWindowHeight()

◆ getWindowWidth()

◆ getWindowX()

◆ getWindowY()

◆ getX()

◆ getXmax()

◆ getXmin()

◆ getXnormalized()

◆ getY()

◆ getYmax()

◆ getYmin()

◆ getYnormalized()

◆ setButton()

◆ setEventType()

◆ setInputRange()

◆ setKey()

◆ setUnmodifiedKey()

◆ setWindowHeight()

◆ setWindowRectangle()

◆ setWindowWidth()

◆ setWindowX()

◆ setWindowY()

◆ setX()

◆ setXmax()

◆ setXmin()

◆ setY()

◆ setYmax()

◆ setYmin()

◆ time()
