A SphereSegment is a Geode to represent an portion of a sphere (potentially the whole sphere). More...

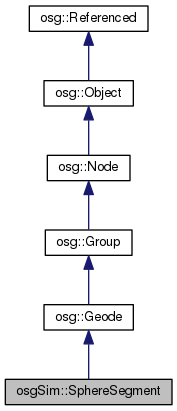

Inheritance diagram for osgSim::SphereSegment:

[legend]

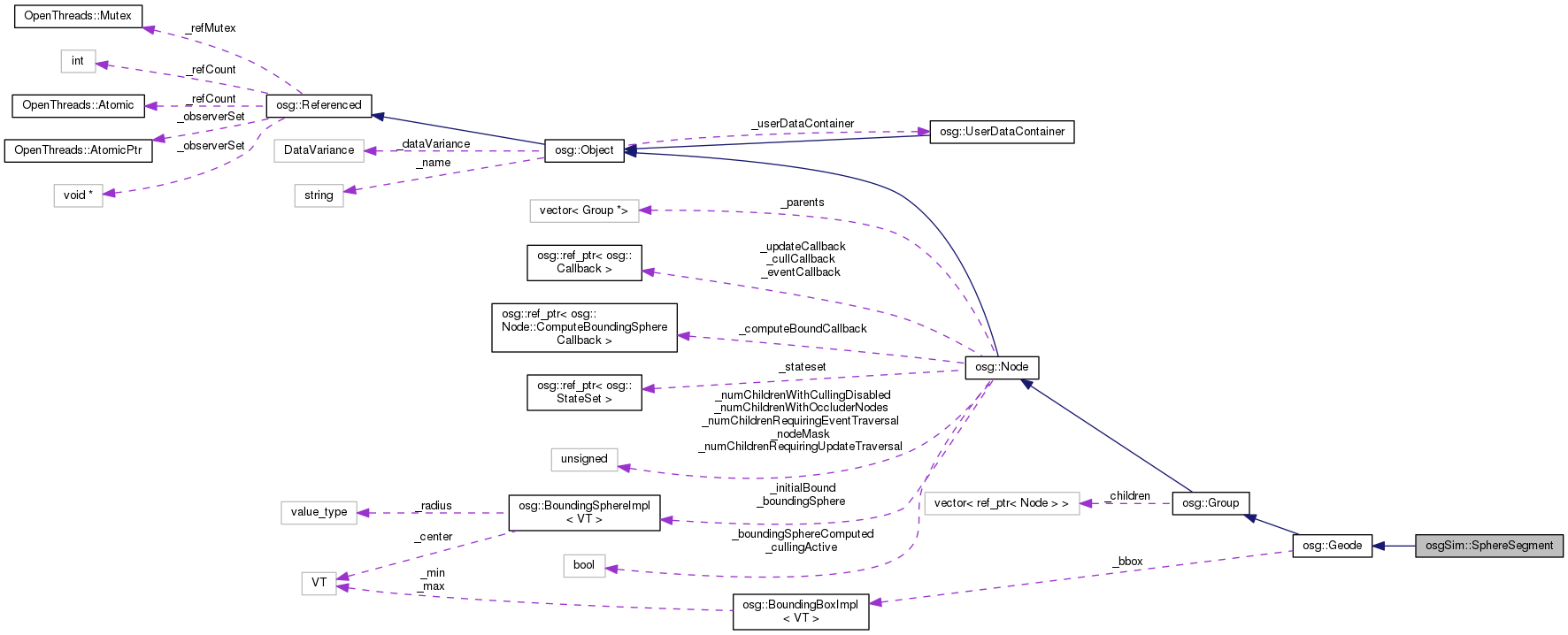

Collaboration diagram for osgSim::SphereSegment:

[legend]

Public Types
enum	DrawMask { SURFACE = 0x00000001, SPOKES = 0x00000002, EDGELINE = 0x00000008, SIDES = 0x00000010, ALL = 0x7fffffff }
	DrawMask represents a bit field, the values of which may be OR'ed together to specify which parts of the sphere segment should be drawn. More...

typedef std::vector< osg::ref_ptr< osg::Vec3Array > >	LineList
	A list of vertex arrays representing a list of lines. More...

Public Types inherited from osg::Node
typedef std::vector< Group * >	ParentList
	A vector of osg::Group pointers which is used to store the parent(s) of node. More...

typedef unsigned int	NodeMask
	This is a set of bits (flags) that represent the Node. More...

typedef std::vector< std::string >	DescriptionList
	A vector of std::string's which are used to describe the object. More...

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	SphereSegment ()
	Default constructor. More...

	SphereSegment (const osg::Vec3 &centre, float radius, float azMin, float azMax, float elevMin, float elevMax, int density)
	Construct by angle ranges. More...

	SphereSegment (const osg::Vec3 &centre, float radius, const osg::Vec3 &vec, float azRange, float elevRange, int density)
	Construct by vector. More...

	SphereSegment (const SphereSegment &rhs, const osg::CopyOp &co)
	Copy constructor.

void	setCentre (const osg::Vec3 &c)
	Set the centre point of the SphereSegment.

const osg::Vec3 &	getCentre () const
	Get the centre point of the SphereSegment.

void	setRadius (float r)
	Set the radius of the SphereSegment.

float	getRadius () const
	Get the radius of the SphereSegment.

void	setArea (const osg::Vec3 &vec, float azRange, float elevRange)
	Set the area of the sphere segment. More...

void	getArea (osg::Vec3 &vec, float &azRange, float &elevRange) const
	Get the area of the sphere segment. More...

void	setArea (float azMin, float azMax, float elevMin, float elevMax)
	Set the area of the sphere segment. More...

void	getArea (float &azMin, float &azMax, float &elevMin, float &elevMax) const
	Get the area of the sphere segment. More...

void	setDensity (int d)
	Set the density of the sphere segment.

int	getDensity () const
	Get the density of the sphere segment.

void	setDrawMask (int dm)
	Specify the DrawMask. More...

int	getDrawMask () const
	Get the DrawMask.

void	setSurfaceColor (const osg::Vec4 &c)
	Set the color of the surface. More...

const osg::Vec4 &	getSurfaceColor () const
	Get the color of the surface. More...

void	setSpokeColor (const osg::Vec4 &c)
	Set the color of the spokes. More...

const osg::Vec4 &	getSpokeColor () const
	Get the color of the spokes. More...

void	setEdgeLineColor (const osg::Vec4 &c)
	Set the color of the edge line. More...

const osg::Vec4 &	getEdgeLineColor () const
	Get the color of the edge line. More...

void	setSideColor (const osg::Vec4 &c)
	Set the color of the planes. More...

const osg::Vec4 &	getSideColor () const
	Get the color of the planes. More...

void	setAllColors (const osg::Vec4 &c)
	Set color of all components. More...

	META_Node (osgSim, SphereSegment)

LineList	computeIntersection (const osg::Matrixd &matrix, osg::Node *subgraph)
	Compute the interesection lines between subgraph and this sphere segment. More...

LineList	computeIntersection (const osg::Matrixd &matrix, osg::Drawable *drawable)
	Compute the interesection lines between specified drawable and this sphere segment. More...

osg::Node *	computeIntersectionSubgraph (const osg::Matrixd &matrix, osg::Node *subgraph)
	Compute the interesection lines between subgraph and this sphere segment. More...

osg::Node *	computeIntersectionSubgraph (const osg::Matrixd &matrix, osg::Drawable *drawable)
	Compute the interesection lines between specified drawable and this sphere segment. More...

Public Member Functions inherited from osg::Geode
	Geode (const Geode &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor using CopyOp to manage deep vs shallow copy. More...

	META_Node (osg, Geode)

virtual Geode *	asGeode ()
	Convert 'this' into a Geode pointer if Node is a Geode, otherwise return 0. More...

virtual const Geode *	asGeode () const
	convert 'const this' into a const Geode pointer if Node is a Geode, otherwise return 0. More...

virtual bool	addDrawable (Drawable *drawable)
	Add a `Drawable` to the `Geode`. More...

template<class T >
bool	addDrawable (const ref_ptr< T > &drawable)

virtual bool	removeDrawable (Drawable *drawable)
	Remove a `Drawable` from the `Geode`. More...

template<class T >
bool	removeDrawable (const ref_ptr< T > &drawable)

virtual bool	removeDrawables (unsigned int i, unsigned int numDrawablesToRemove=1)
	Remove `Drawable`(s) from the specified position in `Geode`'s drawable list. More...

virtual bool	replaceDrawable (Drawable origDraw, Drawable newDraw)
	Replace specified Drawable with another Drawable. More...

template<class T , class R >
bool	replaceDrawable (const ref_ptr< T > &origDraw, const ref_ptr< R > &newDraw)

virtual bool	setDrawable (unsigned int i, Drawable *drawable)
	Set `Drawable` at position `i`. More...

template<class T >
bool	setDrawable (unsigned int i, const ref_ptr< T > &drawable)

unsigned int	getNumDrawables () const
	Return the number of `Drawable`s currently attached to the `Geode`.

Drawable *	getDrawable (unsigned int i)
	Return the `Drawable` at position `i`. More...

const Drawable *	getDrawable (unsigned int i) const
	Return the `Drawable` at position `i`. More...

bool	containsDrawable (const Drawable *drawable) const
	Return `true` if a given `Drawable` is contained within `Geode`. More...

template<class T >
bool	containsDrawable (const ref_ptr< T > &drawable) const

unsigned int	getDrawableIndex (const Drawable *drawable) const
	Get the index number of `drawable`. More...

template<class T >
unsigned int	getDrawableIndex (const ref_ptr< T > &drawable) const

void	compileDrawables (RenderInfo &renderInfo)
	Compile OpenGL Display List for each drawable. More...

const BoundingBox &	getBoundingBox () const
	Return the Geode's bounding box, which is the union of all the bounding boxes of the geode's drawables. More...

virtual BoundingSphere	computeBound () const
	Compute the bounding sphere around Node's geometry or children. More...

Public Member Functions inherited from osg::Group
	Group (const Group &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor using CopyOp to manage deep vs shallow copy. More...

	META_Node (osg, Group)

virtual Group *	asGroup ()
	convert 'this' into a Group pointer if Node is a Group, otherwise return 0. More...

virtual const Group *	asGroup () const
	convert 'const this' into a const Group pointer if Node is a Group, otherwise return 0. More...

virtual void	traverse (NodeVisitor &nv)
	Traverse downwards : calls children's accept method with NodeVisitor. More...

virtual bool	addChild (Node *child)
	Add Node to Group. More...

template<class T >
bool	addChild (const ref_ptr< T > &child)

virtual bool	insertChild (unsigned int index, Node *child)
	Insert Node to Group at specific location. More...

template<class T >
bool	insertChild (unsigned int index, const ref_ptr< T > &child)

virtual bool	removeChild (Node *child)
	Remove Node from Group. More...

template<class T >
bool	removeChild (const ref_ptr< T > &child)

bool	removeChild (unsigned int pos, unsigned int numChildrenToRemove=1)
	Remove Node from Group. More...

virtual bool	removeChildren (unsigned int pos, unsigned int numChildrenToRemove)
	Remove children from Group. More...

virtual bool	replaceChild (Node origChild, Node newChild)
	Replace specified child Node with another Node. More...

template<class T , class R >
bool	replaceChild (const ref_ptr< T > &origChild, const ref_ptr< R > &newChild)

virtual unsigned int	getNumChildren () const
	Return the number of children nodes. More...

virtual bool	setChild (unsigned int i, Node *node)
	Set child node at position i. More...

Node *	getChild (unsigned int i)
	Return child node at position i. More...

const Node *	getChild (unsigned int i) const
	Return child node at position i. More...

bool	containsNode (const Node *node) const
	Return true if node is contained within Group. More...

template<class T >
bool	containsNode (const ref_ptr< T > &node) const

unsigned int	getChildIndex (const Node *node) const
	Get the index number of child, return a value between 0 and _children.size()-1 if found, if not found then return _children.size().

virtual void	setThreadSafeRefUnref (bool threadSafe)
	Set whether to use a mutex to ensure ref() and unref() are thread safe. More...

virtual void	resizeGLObjectBuffers (unsigned int maxSize)
	Resize any per context GLObject buffers to specified size. More...

virtual void	releaseGLObjects (osg::State *=0) const
	If State is non-zero, this function releases any associated OpenGL objects for the specified graphics context. More...

Public Member Functions inherited from osg::Node
	Node ()
	Construct a node. More...

	Node (const Node &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor using CopyOp to manage deep vs shallow copy. More...

virtual Object *	cloneType () const
	clone an object of the same type as the node. More...

virtual Object *	clone (const CopyOp &copyop) const
	return a clone of a node, with Object* return type. More...

virtual bool	isSameKindAs (const Object *obj) const
	return true if this and obj are of the same kind of object. More...

virtual const char *	libraryName () const
	return the name of the node's library. More...

virtual const char *	className () const
	return the name of the node's class type. More...

virtual Node *	asNode ()
	Convert 'this' into a Node pointer if Object is a Node, otherwise return 0. More...

virtual const Node *	asNode () const
	convert 'const this' into a const Node pointer if Object is a Node, otherwise return 0. More...

virtual Drawable *	asDrawable ()
	convert 'this' into a Drawable pointer if Node is a Drawable, otherwise return 0. More...

virtual const Drawable *	asDrawable () const
	convert 'const this' into a const Drawable pointer if Node is a Drawable, otherwise return 0. More...

virtual Geometry *	asGeometry ()
	convert 'this' into a Geometry pointer if Node is a Geometry, otherwise return 0. More...

virtual const Geometry *	asGeometry () const
	convert 'const this' into a const Geometry pointer if Node is a Geometry, otherwise return 0. More...

virtual Transform *	asTransform ()
	Convert 'this' into a Transform pointer if Node is a Transform, otherwise return 0. More...

virtual const Transform *	asTransform () const
	convert 'const this' into a const Transform pointer if Node is a Transform, otherwise return 0. More...

virtual Camera *	asCamera ()
	Convert 'this' into a Camera pointer if Node is a Camera, otherwise return 0. More...

virtual const Camera *	asCamera () const
	convert 'const this' into a const Camera pointer if Node is a Camera, otherwise return 0. More...

virtual Switch *	asSwitch ()
	Convert 'this' into a Switch pointer if Node is a Switch, otherwise return 0. More...

virtual const Switch *	asSwitch () const
	convert 'const this' into a const Switch pointer if Node is a Switch, otherwise return 0. More...

virtual osgTerrain::Terrain *	asTerrain ()
	Convert 'this' into a Transform pointer if Node is a Terrain, otherwise return 0. More...

virtual const osgTerrain::Terrain *	asTerrain () const
	convert 'const this' into a const Terrain pointer if Node is a Terrain, otherwise return 0. More...

virtual void	accept (NodeVisitor &nv)
	Visitor Pattern : calls the apply method of a NodeVisitor with this node's type. More...

virtual void	ascend (NodeVisitor &nv)
	Traverse upwards : calls parents' accept method with NodeVisitor. More...

const ParentList &	getParents () const
	Get the parent list of node. More...

ParentList	getParents ()
	Get the a copy of parent list of node. More...

Group *	getParent (unsigned int i)

const Group *	getParent (unsigned int i) const
	Get a single const parent of node. More...

unsigned int	getNumParents () const
	Get the number of parents of node. More...

NodePathList	getParentalNodePaths (osg::Node *haltTraversalAtNode=0) const
	Get the list of node paths parent paths. More...

MatrixList	getWorldMatrices (const osg::Node *haltTraversalAtNode=0) const
	Get the list of matrices that transform this node from local coordinates to world coordinates. More...

void	setUpdateCallback (Callback *nc)
	Set update node callback, called during update traversal. More...

template<class T >
void	setUpdateCallback (const ref_ptr< T > &nc)

Callback *	getUpdateCallback ()
	Get update node callback, called during update traversal. More...

const Callback *	getUpdateCallback () const
	Get const update node callback, called during update traversal. More...

void	addUpdateCallback (Callback *nc)
	Convenience method that sets the update callback of the node if it doesn't exist, or nest it into the existing one. More...

template<class T >
void	addUpdateCallback (const ref_ptr< T > &nc)

void	removeUpdateCallback (Callback *nc)
	Convenience method that removes a given callback from a node, even if that callback is nested. More...

template<class T >
void	removeUpdateCallback (const ref_ptr< T > &nc)

unsigned int	getNumChildrenRequiringUpdateTraversal () const
	Get the number of Children of this node which require Update traversal, since they have an Update Callback attached to them or their children. More...

void	setEventCallback (Callback *nc)
	Set event node callback, called during event traversal. More...

template<class T >
void	setEventCallback (const ref_ptr< T > &nc)

Callback *	getEventCallback ()
	Get event node callback, called during event traversal. More...

const Callback *	getEventCallback () const
	Get const event node callback, called during event traversal. More...

void	addEventCallback (Callback *nc)
	Convenience method that sets the event callback of the node if it doesn't exist, or nest it into the existing one. More...

template<class T >
void	addEventCallback (const ref_ptr< T > &nc)

void	removeEventCallback (Callback *nc)
	Convenience method that removes a given callback from a node, even if that callback is nested. More...

template<class T >
void	removeEventCallback (const ref_ptr< T > &nc)

unsigned int	getNumChildrenRequiringEventTraversal () const
	Get the number of Children of this node which require Event traversal, since they have an Event Callback attached to them or their children. More...

void	setCullCallback (Callback *nc)
	Set cull node callback, called during cull traversal. More...

template<class T >
void	setCullCallback (const ref_ptr< T > &nc)

Callback *	getCullCallback ()
	Get cull node callback, called during cull traversal. More...

const Callback *	getCullCallback () const
	Get const cull node callback, called during cull traversal. More...

void	addCullCallback (Callback *nc)
	Convenience method that sets the cull callback of the node if it doesn't exist, or nest it into the existing one. More...

template<class T >
void	addCullCallback (const ref_ptr< T > &nc)

void	removeCullCallback (Callback *nc)
	Convenience method that removes a given callback from a node, even if that callback is nested. More...

template<class T >
void	removeCullCallback (const ref_ptr< T > &nc)

void	setCullingActive (bool active)
	Set the view frustum/small feature culling of this node to be active or inactive. More...

bool	getCullingActive () const
	Get the view frustum/small feature _cullingActive flag for this node. More...

unsigned int	getNumChildrenWithCullingDisabled () const
	Get the number of Children of this node which have culling disabled. More...

bool	isCullingActive () const
	Return true if this node can be culled by view frustum, occlusion or small feature culling during the cull traversal. More...

unsigned int	getNumChildrenWithOccluderNodes () const
	Get the number of Children of this node which are or have OccluderNode's. More...

bool	containsOccluderNodes () const
	return true if this node is an OccluderNode or the subgraph below this node are OccluderNodes. More...

void	setNodeMask (NodeMask nm)
	Set the node mask. More...

NodeMask	getNodeMask () const
	Get the node Mask. More...

void	setStateSet (osg::StateSet *stateset)
	Set the node's StateSet. More...

template<class T >
void	setStateSet (const osg::ref_ptr< T > &stateset)

osg::StateSet *	getOrCreateStateSet ()
	return the node's StateSet, if one does not already exist create it set the node and return the newly created StateSet. More...

osg::StateSet *	getStateSet ()
	Return the node's StateSet. More...

const osg::StateSet *	getStateSet () const
	Return the node's const StateSet. More...

void	setDescriptions (const DescriptionList &descriptions)
	Set the list of string descriptions. More...

DescriptionList &	getDescriptions ()
	Get the description list of the node. More...

const DescriptionList &	getDescriptions () const
	Get the const description list of the const node. More...

const std::string &	getDescription (unsigned int i) const
	Get a single const description of the const node. More...

std::string &	getDescription (unsigned int i)
	Get a single description of the node. More...

unsigned int	getNumDescriptions () const
	Get the number of descriptions of the node. More...

void	addDescription (const std::string &desc)
	Add a description string to the node. More...

void	setInitialBound (const osg::BoundingSphere &bsphere)
	Set the initial bounding volume to use when computing the overall bounding volume. More...

const BoundingSphere &	getInitialBound () const
	Set the initial bounding volume to use when computing the overall bounding volume. More...

void	dirtyBound ()
	Mark this node's bounding sphere dirty. More...

const BoundingSphere &	getBound () const

void	setComputeBoundingSphereCallback (ComputeBoundingSphereCallback *callback)
	Set the compute bound callback to override the default computeBound. More...

template<class T >
void	setComputeBoundingSphereCallback (const ref_ptr< T > &callback)

ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback ()
	Get the compute bound callback. More...

const ComputeBoundingSphereCallback *	getComputeBoundingSphereCallback () const
	Get the const compute bound callback. More...

Public Member Functions inherited from osg::Object
	Object ()
	Construct an object. More...

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor, optional CopyOp object can be used to control shallow vs deep copying of dynamic data. More...

std::string	getCompoundClassName () const
	return the compound class name that combines the library name and class name. More...

virtual NodeVisitor *	asNodeVisitor ()
	Convert 'this' into a NodeVisitor pointer if Object is a NodeVisitor, otherwise return 0. More...

virtual const NodeVisitor *	asNodeVisitor () const
	convert 'const this' into a const NodeVisitor pointer if Object is a NodeVisitor, otherwise return 0. More...

virtual StateAttribute *	asStateAttribute ()
	Convert 'this' into a StateAttribute pointer if Object is a StateAttribute, otherwise return 0. More...

virtual const StateAttribute *	asStateAttribute () const
	convert 'const this' into a const StateAttribute pointer if Object is a StateAttribute, otherwise return 0. More...

virtual Uniform *	asUniform ()
	Convert 'this' into a Uniform pointer if Object is a Uniform, otherwise return 0. More...

virtual const Uniform *	asUniform () const
	convert 'const this' into a const Uniform pointer if Object is a Uniform, otherwise return 0. More...

virtual void	setName (const std::string &name)
	Set the name of object using C++ style string. More...

void	setName (const char *name)
	Set the name of object using a C style string. More...

const std::string &	getName () const
	Get the name of object. More...

void	setDataVariance (DataVariance dv)
	Set the data variance of this object. More...

DataVariance	getDataVariance () const
	Get the data variance of this object. More...

virtual void	computeDataVariance ()
	Compute the DataVariance based on an assessment of callback etc. More...

void	setUserDataContainer (osg::UserDataContainer *udc)
	set the UserDataContainer object. More...

template<class T >
void	setUserDataContainer (const ref_ptr< T > &udc)

osg::UserDataContainer *	getUserDataContainer ()
	get the UserDataContainer attached to this object. More...

const osg::UserDataContainer *	getUserDataContainer () const
	get the const UserDataContainer attached to this object. More...

osg::UserDataContainer *	getOrCreateUserDataContainer ()
	Convenience method that returns the UserDataContainer, and if one doesn't already exist creates and assigns a DefaultUserDataContainer to the Object and then return this new UserDataContainer. More...

virtual void	setUserData (Referenced *obj)
	Set user data, data must be subclassed from Referenced to allow automatic memory handling. More...

template<class T >
void	setUserData (const ref_ptr< T > &ud)

virtual Referenced *	getUserData ()
	Get user data. More...

virtual const Referenced *	getUserData () const
	Get const user data. More...

template<typename T >
bool	getUserValue (const std::string &name, T &value) const
	Convenience method that casts the named UserObject to osg::TemplateValueObject<T> and gets the value. More...

template<typename T >
void	setUserValue (const std::string &name, const T &value)
	Convenience method that creates the osg::TemplateValueObject<T> to store the specified value and adds it as a named UserObject. More...

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const
	provide implementation of osg::Object::getUserValue(..) template

Public Member Functions inherited from osg::Referenced
	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const
	Get whether a mutex is used to ensure ref() and unref() are thread safe. More...

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const
	Get the mutex used to ensure thread safety of ref()/unref(). More...

OpenThreads::Mutex *	getRefMutex () const

int	ref () const
	Increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

int	unref () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	unref_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	referenceCount () const
	Return the number of pointers currently referencing this object. More...

ObserverSet *	getObserverSet () const
	Get the ObserverSet if one is attached, otherwise return NULL. More...

ObserverSet *	getOrCreateObserverSet () const
	Get the ObserverSet if one is attached, otherwise create an ObserverSet, attach it, then return this newly created ObserverSet. More...

void	addObserver (Observer *observer) const
	Add a Observer that is observing this object, notify the Observer when this object gets deleted. More...

void	removeObserver (Observer *observer) const
	Remove Observer that is observing this object. More...

Friends
class	Surface

class	EdgeLine

class	Side

class	Spoke

Additional Inherited Members
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
	Get the optional global Referenced mutex, this can be shared between all osg::Referenced. More...

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
	Set whether reference counting should use a mutex for thread safe reference counting. More...

static bool	getThreadSafeReferenceCounting ()
	Get whether reference counting is active. More...

static void	setDeleteHandler (DeleteHandler *handler)
	Set a DeleteHandler to which deletion of all referenced counted objects will be delegated. More...

static DeleteHandler *	getDeleteHandler ()
	Get a DeleteHandler. More...

Protected Member Functions inherited from osg::Group
virtual void	childRemoved (unsigned int, unsigned int)

virtual void	childInserted (unsigned int)

Protected Member Functions inherited from osg::Node
virtual	~Node ()
	Node destructor. More...

void	addParent (osg::Group *parent)

void	removeParent (osg::Group *parent)

void	setNumChildrenRequiringUpdateTraversal (unsigned int num)

void	setNumChildrenRequiringEventTraversal (unsigned int num)

void	setNumChildrenWithCullingDisabled (unsigned int num)

void	setNumChildrenWithOccluderNodes (unsigned int num)

Protected Member Functions inherited from osg::Object
virtual	~Object ()
	Object destructor. More...

Protected Member Functions inherited from osg::Referenced
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes inherited from osg::Geode
osg::BoundingBox	_bbox

Protected Attributes inherited from osg::Group
NodeList	_children

Protected Attributes inherited from osg::Node
BoundingSphere	_initialBound

ref_ptr< ComputeBoundingSphereCallback >	_computeBoundCallback

BoundingSphere	_boundingSphere

bool	_boundingSphereComputed

ParentList	_parents

ref_ptr< Callback >	_updateCallback

unsigned int	_numChildrenRequiringUpdateTraversal

ref_ptr< Callback >	_eventCallback

unsigned int	_numChildrenRequiringEventTraversal

ref_ptr< Callback >	_cullCallback

bool	_cullingActive

unsigned int	_numChildrenWithCullingDisabled

unsigned int	_numChildrenWithOccluderNodes

NodeMask	_nodeMask

ref_ptr< StateSet >	_stateset

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

OpenThreads::Mutex *	_refMutex

int	_refCount

void *	_observerSet

Detailed Description

A SphereSegment is a Geode to represent an portion of a sphere (potentially the whole sphere).

The sphere is aligned such that the line through the sphere's poles is parallel to the z axis. The sphere segment may be rendered various components switched on or off:

- The specified area of the sphere surface.

- An edge line around the boundary of the specified area
  of the sphere surface.

- Four <i>spokes</i>, where a spoke is the line from
  the sphere's centre to a corner of the rendered area.

- Four planar areas, where the planar areas are formed
  between the spokes.

Caveats:

- It's worth noting that the line through the sphere's poles is
  parallel to the z axis. This has implications when specifying the
  area to be rendered, and specifying areas where the centre of
  the rendered area <i>is</i> the Z axis may lead to unexpected
  geometry.

- It's possible to render the whole sphere by specifying elevation
  and azimuth ranges round the full 360 degrees. When doing
  so you may consider switching the planes, spokes, and edge lines
  off, to avoid rendering artefacts, e.g. the upper and lower
  planes will be coincident.

Member Typedef Documentation

◆ LineList

typedef std::vector< osg::ref_ptr<osg::Vec3Array> > osgSim::SphereSegment::LineList

A list of vertex arrays representing a list of lines.

Member Enumeration Documentation

◆ DrawMask

enum osgSim::SphereSegment::DrawMask

DrawMask represents a bit field, the values of which may be OR'ed together to specify which parts of the sphere segment should be drawn.

E.g.

sphereSegment->setDrawMask(SphereSegment::DrawMask(SphereSegment::SURFACE|SphereSegment::SPOKES));

Enumerator
SURFACE	Draw the specified area on the sphere's surface.
SPOKES	Draw the spokes from the sphere's centre to the surface's corners.
EDGELINE	Draw the line round the edge of the area on the sphere's surface.
SIDES	Draw the planes from the sphere's centre to the edge of the sphere's surface.
ALL	Draw every part of the sphere segment.

Constructor & Destructor Documentation

◆ SphereSegment() [1/3]

osgSim::SphereSegment::SphereSegment ( )

inline

Default constructor.

◆ SphereSegment() [2/3]

osgSim::SphereSegment::SphereSegment	(	const osg::Vec3 &	centre,
		float	radius,
		float	azMin,
		float	azMax,
		float	elevMin,
		float	elevMax,
		int	density
	)

inline

Construct by angle ranges.

Note that the azimuth 'zero' is the Y axis; specifying an azimuth range from azMin -osg::PI/2.0f to azMax osg::PI/2.0f will cover the 'top half' of the circle in the XY plane. The elev angles are 'out' of the 'zero' XY plane with +ve angles above the plane, and -ve angles below.

Parameters

centre	sphere centre
radius	radius of sphere
azMin	azimuth minimum
azMax	azimuth maximum
elevMin	elevation minimum
elevMax	elevation maximum
density	number of units to divide the azimuth and elevation ranges into

◆ SphereSegment() [3/3]

osgSim::SphereSegment::SphereSegment	(	const osg::Vec3 &	centre,
		float	radius,
		const osg::Vec3 &	vec,
		float	azRange,
		float	elevRange,
		int	density
	)

Construct by vector.

Parameters

centre	sphere centre
radius	radius of sphere
vec	vector pointing from sphere centre to centre point of rendered area on sphere surface
azRange	azimuth range in radians (with centre along vec)
elevRange	elevation range in radians (with centre along vec)
density	number of units to divide the azimuth and elevation ranges into

Member Function Documentation

◆ computeIntersection() [1/2]

LineList osgSim::SphereSegment::computeIntersection	(	const osg::Matrixd &	matrix,
		osg::Node *	subgraph
	)

Compute the interesection lines between subgraph and this sphere segment.

The matrix is the transform that takes the subgraph into the same coordiante frame as the sphere segment. The resulting intersections are in the coordinate frame of the sphere segment.

◆ computeIntersection() [2/2]

LineList osgSim::SphereSegment::computeIntersection	(	const osg::Matrixd &	matrix,
		osg::Drawable *	drawable
	)

Compute the interesection lines between specified drawable and this sphere segment.

The matrix is the transform that takes the subgraph into the same coordiante frame as the sphere segment. The resulting intersections are in the coordinate frame of the sphere segment.

◆ computeIntersectionSubgraph() [1/2]

osg::Node* osgSim::SphereSegment::computeIntersectionSubgraph	(	const osg::Matrixd &	matrix,
		osg::Node *	subgraph
	)

Compute the interesection lines between subgraph and this sphere segment.

The matrix is the transform that takes the subgraph into the same coordiante frame as the sphere segment. The resulting intersections are in the coordinate frame of the sphere segment.

◆ computeIntersectionSubgraph() [2/2]

osg::Node* osgSim::SphereSegment::computeIntersectionSubgraph	(	const osg::Matrixd &	matrix,
		osg::Drawable *	drawable
	)

Compute the interesection lines between specified drawable and this sphere segment.

The matrix is the transform that takes the subgraph into the same coordiante frame as the sphere segment. The resulting intersections are in the coordinate frame of the sphere segment.

◆ getArea() [1/2]

void osgSim::SphereSegment::getArea	(	osg::Vec3 &	vec,
		float &	azRange,
		float &	elevRange
	)		const

Get the area of the sphere segment.

Parameters

vec	vector pointing from sphere centre to centre point of rendered area on sphere surface (normalized)
azRange	azimuth range in radians (with centre along vec)
elevRange	elevation range in radians (with centre along vec)

◆ getArea() [2/2]

void osgSim::SphereSegment::getArea	(	float &	azMin,
		float &	azMax,
		float &	elevMin,
		float &	elevMax
	)		const

Get the area of the sphere segment.

Parameters

azMin	azimuth minimum
azMax	azimuth maximum
elevMin	elevation minimum
elevMax	elevation maximum

◆ getEdgeLineColor()

const osg::Vec4& osgSim::SphereSegment::getEdgeLineColor ( ) const

inline

Get the color of the edge line.

◆ getSideColor()

const osg::Vec4& osgSim::SphereSegment::getSideColor ( ) const

inline

Get the color of the planes.

◆ getSpokeColor()

const osg::Vec4& osgSim::SphereSegment::getSpokeColor ( ) const

inline

Get the color of the spokes.

◆ getSurfaceColor()

const osg::Vec4& osgSim::SphereSegment::getSurfaceColor ( ) const

inline

Get the color of the surface.

◆ setAllColors()

void osgSim::SphereSegment::setAllColors ( const osg::Vec4 & c )

Set color of all components.

◆ setArea() [1/2]

void osgSim::SphereSegment::setArea	(	const osg::Vec3 &	vec,
		float	azRange,
		float	elevRange
	)

Set the area of the sphere segment.

Parameters

vec	vector pointing from sphere centre to centre point of rendered area on sphere surface
azRange	azimuth range in radians (with centre along vec)
elevRange	elevation range in radians (with centre along vec)

◆ setArea() [2/2]

void osgSim::SphereSegment::setArea	(	float	azMin,
		float	azMax,
		float	elevMin,
		float	elevMax
	)

Set the area of the sphere segment.

Parameters

azMin	azimuth minimum
azMax	azimuth maximum
elevMin	elevation minimum
elevMax	elevation maximum

◆ setDrawMask()

void osgSim::SphereSegment::setDrawMask ( int dm )

Specify the DrawMask.

Parameters

dm	Bitmask specifying which parts of the sphere segment should be drawn.

See also: DrawMask

◆ setEdgeLineColor()

void osgSim::SphereSegment::setEdgeLineColor ( const osg::Vec4 & c )

Set the color of the edge line.

◆ setSideColor()

void osgSim::SphereSegment::setSideColor ( const osg::Vec4 & c )

Set the color of the planes.

◆ setSpokeColor()

void osgSim::SphereSegment::setSpokeColor ( const osg::Vec4 & c )

Set the color of the spokes.

◆ setSurfaceColor()

void osgSim::SphereSegment::setSurfaceColor ( const osg::Vec4 & c )

Set the color of the surface.

The documentation for this class was generated from the following file:

/home/karlu20/private/installs/OpenSceneGraph/include/osgSim/SphereSegment

Public Types

Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ LineList

Member Enumeration Documentation

◆ DrawMask

Constructor & Destructor Documentation

◆ SphereSegment() [1/3]

◆ SphereSegment() [2/3]

◆ SphereSegment() [3/3]

Member Function Documentation

◆ computeIntersection() [1/2]

◆ computeIntersection() [2/2]

◆ computeIntersectionSubgraph() [1/2]

◆ computeIntersectionSubgraph() [2/2]

◆ getArea() [1/2]

◆ getArea() [2/2]

◆ getEdgeLineColor()

◆ getSideColor()

◆ getSpokeColor()

◆ getSurfaceColor()

◆ setAllColors()

◆ setArea() [1/2]

◆ setArea() [2/2]

◆ setDrawMask()

◆ setEdgeLineColor()

◆ setSideColor()

◆ setSpokeColor()

◆ setSurfaceColor()
