Pure virtual base class for fonts. More...

Inheritance diagram for osgText::Font:

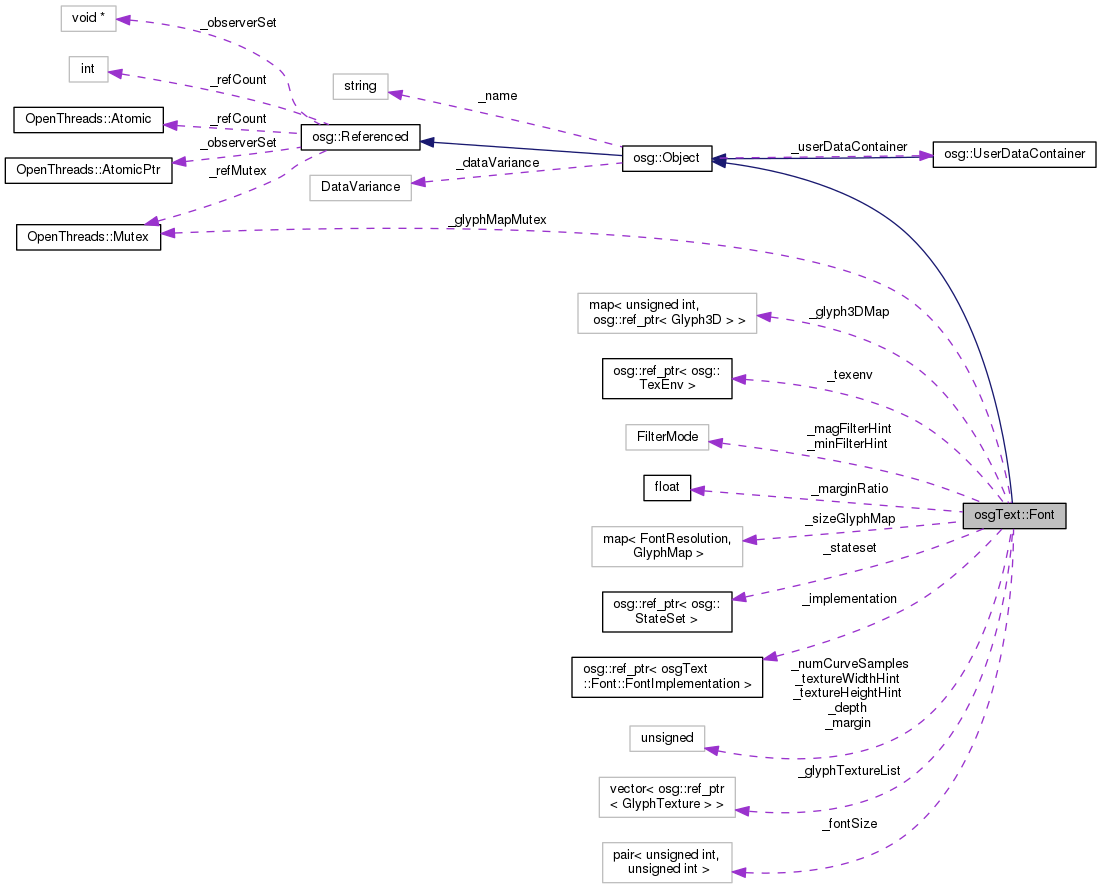

Collaboration diagram for osgText::Font:

[legend]

Classes
class	FontImplementation

Public Types
typedef OpenThreads::Mutex	FontMutex

typedef std::vector< osg::ref_ptr< GlyphTexture > >	GlyphTextureList

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Member Functions
	Font (FontImplementation *implementation=0)

virtual osg::Object *	cloneType () const
	Clone the type of an object, with Object* return type. More...

virtual osg::Object *	clone (const osg::CopyOp &) const
	Clone an object, with Object* return type. More...

virtual bool	isSameKindAs (const osg::Object *obj) const

virtual const char *	className () const
	return the name of the object's class type. More...

virtual const char *	libraryName () const
	return the name of the object's library. More...

virtual std::string	getFileName () const

void	setTexEnv (osg::TexEnv *texenv)

osg::TexEnv *	getTexEnv ()

const osg::TexEnv *	getTexEnv () const

void	setStateSet (osg::StateSet *stateset)

osg::StateSet *	getStateSet ()

const osg::StateSet *	getStateSet () const

virtual osg::Vec2	getKerning (unsigned int leftcharcode, unsigned int rightcharcode, KerningType kerningType)
	Get a kerning (adjustment of spacing of two adjacent character) for specified charcodes, w.r.t the current font size hint. More...

virtual Glyph *	getGlyph (const FontResolution &fontSize, unsigned int charcode)
	Get a Glyph for specified charcode, and the font size nearest to the current font size hint. More...

virtual Glyph3D *	getGlyph3D (unsigned int charcode)
	Get a Glyph3D for specified charcode. More...

virtual bool	hasVertical () const
	Return true if this font provides vertical alignments and spacing or glyphs. More...

virtual bool	getVerticalSize (float &ascender, float &descender) const
	Get the ascender and descender sizes of the font where supported by the FontImplementation, return true on success, return false when not supported. More...

void	setGlyphImageMargin (unsigned int margin)
	Set the margin around each glyph, to ensure that texture filtering doesn't bleed adjacent glyph's into each other. More...

unsigned int	getGlyphImageMargin () const

void	setGlyphImageMarginRatio (float margin)
	Set the margin ratio around each glyph, relative to the glyph's size. More...

float	getGlyphImageMarginRatio () const

void	setTextureSizeHint (unsigned int width, unsigned int height)
	Set the size of texture to create to store the glyph images when rendering. More...

unsigned int	getTextureWidthHint () const

unsigned int	getTextureHeightHint () const

void	setMinFilterHint (osg::Texture::FilterMode mode)
	Set the minification texture filter to use when creating the texture to store the glyph images when rendering. More...

osg::Texture::FilterMode	getMinFilterHint () const

void	setMagFilterHint (osg::Texture::FilterMode mode)
	Set the magnification texture filter to use when creating the texture to store the glyph images when rendering. More...

osg::Texture::FilterMode	getMagFilterHint () const

unsigned int	getFontDepth () const

void	setNumberCurveSamples (unsigned int numSamples)

unsigned int	getNumberCurveSamples () const

void	setImplementation (FontImplementation *implementation)

FontImplementation *	getImplementation ()

const FontImplementation *	getImplementation () const

virtual void	setThreadSafeRefUnref (bool threadSafe)
	Set whether to use a mutex to ensure ref() and unref() are thread safe. More...

virtual void	resizeGLObjectBuffers (unsigned int maxSize)
	Resize any per context GLObject buffers to specified size. More...

virtual void	releaseGLObjects (osg::State *state=0) const
	If State is non-zero, this function releases OpenGL objects for the specified graphics context. More...

GlyphTextureList &	getGlyphTextureList ()

Public Member Functions inherited from osg::Object
	Object ()
	Construct an object. More...

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor, optional CopyOp object can be used to control shallow vs deep copying of dynamic data. More...

std::string	getCompoundClassName () const
	return the compound class name that combines the library name and class name. More...

virtual Node *	asNode ()
	Convert 'this' into a Node pointer if Object is a Node, otherwise return 0. More...

virtual const Node *	asNode () const
	convert 'const this' into a const Node pointer if Object is a Node, otherwise return 0. More...

virtual NodeVisitor *	asNodeVisitor ()
	Convert 'this' into a NodeVisitor pointer if Object is a NodeVisitor, otherwise return 0. More...

virtual const NodeVisitor *	asNodeVisitor () const
	convert 'const this' into a const NodeVisitor pointer if Object is a NodeVisitor, otherwise return 0. More...

virtual StateAttribute *	asStateAttribute ()
	Convert 'this' into a StateAttribute pointer if Object is a StateAttribute, otherwise return 0. More...

virtual const StateAttribute *	asStateAttribute () const
	convert 'const this' into a const StateAttribute pointer if Object is a StateAttribute, otherwise return 0. More...

virtual Uniform *	asUniform ()
	Convert 'this' into a Uniform pointer if Object is a Uniform, otherwise return 0. More...

virtual const Uniform *	asUniform () const
	convert 'const this' into a const Uniform pointer if Object is a Uniform, otherwise return 0. More...

virtual void	setName (const std::string &name)
	Set the name of object using C++ style string. More...

void	setName (const char *name)
	Set the name of object using a C style string. More...

const std::string &	getName () const
	Get the name of object. More...

void	setDataVariance (DataVariance dv)
	Set the data variance of this object. More...

DataVariance	getDataVariance () const
	Get the data variance of this object. More...

virtual void	computeDataVariance ()
	Compute the DataVariance based on an assessment of callback etc. More...

void	setUserDataContainer (osg::UserDataContainer *udc)
	set the UserDataContainer object. More...

template<class T >
void	setUserDataContainer (const ref_ptr< T > &udc)

osg::UserDataContainer *	getUserDataContainer ()
	get the UserDataContainer attached to this object. More...

const osg::UserDataContainer *	getUserDataContainer () const
	get the const UserDataContainer attached to this object. More...

osg::UserDataContainer *	getOrCreateUserDataContainer ()
	Convenience method that returns the UserDataContainer, and if one doesn't already exist creates and assigns a DefaultUserDataContainer to the Object and then return this new UserDataContainer. More...

virtual void	setUserData (Referenced *obj)
	Set user data, data must be subclassed from Referenced to allow automatic memory handling. More...

template<class T >
void	setUserData (const ref_ptr< T > &ud)

virtual Referenced *	getUserData ()
	Get user data. More...

virtual const Referenced *	getUserData () const
	Get const user data. More...

template<typename T >
bool	getUserValue (const std::string &name, T &value) const
	Convenience method that casts the named UserObject to osg::TemplateValueObject<T> and gets the value. More...

template<typename T >
void	setUserValue (const std::string &name, const T &value)
	Convenience method that creates the osg::TemplateValueObject<T> to store the specified value and adds it as a named UserObject. More...

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const
	provide implementation of osg::Object::getUserValue(..) template

Public Member Functions inherited from osg::Referenced
	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const
	Get whether a mutex is used to ensure ref() and unref() are thread safe. More...

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const
	Get the mutex used to ensure thread safety of ref()/unref(). More...

OpenThreads::Mutex *	getRefMutex () const

int	ref () const
	Increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

int	unref () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	unref_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	referenceCount () const
	Return the number of pointers currently referencing this object. More...

ObserverSet *	getObserverSet () const
	Get the ObserverSet if one is attached, otherwise return NULL. More...

ObserverSet *	getOrCreateObserverSet () const
	Get the ObserverSet if one is attached, otherwise create an ObserverSet, attach it, then return this newly created ObserverSet. More...

void	addObserver (Observer *observer) const
	Add a Observer that is observing this object, notify the Observer when this object gets deleted. More...

void	removeObserver (Observer *observer) const
	Remove Observer that is observing this object. More...

Static Public Member Functions
static osg::ref_ptr< Font > &	getDefaultFont ()

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
	Get the optional global Referenced mutex, this can be shared between all osg::Referenced. More...

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
	Set whether reference counting should use a mutex for thread safe reference counting. More...

static bool	getThreadSafeReferenceCounting ()
	Get whether reference counting is active. More...

static void	setDeleteHandler (DeleteHandler *handler)
	Set a DeleteHandler to which deletion of all referenced counted objects will be delegated. More...

static DeleteHandler *	getDeleteHandler ()
	Get a DeleteHandler. More...

Protected Types
typedef std::vector< osg::ref_ptr< osg::StateSet > >	StateSetList

typedef std::map< unsigned int, osg::ref_ptr< Glyph > >	GlyphMap

typedef std::map< unsigned int, osg::ref_ptr< Glyph3D > >	Glyph3DMap

typedef std::map< FontResolution, GlyphMap >	FontSizeGlyphMap

Protected Member Functions
void	addGlyph (const FontResolution &fontRes, unsigned int charcode, Glyph *glyph)

Protected Member Functions inherited from osg::Object
virtual	~Object ()
	Object destructor. More...

Protected Member Functions inherited from osg::Referenced
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Attributes
OpenThreads::Mutex	_glyphMapMutex

osg::ref_ptr< osg::TexEnv >	_texenv

osg::ref_ptr< osg::StateSet >	_stateset

FontSizeGlyphMap	_sizeGlyphMap

GlyphTextureList	_glyphTextureList

Glyph3DMap	_glyph3DMap

FontResolution	_fontSize

unsigned int	_margin

float	_marginRatio

unsigned int	_textureWidthHint

unsigned int	_textureHeightHint

osg::Texture::FilterMode	_minFilterHint

osg::Texture::FilterMode	_magFilterHint

unsigned int	_depth

unsigned int	_numCurveSamples

osg::ref_ptr< FontImplementation >	_implementation

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

OpenThreads::Mutex *	_refMutex

int	_refCount

void *	_observerSet

Friends
class	FontImplementation

Detailed Description

Pure virtual base class for fonts.

Concrete implementation are the DefaultFont found in src/osgText/DefaultFont.cpp and FreeTypeFont found in src/osgPlugins/freetype/FreeTypeFont.cpp

Member Function Documentation

◆ className()

virtual const char* osgText::Font::className ( ) const

inlinevirtual

return the name of the object's class type.

Must be defined by derived classes.

Implements osg::Object.

◆ clone()

virtual osg::Object* osgText::Font::clone ( const osg::CopyOp & ) const

inlinevirtual

Clone an object, with Object* return type.

Must be defined by derived classes.

Implements osg::Object.

◆ cloneType()

virtual osg::Object* osgText::Font::cloneType ( ) const

inlinevirtual

Clone the type of an object, with Object* return type.

Must be defined by derived classes.

Implements osg::Object.

◆ getGlyph()

virtual Glyph* osgText::Font::getGlyph	(	const FontResolution &	fontSize,
		unsigned int	charcode
	)

virtual

Get a Glyph for specified charcode, and the font size nearest to the current font size hint.

◆ getGlyph3D()

virtual Glyph3D* osgText::Font::getGlyph3D ( unsigned int charcode )

virtual

Get a Glyph3D for specified charcode.

◆ getKerning()

virtual osg::Vec2 osgText::Font::getKerning	(	unsigned int	leftcharcode,
		unsigned int	rightcharcode,
		KerningType	kerningType
	)

virtual

Get a kerning (adjustment of spacing of two adjacent character) for specified charcodes, w.r.t the current font size hint.

◆ getVerticalSize()

virtual bool osgText::Font::getVerticalSize	(	float &	ascender,
		float &	descender
	)		const

inlinevirtual

Get the ascender and descender sizes of the font where supported by the FontImplementation, return true on success, return false when not supported.

◆ hasVertical()

virtual bool osgText::Font::hasVertical ( ) const

virtual

Return true if this font provides vertical alignments and spacing or glyphs.

◆ libraryName()

virtual const char* osgText::Font::libraryName ( ) const

inlinevirtual

return the name of the object's library.

Must be defined by derived classes. The OpenSceneGraph convention is that the namespace of a library is the same as the library name.

Implements osg::Object.

◆ releaseGLObjects()

virtual void osgText::Font::releaseGLObjects ( osg::State * state = 0 ) const

virtual

If State is non-zero, this function releases OpenGL objects for the specified graphics context.

Otherwise, releases OpenGL objexts for all graphics contexts.

Reimplemented from osg::Object.

◆ resizeGLObjectBuffers()

virtual void osgText::Font::resizeGLObjectBuffers ( unsigned int maxSize )

virtual

Resize any per context GLObject buffers to specified size.

Reimplemented from osg::Object.

◆ setGlyphImageMargin()

void osgText::Font::setGlyphImageMargin ( unsigned int margin )

Set the margin around each glyph, to ensure that texture filtering doesn't bleed adjacent glyph's into each other.

Default margin is 1 texels.

◆ setGlyphImageMarginRatio()

void osgText::Font::setGlyphImageMarginRatio ( float margin )

Set the margin ratio around each glyph, relative to the glyph's size.

to ensure that texture filtering doesn't bleed adjacent glyph's into each other. Default margin is 0.05.

◆ setMagFilterHint()

void osgText::Font::setMagFilterHint ( osg::Texture::FilterMode mode )

Set the magnification texture filter to use when creating the texture to store the glyph images when rendering.

Note, this doesn't affect already created Texture Glhph's.

◆ setMinFilterHint()

void osgText::Font::setMinFilterHint ( osg::Texture::FilterMode mode )

Set the minification texture filter to use when creating the texture to store the glyph images when rendering.

Note, this doesn't affect already created Texture Glhph's.

◆ setTextureSizeHint()

void osgText::Font::setTextureSizeHint	(	unsigned int	width,
		unsigned int	height
	)

Set the size of texture to create to store the glyph images when rendering.

Note, this doesn't affect already created Texture Glhph's.

◆ setThreadSafeRefUnref()

virtual void osgText::Font::setThreadSafeRefUnref ( bool threadSafe )

virtual

Set whether to use a mutex to ensure ref() and unref() are thread safe.

Reimplemented from osg::Object.

The documentation for this class was generated from the following file:

/home/karlu20/private/installs/OpenSceneGraph/include/osgText/Font

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Function Documentation

◆ className()

◆ clone()

◆ cloneType()

◆ getGlyph()

◆ getGlyph3D()

◆ getKerning()

◆ getVerticalSize()

◆ hasVertical()

◆ libraryName()

◆ releaseGLObjects()

◆ resizeGLObjectBuffers()

◆ setGlyphImageMargin()

◆ setGlyphImageMarginRatio()

◆ setMagFilterHint()

◆ setMinFilterHint()

◆ setTextureSizeHint()

◆ setThreadSafeRefUnref()
