AudioFileReader uses the Audio File Library ( http://www.68k.org/~michael/audiofile/ ) to read sound data. More...
#include <H3D/AudioFileReader.h>

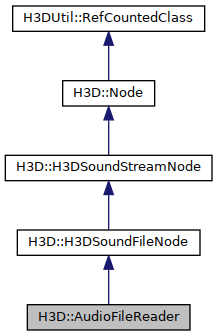

Inheritance diagram for H3D::AudioFileReader:
Public Member Functions | |
| AudioFileReader () | |
| Constructor. | |
| ~AudioFileReader () | |
| Destructor. | |
| unsigned int | load (const string &_url) |
| Load a sound file from the given url that will be used to generate PCM data. | |
| virtual void | reset () |
| Reset the stream to the beginning of the sound stream. | |
| virtual unsigned int | totalDataSize () |
| Returns the total size of the PCM data of the current stream. | |
| virtual unsigned int | nrChannels () |
| Returns the number of channels per second for the current PCM data stream. | |
| virtual unsigned int | samplesPerSecond () |
| Returns the number of samples per second for the current PCM data stream. | |
| virtual unsigned int | bitsPerSample () |
| Returns the number of bits for a sample. | |
| virtual H3DTime | duration () |
| The duration in seconds for the the PCM data. | |
| virtual unsigned int | read (char *buffer, unsigned int size) |
| Read PCM data from the stream into the buffer. More... | |
 Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual void | render () |
| the render() function is used for the depth-first rendering traversal of the scene-graph. More... | |
| virtual void | traverseSG (TraverseInfo &ti) |
| traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More... | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and the Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
Static Public Member Functions | |
| static bool | supportsFileType (const string &url) |
| Returns true if the node supports the filetype of the file specified by url. | |
| Static Public Member Functions inherited from H3D::H3DSoundFileNode | |
| static H3DSoundFileNode * | getSupportedFileReader (const string &url) |
| Given an url to a file, it returns an instance of a H3DSoundFileNode class that can handle that file type. More... | |
| static void | registerFileReader (const string &name, CreateNodeFunc create, SupportsFileFunc supports) |
| Register a file reader that can then be returned by getSupportedFileReader(). More... | |
| static void | registerFileReader (const FileReaderRegistration &fr) |
| Register a file reader that can then be returned by getSupportedFileReader(). | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| static FileReaderRegistration | reader_registration |
| Register this node to the H3DSoundFileNodes available. | |
Additional Inherited Members | |
| Public Types inherited from H3D::H3DSoundFileNode | |
| typedef bool(* | SupportsFileFunc) (const string &url) |
| Function ptr type for | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
Detailed Description
AudioFileReader uses the Audio File Library ( http://www.68k.org/~michael/audiofile/ ) to read sound data.
It supports AIFF/AIFF-C, WAVE, NeXT/Sun .snd/.au, Berkeley/IRCAM/CARL Sound File, Audio Visual Research, Amiga IFF/8SVX, and NIST SPHERE. Supported compression formats are currently G.711 mu-law and A-law and IMA and MS ADPCM.
Member Function Documentation
◆ read()
|
virtual |
Read PCM data from the stream into the buffer.
- Parameters
-
buffer A buffer to write data into. size The number of bytes of data to read.
- Returns
- The number of bytes written to the buffer.
Implements H3D::H3DSoundStreamNode.
References nrChannels().
The documentation for this class was generated from the following files:
